2012 FORD ESCAPE HYBRID seat adjustment

WARNING:The adjustable head restraint is a safety device.
Whenever possible it should be installed and properly adjusted
when the seat is occupied.
To remove the adjustable head restraint, do the following:
1. Pull up the head restraint until it
reaches the highest adjustment
position.
2. Simultaneously press and hold
both the adjust/release button and
the unlock/remove button, then pull
up on the head restraint.
To reinstall the adjustable head restraint, do the following:
1. Insert the two stems into the
guide sleeve collars.
2. Push the head restraint down
until it locks.
Seating and Safety Restraints
119
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

WARNING:The adjustable head restraint is a safety device.
Whenever possible it should be installed and properly adjusted
when the seat is occupied.
To remove the adjustable head restraint, do the following:
1. Pull up the head restraint until it
reaches the highest adjustment
position.
2. Press and hold the adjust/remove
button, then pull up on the head
restraint.
To reinstall the adjustable head restraint, do the following:
1. Insert the two stems into the
guide sleeve collars.
2. Push the head restraint down
until it locks.
Seating and Safety Restraints
125
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

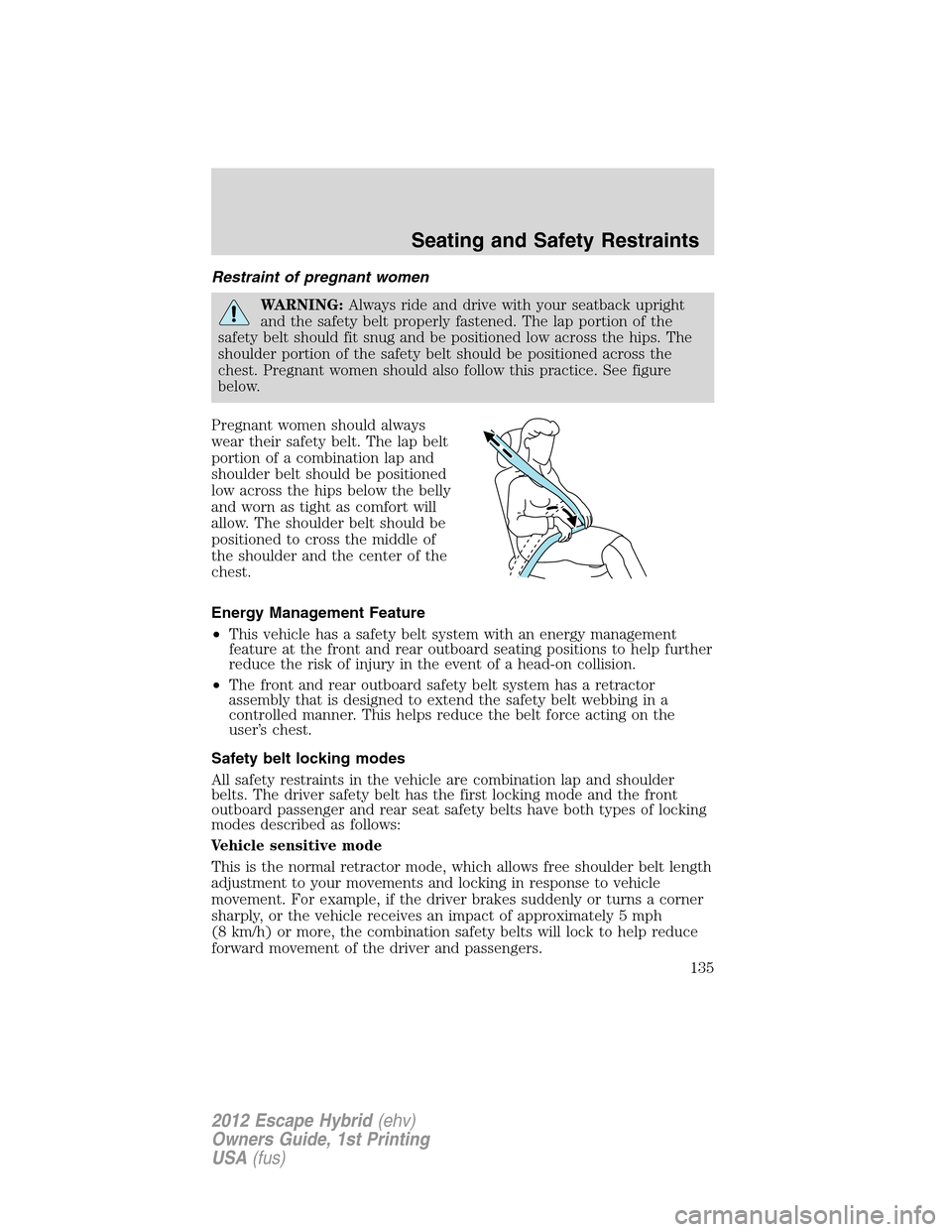

Restraint of pregnant women
WARNING:Always ride and drive with your seatback upright
and the safety belt properly fastened. The lap portion of the
safety belt should fit snug and be positioned low across the hips. The
shoulder portion of the safety belt should be positioned across the
chest. Pregnant women should also follow this practice. See figure
below.
Pregnant women should always
wear their safety belt. The lap belt
portion of a combination lap and
shoulder belt should be positioned
low across the hips below the belly
and worn as tight as comfort will
allow. The shoulder belt should be
positioned to cross the middle of
the shoulder and the center of the
chest.
Energy Management Feature
•This vehicle has a safety belt system with an energy management
feature at the front and rear outboard seating positions to help further
reduce the risk of injury in the event of a head-on collision.
•The front and rear outboard safety belt system has a retractor
assembly that is designed to extend the safety belt webbing in a
controlled manner. This helps reduce the belt force acting on the
user’s chest.
Safety belt locking modes
All safety restraints in the vehicle are combination lap and shoulder
belts. The driver safety belt has the first locking mode and the front
outboard passenger and rear seat safety belts have both types of locking
modes described as follows:
Vehicle sensitive mode
This is the normal retractor mode, which allows free shoulder belt length
adjustment to your movements and locking in response to vehicle
movement. For example, if the driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of approximately 5 mph
(8 km/h) or more, the combination safety belts will lock to help reduce
forward movement of the driver and passengers.
Seating and Safety Restraints
135
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

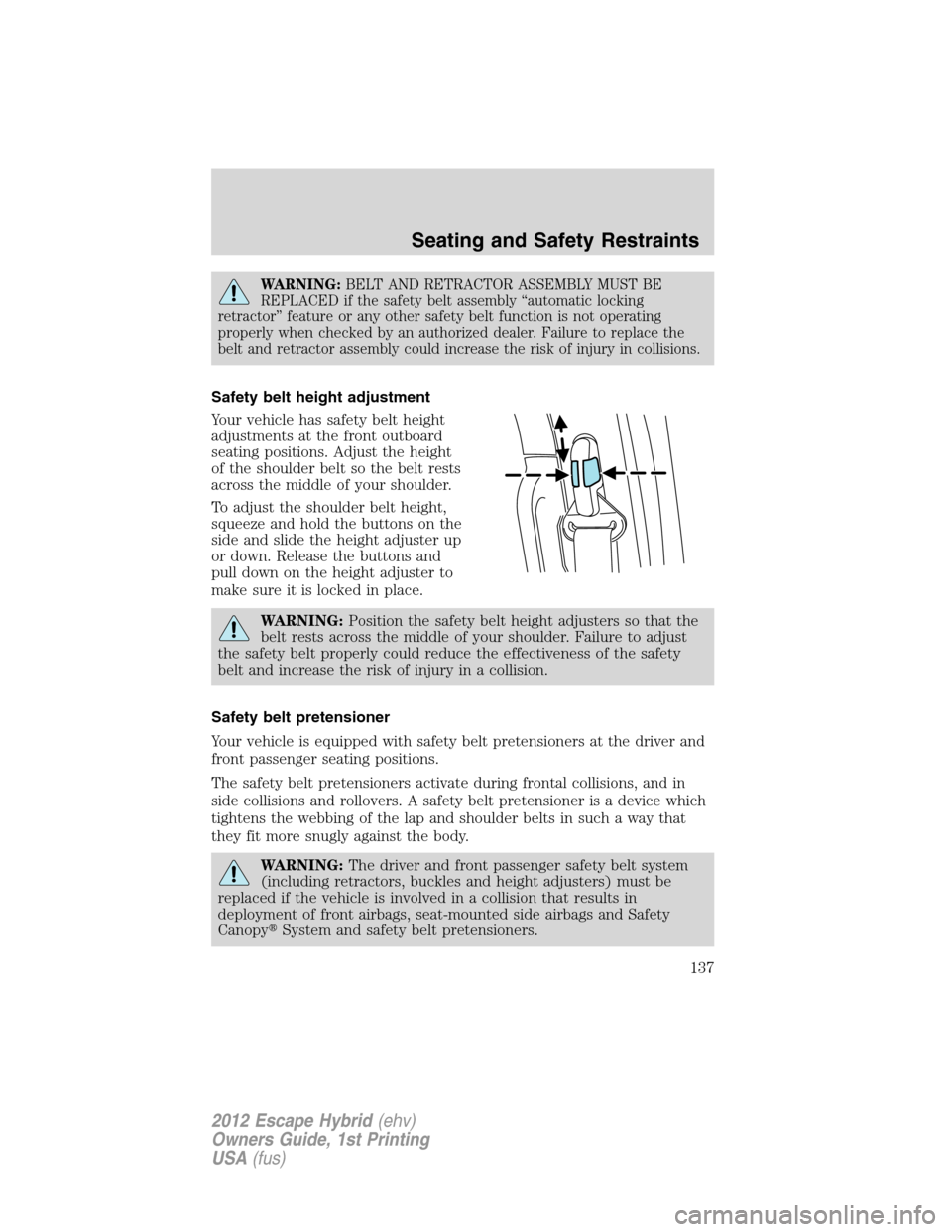

WARNING:BELT AND RETRACTOR ASSEMBLY MUST BE
REPLACED if the safety belt assembly “automatic locking
retractor” feature or any other safety belt function is not operating
properly when checked by an authorized dealer. Failure to replace the
belt and retractor assembly could increase the risk of injury in collisions.
Safety belt height adjustment
Your vehicle has safety belt height
adjustments at the front outboard
seating positions. Adjust the height
of the shoulder belt so the belt rests
across the middle of your shoulder.
To adjust the shoulder belt height,
squeeze and hold the buttons on the
side and slide the height adjuster up
or down. Release the buttons and
pull down on the height adjuster to
make sure it is locked in place.
WARNING:Position the safety belt height adjusters so that the
belt rests across the middle of your shoulder. Failure to adjust
the safety belt properly could reduce the effectiveness of the safety
belt and increase the risk of injury in a collision.
Safety belt pretensioner
Your vehicle is equipped with safety belt pretensioners at the driver and
front passenger seating positions.
The safety belt pretensioners activate during frontal collisions, and in
side collisions and rollovers. A safety belt pretensioner is a device which
tightens the webbing of the lap and shoulder belts in such a way that
they fit more snugly against the body.
WARNING:The driver and front passenger safety belt system
(including retractors, buckles and height adjusters) must be
replaced if the vehicle is involved in a collision that results in
deployment of front airbags, seat-mounted side airbags and Safety
CanopySystem and safety belt pretensioners.
Seating and Safety Restraints
137
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

in front seat ............................164
in rear seat ..............................164
LATCH .....................................167
recommendations ...................161
Child safety seats - booster
seats ...........................................173
Cleaning your vehicle
engine compartment ..............284
instrument panel ....................286
interior .....................................287
plastic parts ............................285
washing ....................................283
waxing .....................................283
wheels ......................................284
wiper blades ............................286
Climate control (see Air
conditioning or Heating) ............54
Clock ............................................36
Compass, electronic ....................73
calibration .................................74
set zone adjustment .................74
Console ........................................75
Controls
power seat ...............................121
steering column ........................83
Coolant
checking and adding ......301–303
refill capacities ................306, 324
specifications ..........................324
Cruise control
(see Speed control) ....................81
Customer Assistance ................246
Ford Extended Service
Plan ..................................332, 335
Getting assistance outside
the U.S. and Canada ..............279
Getting roadside assistance ...246
Getting the service you
need .........................................275Ordering additional owner’s
literature .................................281
Utilizing the
Mediation/Arbitration
Program ...................................279
D
Daytime running lamps
(see Lamps) ................................61
Dipstick
automatic transmission
fluid ..........................................319
engine oil .................................296
Driving under special
conditions ..................228, 240, 243
sand .........................................241
snow and ice ...........................243
through water .................242, 245
E
Electronic message center .........27
Emergencies, roadside
jump-starting ..........................270
running out of fuel .........269, 312
Emission control system ..........316
Engine ........................................327
cleaning ...................................284
idle speed control ...................299
lubrication specifications .......324
refill capacities ........................324
service points ..................293–294
Engine block heater .................214
Engine oil ..................................296
checking and adding ..............296
dipstick ....................................296
filter, specifications ........298, 323
recommendations ...................298
refill capacities ........................324
Index
354
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)
