Page 5 of 256
Downloaded from www.Manualslib.com manuals search engine Cruise Control
Principle of Operation................................109
Using Cruise Control...................................109
Driving Aids
Active City Stop...............................................111
Load Carrying
General Information.....................................113
Luggage Anchor Points...............................113
Rear Under Floor Storage...........................113
Cargo Nets........................................................114
Luggage Covers..............................................114
Dog Guard........................................................114
Towing
Towing a Trailer..............................................116
Tow Ball............................................................116
Towing Points.................................................119
Towing the Vehicle on Four Wheels.......119
Driving Hints
Running-In........................................................121
Cold Weather Precautions.........................121
Driving Through Water.................................121
Floor Mats.........................................................121
Roadside Emergencies
Hazard Warning Flashers...........................122
First Aid Kit......................................................122
Warning Triangle...........................................122
Jump-Starting the Vehicle.........................122
Fuses
Fuse Box Locations......................................124
Fuse Specification Chart............................125
Changing a Fuse............................................133
Maintenance
General Information....................................134
Opening and Closing the Bonnet...........134
Under Bonnet Overview - 1.0L EcoBoost(74kW/100PS)/1.0L EcoBoost(90kW/120PS).........................................136
Under Bonnet Overview - 1.4LDuratec-16V (66kW/90PS)/1.6LDuratec-16V Ti-VCT (77kW/105PS) -Sigma............................................................137
Under Bonnet Overview - 1.5LDuratorq-TDCi (55kW/75PS)/1.6LDuratorq-TDCi (70kW/95PS)(T3)...............................................................138
Engine Oil Dipstick - 1.0L EcoBoost(74kW/100PS)/1.0L EcoBoost(90kW/120PS).........................................139
Engine Oil Dipstick - 1.4L Duratec-16V(66kW/90PS)/1.6L Duratec-16VTi-VCT (77kW/105PS) - Sigma..........139
Engine Oil Dipstick - 1.5L Duratorq-TDCi(55kW/75PS)/1.6L Duratorq-TDCi(70kW/95PS) (T3).................................139
Engine Oil Check...........................................139
Engine Coolant Check................................140
Brake and Clutch Fluid Check...................141
Washer Fluid Check......................................141
Changing the 12V Battery...........................141
Checking the Wiper Blades.......................141
Changing the Wiper Blades.......................141
Removing a Headlamp...............................142
Changing a Bulb............................................143
Bulb Specification Chart...........................149
Technical Specifications...........................150
Vehicle Care
Cleaning the Exterior...................................153
Cleaning the Interior....................................153
Repairing Minor Paint Damage...............154
Cleaning the Alloy Wheels........................154
Wheels and Tyres
General Information....................................155
3Table of Contents
Page 126 of 256

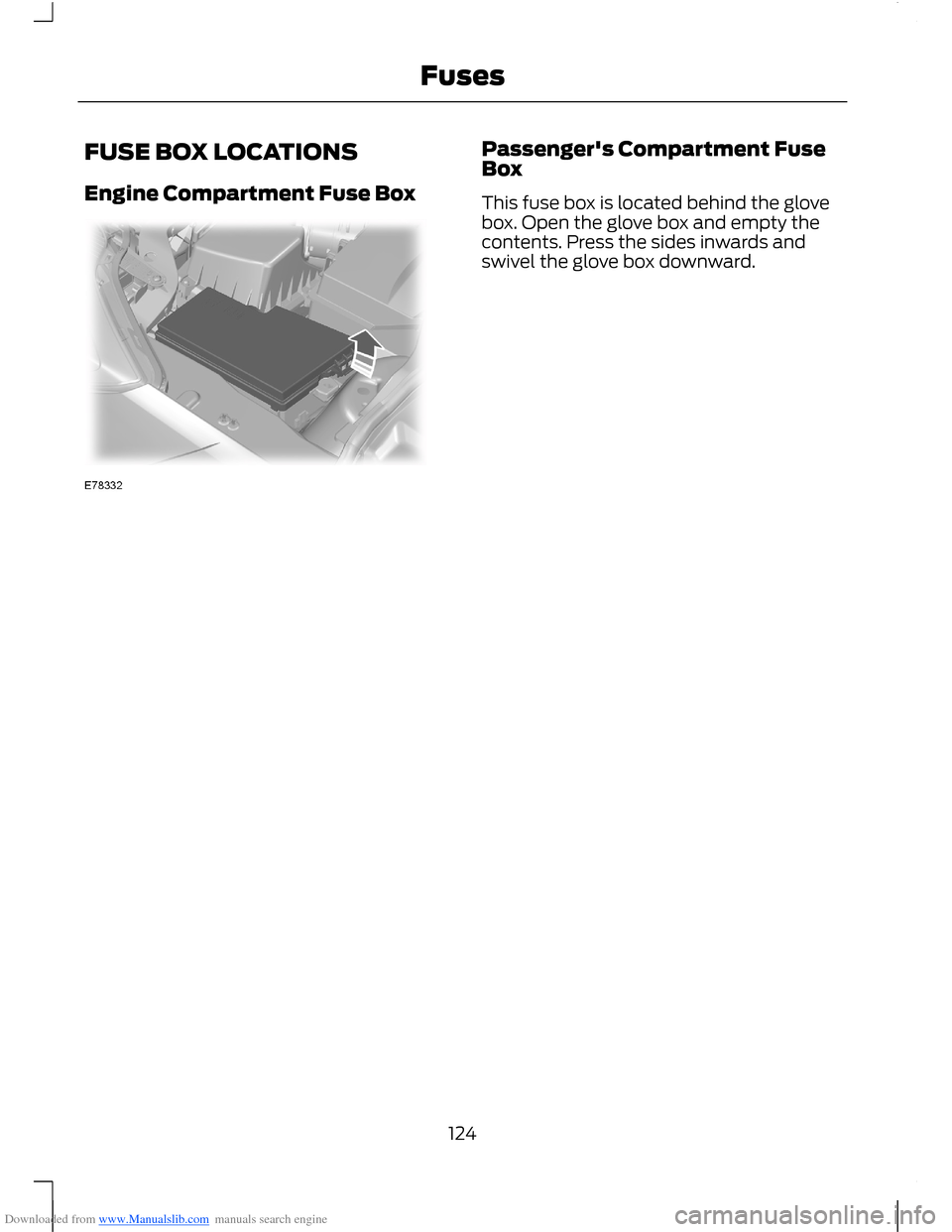

Downloaded from www.Manualslib.com manuals search engine FUSE BOX LOCATIONS
Engine Compartment Fuse Box
Passenger's Compartment FuseBox
This fuse box is located behind the glovebox. Open the glove box and empty thecontents. Press the sides inwards andswivel the glove box downward.
124Fuses
Page 127 of 256
Downloaded from www.Manualslib.com manuals search engine FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
Circuits protectedFuse ratingFuse
Anti-lock braking system module40 A1
Anti-lock braking system, electronic stability programmodule30 A1
Cooling system fan high speed60 A2
Cooling system fan40 A3
Cooling system fan low speed30 A3
Heater blower30 A4
Passenger's compartment fuse box supply (battery)60 A5
125Fuses
Page 128 of 256
Downloaded from www.Manualslib.com manuals search engine Circuits protectedFuse ratingFuse
Body control module30 A6
Passenger's compartment fuse box supply (ignition)60 A7
Glow plugs60 A8
DPS6 module50 A8
Heated windscreen40 A9
Heated windscreen40 A10
Starter relay30 A11
Main beam left-hand relay10 A12
Main beam right-hand relay10 A13
Run on pump15 A14
Ignition coil20 A15
Powertrain control module, high and low cooling fan15 A16
Heated oxygen sensors (petrol engines)15 A17
Power supply module (diesel engines)20 A17
Not used-18
Air condition controller7.5A19
Not used-20
Not used-21
Lighting control battery supply15 A22
Front fog lamps15 A23
Direction indicators15 A24
Exterior lighting left-hand side15 A25
Exterior lighting right-hand side15 A26
Powertrain control module7.5 A27
Anti-lock braking system, electronic stability program20 A28
Air conditioning clutch10 A29
Not used-30
126Fuses
Page 129 of 256
Downloaded from www.Manualslib.com manuals search engine Circuits protectedFuse ratingFuse
Not used-31
Horn, battery saver, keyless vehicle module20 A32
Heated rear window20 A33
Fuel pump relay, diesel fuel heater20 A34
Cat1 alarm system15 A35
Automatic transmission controller7.5A36
Front door module left-hand side25 A37
Front door module right-hand side25 A38
Rear door module left-hand side25 A39
Rear door module right-hand side25 A40
Circuits switchedRelay
Cooling system fanR1
Not usedR2
Powertrain control moduleR3
High beamR4
Not usedR5
Not usedR6
Engine cooling fanR7
StarterR8
Air conditioning clutchR9
Front fog lampsR10
Fuel pump, diesel fuel heaterR11
Reversing lampR12
Heater blowerR13
127Fuses
Page 130 of 256

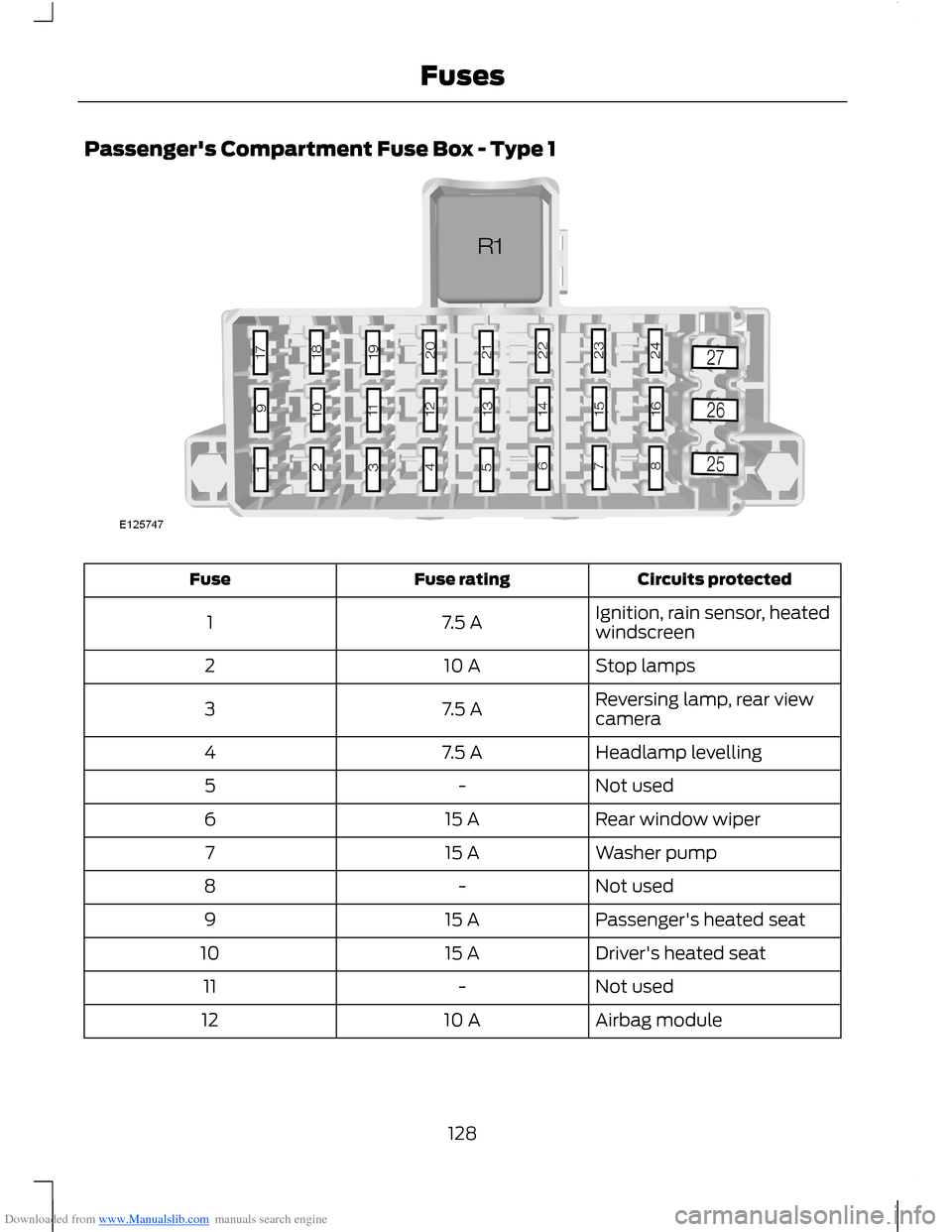

Downloaded from www.Manualslib.com manuals search engine Passenger's Compartment Fuse Box - Type 1
Circuits protectedFuse ratingFuse
Ignition, rain sensor, heatedwindscreen7.5 A1
Stop lamps10 A2
Reversing lamp, rear viewcamera7.5 A3
Headlamp levelling7.5 A4
Not used-5
Rear window wiper15 A6
Washer pump15 A7
Not used-8
Passenger's heated seat15 A9
Driver's heated seat15 A10
Not used-11
Airbag module10 A12
128Fuses
Page 131 of 256
Downloaded from www.Manualslib.com manuals search engine Circuits protectedFuse ratingFuse
Ignition, electric powerassisted steering, instrumentcluster, passive anti-theftsystem, anti-lock brakingsystem
10 A13
Powertrain control module,transmission selector lever,fuel pump7.5 A14
Audio system, instrumentcluster7.5 A15
Heated windscreen7.5 A16
Not used-17
Not used-18
Data link connector15 A19
Multi function display, clock,internal scanner, heatingvents, air conditioning panel20 A20
Audio system, navigation,bluetooth15 A21
Instrument cluster7.5 A22
Trailer module7.5 A23
Sync module antenna7.5 A24
Not used-25
Front wiper, left-hand side30 A26
Front wiper, right-hand side30 A27
Circuits switchedRelay
IgnitionR1
129Fuses
Page 132 of 256
Downloaded from www.Manualslib.com manuals search engine Passenger's Compartment Fuse Box - Type 2
Circuits protectedFuse ratingFuse
Ignition, rain sensor, heatedwindscreen, dome lamp,interior mirror7.5 A1
Stop lamps10 A2
Reversing lamp7.5 A3
Headlamp levelling7.5 A4
Not used-5
130Fuses
