2012 FORD B MAX display

Downloaded from www.Manualslib.com manuals search engine You CanWhen You Select
Turns your vehicle's microphone off. To turn the micro-phone on, press the Mic off button again.Mic. off
Switch a call from an active hands-free environment toyour mobile phone for a more private conversation.Privacy
When selected,Privacy will be shown in the display.
Put an active call on hold.HoldWhen selected,Hold will be shown in the display.
Enter numbers, for example numbers for passwords usingthe system keypad.Dial a number
Join two separate calls. (SYNC supports a maximum ofthree callers on a multi-party or conference call.)Join Calls
1. Press More.2. Access the desired contact through SYNC or use voicecommands to place the second call. Once actively in thesecond call, press the More button.3. Scroll until Join Calls appears and press OK.
Access your phonebook contacts.Phonebook1. Press More.2. Scroll until Phonebook appears and press OK.3. Scroll through your phonebook contacts.2. Press OK again when the desired selection appears inthe display.3. Press the OK or Dial button to call the selection.
Access your call history log.Call History1. Press More.2. Scroll until Call history appears and press OK.3. Scroll through your call history options (incoming,outgoing or missed).4. Press OK when the desired selection appears in thedisplay.5. Press the OK or Dial button to call the selection.
Accessing Features through theMobile Phone Menu
You can access your call history,phonebook, sent text messages as well asaccess mobile phone and system settings.You can also access advanced featuressuch as emergency assistance.
1.Press the PHONE button to enter themobile phone menu.
2.Select one of the options available.
204SYNC

Downloaded from www.Manualslib.com manuals search engine Text Messaging
Note:This is a mobile phone dependentfeature.
SYNC allows you to receive, send,download and delete text messages. Thesystem can also read incoming textmessages to you so that you do not haveto take your eyes off the road.
Receiving a Text Message
Note:This is a mobile phone dependentfeature. Your mobile phone must supportdownloading text messages using Bluetoothto receive incoming text messages.
Note:Only one recipient is allowed per textmessage.
When a new message arrives, an audibletone sounds and the display indicates youhave a new message. You have theseoptions:
•Press the Listen button to have SYNCread the message to you.
•Press View to open the text message,press ignore or do nothing and themessage goes into your text messageinbox. Once pressed, you have theability to have the message read outto you, to view other messages or toselect More.
•Open a voice session and say "Readtext message"
•Select more and scroll. Choosebetween:
•Reply to sender: Press OK toaccess and then scroll through thelist of pre-defined messages tosend.
•Call sender: Press OK to call thesender of the message.
•Forward msg: Press OK to forwardthe message to anyone in yourphonebook or call history. You canalso choose to enter a number.
Sending, Downloading and DeletingYour Text Messages
Text messaging is a mobile phonedependent feature. If your mobile phoneis compatible, SYNC allows you to receive,send, download and delete text messages.
1.Press the PHONE button.
2.Scroll until Text messaging appears,then press OK.
A list of all available text messagesappears. You can choose from thefollowing options:
•New enables you to send a new textmessage based on a pre-defined setof 15 messages.
•View allows you to read the fullmessage and in addition provides theoption to get the message read out toyou by SYNC. To go to the nextmessage select More this allows youto reply to the sender, call the senderor forward the message.
•Delete allows you to delete currenttext messages from SYNC (not yourmobile phone). The display indicateswhen all your text messages have beendeleted by showing Empty in thedisplay.
•More allows you to delete allmessages or to manually trigger adownload of all unread messages fromyour mobile phone.
When you select Send Text Message youhave the following choices of pre-definedmessages:
•Can't talk now.
•Call you later.
•Heavy traffic :-(.
•See u in 10 min.
•See u in 20 min.
•Yes.
•No.
206SYNC

Downloaded from www.Manualslib.com manuals search engine •Thanks!.
•Too funny :-).
•Miss you.
•I love you.
•Send directions.
•Call me.
•Where are you?
•Why?
To send the message:
1.Press Send when the desired selectionis highlighted in the display.
2.Press Yes when the contact appearsand press OK again to confirm whenthe system asks if you would like tosend the message. Each text messageis sent with the following signature:This message was sent from my Ford.
Note:You can send text messages eitherby choosing a contact from the phonebookand selecting the text option from thedisplay or by replying to a received messagein the inbox.
Accessing Your Mobile PhoneSettings
These are mobile phone dependentfeatures. Your mobile phone settings allowyou to access and adjust features such asyour ring tone, text message notification,modify your phonebook and also set upautomatic download.
1.Press the PHONE button.
2.Scroll until Phone Settings appears,then press OK.
3.Scroll to select from the followingoptions:
You CanWhen You Select
If this option is checked, SYNC will use this mobile phoneas the master when there is more than one mobile phoneavailable within your vehicle that is paired to SYNC. Thisoption can be changed for all paired mobile phones (notonly for the active one) using the BT Devices menu.
Set as master
See the mobile phone name, provider name, mobile phonenumber, signal level and battery level. Providing yourmobile phone supports this feature.
Phone Status
When done, press the left arrow to return to the mobilephone status menu.
Select which ring tone sounds during an incoming call (oneof the system's or your mobile phone's).Set ringtone
1. Press OK to select and scroll to hear Ringtone 1,Ring-tone 2,Ringtone 3 and Phone ringtone.2. Press OK to select.If your mobile phone supports in-band ringing, your mobilephone's ringer sounds when Phone ringtone is chosen.
Have the option of hearing an audible tone to notify youwhen a text message arrives.Text msg notify
207SYNC

Downloaded from www.Manualslib.com manuals search engine You CanIf You Select
2. When Please begin pairing by appears in the display,search for SYNC on your device to start the pairingprocess. Refer to your mobile phone's user guide if neces-sary.3. When prompted on your mobile phone's display, enterthe six-digit PIN provided by SYNC in the radio display.The display indicates when the pairing is successful.4. Set phone name as the favorite mobile phone? Choosebetween Yes and No.5. Depending on the functionality of your mobile phone,you may be asked additional questions (i.e. if you wouldlike to download your phonebook). Press Yes or No toselect your responses.
Delete a paired mobile phone.DeletePress Delete and confirm with Yes when asked to deletethe selected device from SYNC. After deleting a mobilephone from the list, the mobile phone can only beconnected again by executing the pairing process.
Set a previously paired mobile phone as your primarymobile phone.Master
Press Master to select the desired mobile phone as theprimary mobile phone.SYNC attempts to connect with the primary mobile phoneevery time the ignition is switched on. When a mobilephone is selected as primary, it appears first in the list and
is marked with an asterisk*
Connect a previously paired bluetooth-enabled mobilephone. You can only have one device connected at a timeto use the mobile phone functionality. When anothermobile phone is connected, the previous mobile phonewill be disconnected for the telephone services. SYNCallows you to use different Bluetooth devices for themobile phone functionality and the BT Audio music play-back feature at the same time.
Conn.
Press Conn. to connect to the selected previously pairedmobile phone.
Disconnects the selected mobile phone. Press Discon.and confirm with Yes when asked. After disconnecting amobile phone, it can be connected again withoutperforming the full pairing process.
Discon.
209SYNC

Downloaded from www.Manualslib.com manuals search engine System Settings
1.Press the MENU button to enter the
system's menu.
2.Select SYNC-Settings, then press OK.
You CanIf You Select
Check or uncheck this option to turn on or off the Bluetoothinterface of the system. Select, then press OK to changethe option's status.
Bluetooth on
Return to the factory default settings. This selection doesnot erase your indexed information (phonebook, callhistory, text messages and paired devices).
Set defaults
Press OK to select and then press Yes when Setdefaults? appears in the display.
Completely erase all information stored on SYNC(phonebook, call history, text messages and paireddevices) and return to the factory default settings.
Master reset
Press OK to select and then press Yes when Masterreset? appears in the display. The display indicates whencomplete and SYNC takes you back to the SYNC-Settings menu.
Install applications or software updates you have down-loaded.Install on SYNC
Scroll to select and then press OK. Confirm with Yes whenInstall on SYNC appears in the display. There must be avalid SYNC application or update available on the USBthumb drive in order to finish an installation successfully.
Display the system's version numbers as well as its serialnumber.System info
Press OK to select.
The voice settings submenu contains Interact. mode,Confirm prompt, mobile Phone candidate and Mediacandidate. See Using Voice Recognition (page 198).
Voice settings
Browse the actual menu structure of the connected USBdevice. Press OK and use the up or down arrows to scrollthe folders and files. Use the left or right arrows to enterand leave a folder. Media content can be directly selectedfor playback from this menu.
Browse USB
You can turn the emergency assistance feature on or off.See SYNC® Applications and Services (page 211).Emergency assistance
210SYNC

Downloaded from www.Manualslib.com manuals search engine SYNC® APPLICATIONS AND
SERVICES
1.Press the MENU button to enter thesystem's menu.
2.Scroll until SYNC-Apps is selected,then press OK.
A list of available applications will beshown. Each application might have itsown specific settings.
SYNC Emergency Assistance
WARNINGS
For this feature to work, your mobilephone must be compatible withSYNC.
Always place your mobile phone ina secure location inside your vehicle.Failure to do so may cause seriousinjury to someone or damage the phonewhich could prevent emergency assistancefrom working correctly.
Unless the emergency assistancesetting is set to on prior to a collision,the system will not attempt to placean emergency call which could delay theresponse time, potentially increasing therisk of serious injury or death. Do not waitfor emergency assistance to make anemergency call if you can do it yourself.Dial emergency services immediately toavoid a delayed response time. If you donot hear emergency assistance within fiveseconds of the collision, the system ormobile phone may be damaged or nonfunctional.
Note:Before selecting this feature, youmust read the emergency assistance privacynotice later in this section for importantinformation.
Note:When you turn emergency assistanceon or off, that setting will apply for all pairedmobile phones. If you have turnedemergency assistance off and a previouslypaired phone connects when you switch theignition on, either a voice message plays, adisplay message or icon is shown or both.
Note:Every mobile phone operatesdifferently. While SYNC emergencyassistance works with most mobile phones,some mobile phones may experiencedifficulties using this feature.
Note:For important information regardingairbag deployment: See SupplementaryRestraints System (page 22).
In the event of a collision which deploysan airbag or activates the fuel cut-offswitch, the system may contactemergency services by dialling 112 (thewireless emergency number that works inmost European countries) through a pairedand connected mobile phone. For moreinformation about SYNC and emergencyassistance visit your regional Ford website.
Setting Emergency Assistance On:
1.Press the PHONE button to enter themobile Phone menu.
2.Scroll to emergency assistance.
3.Press OK to confirm and enter theemergency assistance menu.
4.Scroll through and highlight the On orOff selection.
5.Press OK to confirm the selection.
Display options:
•In case On was selected,Set Onappears in the display as confirmation.
•In case Off was selected a dialogueappears which allows you to set a voicereminder.
211SYNC

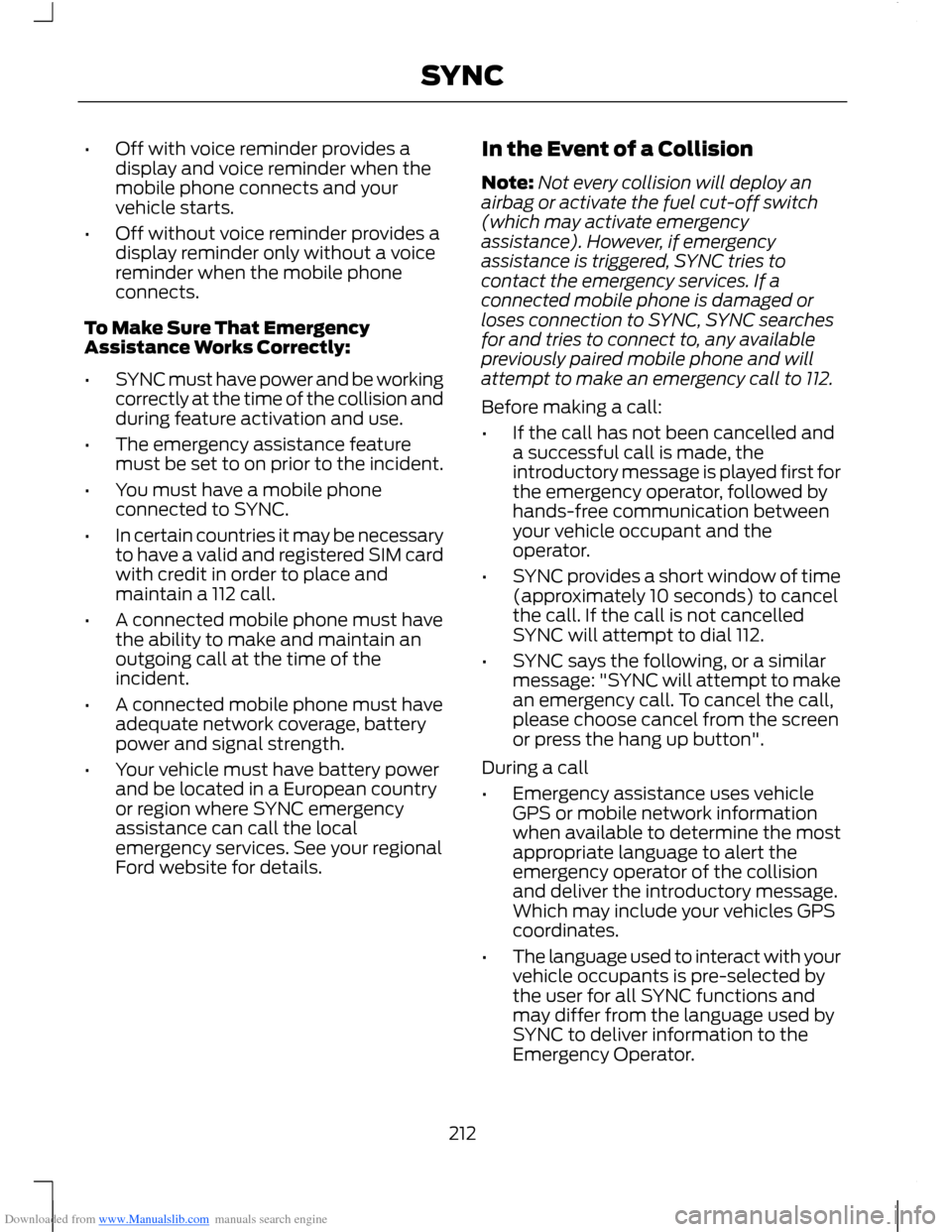

Downloaded from www.Manualslib.com manuals search engine •Off with voice reminder provides adisplay and voice reminder when themobile phone connects and yourvehicle starts.
•Off without voice reminder provides adisplay reminder only without a voicereminder when the mobile phoneconnects.
To Make Sure That EmergencyAssistance Works Correctly:
•SYNC must have power and be workingcorrectly at the time of the collision andduring feature activation and use.
•The emergency assistance featuremust be set to on prior to the incident.
•You must have a mobile phoneconnected to SYNC.
•In certain countries it may be necessaryto have a valid and registered SIM cardwith credit in order to place andmaintain a 112 call.
•A connected mobile phone must havethe ability to make and maintain anoutgoing call at the time of theincident.
•A connected mobile phone must haveadequate network coverage, batterypower and signal strength.
•Your vehicle must have battery powerand be located in a European countryor region where SYNC emergencyassistance can call the localemergency services. See your regionalFord website for details.
In the Event of a Collision
Note:Not every collision will deploy anairbag or activate the fuel cut-off switch(which may activate emergencyassistance). However, if emergencyassistance is triggered, SYNC tries tocontact the emergency services. If aconnected mobile phone is damaged orloses connection to SYNC, SYNC searchesfor and tries to connect to, any availablepreviously paired mobile phone and willattempt to make an emergency call to 112.
Before making a call:
•If the call has not been cancelled anda successful call is made, theintroductory message is played first forthe emergency operator, followed byhands-free communication betweenyour vehicle occupant and theoperator.
•SYNC provides a short window of time(approximately 10 seconds) to cancelthe call. If the call is not cancelledSYNC will attempt to dial 112.
•SYNC says the following, or a similarmessage: "SYNC will attempt to makean emergency call. To cancel the call,please choose cancel from the screenor press the hang up button".
During a call
•Emergency assistance uses vehicleGPS or mobile network informationwhen available to determine the mostappropriate language to alert theemergency operator of the collisionand deliver the introductory message.Which may include your vehicles GPScoordinates.
•The language used to interact with yourvehicle occupants is pre-selected bythe user for all SYNC functions andmay differ from the language used bySYNC to deliver information to theEmergency Operator.
212SYNC

Downloaded from www.Manualslib.com manuals search engine •After the delivery of the introductorymessage the voice line will open sothat you can speak hands-free with theemergency operator.
•When the line is connected, you mustbe prepared to provide your name,phone number and locationinformation immediately.
Note:While information is being providedto the emergency operator you will hear thefollowing or similar message "Please standby while important information is beingdelivered to the emergency operator." SYNCwill say “line open” or similar at the start ofhands-free communication.
Note:During an emergency assistance call,an emergency priority screen will bedisplayed in your vehicle which containsvehicle GPS coordinates when available.These coordinates match the informationprovided to the emergency operator in theintroductory message.
Note:The emergency operator may alsoreceive information from the mobile networksuch as mobile phone number, mobilephone location and mobile phone carriername independent from SYNC emergencyassistance.
Emergency assistance may not work if:
•Your mobile phone or emergencyassistance hardware has beendamaged in a collision.
•Your vehicle's battery or the SYNCsystem has no power.
•If your phone is thrown from yourvehicle during a collision.
•You do not have a valid and registeredSIM card with credit in your phone.
•You are in a European country or regionwhere the SYNC emergency assistancecall cannot be placed. See yourregional Ford website for details.
Important Information About the FordSYNC Emergency Assistance Feature
Emergency Assistance does not currentlycall emergency services in the followingmarkets: Albania, Belarus, Bosnia andHerzegovina, Macedonia, Netherlands,Ukraine, Moldova and Russia.
See your regional Ford website for latestdetails.
Emergency Assistance Privacy Notice
Once emergency assistance is set to on, itmay disclose to emergency services thatyour vehicle has been in a collisioninvolving the deployment of an airbag oractivation of the fuel cut-off switch. Thisfeature has the capability to disclose yourlocation information to the emergencyoperator or other details about your vehicleor collision to provide the most appropriateemergency services.
If you do not want to disclose thisinformation, do not turn the feature on.
USING SYNC® WITH YOUR
MEDIA PLAYER
You can access and play music from yourdigital music player over your vehicle'sspeaker system using the system's mediamenu or voice commands. You can alsosort and play your music by specificcategories such as artists, albums, etc.
SYNC is capable of hosting nearly anydigital media player including: iPod®,Zune™, Plays from device players, andmost USB drives. SYNC also supportsaudio formats such as MP3, WMA, WAVand ACC.
213SYNC
