Secure children that weigh between 29and 40 pounds (13 and 18 kilogrammes)in a child safety seat (Group 1) on the rearseat.
Booster Seats
WARNINGS
Do not install a booster seat or abooster cushion with only the lapstrap of the seat belt.
Do not install a booster seat or abooster cushion with a seat belt thatis slack or twisted.
Do not put the seat belt under yourchild’s arm or behind their back.
Do not use pillows, books or towelsto boost your child’s height.
Make sure that your children sit in anupright position.
Note:When using a child seat on a rearseat, make sure that the child seat reststightly against your vehicle seat. It may benecessary to lift or remove the headrestraint. See Head Restraints (page 76).
Booster Seat (Group 2)
Secure children that weigh more than 33pounds (15 kilogrammes) but are less than59 inches (150 centimetres) tall in abooster seat or a booster cushion.
We recommend that you use a boosterseat that combines a cushion with abackrest instead of a booster cushion only.The raised seating position will allow youto position the shoulder strap of the adultseat belt over the centre of your child’sshoulder and the lap strap tightly acrosstheir hips.
Booster Cushion (Group 3)
15Child Safety
Page 18 of 256
Downloaded from www.Manualslib.com manuals search engine ISOFIX Anchor Points
WARNING
Use an anti-rotation device whenusing the ISOFIX system. Werecommend the use of a top tetheror support leg.
Note:When you are purchasing an ISOFIXseat, make sure that you know the correctmass group and ISOFIX size class for theintended seating locations. See Child SeatPositioning (page 16).
Your vehicle has ISOFIX anchor points thataccommodate universally approvedISOFIX child seats.
The ISOFIX system comprises two rigidattachment arms on the child seat thatattach to anchor points on the outboardrear seats, where the cushion and backrestmeet. Tether anchor points are locatedbehind the outboard rear seats for childseats with a top tether.
Top Tether Anchor Points
Attaching a Child Seat With TopTethers
WARNINGS
Do not attach a tether strap toanything other than the correcttether anchor point.
Make sure that the top tether strapis not slack or twisted and is properlylocated on the anchor point.
Note:Where applicable, remove theluggage cover to ease installation. SeeLuggage Covers (page 114).
1.Route the tether strap to the anchorpoint.
2.Push the child seat back firmly toengage the ISOFIX lower anchor points.
3.Tighten the tether strap in line with thechild seat manufacturer's instructions.
CHILD SEAT POSITIONING
WARNINGS
See an authorised dealer for thelatest details relating to ourrecommended child seats.
16Child Safety
Page 19 of 256
Downloaded from www.Manualslib.com manuals search engine WARNINGS
Extreme Hazard! Do not use arearward facing child seat on a seatprotected by an air bag in front of it!
When using a child seat with asupport leg, the support leg mustrest securely on the floor.
When using a child seat with a seatbelt, make sure that the seat belt isnot slack or twisted.
WARNINGS
The child seat must rest tightlyagainst the vehicle seat. It may benecessary to lift or remove the headrestraint. See Head Restraints (page 76).
Note:When using a child seat on a frontseat, always adjust the front passenger'sseat to its fully rearward position. If it provesdifficult to tighten the lap section of the seatbelt without slack remaining, adjust theseatback to the fully upright position andraise the height of the seat. See Seats(page 76).
Mass group categories
Seating positions3210+0
46 - 79 lbs(22 - 36 kg)33 - 55 lbs(15 - 25 kg)20 - 40 lbs(9 - 18 kg)Up to 29lbs (13 kg)Up to 22lbs (10 kg)
UF¹UF¹UF¹XXFront passenger's seatwith airbag ON
U¹U¹U¹U¹U¹Front passenger's seatwith airbag OFF
UUUUURear seats
X Not suitable for children in this mass group.
U Suitable for universal category child seats approved for use in this mass group.
U¹ Suitable for universal category child seats approved for use in this mass group. However,we recommend that you secure children in a government approved child seat, on the rearseat.
UF¹ Suitable for universal category forward facing child seats approved for use in thismass group. However, we recommend that you secure children in a government approvedchild seat, on the rear seat.
17Child Safety
Page 20 of 256
Downloaded from www.Manualslib.com manuals search engine ISOFIX Child Seats
Mass group categories
Seating positions10+
Forward facingRear facing
20 - 40 lbs (9 - 18 kg)Up to 29 lbs (13 kg)
Not ISOFIX equippedSize classFront seat
Seat type
A, B, B1*C, D, E*Size classRear outboard seat ISOFIX
IL, IUF***IL**Seat type
Not ISOFIX equippedSize classRear centre seat
Seat type
IL Suitable for particular ISOFIX child seat systems of the semi-universal category. Pleasesee child seat systems suppliers' vehicle recommendation lists.
IUF Suitable for ISOFIX forward facing child seat systems of universal category approvedfor use in this mass group and ISOFIX size class.1The ISOFIX size class for both universal and semi-universal child seat systems is definedby the capital letters A to G. These identification letters are displayed on the ISOFIX childseat.**At time of publishing the recommended Group O+ ISOFIX baby safety seat is the BritaxRomer Baby Safe. See an authorised dealer for the latest details relating to ourrecommended child seats.***At time of publishing the recommended Group 1 ISOFIX child seat is the Britax RomerDuo. See an authorised dealer for the latest details relating to our recommended childseats.
18Child Safety
Page 21 of 256
Downloaded from www.Manualslib.com manuals search engine CHILD SAFETY LOCKS
WARNING
You cannot open the doors frominside if you have put the child safetylocks on.
Left-Hand Side
Turn anticlockwise to lock and clockwiseto unlock.
Right-Hand Side
Turn clockwise to lock and anticlockwiseto unlock.
19Child Safety
Page 22 of 256

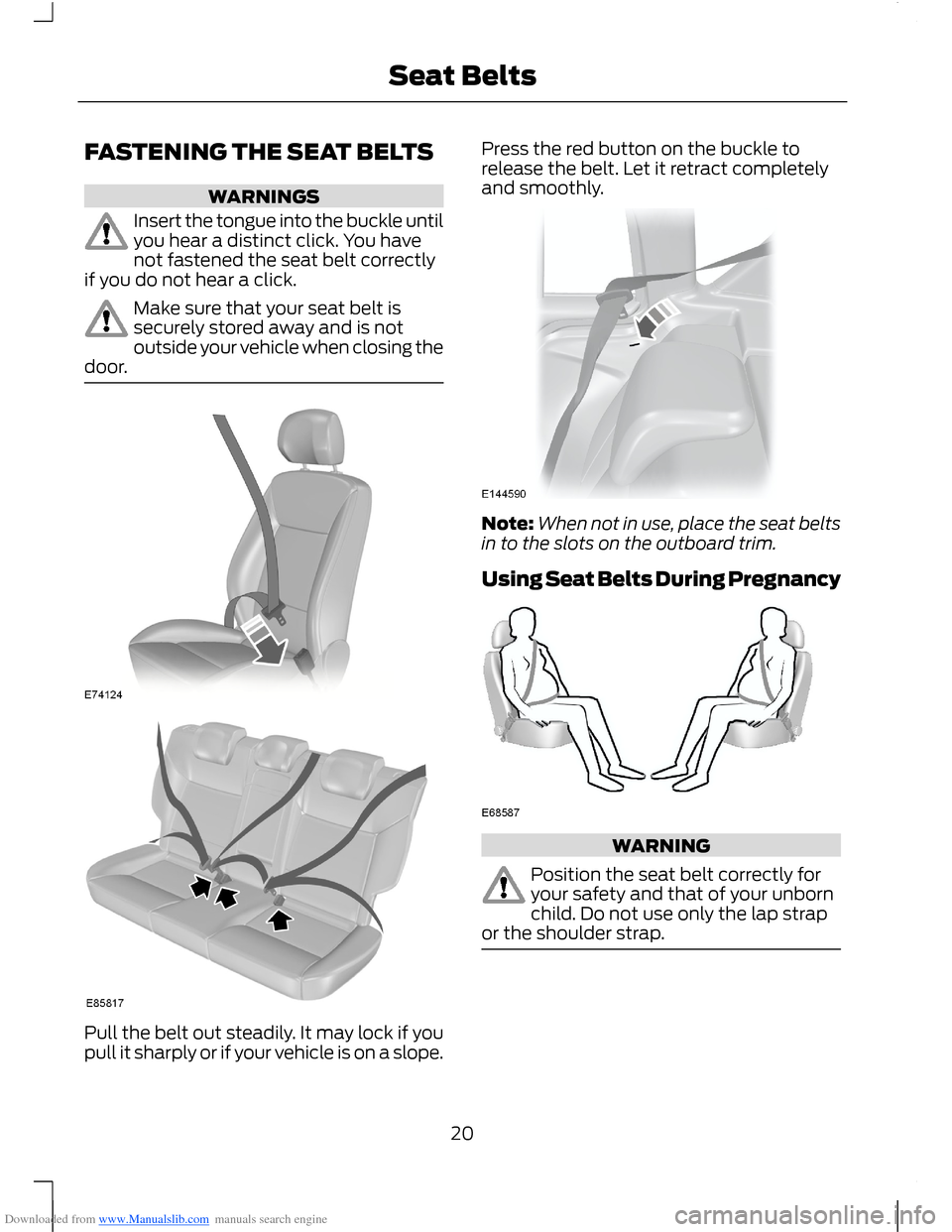

Downloaded from www.Manualslib.com manuals search engine FASTENING THE SEAT BELTS
WARNINGS
Insert the tongue into the buckle untilyou hear a distinct click. You havenot fastened the seat belt correctlyif you do not hear a click.
Make sure that your seat belt issecurely stored away and is notoutside your vehicle when closing thedoor.
Pull the belt out steadily. It may lock if youpull it sharply or if your vehicle is on a slope.
Press the red button on the buckle torelease the belt. Let it retract completelyand smoothly.
Note:When not in use, place the seat beltsin to the slots on the outboard trim.
Using Seat Belts During Pregnancy
WARNING
Position the seat belt correctly foryour safety and that of your unbornchild. Do not use only the lap strapor the shoulder strap.
20Seat Belts
Page 23 of 256
Downloaded from www.Manualslib.com manuals search engine Pregnant women should always wear theirseat belt. The lap belt portion of acombination lap and shoulder belt shouldbe positioned low across the hips belowthe belly and worn as tight as comfort willallow. The shoulder belt should bepositioned to cross the middle of theshoulder and the centre of the chest.
SEAT BELT MINDER
WARNING
The system will only provideprotection when you use the seatbelt correctly.
The warning lamp illuminates and anaudible warning will sound when thefollowing conditions have been met:
•The front seat belts have not beenfastened.
•Your vehicle exceeds a relatively lowspeed.
It will also illuminate when a front seat beltis unfastened when your vehicle is moving.
If you do not fasten your seat belt both theaudible and visual warnings will switch offautomatically after approximately fiveminutes.
Turning the Seat Belt Minder Off
See an authorised dealer.
21Seat Belts
Page 24 of 256
Downloaded from www.Manualslib.com manuals search engine PRINCIPLE OF OPERATION
WARNINGS
Do not modify the front of yourvehicle in any way. This couldadversely affect deployment of theairbags.
Original text according to ECER94.01: Extreme Hazard! Do not usea rearward facing child restraint ona seat protected by an airbag in front of it!
Wear a seat belt and keep sufficientdistance between yourself and thesteering wheel. Only when you usethe seat belt properly, can it hold you in aposition that allows the airbag to achieveits optimum effect. See Sitting in theCorrect Position (page 76).
Have repairs to the steering wheel,steering column, seats, airbags andseat belts carried out by anauthorised dealer.
Keep the areas in front of the airbagsfree from obstruction. Do not affixanything to or over the airbag covers.
Do not puncture the seat with pins,needles or other pointed objects.This could cause damage andadversely affect deployment of theairbags.
Use seat covers designed for seatswith side airbags. Have these fittedby an authorised dealer.
Note:You will hear a loud bang and see acloud of harmless powdery residue if anairbag deploys. This is normal.
Note:Only wipe airbag covers with a dampcloth.
DRIVER AIRBAG
The airbag will deploy during significantfrontal or near-frontal collisions. The airbagwill inflate within a few thousandths of asecond and deflate on contact with theoccupant, thus cushioning forward bodymovement. During minor frontal collisions,overturns, rear collisions and sidecollisions, the airbag will not deploy.
PASSENGER AIRBAG
22Supplementary Restraints System
