2012 FIAT BRAVO technical data

WARNING
Alert other drivers that the car is
stationary in compliance with local
regulations: hazard warning lights, warning
triangle, etc . Any passengers on board should
leave the car, especially if it is heavily laden.
Passengers should stay away from on-coming
traffic while the wheel is being changed. On
hills or uneven roads, use chocks or
appropriate objects to block the wheels of the
car.
WARNING
The car's driving characteristics will be
modified with the space-saver wheel
fitted. Avoid sudden starting or stopping, sharp
or fast turns.The total life of a space-saver
wheel is approximately 3000 km, after which it
must be replaced by another wheel of the
same type. Never install a traditional tyre on a
rim designed to be used as a space-saver
wheel. Have the tyre repaired and refitted as
soon as possible. Using two or more space-
saver wheels at the same time is forbidden. Do
not grease the threads of bolts before fitting
them: they might slip out .
WARNING
The jack provided is only intended to
be used for replacing wheels on the car
with which it is supplied, or on same-model
vehicles. Never use the jack for other
purposes, such as lifting other car models.
Never use it for repair operations under the
car. Incorrectly positioning the jack may cause
the car to fall. Do not use the jack for loads
higher than the one shown on its label. Never
install snow chains on the space-saver wheel; if
a front tyre (driving wheel) is punctured and
you need to use snow chains, use a standard
wheel from the rear axle and install the
space-saver wheel on the rear axle. In this
way, with two normal drive wheels, it is
possible to use snow chains.
WARNING
Fit the hub cap correctly to prevent it
from coming free in motion. Never
tamper with the inflating valve. Never
introduce tools of any kind between rim and
tyre. Check tyre and space-saver wheel
pressures regularly, referring to the values
shown in the "Technical data" chapter.
183GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Dispose of the cylinder and the sealing
fluid properly. Have the sealing fluid and
the cylinder disposed of in compliance
with national and local regulations.
WARNING
The cylinder contains ethylene glycol
and latex: it may cause an allergic
reaction. It is harmful if swallowed. It is irritant
for the eyes in case of contact . May cause
irritation if inhaled or on contact . Avoid
contact with the eyes, skin and clothes. In the
event of contact , rinse immediately with plenty
of water. If ingested, do not induce vomiting.
Rinse out your mouth, drink large quantities of
water and seek immediate medical attention.
Keep away from children.The product must
not be used by asthmatics. Do not inhale the
vapours during insertion and suction. Call a
doctor immediately if allergic reactions are
noted. Store the cylinder in the specific
compartment , away from sources of heat .The
sealing fluid has an expiry date. Replace the
cylinder containing out-of-date sealing fluid.INFLATING PROCEDURE
WARNING
Wear the protective gloves provided
with the kit.
Proceed as follows:
❒Apply the handbrake. Unscrew the tyre valve cap,
take out the filler hose A fig. 152 and tighten the
ring nut B on the tyre valve;
❒make sure that switch E fig. 154 for the
compressor is in position 0 (off ), start the
engine, insert plug D fig. 153 into the cigar lighter
socket and switch on the compressor by placing
switch E fig. 154 in position I (on). Inflate the tyre
to the pressure specified in the "Cold tyre
pressures" paragraph in "Technical data" chapter.
fig. 152
F0Q0513
190GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Check tyre pressure on pressure gauge F fig. 154
with compressor off to obtain a more precise
reading;❒if after 5 minutes it is still impossible to reach at
least 1.5 bar, disengage the compressor from the
valve and power socket, then move the car
forwards by approx. 10 metres in order to
distribute the sealing fluid inside the tyre evenly,
then repeat the inflation operation;
❒if after this operation it is still impossible after 5
minutes to reach at least 1.8 bar, do not start
driving since the tyre is excessively damaged and
the quick tyre repair kit cannot guarantee proper
hold, contact a Fiat Dealership;
❒if reaching the tyre pressure specified in
paragraph “Inflation pressure” in chapter
“Technical Data”, start driving immediately;
❒after having driven for about 10 minutes, stop
and recheck the tyre pressure; remember to
apply the handbrake;
❒if, on the other hand, the pressure is at least 1.8
bar, restore the correct pressure (with the
engine running and the handbrake applied) and
resume driving;
❒drive with the utmost care to the nearest Fiat
Dealership.fig. 153
F0Q0515
fig. 154
F0Q0516
191GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

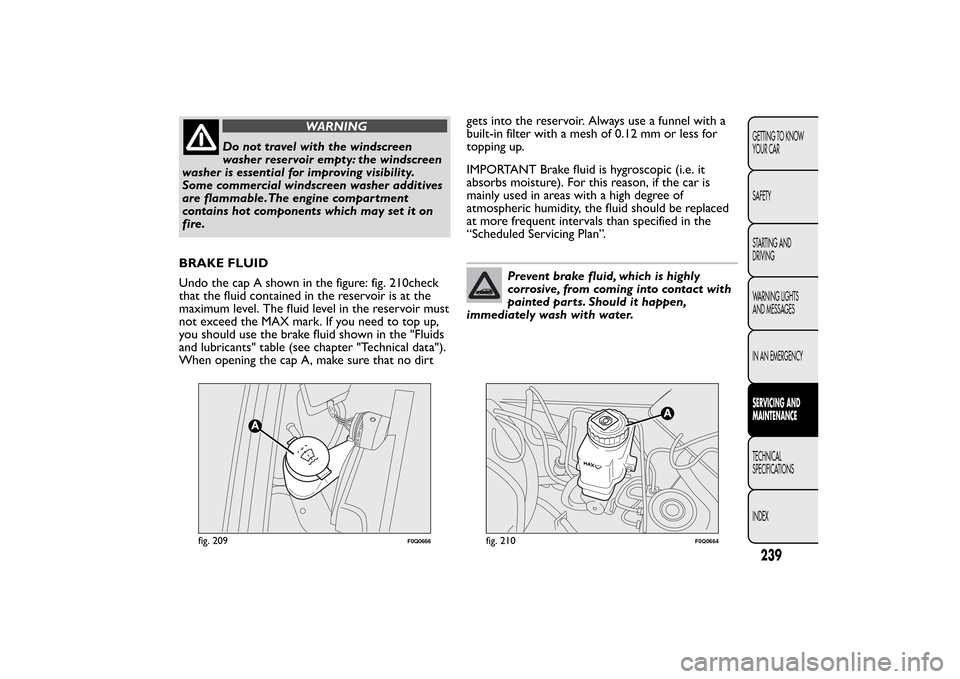

WARNING
Do not travel with the windscreen
washer reservoir empty: the windscreen
washer is essential for improving visibility.
Some commercial windscreen washer additives
are flammable.The engine compartment
contains hot components which may set it on
fire.
BRAKE FLUID
Undo the cap A shown in the figure: fig. 210check
that the fluid contained in the reservoir is at the
maximum level. The fluid level in the reservoir must
not exceed the MAX mark. If you need to top up,
you should use the brake fluid shown in the "Fluids
and lubricants" table (see chapter "Technical data").
When opening the cap A, make sure that no dirtgets into the reservoir. Always use a funnel with a
built-in filter with a mesh of 0.12 mm or less for
topping up.
IMPORTANT Brake fluid is hygroscopic (i.e. it
absorbs moisture). For this reason, if the car is
mainly used in areas with a high degree of
atmospheric humidity, the fluid should be replaced
at more frequent intervals than specified in the
“Scheduled Servicing Plan”.
Prevent brake fluid, which is highly
corrosive, from coming into contact with
painted parts. Should it happen,
immediately wash with water.
fig. 209
F0Q0666
fig. 210
F0Q0664
239GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

TECHNICAL SPECIFICATIONS
IDENTIFICATION DATAThe identification data of the car are:
❒VIN plate;
❒Chassis marking;
❒Bodywork paint identification plate;
❒Engine marking.VIN PLATE
This plate is fitted to the engine compartment front
crossmember and contains the following data
fig. 216:
BType-approval number.C
Vehicle type identification code.D
Chassis serial number.
EMaximum authorised weight of vehicle fully laden.FMaximum authorised weight of vehicle fully laden
plus trailer.G
Maximum authorised weight on first (front) axle.
H
Maximum authorised weight on second (rear)
axle.
IEngine type.LBodywork version code.M
Number for spare parts.
N
Correct value of smoke coefficient (for diesel
engines).
fig. 216
F0Q0029
252GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CHASSIS MARKING
This is printed on the passenger compartment
floor, near the front right seat.
Slide flap A fig. 217 forward to access:
The marking includes:
❒car model (ZFA 198000);
❒chassis serial number.
BODYWORK PAINT IDENTIFICATION
PLATE
This is fitted to the inside of the tailgate and bears
the following data fig. 218:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.ENGINE MARKING
This is stamped on the cylinder block and gives the
model and the chassis serial number.
fig. 217
F0Q0667
fig. 218
F0Q0100
253GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

Control panel and
instruments ................................. 4
Controls .................. 56-60-66-82-95
Courtesy mirror lights
– bulb replacement ................... 207
Cruise Control ............................. 78D
ashboard .................................... 3
Description ................................... 66
Diesel filter ................................... 240
Diffusers......................................... 54
Dipped headlights ........................ 71
– bulb replacement ................... 197
Direction indicators .................... 71
– bulb replacement ................... 199
Display functions (see
Multifunction display or
Reconfigurable
multifunction display)................ 36
Door mirrors ................................ 51
Doors ............................................. 92
DPF (Diesel Particulate
Filter) ........................................... 131
"Dualdrive" electric power
steering system ......................... 119EBD (system) .............................. 107
Electric windows.......................... 95Emergency manoeuvre ............... 92
Engine codes ................................ 254
Engine compartment
– opening/closing ...................... 102
– washing .................................... 249
Engine coolant ............................. 237
Engine coolant temperature
gauge............................................. 25
Engine
– identification codes ............... 254
– marking .................................... 253
– technical data ......................... 255
Engine oil
– Check ....................................... 236
– Consumption ......................... 237
– specifications .......................... 275
– Topping up .............................. 236
Environment protection ............ 130
EOBD system .............................. 116
ESP (system)................................. 108
Exterior lights ............................... 71
Failure indications ...................... 119
Fan speed adjustment ...... 58-63-67
Fast front window
demisting/defrosting ............. 57-62Fiat CODE (system) ................... 8
Fitting "Universal" child seat..... 145
Fix&Go Automatic Kit............... 188
Flashing ........................................... 71
Fluids and lubricants
(specifications) ........................... 275
Fog lights ................................. 82-200
"Follow me home" device ......... 72Front airbags ............................... 147
Front armrest with storage
compartments ............................ 84
Front roof light
– bulb replacement ................... 204
Front roof light with spot
lights.............................................. 80
Front seats with electric
adjustment................................... 47
Fuel cut-off switch ....................... 83
Fuel cut-off system ...................... 83
Fuel
– Fuel savings ............................. 159
Fuel level gauge ............................ 24
Fuel reserve.................................. 273
Fuel savings ................................... 159
Fuel supply .................................... 257
290GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Fuse boxes (location)................. 209
Fuses
– dashboard fuse box............... 210
– engine compartment fuse
box next to
211-212
– fuse list..................................... 214
– luggage compartment
fuse box ................................... 213
– replacing fuses ........................ 208G
ear Shift Indicator.................... 33
GLASS HOLDER ......................... 88
Glove compartment light
– bulb replacement ................... 206
H
andbrake ................................... 157
Hazard warning lights ................. 82
Headlights ..................................... 105
– bulb replacement ................... 197
Headlight washers ....................... 77
Head restraints............................. 48
Heated rear window and
door mirrors
demisting/defrosting ....... 58-63-67
Heating and ventilation .............. 56
Hill Holder (system)................... 109
Hill Holder system...................... 109
Identification data– bodywork paint plate ........... 253
– chassis marking ...................... 253
– engine marking ....................... 253
– identification data plate ....... 252
Ignition switch .............................. 21
Initialisation procedure ............... 92
Installing the tow hook.............. 162
Instrument panel lighting
adjustment................................... 23
Interior fittings ............................. 84
Interiors (cleaning) ..................... 250
Internal air recirculation
activation................................. 59-63
Internal mirror.............................. 51
"Isofix" child seat assembly
setup ............................................ 144Jack ................................................ 184Key without remote control.... 10
Key with remote control ........... 10
– Luggage compartment
(capacity) ................................. 269Light clusters
– front light clusters
(changing a bulb).................... 197
– rear light clusters
(changing a bulb).................... 200Lights off ........................................ 71
Load limiters ................................ 135
Lubricants
275-276
Luggage compartment ................ 97
– Closing ...................................... 98
– Extending ................................. 98
– Opening .................................... 97
– Securing your load ................ 101
Luggage compartment roof
light
– bulb replacement ................... 205
M
ain beam headlights ................ 71
– bulb replacement ................... 198
Maintenance and care ................ 224
– Scheduled servicing............... 224
– scheduled servicing plan ...... 225
Manual climate control
system .......................................... 60
MSR (system) ............................... 110
Multifunction display ................... 26
N
umber plate lights
– bulb replacement ................... 203
O
n-board instruments............... 4
On-board instruments................ 23
291GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONSINDEX
the battery.....................(specifications) ....................
