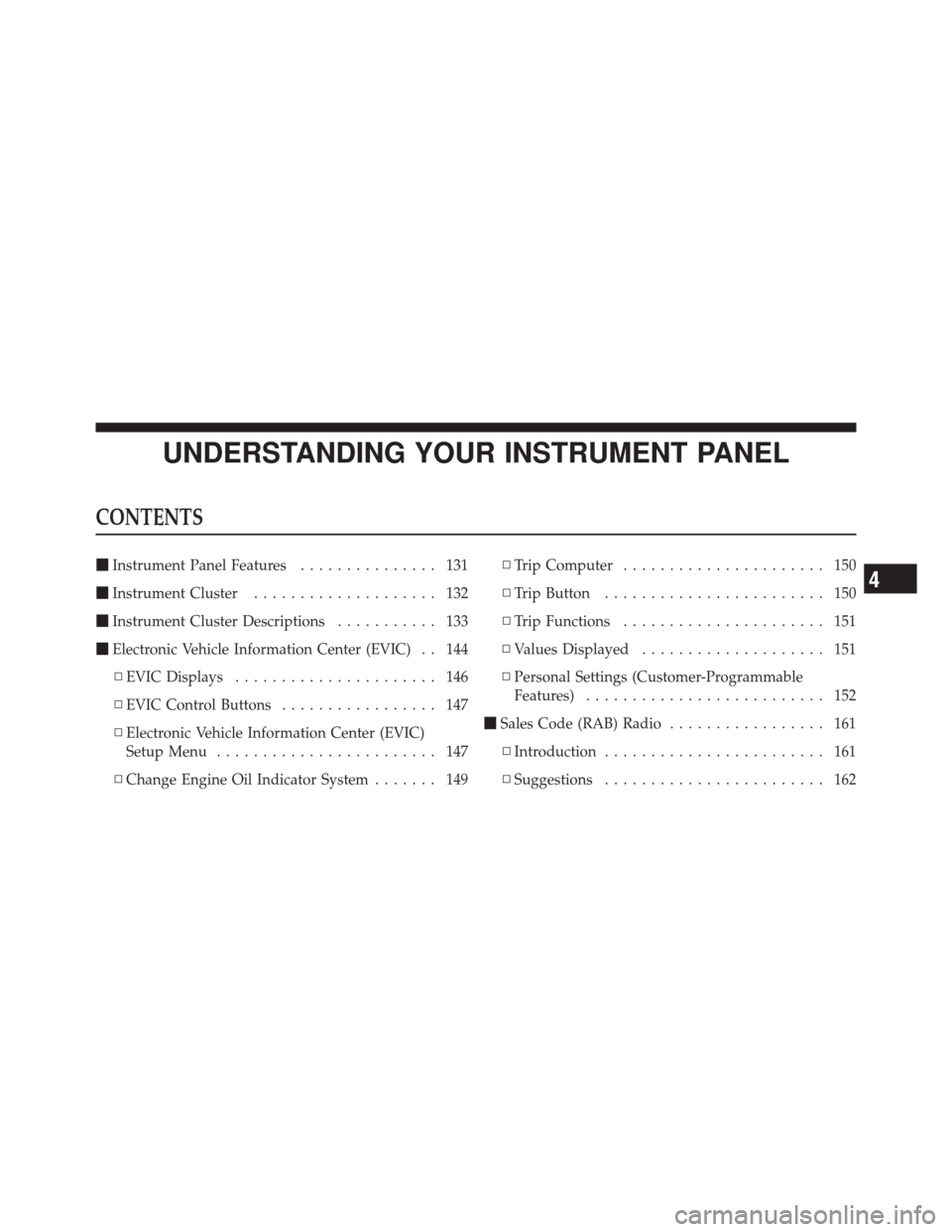

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 131
 Instrument Cluster .................... 132
 Instrument Cluster Descriptions ........... 133
 Electronic Vehicle Information Center (EVIC) . . 144
▫ EVIC Displays ...................... 146
▫ EVIC Control Buttons ................. 147
▫ Electronic Vehicle Information Center (EVIC)
Setup Menu ........................ 147
▫ Change Engine Oil Indicator System ....... 149▫
Trip Computer ...................... 150
▫ Trip Button ........................ 150
▫ Trip Functions ...................... 151
▫ Values Displayed .................... 151
▫ Personal Settings (Customer-Programmable
Features) .......................... 152
 Sales Code (RAB) Radio ................. 161
▫ Introduction ........................ 161
▫ Suggestions ........................ 162
4

INSTRUMENT PANEL FEATURES
1 — Side Vent7 — Passenger Air Bag13 — Storage Compartment
2 — Multifunction Lever – Light Control 8 — Glove Compartment 14 — Shift Lever
3—
Instrument Cluster And Warning Lights9 — Rear Defrost Button 15 — Sport Button
4—Windshield Wiper, Washer, Trip Computer10 — Hazard Button 16 — Horn/Driver Airbag
5 — Central Air Vents 11 — Climate Controls
6 — Storage Compartment/Radio 12 — Power Windows Control
4
UNDERSTANDING YOUR INSTRUMENT PANEL 131

The EVIC consists of the following:
•System Status
•Vehicle Information Warning Message Displays
•Personal Settings (Customer-Programmable Features)
•Outside Temperature Display
•Trip Computer Functions4
UNDERSTANDING YOUR INSTRUMENT PANEL 145

Trip Computer
The Trip Computer is located in the instrument cluster. It
features a driver-interactive display (displays informa-
tion such as; trip information, range, fuel consumption,
average speed and travel time).
Trip Button
TheTRIP button, located on the right steering column
stalk, can be used to display and to reset the previously
described values.
•A short button press displays the different values.
•A long button press resets the system and then starts a
new trip.
New Trip
To reset:
•Press and hold the TRIPbutton to reset the system
manually.
•When the “Trip distance” reaches 9999.9 miles or
kilometers or when the “Travel time” reaches 99.59
(99 hours and 59 minutes), the system is reset auto-
matically.
•Disconnecting/Reconnecting the battery resets the
system.
NOTE: If the reset operation occurs in the presence of
the screens concerning Trip A or Trip B, only the infor-
mation associated with Trip A or Trip B functions will be
reset.
Start Of Trip Procedure
With the ignition on, press and hold the TRIPbutton for
over one second to reset.
Exit Trip
To exit the Trip function, wait until all the values have
been displayed or hold the MENU ESCbutton for longer
than one second.
150 UNDERSTANDING YOUR INSTRUMENT PANEL

3. Briefly press theMENU ESCbutton to go back to the
menu screen, or press and hold the MENU ESCbutton
(approximately one second) to go back to the main screen
without storing the settings.
Trip B Data (Trip B On)
Through this option, it is possible to activate (On) or
deactivate (Off) the Trip B (partial trip) display.
For further information see “Trip Computer.”
For activation / deactivation, proceed as follows:
1. Briefly press the MENU ESCbutton. “On” or “Off”
will flash on the display (according to previous setting).
2. Press the +or –button to select the setting.
3. Briefly press the MENU ESCbutton to go back to the
menu screen, or press and hold the MENU ESCbutton
(approximately one second) to go back to the main screen
without storing the settings.
Set Time (Clock)
This function may be used to set the clock through two
sub-menu items: “Time” and “Mode.”
Proceed as follows:
1. Briefly press the MENU ESCbutton. The display will
show the two sub-menu items “Time” and “Mode.”
2. Press the +or –button to navigate the two sub-menu
items.
3. Select the required option and then press the MENU
ESC button.
4. When accessing the “Time” sub-menu item, briefly
press the MENU ESC button and “hours” will flash on
the display.
5. Press the +or –button for setting.
6. Briefly press the MENU ESCbutton and “minutes”
will flash on the display.
7. Press the +or –button for setting.
154 UNDERSTANDING YOUR INSTRUMENT PANEL
