NOTE:The wheel cover is held on the wheel by the
wheel bolts. When reinstalling the original wheel, prop-
erly align the wheel cover to the valve stem, place the
wheel cover onto the wheel, then install the wheel bolts.
6. Install the spare wheel and wheel bolts with the cone
shaped end of the bolts toward the wheel. Lightly tighten
the bolts. To avoid the risk of forcing the vehicle off the
jack, do not tighten the bolts fully until the vehicle has
been lowered.
7. Lower the vehicle by turning the jack screw to the left.
8. Finish tightening the bolts. Push down on the wrench
while tightening the wheel bolts. Alternate bolts until
each bolt has been tightened twice. The correct wheel bolt
torque is 63 ft lbs (85 N·m) for steel wheels and 75 ft lbs
(100 N·m) for aluminum wheels. If you doubt that you
have tightened the bolts correctly, have them checked
with a torque wrench by your authorized dealer or
service station. 9. Disassemble the jack and tools and place them in the
bag. Stow it under the driver’s seat and secure the bag to
the floor with the straps attached to the floor of the
vehicle.
WARNING!
A loose tire or jack thrown forward in a collision or
hard stop could endanger the occupants of the ve-
hicle. Always stow the jack parts and the spare tire in
the places provided.
10. Place the deflated (flat) tire in the cargo area. Have
the tire repaired or replaced as soon as possible.
292 WHAT TO DO IN EMERGENCIES

Brake Master Cylinder
The fluid level in the master cylinder should be checked
when performing under hood services, or immediately if
the “Brake Warning Light” is on.
Be sure to clean the top of the master cylinder area before
removing the cap. If necessary, add fluid to bring the
fluid level up to the requirements described on the brake
fluid reservoir. Fluid level can be expected to fall as the
brake pads wear. The brake fluid level should be checked
when the pads are replaced. However, low fluid level
may be caused by a leak and a checkup may be needed.
NOTE:If your vehicle is equipped with a manual
transmission , the brake fluid reservoir supplies fluid to
both the brake system and the clutch release system. The
two systems are separated in the reservoir, and a leak in
one system will not affect the other system. The manual
transmission clutch release system should not require
fluid replacement during the life of the vehicle. If the brake fluid reservoir is low and the brake system does
not indicate any leaks or other problems, it may be a
result of a leak in the hydraulic clutch release system. See
your local authorized dealer for service.
Use only manufacturer’s recommended brake fluid. Re-
fer to “Fluids, Lubricants, and Genuine Parts” in “Main-
taining Your Vehicle” for further information.
WARNING!
•Use only manufacturer’s recommended brake
fluid. Refer to “Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle” for further
information. Using the wrong type of brake fluid
can severely damage your brake system and/or
impair its performance. The proper type of brake
fluid for your vehicle is also identified on the
original factory installed hydraulic master cylin-
der reservoir.
(Continued)
7
MAINTAINING YOUR VEHICLE 327

Your leather upholstery can be best preserved by regular
cleaning with a damp, soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPARTotal Clean or equivalent. Care should be
taken to avoid soaking your leather upholstery with any
liquid. Please do not use polishes, oils, cleaning fluids,
solvents, detergents, or ammonia-based cleaners to clean
your leather upholstery. Application of a leather condi-
tioner is not required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas, they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and, therefore,
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR Glass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
334 MAINTAINING YOUR VEHICLE

Adding Engine Coolant (Antifreeze).......... 323
Adding Fuel ........................... 266
Adding Washer Fluid ..................... 318
Additives, Fuel ......................... 263
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 312
Air Conditioner Maintenance ............... 315
Air Conditioning ........................ 190
Air Conditioning Controls ................. 190
Air Conditioning Refrigerant ............... 315
Air Conditioning System .............190,194,315
Air Conditioning, Operating Tips ............ 200
Air Pressure, Tires ....................... 247
Airbag .............................. 40,50
Airbag Deployment ....................... 52
Airbag Light ..................... 48,55,70,135
Airbag Maintenance ....................... 54
Airbag, Side ...................... 44,46,49,50
Airbag, Window (Side Curtain) ...........44,46,50
Alterations/Modifications, Vehicle ............. 7Anti-Lock Brake System (ABS)
.............. 228
Anti-Lock Warning Light .................. 141
Antifreeze (Engine Coolant) ...........322,347,348
Capacities .......................... 347
Disposal ........................... 324
Appearance Care ........................ 330
Automatic Dimming Mirror ................. 81
Automatic Door Locks ..................... 24
Automatic Temperature Control (ATC) ......... 194
Automatic Transaxle ...................... 12
Automatic Transmission ................ 211,329
Adding Fluid ....................... 330
Fluid and Filter Changes ............... 330
Fluid Level Check .................... 330
Fluid Type ......................... 329
Gear Ranges ........................ 213
Special Additives ..................... 330
Autostick ............................. 218
378 INDEX

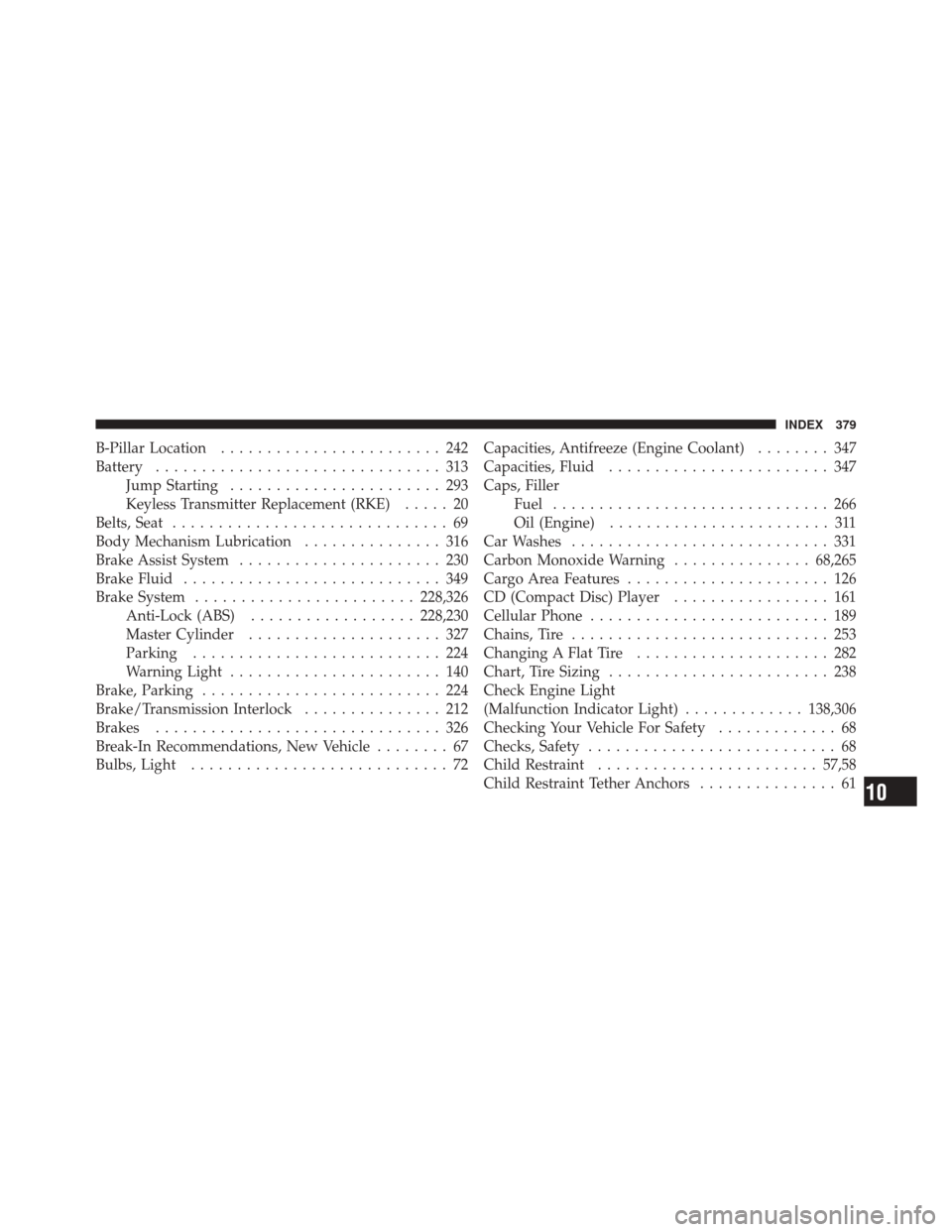

B-Pillar Location........................ 242
Battery ............................... 313
Jump Starting ....................... 293
Keyless Transmitter Replacement (RKE) ..... 20
Belts, Seat .............................. 69
Body Mechanism Lubrication ............... 316
Brake Assist System ...................... 230
Brake Fluid ............................ 349
Brake System ........................ 228,326
Anti-Lock (ABS) .................. 228,230
Master Cylinder ..................... 327
Parking ........................... 224
Warning Light ....................... 140
Brake, Parking .......................... 224
Brake/Transmission Interlock ............... 212
Brakes ............................... 326
Break-In Recommendations, New Vehicle ........ 67
Bulbs, Light ............................ 72 Capacities, Antifreeze (Engine Coolant)
........ 347
Capacities, Fluid ........................ 347
Caps, Filler Fuel .............................. 266
Oil (Engine) ........................ 311
Car Washes ............................ 331
Carbon Monoxide Warning ...............68,265
Cargo Area Features ...................... 126
CD (Compact Disc) Player ................. 161
Cellular Phone .......................... 189
Chains, Tire ............................ 253
Changing A Flat Tire ..................... 282
Chart, Tire Sizing ........................ 238
Check Engine Light
(Malfunction Indicator Light) .............138,306
Checking Your Vehicle For Safety ............. 68
Checks, Safety ........................... 68
Child Restraint ........................ 57,58
Child Restraint Tether Anchors ............... 61
10
INDEX 379

Infant Restraint.......................... 57
Information Center, Vehicle ................. 144
Instrument Cluster ....................... 133
Instrument Panel and Controls .............. 131
Instrument Panel Cover ................... 335
Instrument Panel Lens Cleaning ............. 335
Interior Appearance Care .................. 333
Interior Lighting ........................ 103
Introduction ............................. 4
Jack Location ........................... 283
Jack Operation ....................... 282,287
Jacking Instructions ...................... 287
Jump Starting .......................... 293
Key-In Reminder ......................... 14
Key, Replacement ........................ 15
Key, Sentry (Immobilizer) ................... 14
Keys .................................. 11 Lane Change and Turn Signals
.............. 134
Lane Change Assist ...................... 102
Lap/Shoulder Belts ....................... 31
Latches ................................ 72
Hood .............................. 98
Lead Free Gasoline ...................... 261
Leaks, Fluid ............................ 72
Life of Tires ............................ 252
Liftgate (Sedan) .......................... 26
Light Bulbs ............................. 72
Lights .............................. 72,100
Airbag ...................... 48,55,70,135
Anti-Lock .......................... 141
Brake Assist Warning .................. 235
Brake Warning ...................... 140
Engine Temperature Warning ............ 139
Exterior ............................ 72
Fog .............................. 134
High Beam ......................... 101
384 INDEX

High Beam Indicator.................. 134
Low Fuel .......................... 134
Malfunction Indicator (Check Engine) ...... 138
Oil Pressure ........................ 138
Park .............................. 101
Seat Belt Reminder ................... 135
Service Engine Soon (Malfunction Indicator) . 138
Tire Pressure Monitoring (TPMS) ......... 136
Traction Control ..................... 235
Turn Signal .................... 72,102,134
Voltage ............................ 135
Wait to Start ........................ 133
Warning (Instrument Cluster Description) . . . 133
Loading Vehicle Tires .............................. 242
Locks Automatic Door ...................... 24
Door .............................. 22
Power Door ......................... 23 Lubrication, Body
....................... 316
Maintenance Free Battery .................. 313
Maintenance Procedures ................... 309
Maintenance Schedule .................... 352
Maintenance, General ..................... 309
Malfunction Indicator Light (Check Engine) . . 138,307
Manual Transmission .................. 209,329
Fluid Level Check .................... 329
Frequency of Fluid Change ............. 329
Lubricant Selection ................... 329
Manual, Service ......................... 373
Master Cylinder (Brakes) .................. 327
Mirrors ................................ 80
Automatic Dimming ................... 81
Electric Powered ...................... 82
Modifications/Alterations, Vehicle ............. 7
Monitor, Tire Pressure System ............... 256
Multi-Function Control Lever ............... 100
10
INDEX 385

Stuck, Freeing.......................... 297
Sun Roof .............................. 118
Supplemental Restraint System - Airbag ........ 40
Synthetic Engine Oil ...................... 312
Tachometer ............................ 144
Temperature Control, Automatic (ATC) ........ 194
Temperature Gauge, Engine Coolant .......142,272
Tether Anchor, Child Restraint ............... 61
Tilt Steering Column ..................... 108
Tire and Loading Information Placard ......... 242
Tire Identification Number (TIN) ............. 240
Tire Markings .......................... 236
Tire Safety Information .................... 236
TIREFIT .............................. 272
Tires ............................ 71,246,374
Aging (Life of Tires) .................. 252
Air Pressure ........................ 246
Chains ............................ 253 Changing
.......................... 282
Compact Spare ...................... 249
General Information .................. 246
High Speed ......................... 248
Inflation Pressures .................... 247
Jacking ............................ 282
Life of Tires ........................ 252
Load Capacity .................... 242,243
Pressure Monitor System (TPMS) ......... 256
Pressure Warning Light ................ 136
Quality Grading ..................... 374
Radial ............................ 249
Replacement ........................ 252
Rotation ........................... 255
Safety .......................... 236,246
Sizes ............................. 238
Spinning ........................... 250
Tread Wear Indicators ................. 251
To Open Hood .......................... 98
10
INDEX 389
