2012 FIAT 500 GUCCI manual transmission

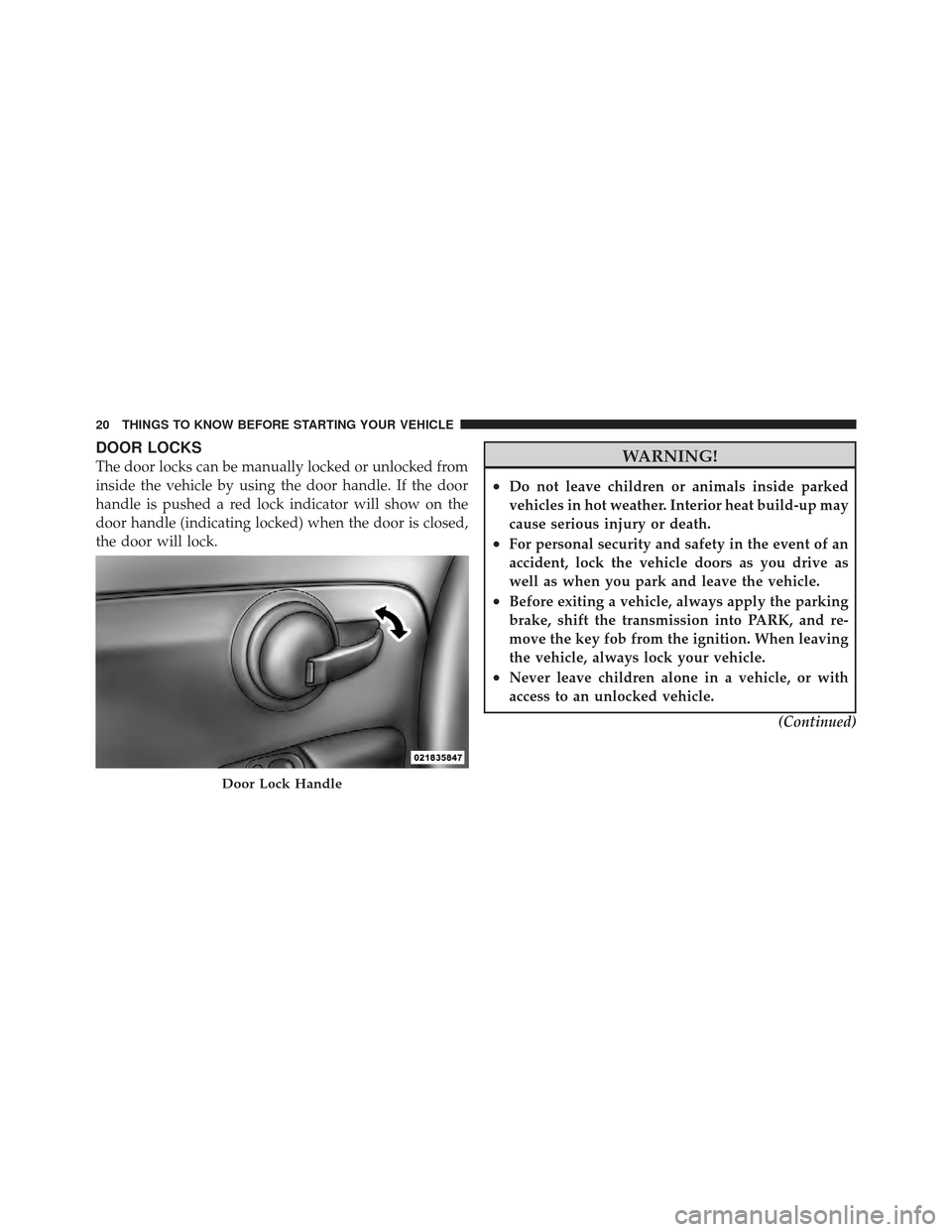

DOOR LOCKS
The door locks can be manually locked or unlocked from
inside the vehicle by using the door handle. If the door
handle is pushed a red lock indicator will show on the
door handle (indicating locked) when the door is closed,
the door will lock.WARNING!
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
•For personal security and safety in the event of an
accident, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.
•Before exiting a vehicle, always apply the parking
brake, shift the transmission into PARK, and re-
move the key fob from the ignition. When leaving
the vehicle, always lock your vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.(Continued)
Door Lock Handle
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

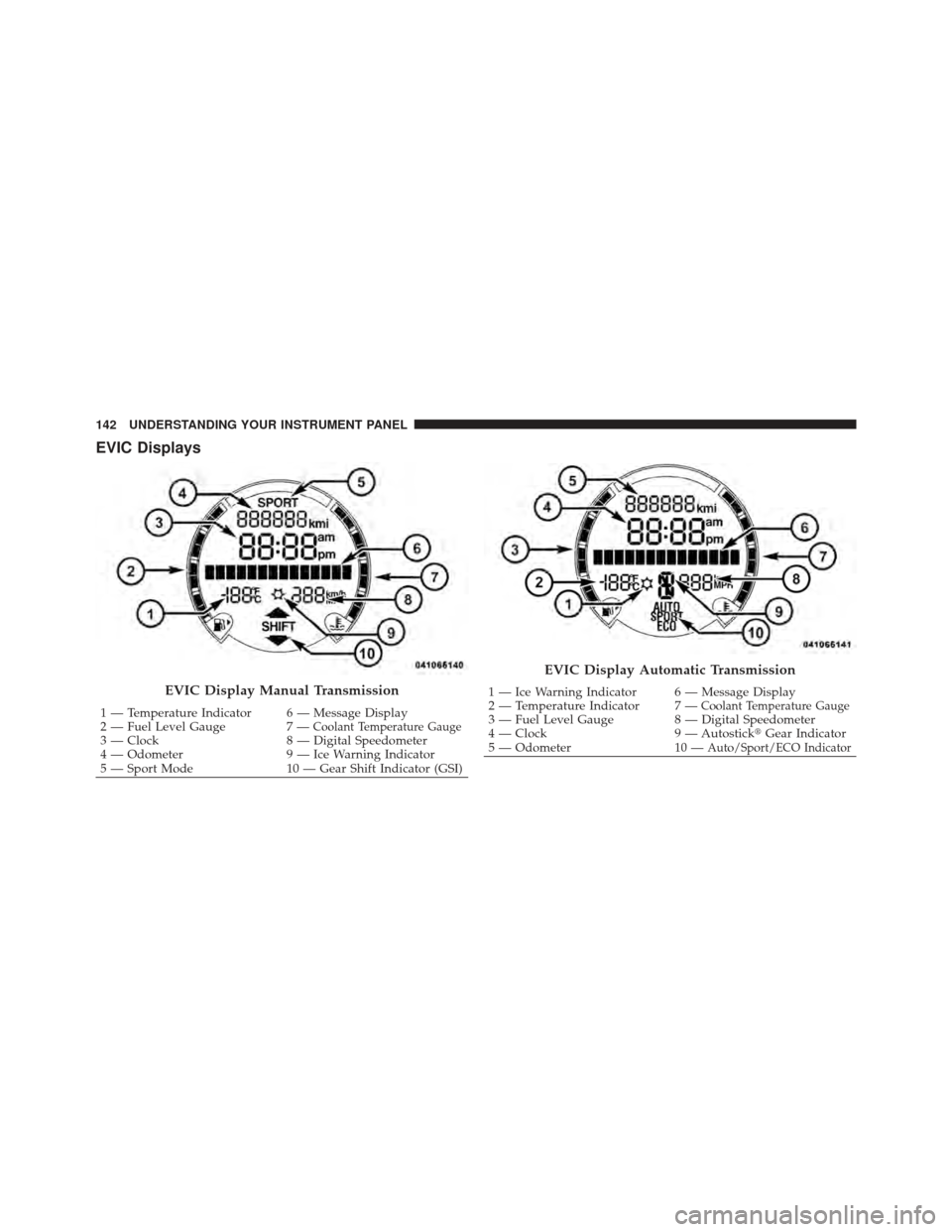

EVIC Displays
EVIC Display Manual Transmission
1 — Temperature Indicator 6 — Message Display
2 — Fuel Level Gauge 7 —Coolant Temperature Gauge3 — Clock8 — Digital Speedometer
4 — Odometer 9 — Ice Warning Indicator
5 — Sport Mode 10 — Gear Shift Indicator (GSI)
EVIC Display Automatic Transmission
1 — Ice Warning Indicator 6 — Message Display
2 — Temperature Indicator 7 —Coolant Temperature Gauge3 — Fuel Level Gauge 8 — Digital Speedometer
4 — Clock 9 — Autostick Gear Indicator
5 — Odometer 10 —
Auto/Sport/ECO Indicator
142 UNDERSTANDING YOUR INSTRUMENT PANEL

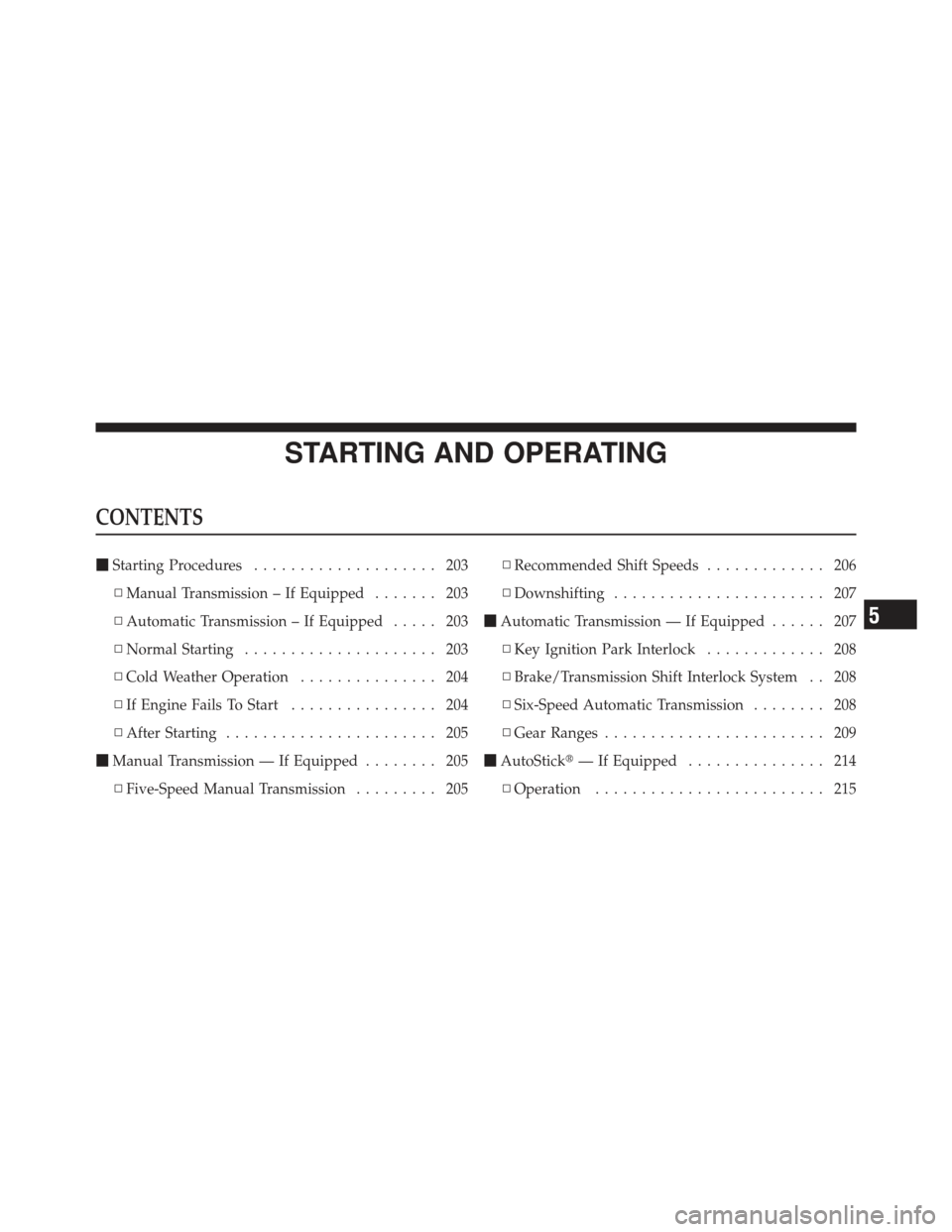

STARTING AND OPERATING
CONTENTS
Starting Procedures .................... 203
▫ Manual Transmission – If Equipped ....... 203
▫ Automatic Transmission – If Equipped ..... 203
▫ Normal Starting ..................... 203
▫ Cold Weather Operation ............... 204
▫ If Engine Fails To Start ................ 204
▫ After Starting ....................... 205
 Manual Transmission — If Equipped ........ 205
▫ Five-Speed Manual Transmission ......... 205▫
Recommended Shift Speeds ............. 206
▫ Downshifting ....................... 207
 Automatic Transmission — If Equipped ...... 207
▫ Key Ignition Park Interlock ............. 208
▫ Brake/Transmission Shift Interlock System . . 208
▫ Six-Speed Automatic Transmission ........ 208
▫ Gear Ranges ........................ 209
 AutoStick — If Equipped ............... 214
▫ Operation ......................... 215
5

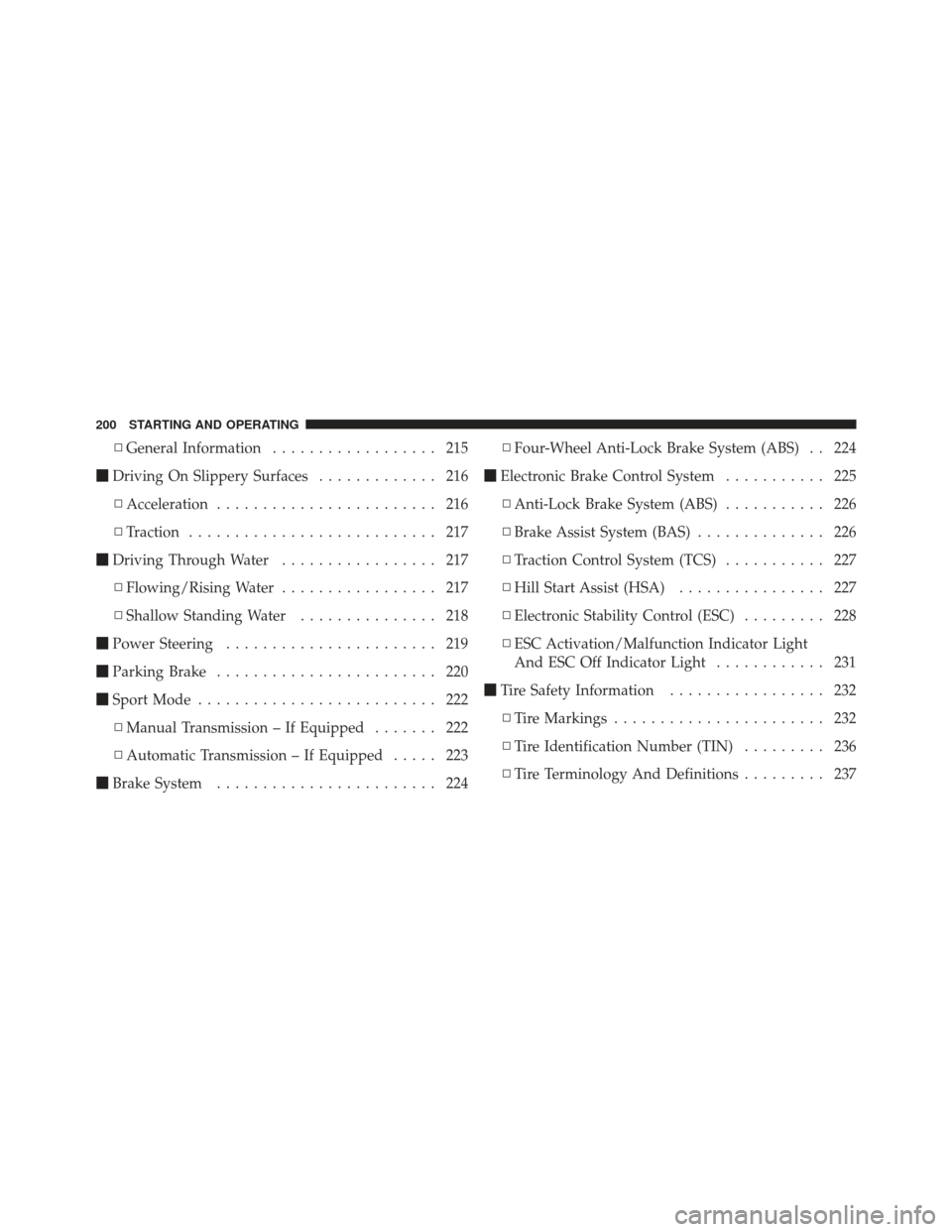

▫General Information .................. 215
 Driving On Slippery Surfaces ............. 216
▫ Acceleration ........................ 216
▫ Traction ........................... 217
 Driving Through Water ................. 217
▫ Flowing/Rising Water ................. 217
▫ Shallow Standing Water ............... 218
 Power Steering ....................... 219
 Parking Brake ........................ 220
 Sport Mode .......................... 222
▫ Manual Transmission – If Equipped ....... 222
▫ Automatic Transmission – If Equipped ..... 223
 Brake System ........................ 224 ▫
Four-Wheel Anti-Lock Brake System (ABS) . . 224
 Electronic Brake Control System ........... 225
▫ Anti-Lock Brake System (ABS) ........... 226
▫ Brake Assist System (BAS) .............. 226
▫ Traction Control System (TCS) ........... 227
▫ Hill Start Assist (HSA) ................ 227
▫ Electronic Stability Control (ESC) ......... 228
▫ ESC Activation/Malfunction Indicator Light
And ESC Off Indicator Light ............ 231
 Tire Safety Information ................. 232
▫ Tire Markings ....................... 232
▫ Tire Identification Number (TIN) ......... 236
▫ Tire Terminology And Definitions ......... 237
200 STARTING AND OPERATING

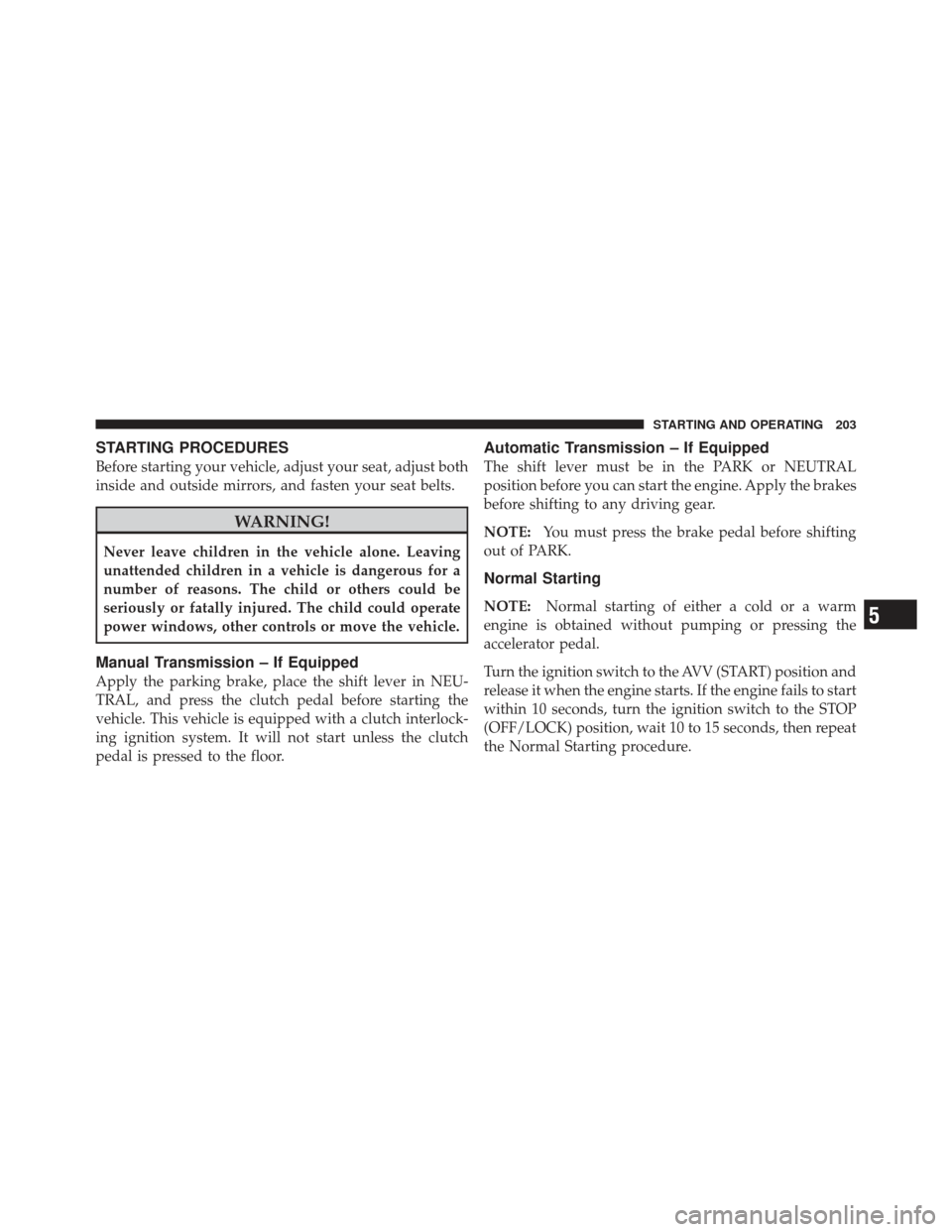

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
WARNING!
Never leave children in the vehicle alone. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. The child or others could be
seriously or fatally injured. The child could operate
power windows, other controls or move the vehicle.
Manual Transmission – If Equipped
Apply the parking brake, place the shift lever in NEU-
TRAL, and press the clutch pedal before starting the
vehicle. This vehicle is equipped with a clutch interlock-
ing ignition system. It will not start unless the clutch
pedal is pressed to the floor.
Automatic Transmission – If Equipped
The shift lever must be in the PARK or NEUTRAL
position before you can start the engine. Apply the brakes
before shifting to any driving gear.
NOTE:You must press the brake pedal before shifting
out of PARK.
Normal Starting
NOTE: Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
Turn the ignition switch to the AVV (START) position and
release it when the engine starts. If the engine fails to start
within 10 seconds, turn the ignition switch to the STOP
(OFF/LOCK) position, wait 10 to 15 seconds, then repeat
the Normal Starting procedure.5
STARTING AND OPERATING 203

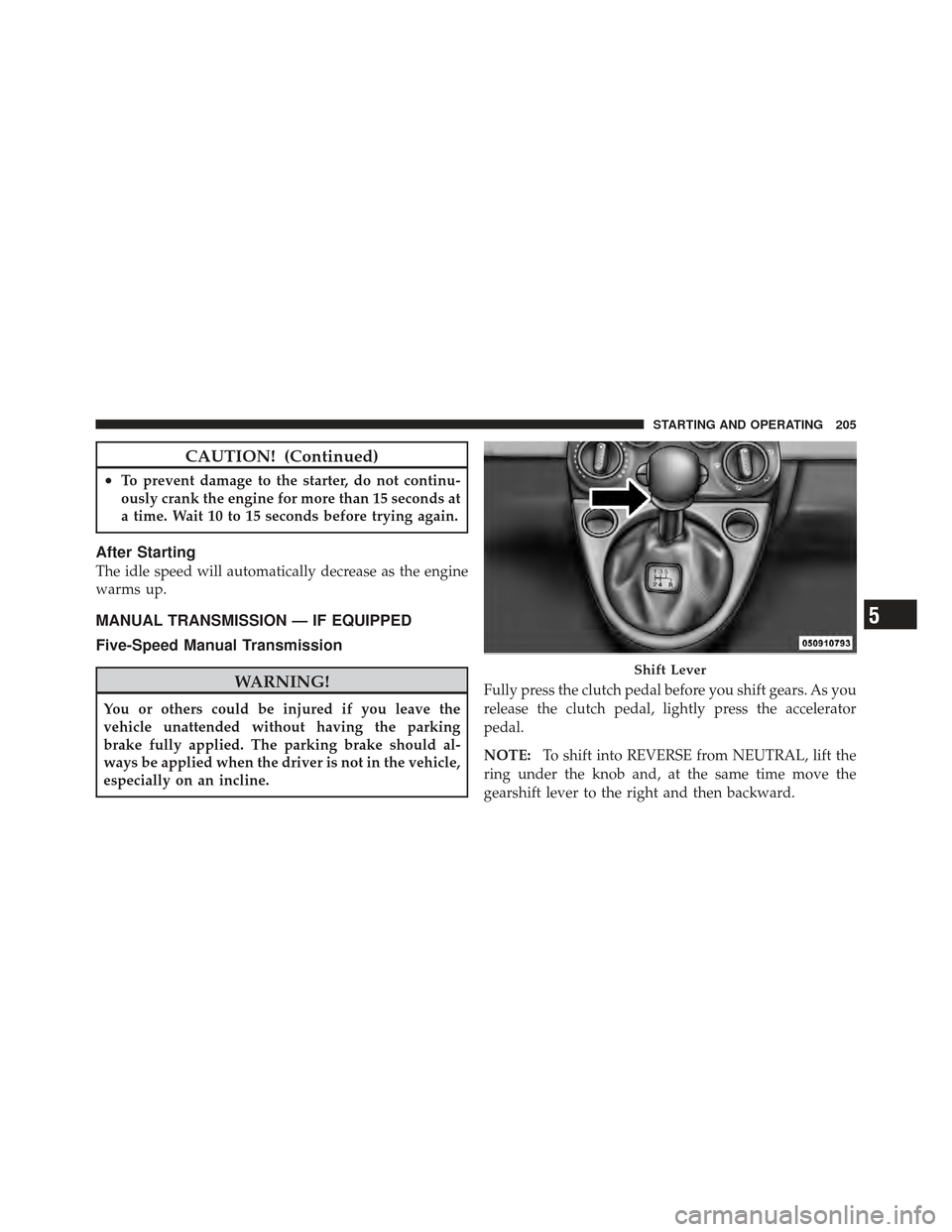

CAUTION! (Continued)
•To prevent damage to the starter, do not continu-
ously crank the engine for more than 15 seconds at
a time. Wait 10 to 15 seconds before trying again.
After Starting
The idle speed will automatically decrease as the engine
warms up.
MANUAL TRANSMISSION — IF EQUIPPED
Five-Speed Manual Transmission
WARNING!
You or others could be injured if you leave the
vehicle unattended without having the parking
brake fully applied. The parking brake should al-
ways be applied when the driver is not in the vehicle,
especially on an incline.Fully press the clutch pedal before you shift gears. As you
release the clutch pedal, lightly press the accelerator
pedal.
NOTE:
To shift into REVERSE from NEUTRAL, lift the
ring under the knob and, at the same time move the
gearshift lever to the right and then backward.
Shift Lever
5
STARTING AND OPERATING 205

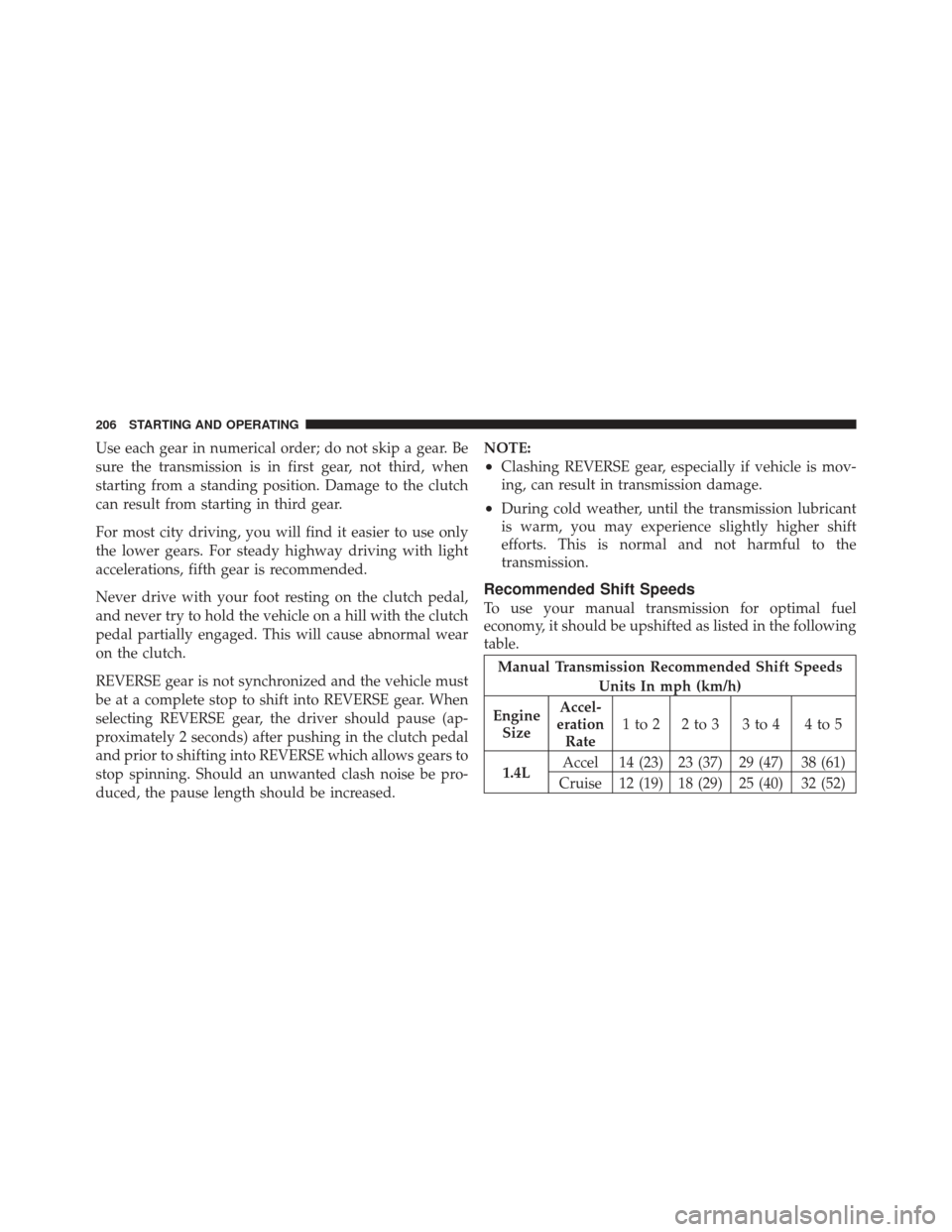

Use each gear in numerical order; do not skip a gear. Be
sure the transmission is in first gear, not third, when
starting from a standing position. Damage to the clutch
can result from starting in third gear.
For most city driving, you will find it easier to use only
the lower gears. For steady highway driving with light
accelerations, fifth gear is recommended.
Never drive with your foot resting on the clutch pedal,
and never try to hold the vehicle on a hill with the clutch
pedal partially engaged. This will cause abnormal wear
on the clutch.
REVERSE gear is not synchronized and the vehicle must
be at a complete stop to shift into REVERSE gear. When
selecting REVERSE gear, the driver should pause (ap-
proximately 2 seconds) after pushing in the clutch pedal
and prior to shifting into REVERSE which allows gears to
stop spinning. Should an unwanted clash noise be pro-
duced, the pause length should be increased.NOTE:
•Clashing REVERSE gear, especially if vehicle is mov-
ing, can result in transmission damage.
•During cold weather, until the transmission lubricant
is warm, you may experience slightly higher shift
efforts. This is normal and not harmful to the
transmission.
Recommended Shift Speeds
To use your manual transmission for optimal fuel
economy, it should be upshifted as listed in the following
table.
Manual Transmission Recommended Shift Speeds
Units In mph (km/h)
Engine Size Accel-
eration Rate 1to2 2to3 3to4 4to5
1.4L Accel 14 (23) 23 (37) 29 (47) 38 (61)
Cruise 12 (19) 18 (29) 25 (40) 32 (52)
206 STARTING AND OPERATING

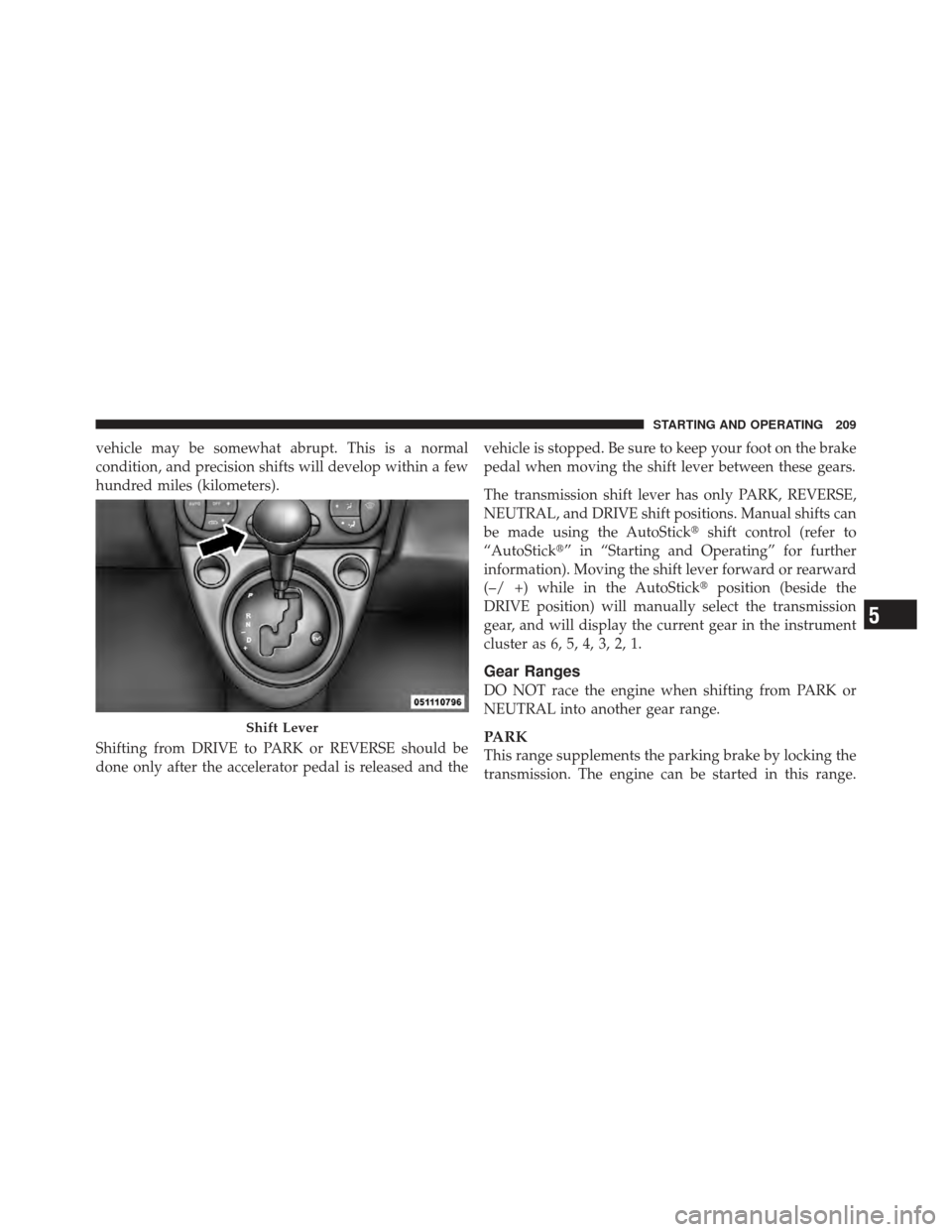

vehicle may be somewhat abrupt. This is a normal
condition, and precision shifts will develop within a few
hundred miles (kilometers).
Shifting from DRIVE to PARK or REVERSE should be
done only after the accelerator pedal is released and thevehicle is stopped. Be sure to keep your foot on the brake
pedal when moving the shift lever between these gears.
The transmission shift lever has only PARK, REVERSE,
NEUTRAL, and DRIVE shift positions. Manual shifts can
be made using the AutoStick
shift control (refer to
“AutoStick” in “Starting and Operating” for further
information). Moving the shift lever forward or rearward
(–/ +) while in the AutoStick position (beside the
DRIVE position) will manually select the transmission
gear, and will display the current gear in the instrument
cluster as 6, 5, 4, 3, 2, 1.
Gear Ranges
DO NOT race the engine when shifting from PARK or
NEUTRAL into another gear range.
PARK
This range supplements the parking brake by locking the
transmission. The engine can be started in this range.
Shift Lever
5
STARTING AND OPERATING 209
