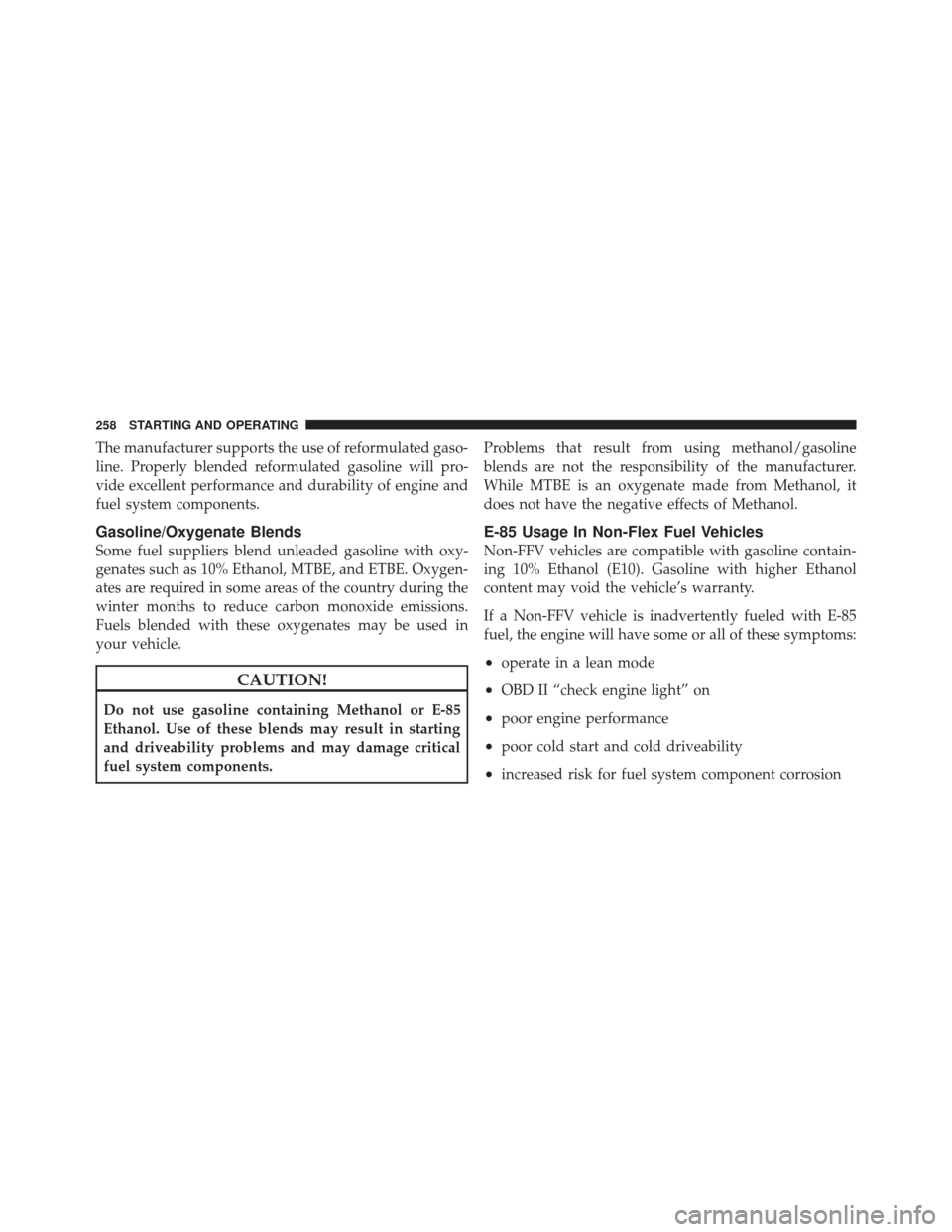

The manufacturer supports the use of reformulated gaso-
line. Properly blended reformulated gasoline will pro-
vide excellent performance and durability of engine and
fuel system components.
Gasoline/Oxygenate Blends
Some fuel suppliers blend unleaded gasoline with oxy-
genates such as 10% Ethanol, MTBE, and ETBE. Oxygen-
ates are required in some areas of the country during the
winter months to reduce carbon monoxide emissions.
Fuels blended with these oxygenates may be used in
your vehicle.
CAUTION!
Do not use gasoline containing Methanol or E-85
Ethanol. Use of these blends may result in starting
and driveability problems and may damage critical
fuel system components.Problems that result from using methanol/gasoline
blends are not the responsibility of the manufacturer.
While MTBE is an oxygenate made from Methanol, it
does not have the negative effects of Methanol.
E-85 Usage In Non-Flex Fuel Vehicles
Non-FFV vehicles are compatible with gasoline contain-
ing 10% Ethanol (E10). Gasoline with higher Ethanol
content may void the vehicle’s warranty.
If a Non-FFV vehicle is inadvertently fueled with E-85
fuel, the engine will have some or all of these symptoms:
•operate in a lean mode
•OBD II “check engine light” on
•poor engine performance
•poor cold start and cold driveability
•increased risk for fuel system component corrosion
258 STARTING AND OPERATING

override the system. The ignition key must be in the
ON/RUN position to use the override lever.
CAUTION!
Failure to follow these towing methods can cause
severe transmission damage. Such damage is not
covered by the New Vehicle Limited Warranty.
ENHANCED ACCIDENT RESPONSE SYSTEM
In the event of an impact causing airbag deployment, if
the communication network remains intact, and the
power remains intact, depending on the nature of the
event the ORC will determine whether to have the
Enhanced Accident Response System perform the follow-
ing functions:
•Cut off fuel to the engine.
•Flash hazard lights as long as the battery has power or
until the ignition key is turned off.
•Turn on the interior lights, which remain on as long as
the battery has power or until the ignition key is
removed.
•Unlock the doors automatically.
After the event occurs, when the system is active, the
message Fuel Cutoff See Handbook is displayed.
Carefully check the vehicle for fuel leaks in the engine
compartment and on the ground near the engine com-
partment and fuel tank before resetting the system and
starting the engine.
System Reset Procedure
After an impact causing airbag deployment, the left and
right turn signal lights, located in the instrument panel
cluster, will both be blinking, until the ignition is turned
off.
In order to move your vehicle to the side of the road you
must follow the system reset procedure.
6
WHAT TO DO IN EMERGENCIES 297

For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system may notbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Turn the ignition switch to the ON position, but do not
crank or start the engine. 2. If you crank or start the engine, you will have to start
this test over.
3. As soon as you turn the ignition switch to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
4. Approximately 15 seconds later, one of two things will
happen:
a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not readyand you should
not proceed to the I/M station.
b. The MIL will not flash at all and will remain fully
illuminated until you turn OFF the ignition or start the
engine. This means that your vehicle’s OBD II system
is ready and you can proceed to the I/M station.
7
MAINTAINING YOUR VEHICLE 303

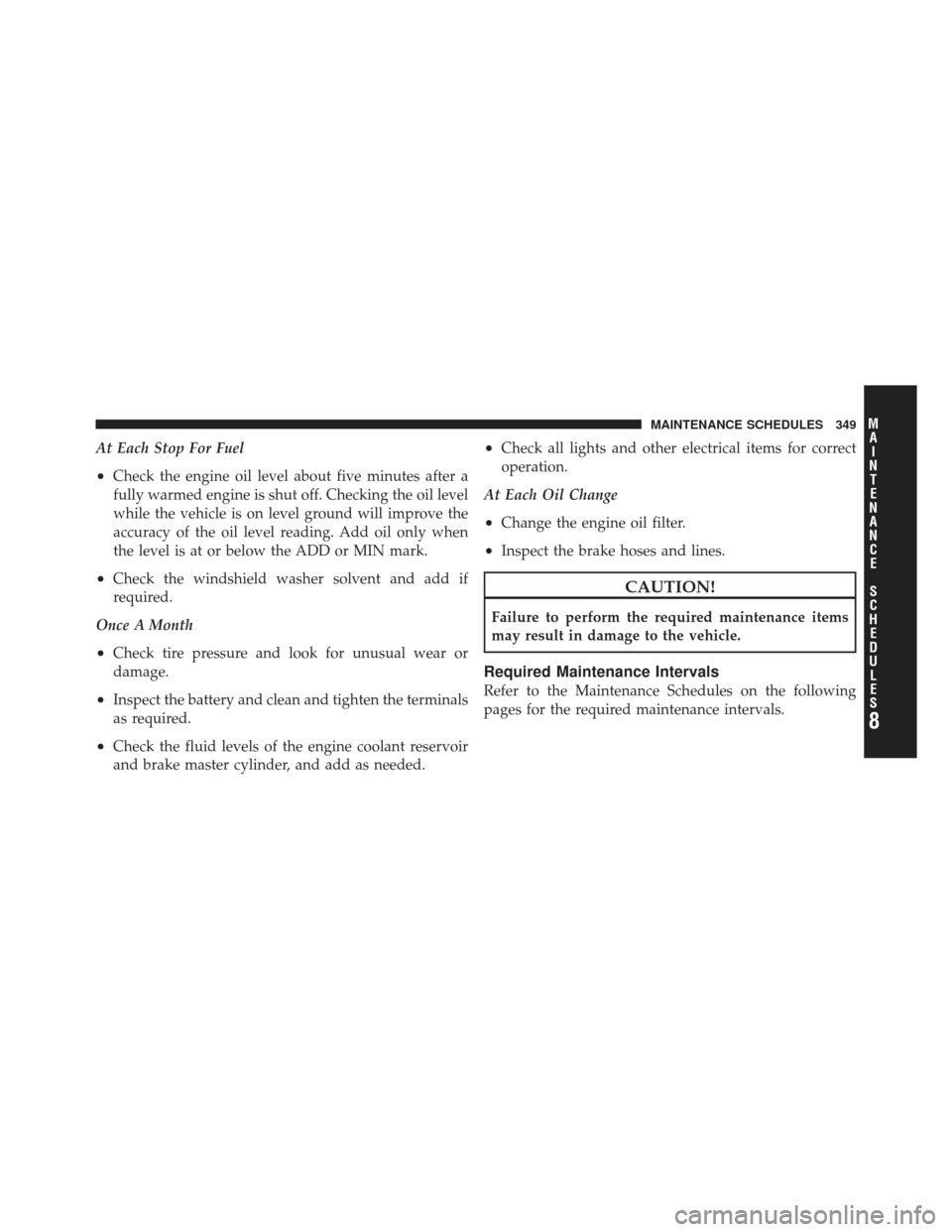

At Each Stop For Fuel
•Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
Once A Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of the engine coolant reservoir
and brake master cylinder, and add as needed.
•Check all lights and other electrical items for correct
operation.
At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 349

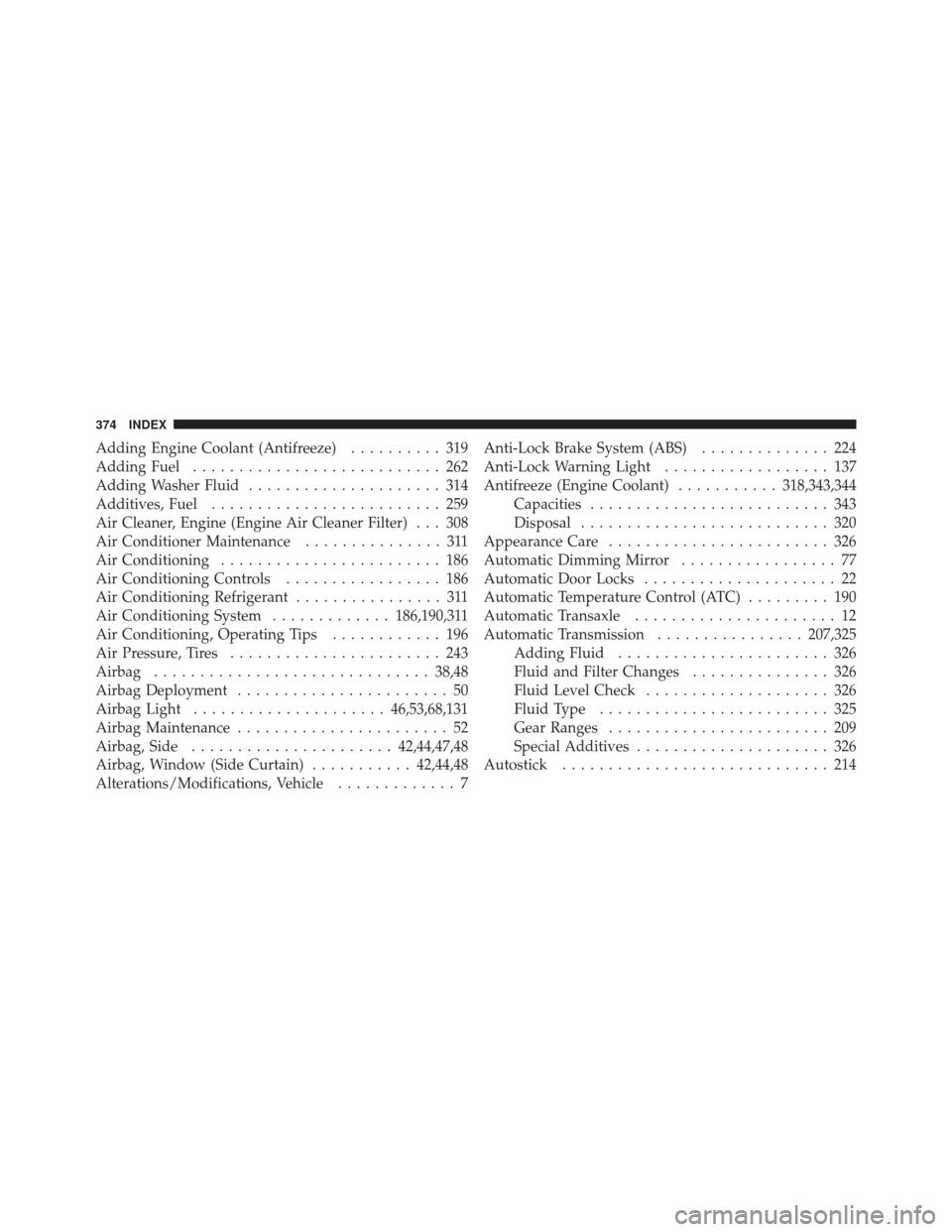

Adding Engine Coolant (Antifreeze).......... 319
Adding Fuel ........................... 262
Adding Washer Fluid ..................... 314
Additives, Fuel ......................... 259
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 308
Air Conditioner Maintenance ............... 311
Air Conditioning ........................ 186
Air Conditioning Controls ................. 186
Air Conditioning Refrigerant ................ 311
Air Conditioning System .............186,190,311
Air Conditioning, Operating Tips ............ 196
Air Pressure, Tires ....................... 243
Airbag .............................. 38,48
Airbag Deployment ....................... 50
Airbag Light ..................... 46,53,68,131
Airbag Maintenance ....................... 52
Airbag, Side ...................... 42,44,47,48
Airbag, Window (Side Curtain) ...........42,44,48
Alterations/Modifications, Vehicle ............. 7Anti-Lock Brake System (ABS)
.............. 224
Anti-Lock Warning Light .................. 137
Antifreeze (Engine Coolant) ...........318,343,344
Capacities .......................... 343
Disposal ........................... 320
Appearance Care ........................ 326
Automatic Dimming Mirror ................. 77
Automatic Door Locks ..................... 22
Automatic Temperature Control (ATC) ......... 190
Automatic Transaxle ...................... 12
Automatic Transmission ................207,325
Adding Fluid ....................... 326
Fluid and Filter Changes ............... 326
Fluid Level Check .................... 326
Fluid Type ......................... 325
Gear Ranges ........................ 209
Special Additives ..................... 326
Autostick ............................. 214
374 INDEX

B-Pillar Location........................ 238
Battery ............................... 309
Jump Starting ....................... 289
Keyless Transmitter Replacement (RKE) ..... 18
Belts, Seat .............................. 67
Body Mechanism Lubrication ............... 312
Brake Assist System ...................... 226
Brake Fluid ............................ 345
Brake System ........................ 224,322
Anti-Lock (ABS) .................. 224,226
Master Cylinder ..................... 323
Parking ........................... 220
Warning Light ....................... 136
Brake, Parking .......................... 220
Brake/Transmission Interlock ............... 208
Brakes ............................... 322
Break-In Recommendations, New Vehicle ........ 65
Bulbs, Light ............................ 70 Capacities, Antifreeze (Engine Coolant)
........ 343
Capacities, Fluid ........................ 343
Caps, Filler Fuel .............................. 262
Oil (Engine) ........................ 307
Car Washes ............................ 327
Carbon Monoxide Warning ...............66,261
Cargo Area Features ...................... 122
CD (Compact Disc) Player ................. 157
Cellular Phone .......................... 185
Chains, Tire ............................ 249
Changing A Flat Tire ..................... 278
Chart, Tire Sizing ........................ 234
Check Engine Light
(Malfunction Indicator Light) .............134,302
Checking Your Vehicle For Safety ............. 66
Checks, Safety ........................... 66
Child Restraint ........................ 55,56
Child Restraint Tether Anchors ............... 59
10
INDEX 375

Oil Selection........................ 307
Oil Synthetic ........................ 308
Overheating ........................ 267
Starting ........................... 203
Temperature Gauge ................... 138
Enhanced Accident Response Feature ........48,297
Event Data Recorder ...................... 54
Exhaust Gas Caution ................. 25,66,261
Exhaust System ....................... 66,315
Exterior Lights .......................... 70
Filler Location Fuel ...................... 140
Filters Air Cleaner ......................... 308
Automatic Transmission ................ 326
Engine Oil ....................... 308,344
Flash-To-Pass ........................... 97
Flashers Turn Signal ......................... 70 Flooded Engine Starting
................... 204
Fluid Capacities ......................... 343
Fluid Leaks ............................. 70
Fluid Level Checks Automatic Transmission ................ 326
Fluid, Brake ........................... 345
Fluids ................................ 344
Fluids, Lubricants and Genuine Parts .......... 344
Fog Lights .......................... 100,130
Freeing A Stuck Vehicle ................... 293
Fuel .............................. 257,344
Additives .......................... 259
Capacity ........................... 343
Clean Air .......................... 257
Cutoff ............................. 48
Filler Cap (Gas Cap) ...............140,262
Filler Door (Gas Cap) .................. 140
Gasoline ........................... 257
Gauge ............................ 140
378 INDEX

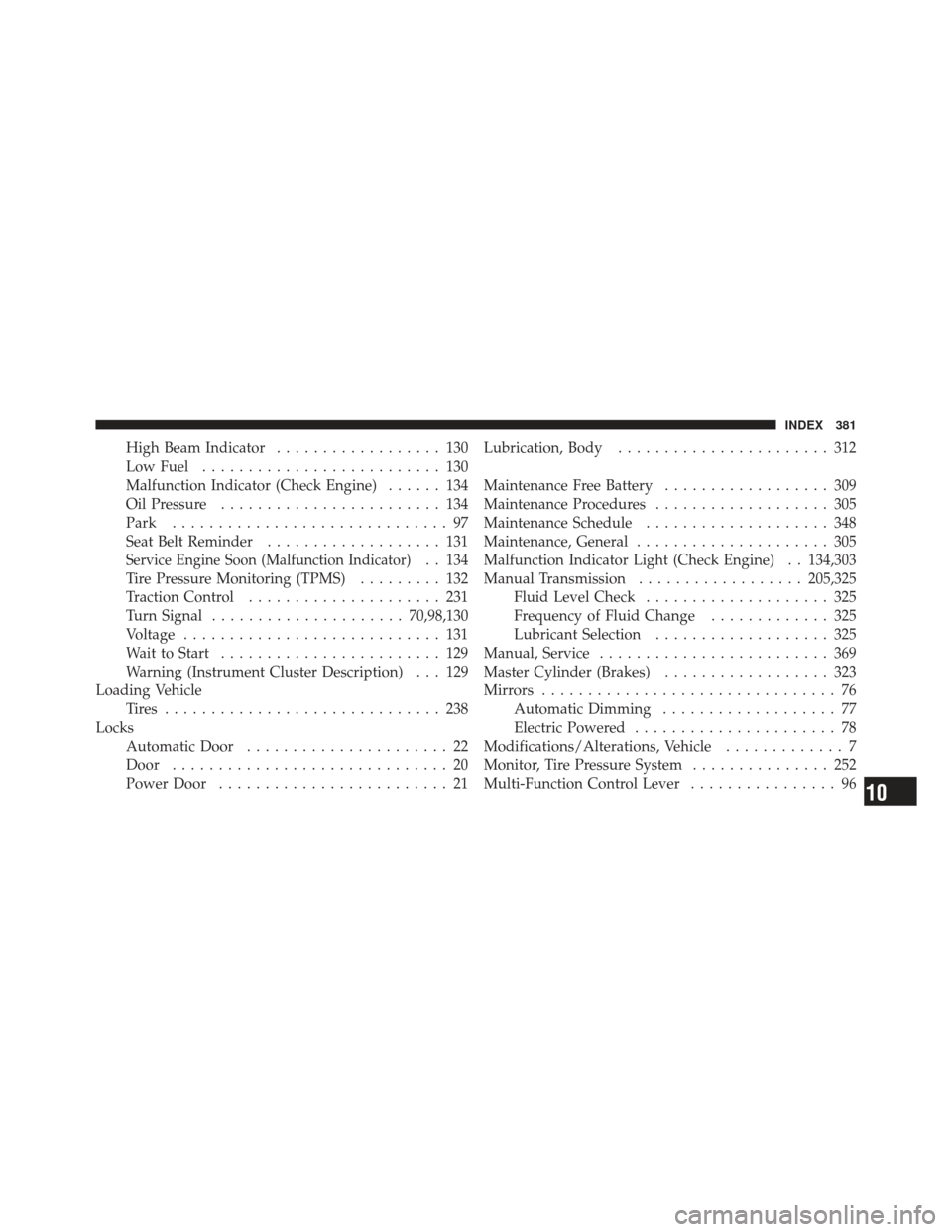

High Beam Indicator.................. 130
Low Fuel .......................... 130
Malfunction Indicator (Check Engine) ...... 134
Oil Pressure ........................ 134
Park .............................. 97
Seat Belt Reminder ................... 131
Service Engine Soon (Malfunction Indicator). . 134
Tire Pressure Monitoring (TPMS) ......... 132
Traction Control ..................... 231
Turn Signal ..................... 70,98,130
Voltage ............................ 131
Wait to Start ........................ 129
Warning (Instrument Cluster Description) . . . 129
Loading Vehicle Tires .............................. 238
Locks Automatic Door ...................... 22
Door .............................. 20
Power Door ......................... 21 Lubrication, Body
....................... 312
Maintenance Free Battery .................. 309
Maintenance Procedures ................... 305
Maintenance Schedule .................... 348
Maintenance, General ..................... 305
Malfunction Indicator Light (Check Engine) . . 134,303
Manual Transmission .................. 205,325
Fluid Level Check .................... 325
Frequency of Fluid Change ............. 325
Lubricant Selection ................... 325
Manual, Service ......................... 369
Master Cylinder (Brakes) .................. 323
Mirrors ................................ 76
Automatic Dimming ................... 77
Electric Powered ...................... 78
Modifications/Alterations, Vehicle ............. 7
Monitor, Tire Pressure System ............... 252
Multi-Function Control Lever ................ 96
10
INDEX 381
