2012 DODGE JOURNEY glove box

Key Fob
The Key Fob also contains the Remote Keyless Entry
(RKE) transmitter and an emergency key, which stores in
the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
The emergency key is also for locking the glove box. You
can keep the emergency key with you when valet park-
ing.
Keyless Ignition Node (KIN)
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

Power Inverter — If Equipped ............ 247
▫ Power Inverter Operation .............. 248
 Cupholders .......................... 249
 Storage ............................. 251
▫ Glovebox Storage .................... 251
▫ Floor Console Storage ................. 251
▫ Center Console Storage ................ 252
▫ Flip ’n Stow™ Front Passenger Seat
Storage — If Equipped ................ 254
▫ Second-Row Passenger Seat Temporary
Storage Bin ......................... 254 ▫
Second-Row Map Pocket And Grocery
Retainers — If Equipped ............... 255
▫ In-Floor Storage Bin With Removable Liner . . 255
 Cargo Area Features ................... 257
▫ Rechargeable Flashlight — If Equipped ..... 257
▫ Cargo Management System ............. 258
 Rear Window Features .................. 262
▫ Rear Window Wiper/Washer ............ 262
▫ Rear Window Defroster ................ 264
 Roof Luggage Rack — If Equipped ......... 265
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:
•If either light remains on and does not flash, or there is
a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
•A “Turn Signal On” message will appear in the EVIC
(if equipped) and a continuous chime will sound if the
vehicle is driven more than 1 mile (1.6 km) with either
turn signal on.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the multifunction lever
toward you to switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will turn on the high beams headlights until the lever is
released.
Interior Lights
The interior lights come on when a door is opened.
To protect the battery, the interior lights will turn off
automatically 10 minutes after the ignition switch is
moved to the LOCK position. This will occur if the
interior lights were switched on manually or are on
because a door is open. This includes the glove box light,
but not the trunk light. To restore interior light operation,
either turn the ignition switch ON or cycle the light
switch.
206 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

STORAGE
Glovebox Storage
The glovebox storage compartment is located on the
passenger side of the instrument panel. Pull on the
release handle to open the glovebox storage compart-
ment.
Floor Console Storage
An open storage area, or cubby bin, is located in the floor
console.
Glovebox Storage Compartment
Floor Console Cubby Bin
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 251

Refrigerant Recovery And Recycling
R-134a Air Conditioning Refrigerant is a hydrofluoro-
carbon (HFC) that is endorsed by the Environmental
Protection Agency and is an ozone-saving product. How-
ever, the manufacturer recommends that air conditioning
service be performed by authorized dealers or other
service facilities using recovery and recycling equipment.
NOTE:Use only manufacturer approved A/C system
sealers, stop leak products, seal conditioners, compressor
oil, and refrigerants.
A/C Air Filter – If Equipped
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
WARNING!
Do not remove the A/C air filter while the blower is
operating or personal injury may result.
The A/C air filter is located in the fresh air inlet behind
the glove box. Perform the following steps to replace the
filter:
1. Open the glove box and remove all contents.
2. Push the retaining tab on each side of the glove box
inward while gently pulling the glove box door outward
until both tabs clear the door opening in the instrument
panel.
510 MAINTAINING YOUR VEHICLE

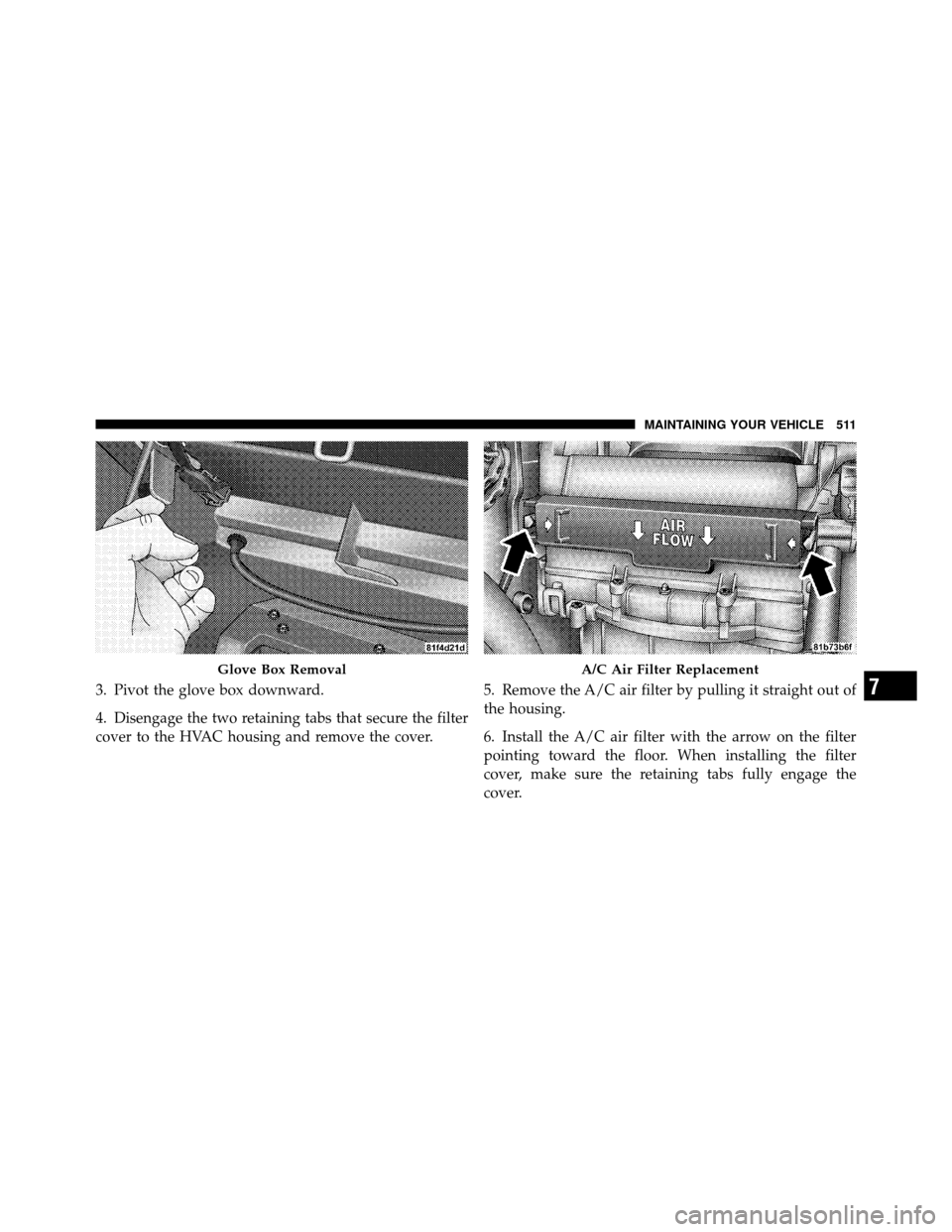

3. Pivot the glove box downward.
4. Disengage the two retaining tabs that secure the filter
cover to the HVAC housing and remove the cover.5. Remove the A/C air filter by pulling it straight out of
the housing.
6. Install the A/C air filter with the arrow on the filter
pointing toward the floor. When installing the filter
cover, make sure the retaining tabs fully engage the
cover.
Glove Box RemovalA/C Air Filter Replacement
7
MAINTAINING YOUR VEHICLE 511

CAUTION!
The A/C air filter is identified with an arrow to
indicate airflow direction through the filter. Failure
to install the filter properly will result in the need to
replace it more often.
7. Reinstall the glove box door. Make sure that the hinges
are seated fully as you raise the door. Otherwise, the door
latch will not align properly.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium based grease, such as
MOPAR Spray White Lube or equivalent to assure
quiet, easy operation and to protect against rust and
wear. Prior to the application of any lubricant, the parts
concerned should be wiped clean to remove dust and grit; after lubricating excess oil and grease should be
removed. Particular attention should also be given to
hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield and rear window periodically with a sponge
or soft cloth and a mild nonabrasive cleaner. This will
remove accumulations of salt, waxes, or road film, and
help reduce streaking and smearing.
512 MAINTAINING YOUR VEHICLE

REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb Number
Courtesy/Reading Lamps (Incandescent)........ 578
Courtesy/Reading Lamps (Optional LED) ...... LED
(Serviced at Authorized Dealer)
Glove Box Lamp ......................... 194
Cargo Lamp ............................ 579
Optional Door Map Pocket/Cupholder ........ LED
(Serviced at Authorized Dealer)
NOTE: For lighted switches, see your authorized dealer
for replacement instructions. LIGHTS BULBS – Exterior
Bulb No.
Low Beam Headlamp ..................... 9006
High Beam Headlamp .................... 9005
Front Park/Turn Signal .................3757AK
Side Marker Lamp ........................ 168
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop Lamp (CHMSL) ..... LED
(Serviced at Authorized Dealer)
License Lamp ........................... 168
LIGHTS BULBS – Rear (LED Version) Bulb No.
Rear Tail/Stop Lamp ..................... LED
(Serviced at Authorized Dealer)
Rear Tail (Liftgate) Lamp .................. LED
(Serviced at Authorized Dealer)
Rear Turn Signal Lamp .................WY21W
Backup Lamp ......................... W21W
7
MAINTAINING YOUR VEHICLE 541
