Key Fob
The Key Fob also contains the Remote Keyless Entry
(RKE) transmitter and an emergency key, which stores in
the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
The emergency key is also for locking the glove box. You
can keep the emergency key with you when valet park-
ing.
Keyless Ignition Node (KIN)
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
PAGE POSITION:13JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Key Fob
The Key Fob also contains the Remote Keyless Entry
(RKE) transmitter and an emergency key, which stores in
the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
The emergency key is also for locking the glove box. You
can keep the emergency key with you when valet park-
ing.
Keyless Ignition Node (KIN)
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
PAGE POSITION:13JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

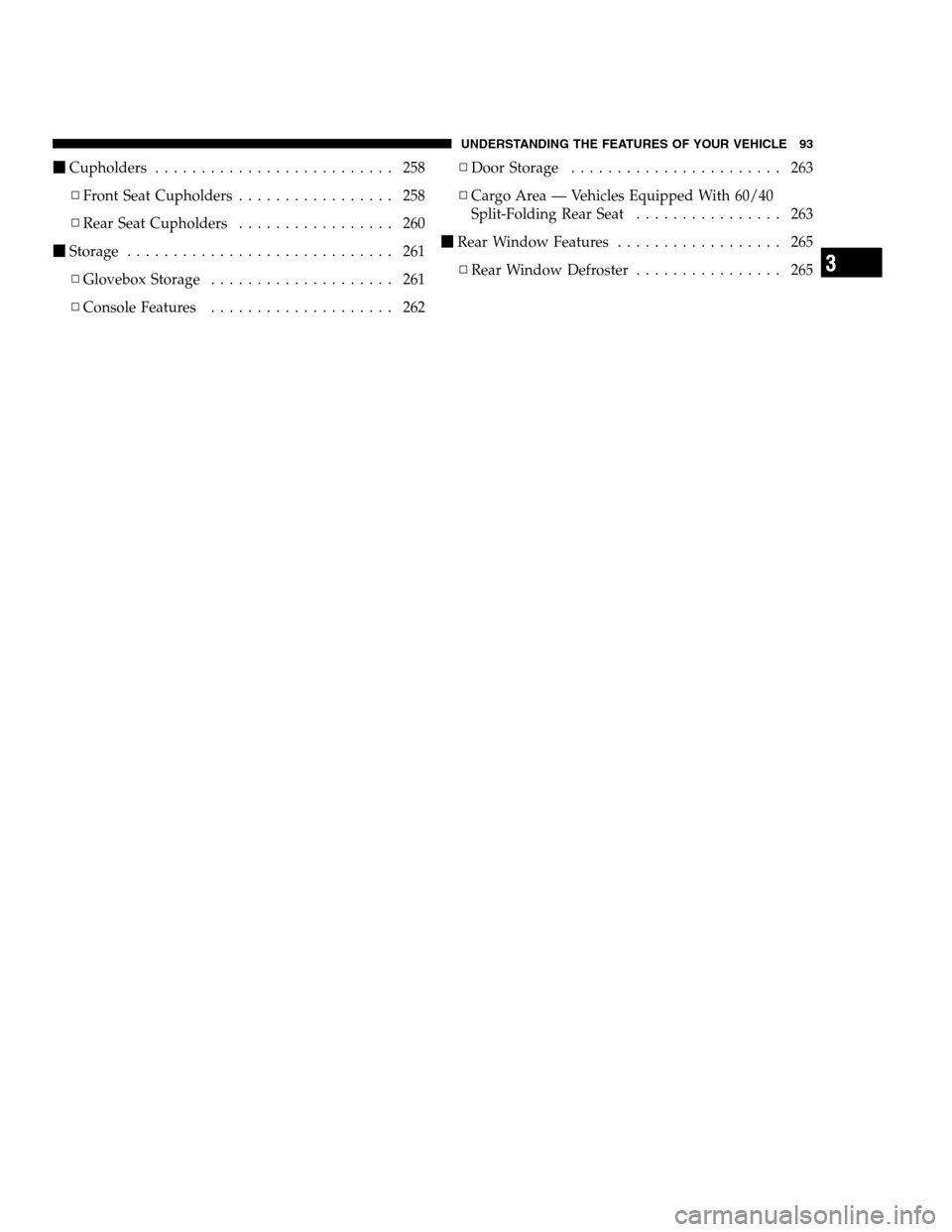

Cupholders.......................... 258
▫Front Seat Cupholders................. 258
▫Rear Seat Cupholders................. 260
Storage............................. 261
▫Glovebox Storage.................... 261
▫Console Features.................... 262▫Door Storage....................... 263
▫Cargo Area — Vehicles Equipped With 60/40
Split-Folding Rear Seat................ 263
Rear Window Features.................. 265
▫Rear Window Defroster................ 265
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
PAGE POSITION:93JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Cupholders.......................... 258
▫Front Seat Cupholders................. 258
▫Rear Seat Cupholders................. 260
Storage............................. 261
▫Glovebox Storage.................... 261
▫Console Features.................... 262▫Door Storage....................... 263
▫Cargo Area — Vehicles Equipped With 60/40
Split-Folding Rear Seat................ 263
Rear Window Features.................. 265
▫Rear Window Defroster................ 265
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
PAGE POSITION:93JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

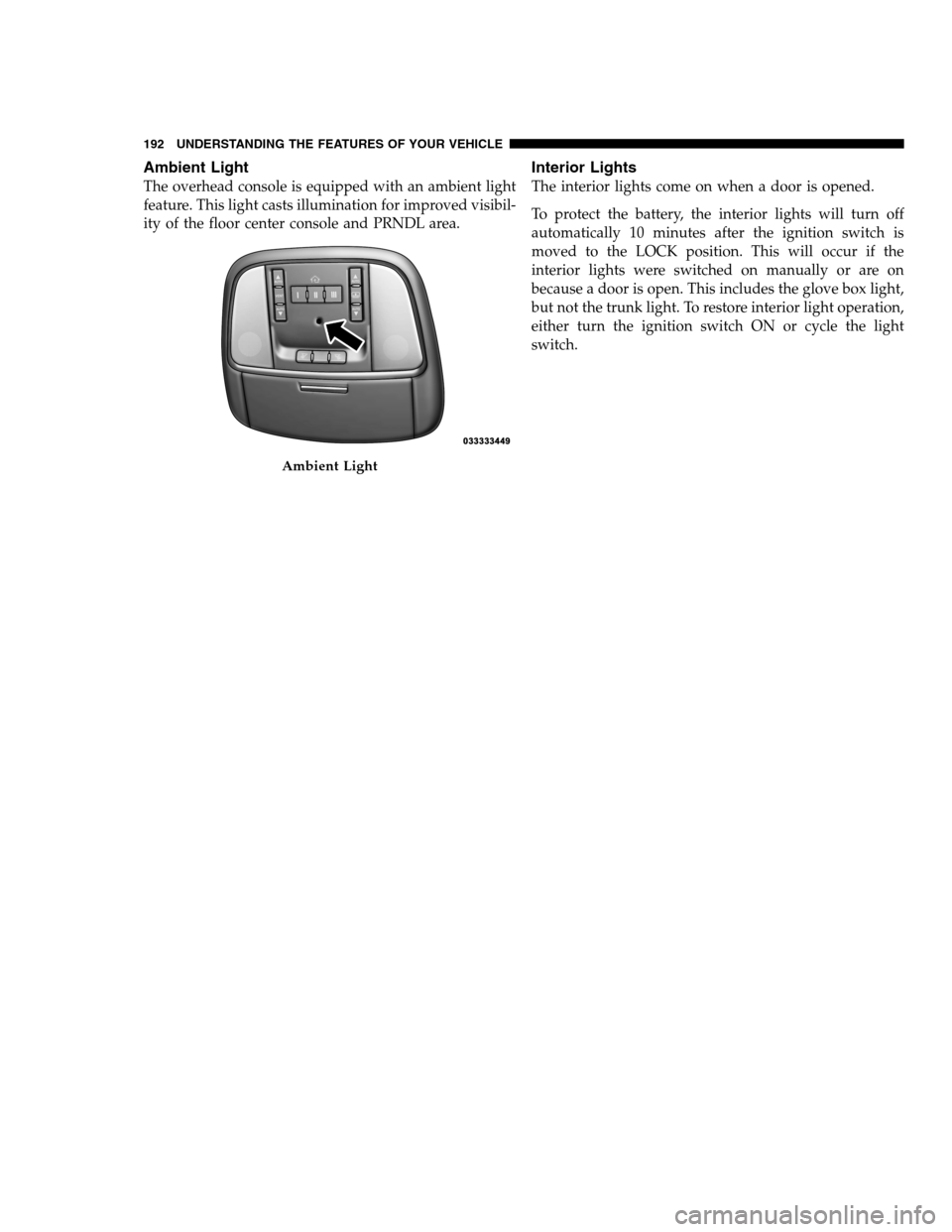

Ambient Light
The overhead console is equipped with an ambient light
feature. This light casts illumination for improved visibil-
ity of the floor center console and PRNDL area.
Interior Lights
The interior lights come on when a door is opened.
To protect the battery, the interior lights will turn off
automatically 10 minutes after the ignition switch is
moved to the LOCK position. This will occur if the
interior lights were switched on manually or are on
because a door is open. This includes the glove box light,
but not the trunk light. To restore interior light operation,
either turn the ignition switch ON or cycle the light
switch.
Ambient Light
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
PAGE POSITION:192JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Ambient Light
The overhead console is equipped with an ambient light
feature. This light casts illumination for improved visibil-
ity of the floor center console and PRNDL area.
Interior Lights
The interior lights come on when a door is opened.
To protect the battery, the interior lights will turn off
automatically 10 minutes after the ignition switch is
moved to the LOCK position. This will occur if the
interior lights were switched on manually or are on
because a door is open. This includes the glove box light,
but not the trunk light. To restore interior light operation,
either turn the ignition switch ON or cycle the light
switch.
Ambient Light
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
PAGE POSITION:192JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

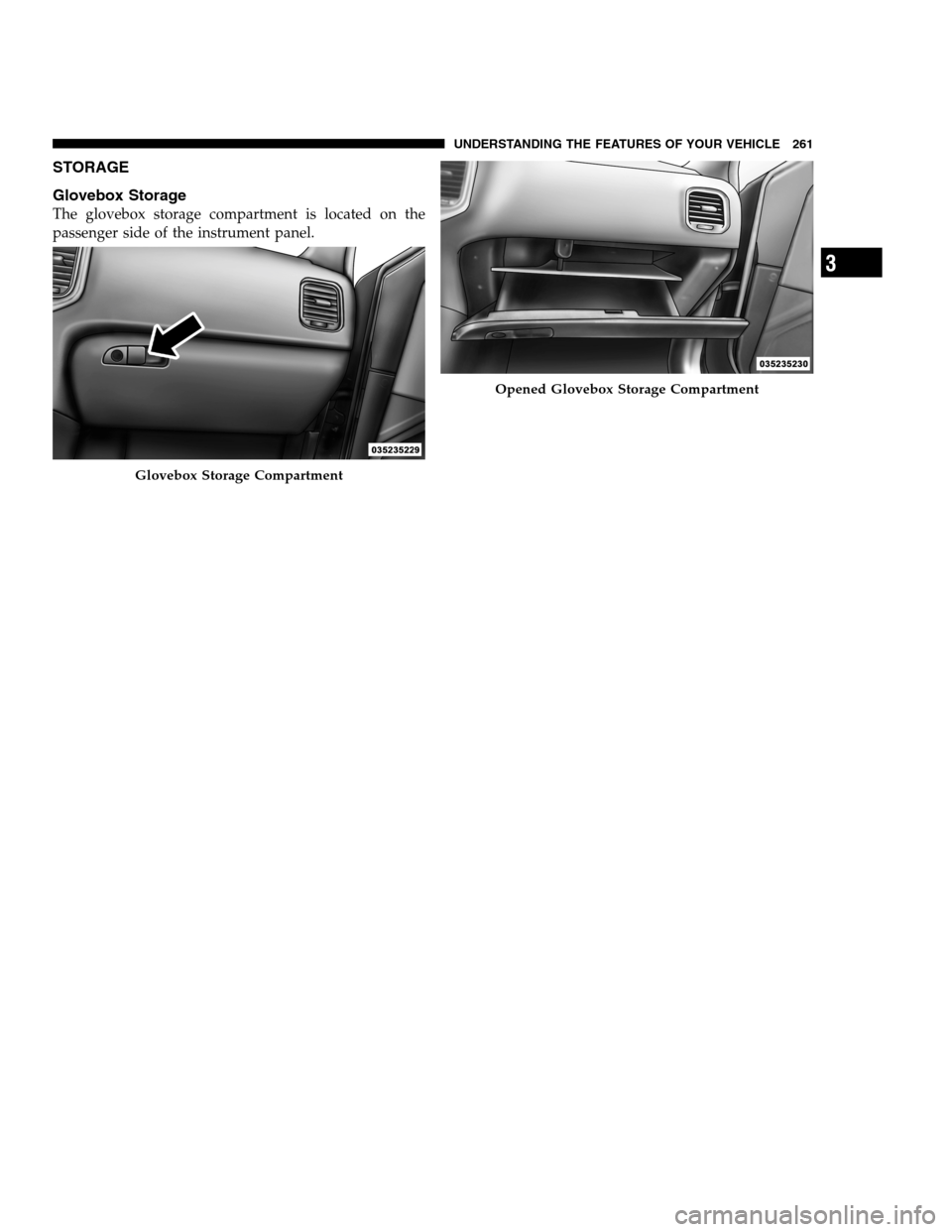

STORAGE
Glovebox Storage
The glovebox storage compartment is located on the
passenger side of the instrument panel.
Glovebox Storage Compartment
Opened Glovebox Storage Compartment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 261
PAGE POSITION:261JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR STORAGE
Glovebox Storage
The glovebox storage compartment is located on the
passenger side of the instrument panel.
Glovebox Storage Compartment
Opened Glovebox Storage Compartment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 261
PAGE POSITION:261JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

REPLACEMENT BULBS
Interior Bulb Number
Rear Courtesy/Reading Lamps............. W5W
Rear Compartment (Trunk) Lamp............. 562
Overhead Console Reading Lamp............. 578
Visor Vanity Lamps.....................A6220
Glove Box Lamp – If Equipped............... 194
Door Courtesy.......................... 562
Shift Indicator Lamp.................JKLE14140
Optional Door Map Pocket/Cupholder........ LED
(Serviced at Authorized Dealer)
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.Exterior Bulb Number
Low Beam Headlamp (Standard Halogen)...... H11
Low Beam Headlamp – High Intensity Discharge
(HID)................................ D3S
(Serviced at Authorized Dealer)
High Beam Headlamp....................9005
Front Park/Turn Lamp...................3157A
Front Fog Lamp – If Equipped............PSX24W
Front Side Marker........................ 168
Rear Tail Lamp......................... LED
(Serviced at Authorized Dealer)
Rear Stop/Turn Lamp.................... LED
(Serviced at Authorized Dealer)
Rear Side Marker........................ 168
Backup Lamp..........................3157
Center High-Mount Stop Lamp (CHMSL)....... LED
(Serviced at Authorized Dealer)
License................................ 168
486 MAINTAINING YOUR VEHICLE
PAGE POSITION:486JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR REPLACEMENT BULBS
Interior Bulb Number
Rear Courtesy/Reading Lamps............. W5W
Rear Compartment (Trunk) Lamp............. 562
Overhead Console Reading Lamp............. 578
Visor Vanity Lamps.....................A6220
Glove Box Lamp – If Equipped............... 194
Door Courtesy.......................... 562
Shift Indicator Lamp.................JKLE14140
Optional Door Map Pocket/Cupholder........ LED
(Serviced at Authorized Dealer)
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.Exterior Bulb Number
Low Beam Headlamp (Standard Halogen)...... H11
Low Beam Headlamp – High Intensity Discharge
(HID)................................ D3S
(Serviced at Authorized Dealer)
High Beam Headlamp....................9005
Front Park/Turn Lamp...................3157A
Front Fog Lamp – If Equipped............PSX24W
Front Side Marker........................ 168
Rear Tail Lamp......................... LED
(Serviced at Authorized Dealer)
Rear Stop/Turn Lamp.................... LED
(Serviced at Authorized Dealer)
Rear Side Marker........................ 168
Backup Lamp..........................3157
Center High-Mount Stop Lamp (CHMSL)....... LED
(Serviced at Authorized Dealer)
License................................ 168
486 MAINTAINING YOUR VEHICLE
