2012 DODGE CHARGER SRT automatic transmission fluid

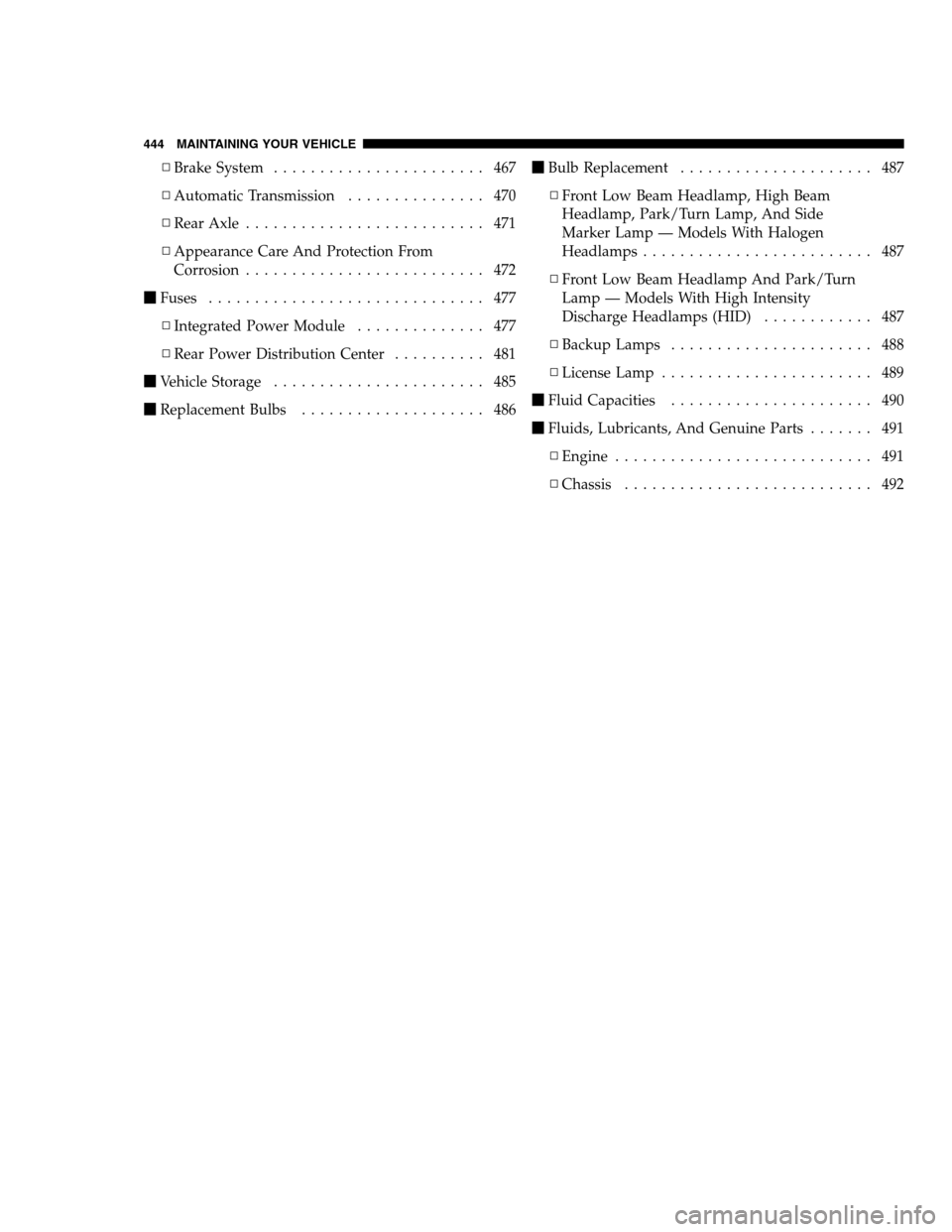

▫Brake System....................... 467
▫Automatic Transmission............... 470
▫Rear Axle.......................... 471
▫Appearance Care And Protection From
Corrosion.......................... 472
Fuses.............................. 477
▫Integrated Power Module.............. 477
▫Rear Power Distribution Center.......... 481
Vehicle Storage....................... 485
Replacement Bulbs.................... 486Bulb Replacement..................... 487
▫Front Low Beam Headlamp, High Beam
Headlamp, Park/Turn Lamp, And Side
Marker Lamp — Models With Halogen
Headlamps......................... 487
▫Front Low Beam Headlamp And Park/Turn
Lamp — Models With High Intensity
Discharge Headlamps (HID)............ 487
▫Backup Lamps...................... 488
▫License Lamp....................... 489
Fluid Capacities...................... 490
Fluids, Lubricants, And Genuine Parts....... 491
▫Engine............................ 491
▫Chassis........................... 492
444 MAINTAINING YOUR VEHICLE
PAGE POSITION:444JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR ▫Brake System....................... 467
▫Automatic Transmission............... 470
▫Rear Axle.......................... 471
▫Appearance Care And Protection From
Corrosion.......................... 472
Fuses.............................. 477
▫Integrated Power Module.............. 477
▫Rear Power Distribution Center.......... 481
Vehicle Storage....................... 485
Replacement Bulbs.................... 486Bulb Replacement..................... 487
▫Front Low Beam Headlamp, High Beam
Headlamp, Park/Turn Lamp, And Side
Marker Lamp — Models With Halogen
Headlamps......................... 487
▫Front Low Beam Headlamp And Park/Turn
Lamp — Models With High Intensity
Discharge Headlamps (HID)............ 487
▫Backup Lamps...................... 488
▫License Lamp....................... 489
Fluid Capacities...................... 490
Fluids, Lubricants, And Genuine Parts....... 491
▫Engine............................ 491
▫Chassis........................... 492
444 MAINTAINING YOUR VEHICLE
PAGE POSITION:444JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

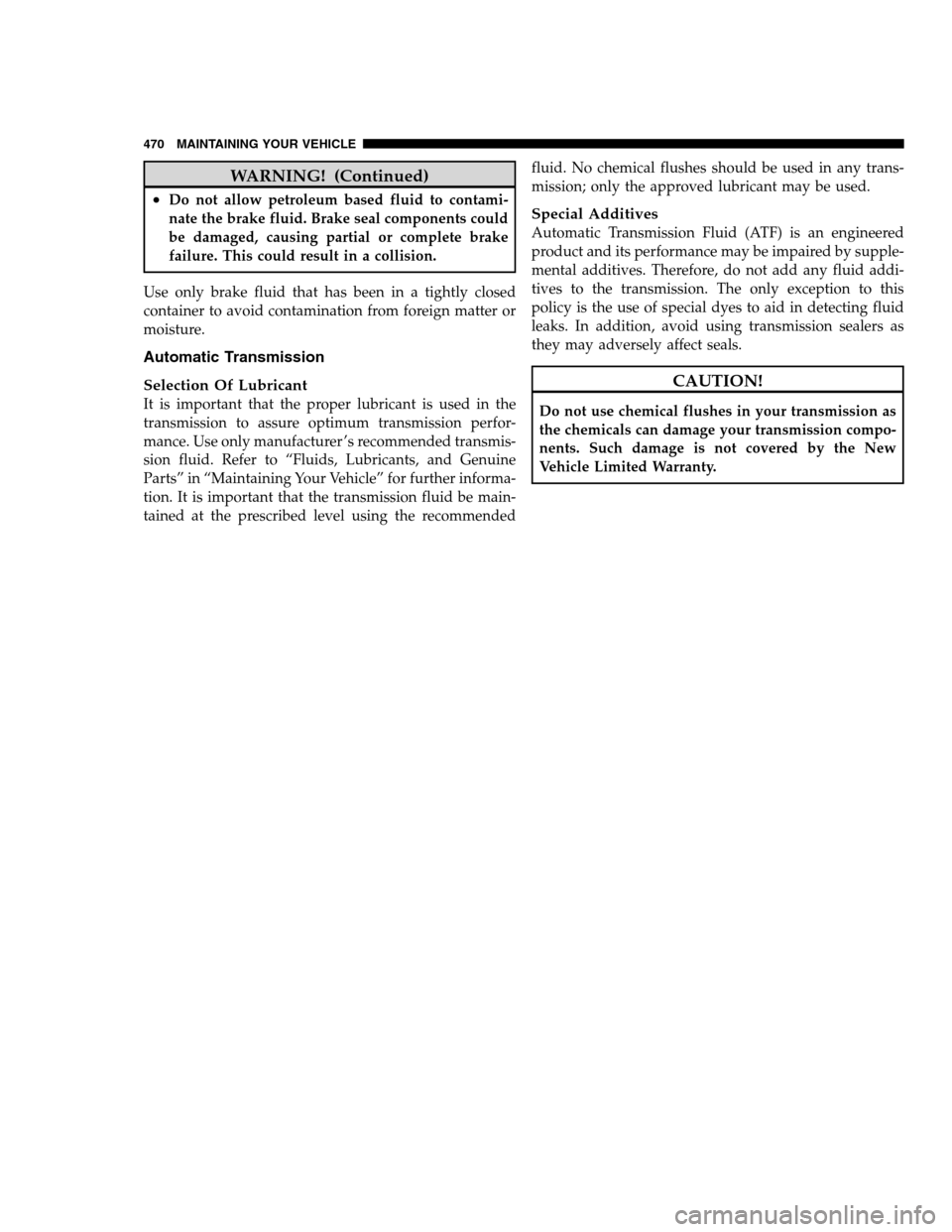

WARNING! (Continued)
•Do not allow petroleum based fluid to contami-
nate the brake fluid. Brake seal components could
be damaged, causing partial or complete brake
failure. This could result in a collision.
Use only brake fluid that has been in a tightly closed
container to avoid contamination from foreign matter or
moisture.
Automatic Transmission
Selection Of Lubricant
It is important that the proper lubricant is used in the
transmission to assure optimum transmission perfor-
mance. Use only manufacturer ’s recommended transmis-
sion fluid. Refer to “Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle” for further informa-
tion. It is important that the transmission fluid be main-
tained at the prescribed level using the recommendedfluid. No chemical flushes should be used in any trans-
mission; only the approved lubricant may be used.
Special Additives
Automatic Transmission Fluid (ATF) is an engineered
product and its performance may be impaired by supple-
mental additives. Therefore, do not add any fluid addi-
tives to the transmission. The only exception to this
policy is the use of special dyes to aid in detecting fluid
leaks. In addition, avoid using transmission sealers as
they may adversely affect seals.
CAUTION!
Do not use chemical flushes in your transmission as
the chemicals can damage your transmission compo-
nents. Such damage is not covered by the New
Vehicle Limited Warranty.
470 MAINTAINING YOUR VEHICLE
PAGE POSITION:470JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR WARNING! (Continued)
•Do not allow petroleum based fluid to contami-
nate the brake fluid. Brake seal components could
be damaged, causing partial or complete brake
failure. This could result in a collision.
Use only brake fluid that has been in a tightly closed
container to avoid contamination from foreign matter or
moisture.
Automatic Transmission
Selection Of Lubricant
It is important that the proper lubricant is used in the
transmission to assure optimum transmission perfor-
mance. Use only manufacturer ’s recommended transmis-
sion fluid. Refer to “Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle” for further informa-
tion. It is important that the transmission fluid be main-
tained at the prescribed level using the recommendedfluid. No chemical flushes should be used in any trans-
mission; only the approved lubricant may be used.
Special Additives
Automatic Transmission Fluid (ATF) is an engineered
product and its performance may be impaired by supple-
mental additives. Therefore, do not add any fluid addi-
tives to the transmission. The only exception to this
policy is the use of special dyes to aid in detecting fluid
leaks. In addition, avoid using transmission sealers as
they may adversely affect seals.
CAUTION!
Do not use chemical flushes in your transmission as
the chemicals can damage your transmission compo-
nents. Such damage is not covered by the New
Vehicle Limited Warranty.
470 MAINTAINING YOUR VEHICLE
PAGE POSITION:470JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

Fluid Level Check
Regular automatic transmission fluid level checks are not
required. For this reason, the dipstick is omitted.
If you notice fluid loss or transmission malfunction, have
your authorized dealer check the transmission fluid level.
CAUTION!
•Using a transmission fluid other than the manu-
facturer’s recommended fluid may cause deterio-
ration in transmission shift quality and/or torque
converter shudder. Using a transmission fluid
other than that recommended by the manufacturer
will require more frequent fluid and filter
changes. Refer to “Fluids, Lubricants, and Genu-
ine Parts” in “Maintaining Your Vehicle” for fur-
ther information.
(Continued)
CAUTION! (Continued)
•The fluid level is preset at the factory and it does
not require adjustment under normal operating
conditions. If a transmission fluid leak occurs,
visit your authorized dealer immediately. Severe
damage to the transmission may occur. Your au-
thorized dealer has the proper tools to adjust the
fluid level accurately.
Fluid And Filter Changes
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
If the transmission is disassembled for any reason, the
fluid and filter should be changed.
Rear Axle
For normal service, periodic fluid level checks are not
required. When the vehicle is serviced for other reasons
the exterior surfaces of the axle assembly should be
7
MAINTAINING YOUR VEHICLE 471
PAGE POSITION:471JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Fluid Level Check
Regular automatic transmission fluid level checks are not
required. For this reason, the dipstick is omitted.
If you notice fluid loss or transmission malfunction, have
your authorized dealer check the transmission fluid level.
CAUTION!
•Using a transmission fluid other than the manu-
facturer’s recommended fluid may cause deterio-
ration in transmission shift quality and/or torque
converter shudder. Using a transmission fluid
other than that recommended by the manufacturer
will require more frequent fluid and filter
changes. Refer to “Fluids, Lubricants, and Genu-
ine Parts” in “Maintaining Your Vehicle” for fur-
ther information.
(Continued)
CAUTION! (Continued)
•The fluid level is preset at the factory and it does
not require adjustment under normal operating
conditions. If a transmission fluid leak occurs,
visit your authorized dealer immediately. Severe
damage to the transmission may occur. Your au-
thorized dealer has the proper tools to adjust the
fluid level accurately.
Fluid And Filter Changes
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
If the transmission is disassembled for any reason, the
fluid and filter should be changed.
Rear Axle
For normal service, periodic fluid level checks are not
required. When the vehicle is serviced for other reasons
the exterior surfaces of the axle assembly should be
7
MAINTAINING YOUR VEHICLE 471
PAGE POSITION:471JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

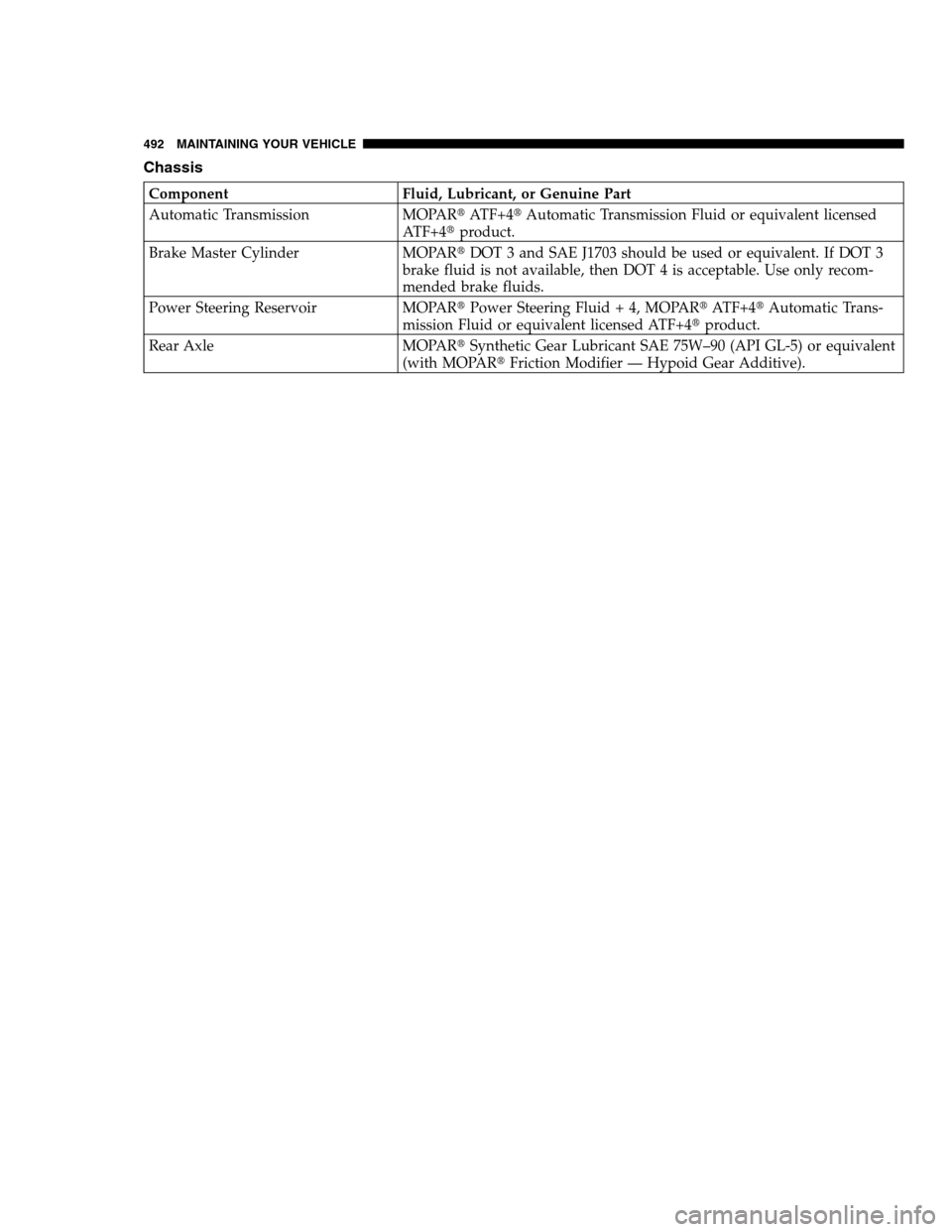

Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transmission MOPARATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4product.
Brake Master Cylinder MOPARDOT 3 and SAE J1703 should be used or equivalent. If DOT 3
brake fluid is not available, then DOT 4 is acceptable. Use only recom-
mended brake fluids.
Power Steering Reservoir MOPARPower Steering Fluid + 4, MOPARATF+4Automatic Trans-
mission Fluid or equivalent licensed ATF+4product.
Rear Axle MOPARSynthetic Gear Lubricant SAE 75W–90 (API GL-5) or equivalent
(with MOPARFriction Modifier — Hypoid Gear Additive).
492 MAINTAINING YOUR VEHICLE
PAGE POSITION:492JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transmission MOPARATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4product.
Brake Master Cylinder MOPARDOT 3 and SAE J1703 should be used or equivalent. If DOT 3
brake fluid is not available, then DOT 4 is acceptable. Use only recom-
mended brake fluids.
Power Steering Reservoir MOPARPower Steering Fluid + 4, MOPARATF+4Automatic Trans-
mission Fluid or equivalent licensed ATF+4product.
Rear Axle MOPARSynthetic Gear Lubricant SAE 75W–90 (API GL-5) or equivalent
(with MOPARFriction Modifier — Hypoid Gear Additive).
492 MAINTAINING YOUR VEHICLE
PAGE POSITION:492JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

54,000 Miles (90,000 km) or
54 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏Rotate tires.
❏Inspect the rear axle fluid.
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
60,000 Miles (100,000 km) or 60 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate tires.
❏Replace the engine air cleaner filter.
❏Replace the air conditioning filter.
❏Inspect the brake linings, and replace if necessary.
❏Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏Inspect the CV joints.
❏Inspect the exhaust system.
❏Change the automatic transmission fluid and filter if using your vehicle for any of the
following: police, taxi, fleet, or frequent trailer towing.
❏Flush and replace the engine coolant at 60 months if not done at 102,000 miles
(170 000 km).
❏Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
SMAINTENANCE SCHEDULES 501
PAGE POSITION:501JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR 54,000 Miles (90,000 km) or
54 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏Rotate tires.
❏Inspect the rear axle fluid.
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
60,000 Miles (100,000 km) or 60 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate tires.
❏Replace the engine air cleaner filter.
❏Replace the air conditioning filter.
❏Inspect the brake linings, and replace if necessary.
❏Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏Inspect the CV joints.
❏Inspect the exhaust system.
❏Change the automatic transmission fluid and filter if using your vehicle for any of the
following: police, taxi, fleet, or frequent trailer towing.
❏Flush and replace the engine coolant at 60 months if not done at 102,000 miles
(170 000 km).
❏Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
SMAINTENANCE SCHEDULES 501
PAGE POSITION:501JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

114,000 Miles (190,000 km) or
114 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏Rotate tires.
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
120,000 Miles (200,000 km) or 120 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate tires.
❏Replace the engine air cleaner filter.
❏Replace the air conditioning filter.
❏Inspect the brake linings, and replace if necessary.
❏Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏Inspect the CV joints.
❏Inspect the exhaust system.
❏Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
❏Change the automatic transmission fluid and filter.
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S506 MAINTENANCE SCHEDULES
PAGE POSITION:506JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR 114,000 Miles (190,000 km) or
114 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏Rotate tires.
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
120,000 Miles (200,000 km) or 120 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate tires.
❏Replace the engine air cleaner filter.
❏Replace the air conditioning filter.
❏Inspect the brake linings, and replace if necessary.
❏Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏Inspect the CV joints.
❏Inspect the exhaust system.
❏Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
❏Change the automatic transmission fluid and filter.
Odometer Reading Date
Repair Order # Dealer Code
Signature, Authorized Service Center
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S506 MAINTENANCE SCHEDULES
PAGE POSITION:506JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

Automatic Door Locks..................... 30
Automatic Headlights.................... 186
Automatic Oil Change Indicator............. 289
Automatic Temperature Control (ATC)......... 337
Automatic Transaxle
Special Additives..................... 470
Automatic Transmission.............353,470,471
Adding Fluid....................471,492
Autostick.......................... 360
Fluid and Filter Changes............... 471
Fluid Change....................... 471
Fluid Level Check.................... 471
Fluid Type......................... 492
Special Additives..................... 470
Autostick............................. 360
Axle Fluid............................. 492
Axle Lubrication (Axle Fluid)............... 492B-Pillar Location........................ 387
Battery............................... 452
Keyless Transmitter Replacement (RKE)..... 23
Location........................... 452
Belts, Seat............................43,84
Body Mechanism Lubrication............... 457
Brake Assist System...................... 374
Brake Control System, Electronic............. 373
Brake Fluid............................ 492
Brake System........................... 467
Anti-Lock (ABS)..................... 371
Fluid Check.....................468,492
Master Cylinder..................... 468
Parking........................... 368
Warning Light....................... 277
Brake, Parking.......................... 368
Brake/Transmission Interlock............... 353
Brakes............................... 467
Break-In Recommendations, New Vehicle........ 81
10
INDEX 523
PAGE POSITION:523JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Automatic Door Locks..................... 30
Automatic Headlights.................... 186
Automatic Oil Change Indicator............. 289
Automatic Temperature Control (ATC)......... 337
Automatic Transaxle
Special Additives..................... 470
Automatic Transmission.............353,470,471
Adding Fluid....................471,492
Autostick.......................... 360
Fluid and Filter Changes............... 471
Fluid Change....................... 471
Fluid Level Check.................... 471
Fluid Type......................... 492
Special Additives..................... 470
Autostick............................. 360
Axle Fluid............................. 492
Axle Lubrication (Axle Fluid)............... 492B-Pillar Location........................ 387
Battery............................... 452
Keyless Transmitter Replacement (RKE)..... 23
Location........................... 452
Belts, Seat............................43,84
Body Mechanism Lubrication............... 457
Brake Assist System...................... 374
Brake Control System, Electronic............. 373
Brake Fluid............................ 492
Brake System........................... 467
Anti-Lock (ABS)..................... 371
Fluid Check.....................468,492
Master Cylinder..................... 468
Parking........................... 368
Warning Light....................... 277
Brake, Parking.......................... 368
Brake/Transmission Interlock............... 353
Brakes............................... 467
Break-In Recommendations, New Vehicle........ 81
10
INDEX 523
PAGE POSITION:523JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

Fluid Capacities......................... 490
Fluid Leaks............................. 86
Fluid Level Checks
Automatic Transmission................ 471
Brake............................. 468
Cooling System...................... 462
Engine Oil......................... 449
Power Steering...................... 367
Fluid, Brake........................... 492
Fluids................................ 491
Fluids, Lubricants and Genuine Parts.......... 491
Fog Lights..........................188,271
Folding Rear Seat........................ 178
Forward Collision Warning..............228,285
Freeing A Stuck Vehicle................... 437
Fuel................................. 410
Additives.......................... 413
Clean Air.......................... 411
Conserving......................... 290Ethanol............................ 411
Filler Door (Gas Cap).................. 275
Gasoline........................... 410
Gauge............................ 275
Light............................. 286
Materials Added..................... 413
Methanol.......................... 411
Octane Rating....................410,491
Requirements....................... 410
Saver Mode........................ 290
Specifications....................... 491
Tank Capacity....................... 490
Fuel Optimizer......................... 290
Fuel Saver............................. 290
Fuses................................ 477
Garage Door Opener (HomeLink®)........... 242
Gasoline (Fuel)......................... 410
Conserving......................... 290
528 INDEX
PAGE POSITION:528JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Fluid Capacities......................... 490
Fluid Leaks............................. 86
Fluid Level Checks
Automatic Transmission................ 471
Brake............................. 468
Cooling System...................... 462
Engine Oil......................... 449
Power Steering...................... 367
Fluid, Brake........................... 492
Fluids................................ 491
Fluids, Lubricants and Genuine Parts.......... 491
Fog Lights..........................188,271
Folding Rear Seat........................ 178
Forward Collision Warning..............228,285
Freeing A Stuck Vehicle................... 437
Fuel................................. 410
Additives.......................... 413
Clean Air.......................... 411
Conserving......................... 290Ethanol............................ 411
Filler Door (Gas Cap).................. 275
Gasoline........................... 410
Gauge............................ 275
Light............................. 286
Materials Added..................... 413
Methanol.......................... 411
Octane Rating....................410,491
Requirements....................... 410
Saver Mode........................ 290
Specifications....................... 491
Tank Capacity....................... 490
Fuel Optimizer......................... 290
Fuel Saver............................. 290
Fuses................................ 477
Garage Door Opener (HomeLink®)........... 242
Gasoline (Fuel)......................... 410
Conserving......................... 290
528 INDEX
PAGE POSITION:528JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR
