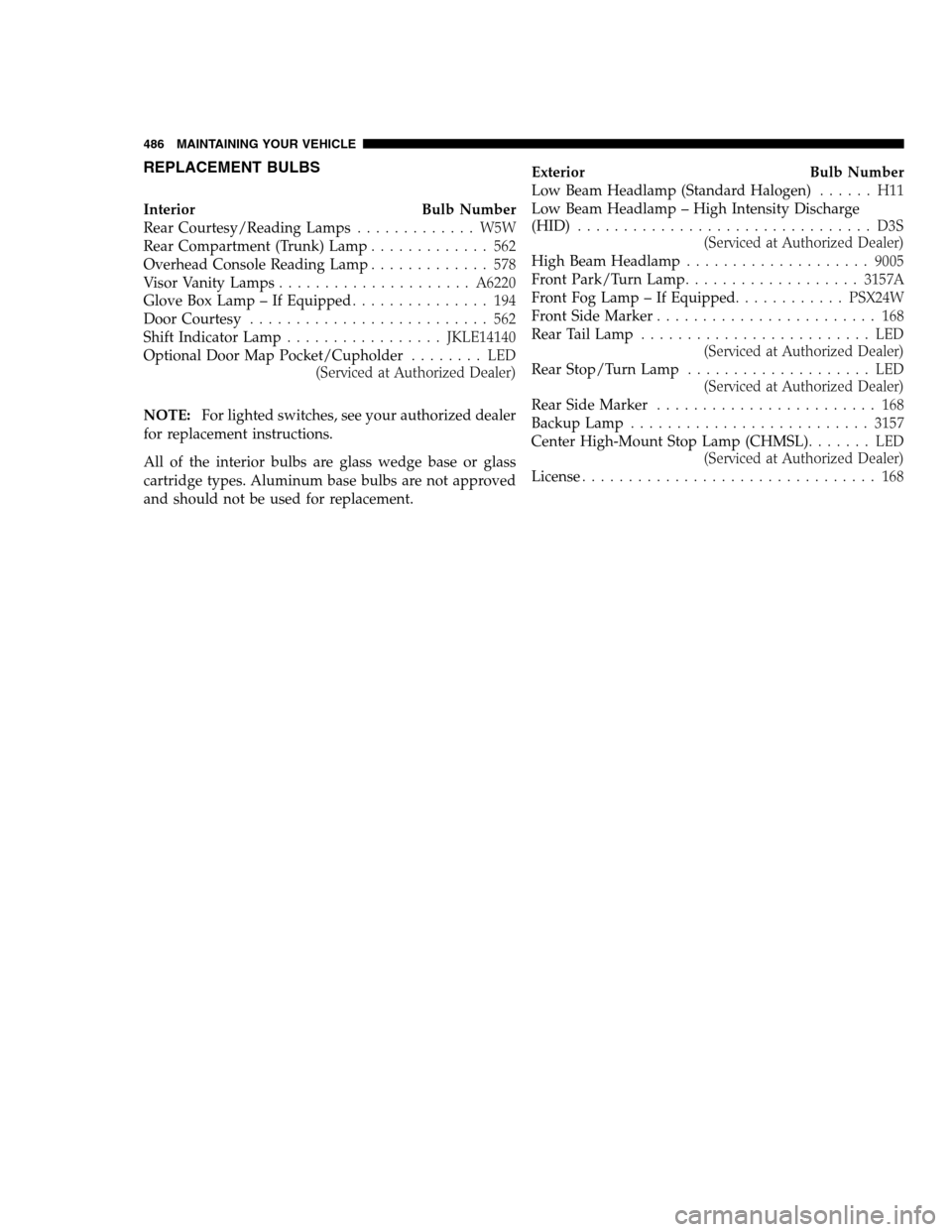

REPLACEMENT BULBS
Interior Bulb Number
Rear Courtesy/Reading Lamps............. W5W
Rear Compartment (Trunk) Lamp............. 562
Overhead Console Reading Lamp............. 578
Visor Vanity Lamps.....................A6220
Glove Box Lamp – If Equipped............... 194
Door Courtesy.......................... 562
Shift Indicator Lamp.................JKLE14140
Optional Door Map Pocket/Cupholder........ LED
(Serviced at Authorized Dealer)
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.Exterior Bulb Number
Low Beam Headlamp (Standard Halogen)...... H11
Low Beam Headlamp – High Intensity Discharge
(HID)................................ D3S
(Serviced at Authorized Dealer)
High Beam Headlamp....................9005
Front Park/Turn Lamp...................3157A
Front Fog Lamp – If Equipped............PSX24W
Front Side Marker........................ 168
Rear Tail Lamp......................... LED
(Serviced at Authorized Dealer)
Rear Stop/Turn Lamp.................... LED
(Serviced at Authorized Dealer)
Rear Side Marker........................ 168
Backup Lamp..........................3157
Center High-Mount Stop Lamp (CHMSL)....... LED
(Serviced at Authorized Dealer)
License................................ 168
486 MAINTAINING YOUR VEHICLE
PAGE POSITION:486JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR REPLACEMENT BULBS
Interior Bulb Number
Rear Courtesy/Reading Lamps............. W5W
Rear Compartment (Trunk) Lamp............. 562
Overhead Console Reading Lamp............. 578
Visor Vanity Lamps.....................A6220
Glove Box Lamp – If Equipped............... 194
Door Courtesy.......................... 562
Shift Indicator Lamp.................JKLE14140
Optional Door Map Pocket/Cupholder........ LED
(Serviced at Authorized Dealer)
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.Exterior Bulb Number
Low Beam Headlamp (Standard Halogen)...... H11
Low Beam Headlamp – High Intensity Discharge
(HID)................................ D3S
(Serviced at Authorized Dealer)
High Beam Headlamp....................9005
Front Park/Turn Lamp...................3157A
Front Fog Lamp – If Equipped............PSX24W
Front Side Marker........................ 168
Rear Tail Lamp......................... LED
(Serviced at Authorized Dealer)
Rear Stop/Turn Lamp.................... LED
(Serviced at Authorized Dealer)
Rear Side Marker........................ 168
Backup Lamp..........................3157
Center High-Mount Stop Lamp (CHMSL)....... LED
(Serviced at Authorized Dealer)
License................................ 168
486 MAINTAINING YOUR VEHICLE
PAGE POSITION:486JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR
Page 496 of 546

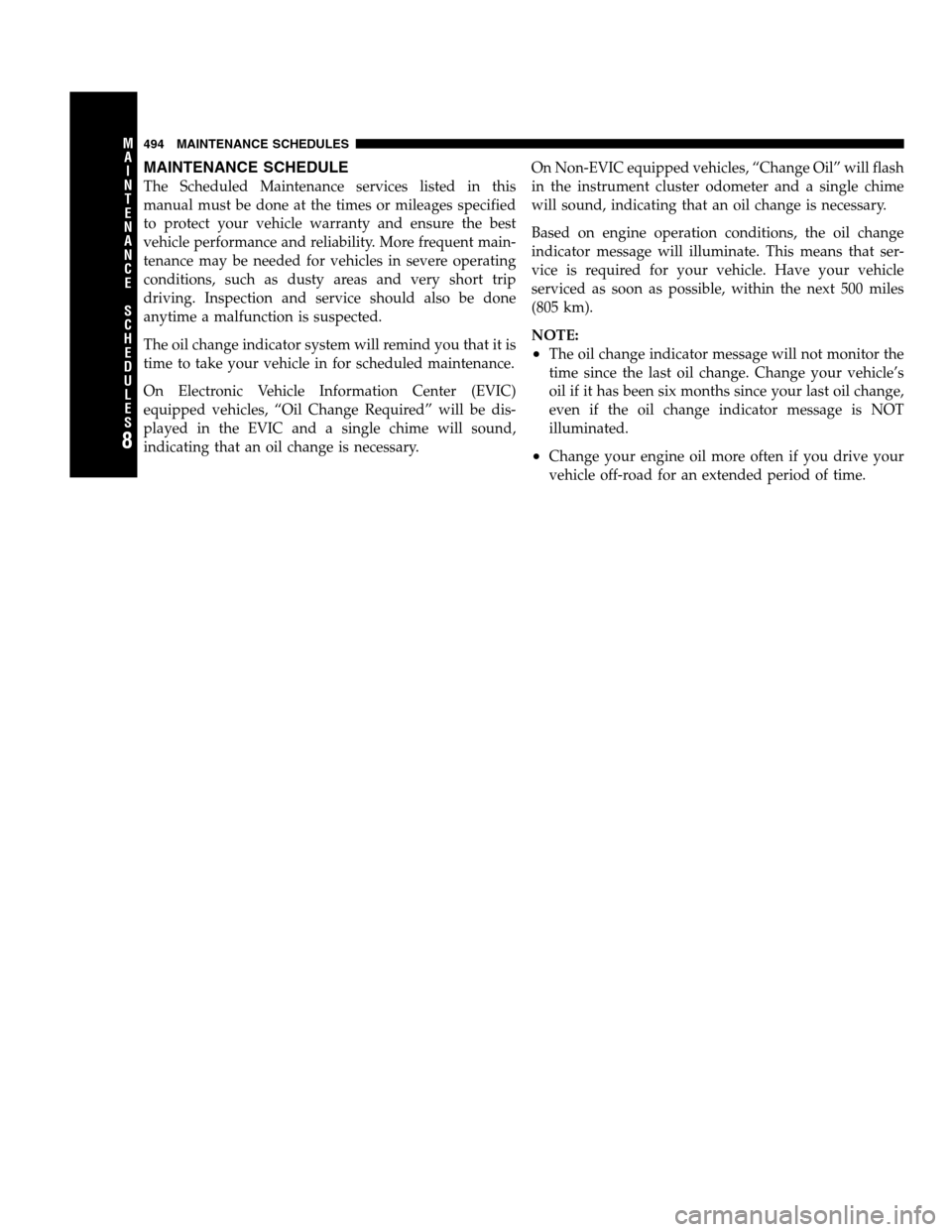

MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Have your vehicle
serviced as soon as possible, within the next 500 miles
(805 km).
NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicle’s
oil if it has been six months since your last oil change,
even if the oil change indicator message is NOT
illuminated.
•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S494 MAINTENANCE SCHEDULES
PAGE POSITION:494JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Have your vehicle
serviced as soon as possible, within the next 500 miles
(805 km).
NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicle’s
oil if it has been six months since your last oil change,
even if the oil change indicator message is NOT
illuminated.
•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S494 MAINTENANCE SCHEDULES
PAGE POSITION:494JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR
Page 534 of 546
Lights On Reminder.................. 188
Low Fuel.......................... 286
Malfunction Indicator (Check Engine)...... 274
Map Reading....................... 190
Parade Mode (Daytime Brightness)........ 194
Passing............................ 190
Reading........................190,241
Seat Belt Reminder................... 279
Security Alarm (Theft Alarm)............ 276
Service.........................486,487
Service Engine Soon
(Malfunction Indicator)................ 274
SmartBeams........................ 186
Theft Alarm (Security Alarm)............ 276
Tire Pressure Monitoring (TPMS).......272,403
Traction Control..................... 380
Turn Signal.......................86,189
Vanity Mirror........................ 98
Warning (Instrument Cluster Description) . . . 271Loading Vehicle......................418,419
Capacities.......................... 419
Tires .............................. 387
Locks................................. 28
Auto Unlock......................... 30
Automatic Door...................... 30
Child Protection...................... 31
Door.............................. 28
Power Door......................... 29
Low Tire Pressure System.................. 403
Lower Anchors and Tether for CHildren
(LATCH)............................74,76
Lubrication, Body....................... 457
Maintenance Free Battery.................. 452
Maintenance Procedures................... 449
Maintenance Schedule.................... 494
Maintenance, General..................... 449
Maintenance, Sunroof..................... 253
532 INDEX
PAGE POSITION:532JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Lights On Reminder.................. 188
Low Fuel.......................... 286
Malfunction Indicator (Check Engine)...... 274
Map Reading....................... 190
Parade Mode (Daytime Brightness)........ 194
Passing............................ 190
Reading........................190,241
Seat Belt Reminder................... 279
Security Alarm (Theft Alarm)............ 276
Service.........................486,487
Service Engine Soon
(Malfunction Indicator)................ 274
SmartBeams........................ 186
Theft Alarm (Security Alarm)............ 276
Tire Pressure Monitoring (TPMS).......272,403
Traction Control..................... 380
Turn Signal.......................86,189
Vanity Mirror........................ 98
Warning (Instrument Cluster Description) . . . 271Loading Vehicle......................418,419
Capacities.......................... 419
Tires .............................. 387
Locks................................. 28
Auto Unlock......................... 30
Automatic Door...................... 30
Child Protection...................... 31
Door.............................. 28
Power Door......................... 29
Low Tire Pressure System.................. 403
Lower Anchors and Tether for CHildren
(LATCH)............................74,76
Lubrication, Body....................... 457
Maintenance Free Battery.................. 452
Maintenance Procedures................... 449
Maintenance Schedule.................... 494
Maintenance, General..................... 449
Maintenance, Sunroof..................... 253
532 INDEX
PAGE POSITION:532JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR
Page 535 of 546
Malfunction Indicator Light (Check Engine) . . 274,446
Manual Transmission..................... 471
Fluid Level Check.................... 472
Manual, Service......................... 517
Master Cylinder (Brakes).................. 468
Memory Feature (Memory Seat)............. 179
Memory Seat........................... 179
Memory Seats and Radio.................. 179
Methanol.............................. 411
Mini-Trip Computer...................... 292
Mirrors................................ 94
Automatic Dimming................... 94
Electric Powered...................... 97
Electric Remote....................... 97
Exterior Folding...................... 96
Heated............................. 97
Outside............................ 95
Rearview........................... 94
Vanity............................. 98Mode
Fuel Saver......................... 290
Modifications/Alterations, Vehicle............. 7
Monitor, Tire Pressure System............... 403
Mopar Parts.........................448,516
MTBE/ETBE........................... 411
Multi-Function Control Lever............... 189
Navigation System (Uconnect™ gps).......... 239
New Vehicle Break-In Period................ 81
Occupant Restraints...................41,62,66
Occupant Restraints (Sedan)...........57,58,62,65
Octane Rating, Gasoline (Fuel)............410,491
Odometer............................. 271
Oil Change Indicator..................272,289
Oil Change Indicator, Reset..............272,289
Oil Filter, Change........................ 451
Oil Filter, Selection....................... 451
10
INDEX 533
PAGE POSITION:533JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Malfunction Indicator Light (Check Engine) . . 274,446
Manual Transmission..................... 471
Fluid Level Check.................... 472
Manual, Service......................... 517
Master Cylinder (Brakes).................. 468
Memory Feature (Memory Seat)............. 179
Memory Seat........................... 179
Memory Seats and Radio.................. 179
Methanol.............................. 411
Mini-Trip Computer...................... 292
Mirrors................................ 94
Automatic Dimming................... 94
Electric Powered...................... 97
Electric Remote....................... 97
Exterior Folding...................... 96
Heated............................. 97
Outside............................ 95
Rearview........................... 94
Vanity............................. 98Mode
Fuel Saver......................... 290
Modifications/Alterations, Vehicle............. 7
Monitor, Tire Pressure System............... 403
Mopar Parts.........................448,516
MTBE/ETBE........................... 411
Multi-Function Control Lever............... 189
Navigation System (Uconnect™ gps).......... 239
New Vehicle Break-In Period................ 81
Occupant Restraints...................41,62,66
Occupant Restraints (Sedan)...........57,58,62,65
Octane Rating, Gasoline (Fuel)............410,491
Odometer............................. 271
Oil Change Indicator..................272,289
Oil Change Indicator, Reset..............272,289
Oil Filter, Change........................ 451
Oil Filter, Selection....................... 451
10
INDEX 533
PAGE POSITION:533JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR
Page 539 of 546
Seatback Release..................... 178
Tilting............................ 169
Security Alarm (Theft Alarm)................ 17
Selection of Coolant (Antifreeze)..........463,491
Selection of Oil......................... 450
Sentry Key (Immobilizer)................... 15
Sentry Key Programming................... 17
Sentry Key Replacement................... 16
Service Assistance....................... 513
Service Contract......................... 515
Service Engine Soon Light
(Malfunction Indicator).................... 274
Service Manuals........................ 517
Shift Lever Override...................... 438
Shifting............................... 352
Automatic Transmission................ 352
Shoulder Belt Upper Anchorage.............. 48
Shoulder Belts........................... 43
Side Airbag............................. 65Signals, Turn......................86,189,271
Slippery Surfaces, Driving On............... 363
SmartBeams........................... 186
Snow Chains (Tire Chains)................. 400
Sound System
Kicker............................ 326
Spare Tire..........................395,396
Spark Plugs............................ 491
Specifications
Fuel (Gasoline)...................... 491
Oil ............................... 491
Speed Control (Cruise Control)...........204,207
Speedometer........................... 275
Sport Mode............................ 362
Starting.............................25,347
Automatic Transmission................ 347
Cold Weather....................... 350
Engine Fails to Start.................. 350
Remote............................ 25
10
INDEX 537
PAGE POSITION:537JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Seatback Release..................... 178
Tilting............................ 169
Security Alarm (Theft Alarm)................ 17
Selection of Coolant (Antifreeze)..........463,491
Selection of Oil......................... 450
Sentry Key (Immobilizer)................... 15
Sentry Key Programming................... 17
Sentry Key Replacement................... 16
Service Assistance....................... 513
Service Contract......................... 515
Service Engine Soon Light
(Malfunction Indicator).................... 274
Service Manuals........................ 517
Shift Lever Override...................... 438
Shifting............................... 352
Automatic Transmission................ 352
Shoulder Belt Upper Anchorage.............. 48
Shoulder Belts........................... 43
Side Airbag............................. 65Signals, Turn......................86,189,271
Slippery Surfaces, Driving On............... 363
SmartBeams........................... 186
Snow Chains (Tire Chains)................. 400
Sound System
Kicker............................ 326
Spare Tire..........................395,396
Spark Plugs............................ 491
Specifications
Fuel (Gasoline)...................... 491
Oil ............................... 491
Speed Control (Cruise Control)...........204,207
Speedometer........................... 275
Sport Mode............................ 362
Starting.............................25,347
Automatic Transmission................ 347
Cold Weather....................... 350
Engine Fails to Start.................. 350
Remote............................ 25
10
INDEX 537
PAGE POSITION:537JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

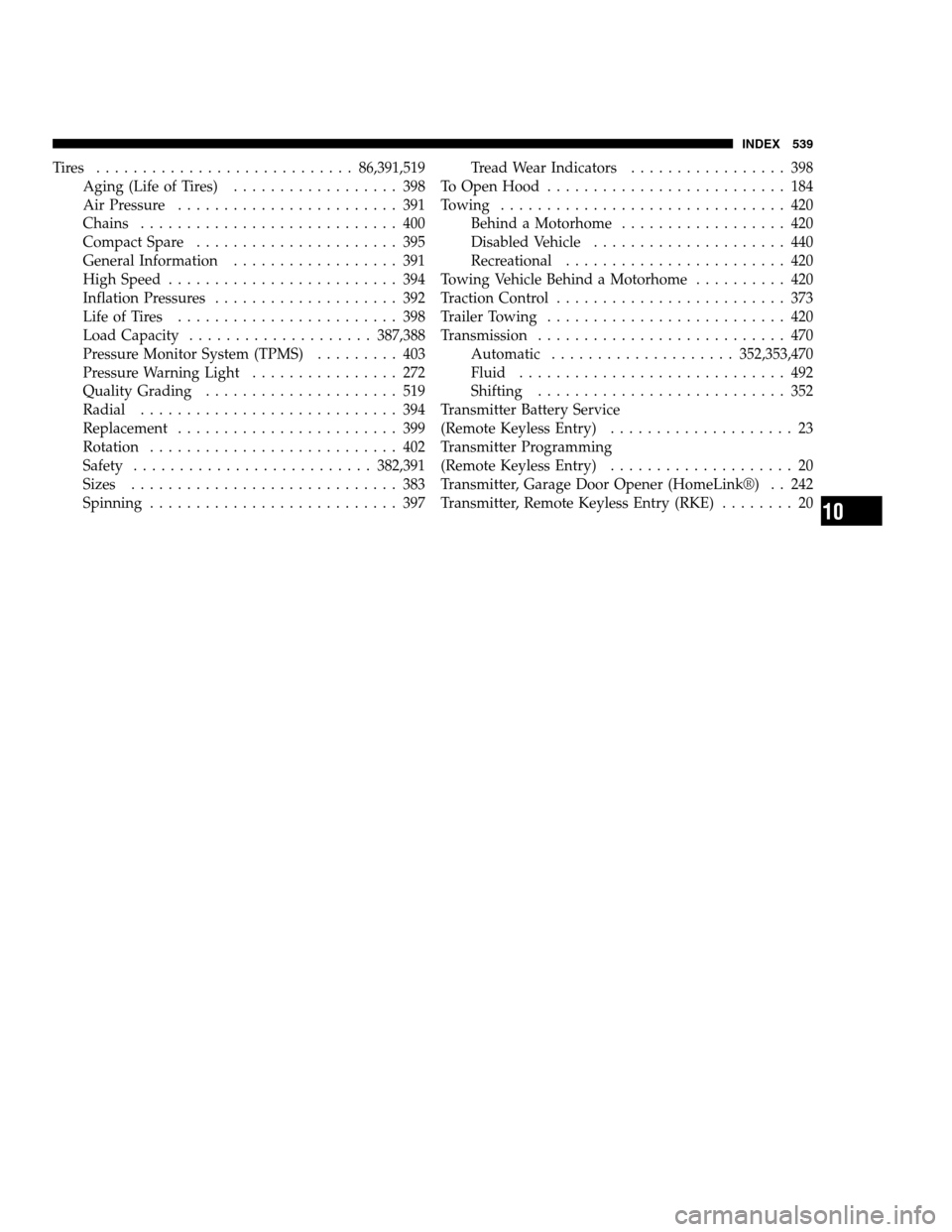

Page 541 of 546
Tires ............................86,391,519
Aging (Life of Tires).................. 398
Air Pressure........................ 391
Chains............................ 400
Compact Spare...................... 395
General Information.................. 391
High Speed......................... 394
Inflation Pressures.................... 392
Life of Tires........................ 398
Load Capacity....................387,388
Pressure Monitor System (TPMS)......... 403
Pressure Warning Light................ 272
Quality Grading..................... 519
Radial............................ 394
Replacement........................ 399
Rotation........................... 402
Safety..........................382,391
Sizes............................. 383
Spinning........................... 397Tread Wear Indicators................. 398
To Open Hood.......................... 184
Towing............................... 420
Behind a Motorhome.................. 420
Disabled Vehicle..................... 440
Recreational........................ 420
Towing Vehicle Behind a Motorhome.......... 420
Traction Control......................... 373
Trailer Towing.......................... 420
Transmission........................... 470
Automatic....................352,353,470
Fluid............................. 492
Shifting........................... 352
Transmitter Battery Service
(Remote Keyless Entry).................... 23
Transmitter Programming
(Remote Keyless Entry).................... 20
Transmitter, Garage Door Opener (HomeLink®) . . 242
Transmitter, Remote Keyless Entry (RKE)........ 20
10
INDEX 539
PAGE POSITION:539JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Tires ............................86,391,519
Aging (Life of Tires).................. 398
Air Pressure........................ 391
Chains............................ 400
Compact Spare...................... 395
General Information.................. 391
High Speed......................... 394
Inflation Pressures.................... 392
Life of Tires........................ 398
Load Capacity....................387,388
Pressure Monitor System (TPMS)......... 403
Pressure Warning Light................ 272
Quality Grading..................... 519
Radial............................ 394
Replacement........................ 399
Rotation........................... 402
Safety..........................382,391
Sizes............................. 383
Spinning........................... 397Tread Wear Indicators................. 398
To Open Hood.......................... 184
Towing............................... 420
Behind a Motorhome.................. 420
Disabled Vehicle..................... 440
Recreational........................ 420
Towing Vehicle Behind a Motorhome.......... 420
Traction Control......................... 373
Trailer Towing.......................... 420
Transmission........................... 470
Automatic....................352,353,470
Fluid............................. 492
Shifting........................... 352
Transmitter Battery Service
(Remote Keyless Entry).................... 23
Transmitter Programming
(Remote Keyless Entry).................... 20
Transmitter, Garage Door Opener (HomeLink®) . . 242
Transmitter, Remote Keyless Entry (RKE)........ 20
10
INDEX 539
PAGE POSITION:539JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR
