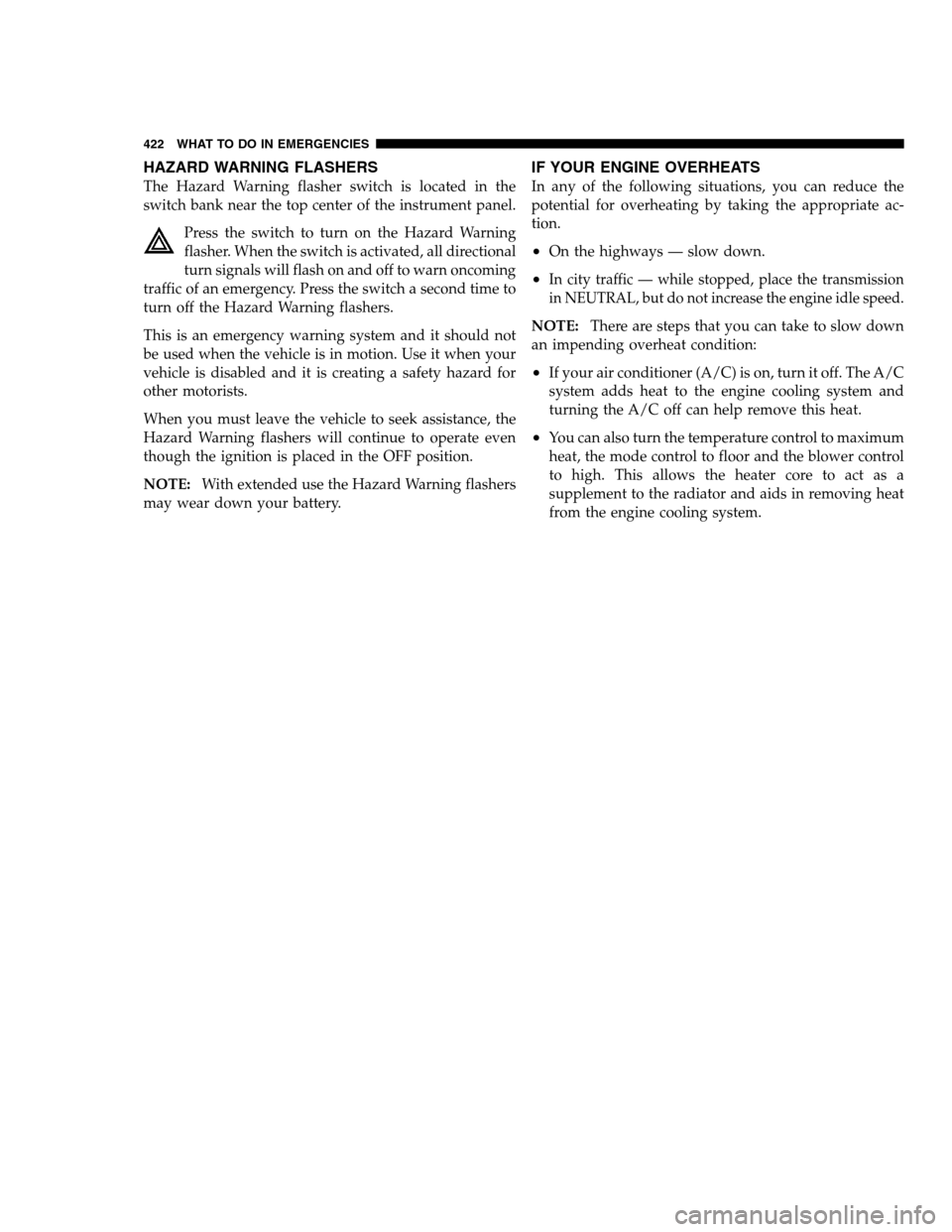

HAZARD WARNING FLASHERS
The Hazard Warning flasher switch is located in the
switch bank near the top center of the instrument panel.
Press the switch to turn on the Hazard Warning
flasher. When the switch is activated, all directional
turn signals will flash on and off to warn oncoming
traffic of an emergency. Press the switch a second time to
turn off the Hazard Warning flashers.
This is an emergency warning system and it should not
be used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
Hazard Warning flashers will continue to operate even
though the ignition is placed in the OFF position.
NOTE:With extended use the Hazard Warning flashers
may wear down your battery.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate ac-
tion.
•On the highways — slow down.
•In city traffic — while stopped, place the transmission
in NEUTRAL, but do not increase the engine idle speed.
NOTE:There are steps that you can take to slow down
an impending overheat condition:
•If your air conditioner (A/C) is on, turn it off. The A/C
system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.
•You can also turn the temperature control to maximum
heat, the mode control to floor and the blower control
to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat
from the engine cooling system.
422 WHAT TO DO IN EMERGENCIES
PAGE POSITION:422JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR HAZARD WARNING FLASHERS
The Hazard Warning flasher switch is located in the
switch bank near the top center of the instrument panel.
Press the switch to turn on the Hazard Warning
flasher. When the switch is activated, all directional
turn signals will flash on and off to warn oncoming
traffic of an emergency. Press the switch a second time to
turn off the Hazard Warning flashers.
This is an emergency warning system and it should not
be used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
Hazard Warning flashers will continue to operate even
though the ignition is placed in the OFF position.
NOTE:With extended use the Hazard Warning flashers
may wear down your battery.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate ac-
tion.
•On the highways — slow down.
•In city traffic — while stopped, place the transmission
in NEUTRAL, but do not increase the engine idle speed.
NOTE:There are steps that you can take to slow down
an impending overheat condition:
•If your air conditioner (A/C) is on, turn it off. The A/C
system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.
•You can also turn the temperature control to maximum
heat, the mode control to floor and the blower control
to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat
from the engine cooling system.
422 WHAT TO DO IN EMERGENCIES
PAGE POSITION:422JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is ON. You can be injured by
moving fan blades.
•Remove any metal jewelry such as watch bands or
bracelets that might make an inadvertent electrical
contact. You could be seriously injured.
•Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
1. Set the parking brake, shift the automatic transmission
into PARK and turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary electri-
cal accessories.3. If using another vehicle to jump-start the battery, park
the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
Jump-Starting Procedure
WARNING!
Failure to follow this procedure could result in per-
sonal injury or property damage due to battery ex-
plosion.
6
WHAT TO DO IN EMERGENCIES 435
PAGE POSITION:435JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is ON. You can be injured by
moving fan blades.
•Remove any metal jewelry such as watch bands or
bracelets that might make an inadvertent electrical
contact. You could be seriously injured.
•Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
1. Set the parking brake, shift the automatic transmission
into PARK and turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary electri-
cal accessories.3. If using another vehicle to jump-start the battery, park
the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
Jump-Starting Procedure
WARNING!
Failure to follow this procedure could result in per-
sonal injury or property damage due to battery ex-
plosion.
6
WHAT TO DO IN EMERGENCIES 435
PAGE POSITION:435JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)19 Gallons 72 Liters
Engine Oil with Filter
6.4 Liter Engine (SAE 5W-40, API Certified) 7 Quarts 6.6 Liters
Cooling System *
6.4 Liter Engine (MOPARAntifreeze/Coolant 5 Year/100,000 Mile
Formula or equivalent)15.2 Quarts 14.4 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
490 MAINTAINING YOUR VEHICLE
PAGE POSITION:490JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)19 Gallons 72 Liters
Engine Oil with Filter
6.4 Liter Engine (SAE 5W-40, API Certified) 7 Quarts 6.6 Liters
Cooling System *
6.4 Liter Engine (MOPARAntifreeze/Coolant 5 Year/100,000 Mile
Formula or equivalent)15.2 Quarts 14.4 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
490 MAINTAINING YOUR VEHICLE
PAGE POSITION:490JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

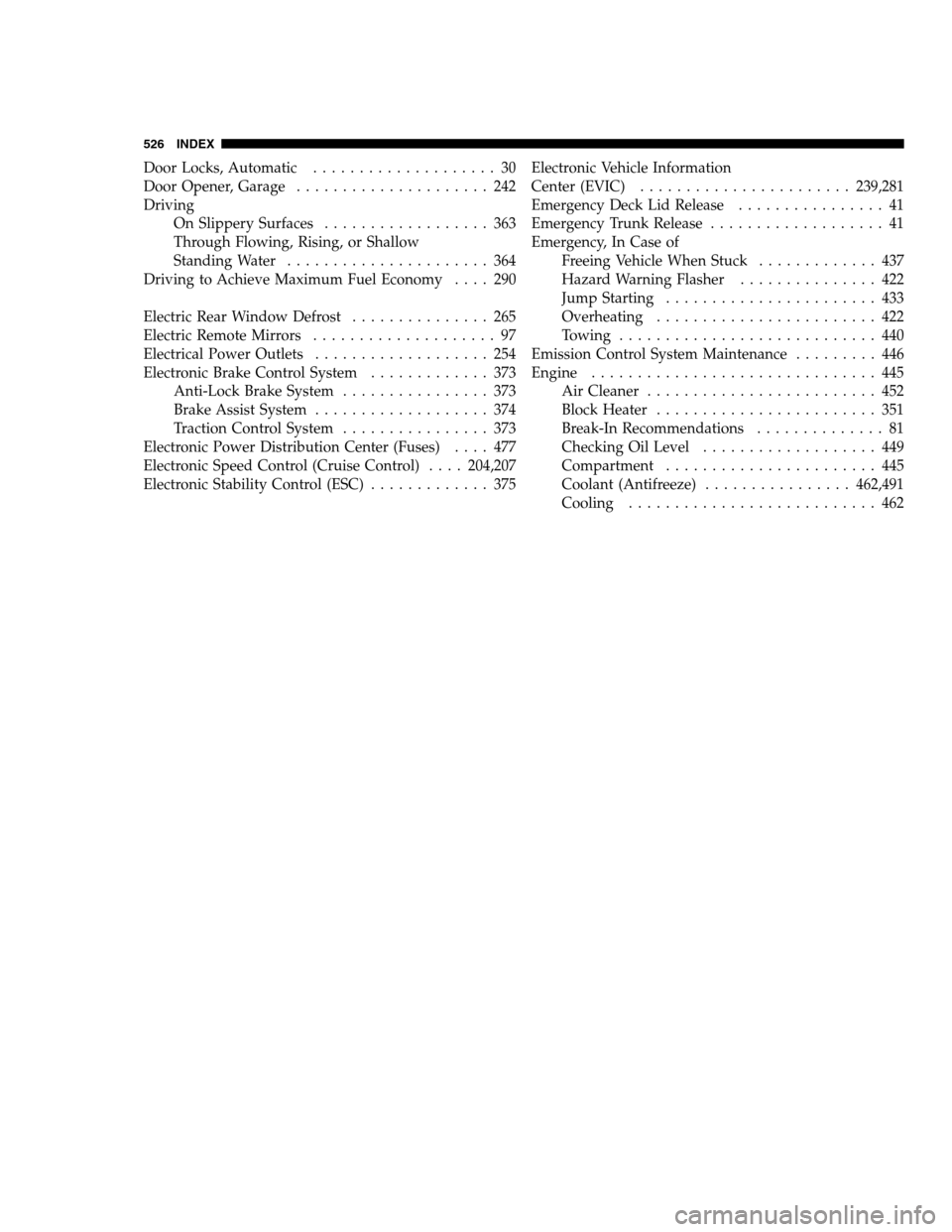

Door Locks, Automatic.................... 30
Door Opener, Garage..................... 242
Driving
On Slippery Surfaces.................. 363
Through Flowing, Rising, or Shallow
Standing Water...................... 364
Driving to Achieve Maximum Fuel Economy.... 290
Electric Rear Window Defrost............... 265
Electric Remote Mirrors.................... 97
Electrical Power Outlets................... 254
Electronic Brake Control System............. 373
Anti-Lock Brake System................ 373
Brake Assist System................... 374
Traction Control System................ 373
Electronic Power Distribution Center (Fuses).... 477
Electronic Speed Control (Cruise Control)....204,207
Electronic Stability Control (ESC)............. 375Electronic Vehicle Information
Center (EVIC).......................239,281
Emergency Deck Lid Release................ 41
Emergency Trunk Release................... 41
Emergency, In Case of
Freeing Vehicle When Stuck............. 437
Hazard Warning Flasher............... 422
Jump Starting....................... 433
Overheating........................ 422
Towing............................ 440
Emission Control System Maintenance......... 446
Engine............................... 445
Air Cleaner......................... 452
Block Heater........................ 351
Break-In Recommendations.............. 81
Checking Oil Level................... 449
Compartment....................... 445
Coolant (Antifreeze)................462,491
Cooling........................... 462
526 INDEX
PAGE POSITION:526JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Door Locks, Automatic.................... 30
Door Opener, Garage..................... 242
Driving
On Slippery Surfaces.................. 363
Through Flowing, Rising, or Shallow
Standing Water...................... 364
Driving to Achieve Maximum Fuel Economy.... 290
Electric Rear Window Defrost............... 265
Electric Remote Mirrors.................... 97
Electrical Power Outlets................... 254
Electronic Brake Control System............. 373
Anti-Lock Brake System................ 373
Brake Assist System................... 374
Traction Control System................ 373
Electronic Power Distribution Center (Fuses).... 477
Electronic Speed Control (Cruise Control)....204,207
Electronic Stability Control (ESC)............. 375Electronic Vehicle Information
Center (EVIC).......................239,281
Emergency Deck Lid Release................ 41
Emergency Trunk Release................... 41
Emergency, In Case of
Freeing Vehicle When Stuck............. 437
Hazard Warning Flasher............... 422
Jump Starting....................... 433
Overheating........................ 422
Towing............................ 440
Emission Control System Maintenance......... 446
Engine............................... 445
Air Cleaner......................... 452
Block Heater........................ 351
Break-In Recommendations.............. 81
Checking Oil Level................... 449
Compartment....................... 445
Coolant (Antifreeze)................462,491
Cooling........................... 462
526 INDEX
PAGE POSITION:526JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR

Heated Seats........................... 172
Heater, Engine Block..................... 351
High Beam/Low Beam Select (Dimmer) Switch . . 190
Hill Start Assist......................... 378
Holder, Coin........................... 262
Holder, Cup........................... 258
HomeLink® (Garage Door Opener) Transmitter . . 242
Hood Release.......................... 184
Ignition
Key ............................... 12
Illuminated Entry........................ 20
Immobilizer (Sentry Key)................... 15
Infant Restraint........................70,71
Information Center, Vehicle................. 281
Inside Rearview Mirror.................... 94
Instrument Cluster....................270,271
Instrument Panel and Controls.............. 269
Instrument Panel Lens Cleaning............. 476Integrated Power Module (Fuses)............ 477
Interior Appearance Care.................. 475
Interior Fuses.......................... 477
Interior Lights.......................... 192
Intermittent Wipers (Delay Wipers)........... 195
Introduction............................. 4
Jump Starting.......................... 433
Key-In Reminder......................... 14
Key, Programming........................ 17
Key, Replacement........................ 16
Key, Sentry (Immobilizer)................... 15
Keyless Enter-N-Go....................32,348
Keyless Entry System...................... 20
Keyless Go............................. 12
Keys................................. 12
Kicker Sound System..................... 326
Knee Bolster............................ 54
530 INDEX
PAGE POSITION:530JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR Heated Seats........................... 172
Heater, Engine Block..................... 351
High Beam/Low Beam Select (Dimmer) Switch . . 190
Hill Start Assist......................... 378
Holder, Coin........................... 262
Holder, Cup........................... 258
HomeLink® (Garage Door Opener) Transmitter . . 242
Hood Release.......................... 184
Ignition
Key ............................... 12
Illuminated Entry........................ 20
Immobilizer (Sentry Key)................... 15
Infant Restraint........................70,71
Information Center, Vehicle................. 281
Inside Rearview Mirror.................... 94
Instrument Cluster....................270,271
Instrument Panel and Controls.............. 269
Instrument Panel Lens Cleaning............. 476Integrated Power Module (Fuses)............ 477
Interior Appearance Care.................. 475
Interior Fuses.......................... 477
Interior Lights.......................... 192
Intermittent Wipers (Delay Wipers)........... 195
Introduction............................. 4
Jump Starting.......................... 433
Key-In Reminder......................... 14
Key, Programming........................ 17
Key, Replacement........................ 16
Key, Sentry (Immobilizer)................... 15
Keyless Enter-N-Go....................32,348
Keyless Entry System...................... 20
Keyless Go............................. 12
Keys................................. 12
Kicker Sound System..................... 326
Knee Bolster............................ 54
530 INDEX
PAGE POSITION:530JOB:@zeta.tweddle.com/chry_pdm/CLS_chrysler/GRP_owners/JOB_918945-en-dsr-12D482-126-AA_DSR/DIV_og pubnum: 12D482-126-AB_DSR
