JauneNoirNoir texte
4.17
ENG_UD22288_6
Entretien des garnitures intérieures (B90 - U90 - L90 Ph2 - F90 Ph2 \
- R90 Ph2 - H79 - Dacia)
ENG_NU_817-9_B90_Dacia_4
Removing/refitting factory
fitted removable equipment
in the vehicle
If you need to remove equipment to
clean the passenger compartment (e.g.
mats), always make you refit it properly
and on the correct side (driver’s side
mats must be fitted on the driver’s side,
etc.), using retaining components sup-
plied with the equipment (e.g. the driv-
er’s side mat must always be secured
using prefitted retaining devices).
In all cases, with the vehicle stationary,
ensure that nothing can hinder driving
(obstacle underneath the pedals, heel
trapped by the mat, etc.).
What you should not do
You are strongly advised not to place
items such as air fresheners, perfume
etc. near the air vents as these could
damage the dashboard fittings.

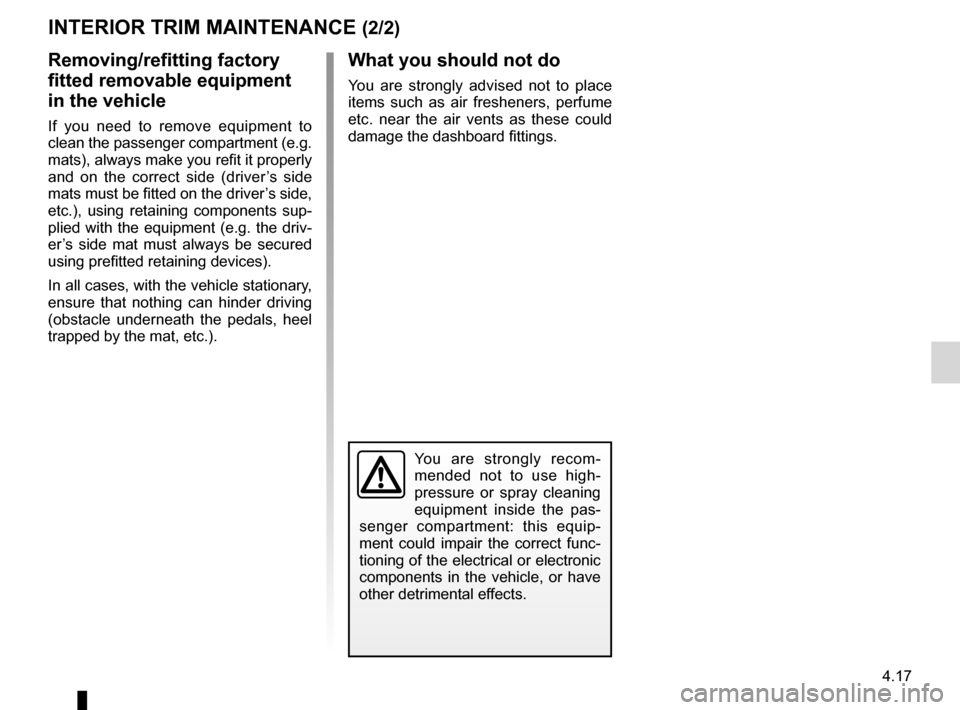

INTERIOR TRIM MAINTENANCE (2/2)
You are strongly recom -
mended not to use high -
pressure or spray cleaning
equipment inside the pas -
senger compartment: this equip -
ment could impair the correct func-
tioning of the electrical or electronic
components in the vehicle, or have
other detrimental effects.

JauneNoirNoir texte
5.5
ENG_UD22290_8
Kit de gonflage des pneumatiques (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - D\
acia)
ENG_NU_817-9_B90_Dacia_5
TYRE INFLATION KIT (2/3)
Depending on the vehicle, in the event
of a puncture, use the kit located in the
boot. –
press switch 5 to inflate the tyre to
the recommended pressure (check
the label affixed to the edge of the
driver’s door);
– after a maximum of 5 minutes, stop
inflating and read the pressure (on
the pressure gauge 4);
Note: while the bottle is emptying
(approximately 30 seconds), pres -
sure gauge 4 will briefly indicate a
pressure of 6 bar, then the pressure
will drop.
– adjust the pressure: to increase
it, continue inflating with the kit, to
reduce it, turn button 7 located on
the inflation adapter.
If a minimum pressure of 1.8 bar is
not reached after 15 minutes, repair
is not possible; do not drive the vehi-
cle but contact an approved dealer .
1234
5
6
Before using this kit, park
the vehicle at a sufficient
distance from traffic, switch
on the hazard warning
lights, apply the handbrake, ask all
passengers to leave the vehicle and
keep them away from traffic.
8
Open the kit, remove caps 1 and 3 (it is
essential not to remove the cap from
the bottle) then screw bottle 2 to its sup-
port 3.
With the engine running and the
handbrake applied,
– unscrew the valve cap on the wheel
concerned and screw the inflation
adapter 6 onto valve;
– connect adapter 8 to accessories
socket 9 on the dashboard of the ve-
hicle;
9
7

5.6
ENG_UD22290_8
Kit de gonflage des pneumatiques (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - D\
acia)
ENG_NU_817-9_B90_Dacia_5

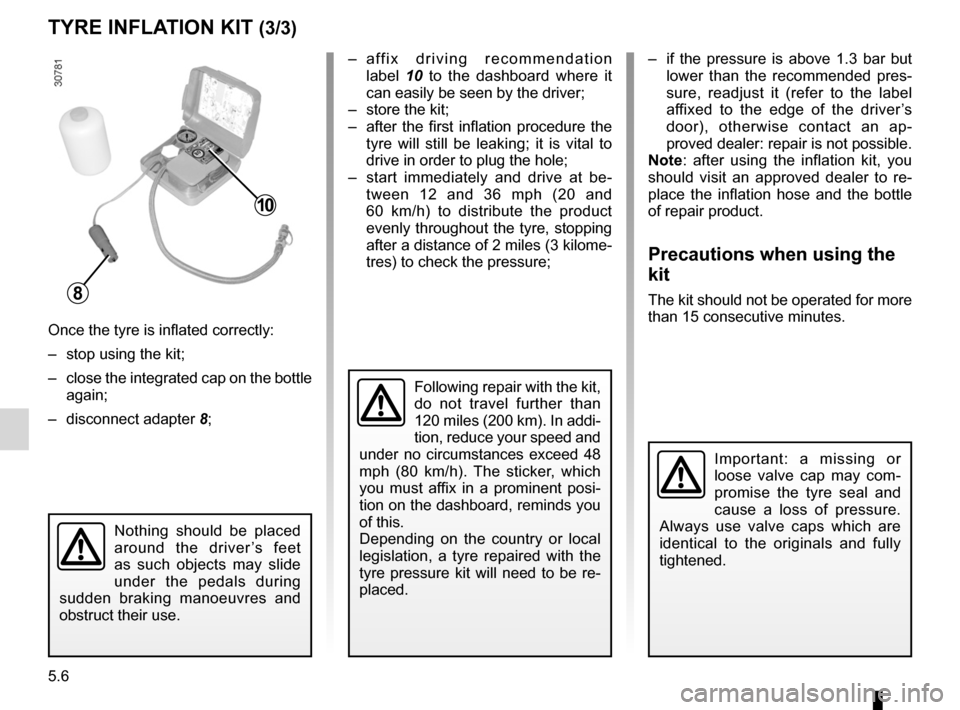

TYRE INFLATION KIT (3/3)
Once the tyre is inflated correctly:
– stop using the kit;
– close the integrated cap on the bottle
again;
– disconnect adapter 8; –
a ff i x d r i v i n g r e c o m m e n d a t i o n
label 10 to the dashboard where it
can easily be seen by the driver;
– store the kit;
– after the first inflation procedure the
tyre will still be leaking; it is vital to
drive in order to plug the hole;
– start immediately and drive at be -
tween 12 and 36 mph (20 and
60 km/h) to distribute the product
evenly throughout the tyre, stopping
after a distance of 2 miles (3 kilome-
tres) to check the pressure; –
if the pressure is above 1.3 bar but
lower than the recommended pres -
sure, readjust it (refer to the label
affixed to the edge of the driver ’s
door), otherwise contact an ap -
proved dealer: repair is not possible.
Note : after using the inflation kit, you
should visit an approved dealer to re -
place the inflation hose and the bottle
of repair product.
Precautions when using the
kit
The kit should not be operated for more
than 15 consecutive minutes.
Important: a missing or
loose valve cap may com -
promise the tyre seal and
cause a loss of pressure.
Always use valve caps which are
identical to the originals and fully
tightened.
Following repair with the kit,
do not travel further than
120 miles (200 km). In addi -
tion, reduce your speed and
under no circumstances exceed 48
mph (80 km/h). The sticker, which
you must affix in a prominent posi -
tion on the dashboard, reminds you
of this.
Depending on the country or local
legislation, a tyre repaired with the
tyre pressure kit will need to be re-
placed.
Nothing should be placed
around the driver ’s feet
as such objects may slide
under the pedals during
sudden braking manoeuvres and
obstruct their use.
8
10

7.1
FRA_UD25177_11
Index (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_7
AlphAbeticAl index (1/4)
A
ABS ........................................................................\
2.12 – 2.13
accessories........................................................................\
5.33
accessories - installation ................................................... 5.33
accessories socket ............................................................ 3.14
adjusting your driving position ...................... 1.11 → 1.14, 3.17
advice on antipollution ........................................... 5.22 → 5.24
air bag .................................................................... 1.15 → 1.20
activating the front passenger air bags ........................ 1.34
deactivating the front passenger air bags .................... 1.32
air conditioning .................................................... 3.4 – 3.5, 3.9
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check .............................................. 6.14 → 6.18
anti-lock braking system: ABS ................................2.12 – 2.13
antipollution advice .................................................................. 2.6 → 2.8
ashtrays ........................................................................\
..... 3.14
automatic gearbox (use) ........................................ 2.14 → 2.16
automatic gearbox selector lever ...........................2.14 → 2.16
b
battery ........................................................................\
........ 4.12
troubleshooting ................................................. 5.25 – 5.26
battery (remote control) ..................................................... 5.27
bodywork (maintenance) ....................................... 4.13 → 4.15
bonnet ........................................................................\
. 4.2 – 4.3
brake fluid ........................................................................\
.... 4.7
bulbs changing .......................................................... 5.14 → 5.21
c
capacity of mechanical components ...........................4.4, 4.12
catalytic converter ................................................................ 2.4
central door locking ............................................................. 1.5
changing a bulb ..................................................... 5.14 → 5.21
changing a wheel ...................................................... 5.9 – 5.10changing gear
........................................................ 2.14 → 2.16
child booster seat .................................................. 1.21 → 1.23
child restraint/seat ................................................. 1.21 → 1.31
child safety ............................................... 1.2, 1.6, 1.21 → 1.31
child seats .............................................................. 1.21 → 1.31
children .............................................................. 1.5 – 1.6, 1.14
cigar lighter ........................................................................\
3.14
clock ........................................................................\
.......... 1.10
closing the doors ................................................................. 1.6
control instruments ....................................... 1.10, 1.40 → 1.50
controls .................................................................. 1.36 → 1.39
courtesy light ..................................................................... 3.10
d
dashboard .............................................................. 1.36 → 1.39
de-icing .................................................................. 1.53 → 1.55
rear screen ................................................................... 1.55
demisting rear screen ..................................................................... 3.7
dimensions ........................................................................\
.. 6.5
dipstick........................................................................\
......... 4.4
doors ........................................................................\
... 1.5 – 1.6
driver’s position ..................................................... 1.36 → 1.39
driving .................................................. 2.2 → 2.9, 2.11 → 2.16
e
electric door locking ............................................................. 1.5
electric windows ..................................................... 3.11 – 3.12
emergency brake assist ..................................................... 2.13
emergency spare wheel ................................. 5.3, 5.11 → 5.13
engine technical specifications .................................................. 6.4
engine coolant ..................................................................... 4.8
engine immobiliser............................................................... 1.7
engine immobiliser (switch) ................................................. 2.2
engine oil ........................................................................\
..... 4.4
