2012 DACIA SANDERO bulb

5.20
ENG_UD17932_4
Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5
Jaune NoirNoir texte
INTERIOR LIGHTS: changing bulbs (2/3)
Press tab 4 to release lens 6 and
access bulb 5.
Bulb type: W5W.
4
3
Glove box light(depending on vehicle)
Unclip light 3 using a flat-blade screw -
driver or similar, by pressing on the tab
to move the light towards the inside of
the unit.
Disconnect the light.
56

JauneNoirNoir texte
5.21
ENG_UD17932_4
Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5

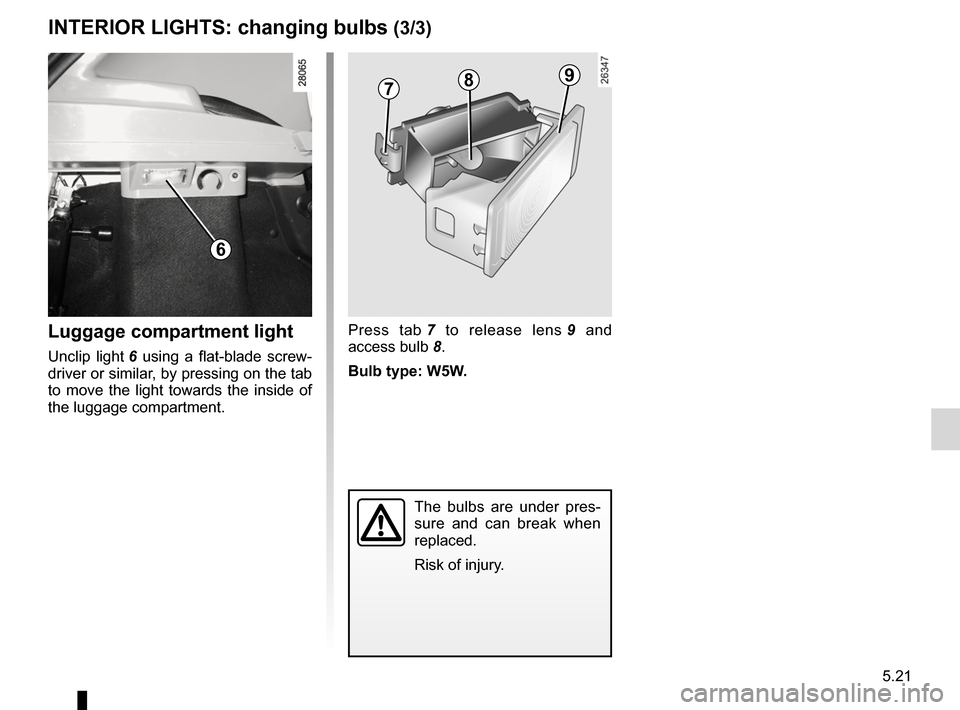

INTERIOR LIGHTS: changing bulbs (3/3)
Press tab 7 to release lens 9 and
access bulb 8.
Bulb type: W5W.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
7
6
89
Luggage compartment light
Unclip light 6 using a flat-blade screw -
driver or similar, by pressing on the tab
to move the light towards the inside of
the luggage compartment.

fuses ..................................................... (up to the end of the DU)
advice on antipollution .......................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
5.22
ENG_UD22587_8
Fusibles (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5
Jaune NoirNoir texte
Fuses
FUSES (1/3)
1
A
Passenger compartment fuses
If any electrical component does not
work, check the condition of the fuses.
Unclip flap A using notch 1 to help you.
Use the fuse allocation label on the
back of flap A to identify the fuses.
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.
Tweezers 2
Disconnect the fuse using tweezers 2 ,
on the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
Check the fuse in question and replace it, if necessary, with a fuse of
the same rating.
If a fuse is fitted where the rating is too high, it may cause the electrical
circuit to overheat (risk of fire) in the event of an item of equipment using
an excessive amount of current.
Fuses in engine compartment B
Some functions are protected by fuses
located in the engine compartment
(unit B).
However, because of their reduced
accessibility, we advise you to have
your fuses replaced by an approved
Dealer .
B2

5.38
ENG_UD19739_7
Anomalies de fonctionnement (B90 - U90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - \
Dacia)
ENG_NU_817-9_B90_Dacia_5

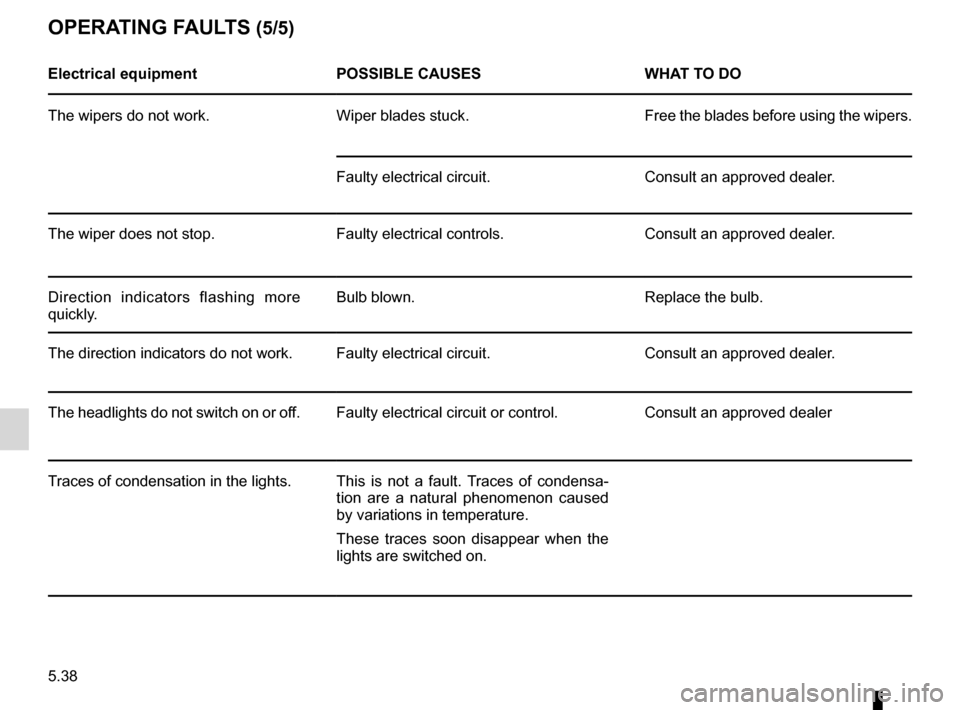

OPERATING FAULTS (5/5)
Electrical equipment POSSIBLE CAUSES WHAT TO DO
The wipers do not work. Wiper blades stuck. Free the blades before using the wipers.
Faulty electrical circuit. Consult an approved dealer.
The wiper does not stop. Faulty electrical controls. Consult an approved dealer.
Direction indicators flashing more
quickly. Bulb blown.
Replace the bulb.
The direction indicators do not work. Faulty electrical circuit. Consult an approved dealer.
The headlights do not switch on or off. Faulty electrical circuit or control. Consult an approved dealer
Traces of condensation in the lights. This is not a fault. Traces of condensa-
tion are a natural phenomenon caused
by variations in temperature.
These traces soon disappear when the
lights are switched on.

7.1
FRA_UD25177_11
Index (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_7
AlphAbeticAl index (1/4)
A
ABS ........................................................................\
2.12 – 2.13
accessories........................................................................\
5.33
accessories - installation ................................................... 5.33
accessories socket ............................................................ 3.14
adjusting your driving position ...................... 1.11 → 1.14, 3.17
advice on antipollution ........................................... 5.22 → 5.24
air bag .................................................................... 1.15 → 1.20
activating the front passenger air bags ........................ 1.34
deactivating the front passenger air bags .................... 1.32
air conditioning .................................................... 3.4 – 3.5, 3.9
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check .............................................. 6.14 → 6.18
anti-lock braking system: ABS ................................2.12 – 2.13
antipollution advice .................................................................. 2.6 → 2.8
ashtrays ........................................................................\
..... 3.14
automatic gearbox (use) ........................................ 2.14 → 2.16
automatic gearbox selector lever ...........................2.14 → 2.16
b
battery ........................................................................\
........ 4.12
troubleshooting ................................................. 5.25 – 5.26
battery (remote control) ..................................................... 5.27
bodywork (maintenance) ....................................... 4.13 → 4.15
bonnet ........................................................................\
. 4.2 – 4.3
brake fluid ........................................................................\
.... 4.7
bulbs changing .......................................................... 5.14 → 5.21
c
capacity of mechanical components ...........................4.4, 4.12
catalytic converter ................................................................ 2.4
central door locking ............................................................. 1.5
changing a bulb ..................................................... 5.14 → 5.21
changing a wheel ...................................................... 5.9 – 5.10changing gear
........................................................ 2.14 → 2.16
child booster seat .................................................. 1.21 → 1.23
child restraint/seat ................................................. 1.21 → 1.31
child safety ............................................... 1.2, 1.6, 1.21 → 1.31
child seats .............................................................. 1.21 → 1.31
children .............................................................. 1.5 – 1.6, 1.14
cigar lighter ........................................................................\
3.14
clock ........................................................................\
.......... 1.10
closing the doors ................................................................. 1.6
control instruments ....................................... 1.10, 1.40 → 1.50
controls .................................................................. 1.36 → 1.39
courtesy light ..................................................................... 3.10
d
dashboard .............................................................. 1.36 → 1.39
de-icing .................................................................. 1.53 → 1.55
rear screen ................................................................... 1.55
demisting rear screen ..................................................................... 3.7
dimensions ........................................................................\
.. 6.5
dipstick........................................................................\
......... 4.4
doors ........................................................................\
... 1.5 – 1.6
driver’s position ..................................................... 1.36 → 1.39
driving .................................................. 2.2 → 2.9, 2.11 → 2.16
e
electric door locking ............................................................. 1.5
electric windows ..................................................... 3.11 – 3.12
emergency brake assist ..................................................... 2.13
emergency spare wheel ................................. 5.3, 5.11 → 5.13
engine technical specifications .................................................. 6.4
engine coolant ..................................................................... 4.8
engine immobiliser............................................................... 1.7
engine immobiliser (switch) ................................................. 2.2
engine oil ........................................................................\
..... 4.4

7.2
FRA_UD25177_11
Index (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_7
Jaune NoirNoir texte
AlphAbeticAl index (2/4)
engine oil grade .......................................................... 4.5 – 4.6
engine specifications ........................................................... 6.4
environment ........................................................................\
. 2.9
F
faults operating faults ................................................ 5.34 → 5.38
filter ........................................................................\
............ 4.10
air filter ......................................................................... 4.10
diesel filter ........................................................... 1.58, 4.10
oil filter ........................................................................... 4.6
particle filter ................................................................... 2.5
passenger compartment filter ...................................... 4.10
fitting a radio ...................................................................... 5.32
fittings ..................................................................... 3.15 – 3.16
fog lights ........................................................................\
.... 1.50
front passenger air bag deactivation ................................. 1.32
front seat adjustment ........................................................... 1.9
front seats adjustment ..................................................................... 1.9
fuel advice on fuel economy ....................................... 2.6 → 2.8
grade ..................................................................... 1.56, 6.4
fuel economy ............................................................. 2.6 → 2.8
fuel filler cap ...................................................................... 1.56
fuel grade ........................................................................\
... 1.56
fuel level ........................................................................\
.... 1.44
fuel priming bulb ................................................................ 1.58
fuel tank ................................................................. 1.56 → 1.58
fuel tank capacity ............................................................... 1.56
fuses ...................................................................... 5.22 → 5.24
G
gear lever ........................................................................\
... 2.10
glove box ........................................................................\
... 3.15
grab handle ........................................................................\
3.13h
handbrake
........................................................................\
.. 2.11
hazard warning lights signal .............................................. 1.52
headlight beam adjustment ............................................... 1.51
headlight flashers .............................................................. 1.52
headrest ...................................................................... 1.8, 3.17
heating and air conditioning system ................... 3.2 → 3.5, 3.9
heating system .......................................................... 3.2 → 3.9
horn ........................................................................\
........... 1.52
i
ignition switch ...................................................................... 2.2
indicator lights .................................................................... 5.18
indicators .................................................................. 1.52, 5.14
indicators: direction indicators ....................................................... 1.52
instrument panel .................................................... 1.40 → 1.44
interior trim maintenance ..................................................... 4.16 – 4.17
J
jack .................................................................... 5.2, 5.9 – 5.10
K
keys ........................................................................\
.... 1.2 – 1.3
replacing the battery .................................................... 5.27
l
levels .................................................................. 4.4, 4.7 → 4.9
levels: engine oil ....................................................................... 4.5
lifting the vehicle changing a wheel ............................... 5.2 – 5.3, 5.7 → 5.10
lighting: exterior ......................................... 1.49 – 1.50, 5.14 → 5.18
interior ..................................................... 3.10, 5.19 → 5.21
