2012 DACIA LODGY engine

Downloaded from www.Manualslib.com manuals search engine 5.10
ENG_UD27017_2
Changement de roue (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Undo the bolts and take off the wheel.
Fit the emergency spare wheel on the
central hub and turn it to locate the
mounting holes in the wheel and the
hub.
If bolts are supplied with the emergency
spare wheel, only use these bolts for
the emergency spare wheel.
Tighten the bolts, checking that the
wheel is correctly positioned on its hub
and lower the jack.
With the wheel on the ground, tighten
the bolts fully and have the tightness
of the bolts checked (tightening torque:
110 N.m) and the emergency spare
wheel pressure checked as soon as
possible.
CHANGING A WHEEl (2/2)
If you have a puncture, re -
place the wheel as soon
as possible. A tyre which
has been punctured should
always be inspected (and repaired,
where possible) by a specialist.
Anti-theft bolts
If you use anti-theft bolts, please
refer to the instructions given on
the interior of the wheel trim to posi-
tion the bolts (wheel trim may not be
able to fit).

Downloaded from www.Manualslib.com manuals search engine tyres ...................................................... (up to the end of the DU)
emergency spare wheel ....................... (up to the end of the DU)
5.11
ENG_UD24472_1
Pneumatiques (X92 - Renault)ENG_NU_975-3_X92_Dacia_5
Tyres (tyre and wheel safety, use in winter)
TYREs (1/3)
Tyre and wheel safety
The tyres are the only contact between
the vehicle and the road, so it is essen-
tial to keep them in good condition.
You must make sure that your tyres
conform to local road traffic regulations.
When they need to be re -
placed, only tyres of the
same make, size, type and
profile should be used.
Tyres fitted to the vehicle should
either be identical to those fitted
originally or conform to those
recommended by your approved
Dealer.
Maintaining the tyres
The tyres must be in good condition
and the tread form must have sufficient
depth; tyres approved by our Technical
Department have wear warning strips 1
which are indicators moulded into
the tread at several points. When the tyre tread has been worn
to the level of the warning strips, they
become visible
2: it is then neces -
sary to replace your tyres because the
tread rubber is now only 1.6 mm deep
at most, resulting in poor road hold -
ing on wet roads.
An overloaded vehicle, long journeys
by motorway, particularly in very hot
weather, or continual driving on poorly
surfaced minor roads will lead to more
rapid tyre wear and affect safety.
Incidents which occur when
driving, such as striking the
kerb, may damage the tyres
and wheel rims, and could
also lead to misalignment of the
front or rear axle geometry.
In this case, have the condition of
these checked by an approved
dealer.
1
2

Downloaded from www.Manualslib.com manuals search engine tyre pressure.......................................................... (current page)
5.12
ENG_UD24472_1
Pneumatiques (X92 - Renault)ENG_NU_975-3_X92_Dacia_5
Jaune NoirNoir texte
Changing wheels around
This practice is not recommended.
Emergency spare wheel
Refer to the information on “Puncture”
and “Changing a wheel” in Section 5.
Fitting new tyres
TYREs (2/3)
Tyre pressures
Adhere to the tyre pressures (including
the emergency spare wheel). The tyre
pressures should be checked at least
once a month and additionally before
any long journey (refer to the label af -
fixed to the edge of the driver’s door).
Pressures should be checked when the
tyres are cold; ignore higher pressures
which may be reached in hot weather
or following a fast journey.
If tyre pressures cannot be checked
when the tyres are cold, assume an in-
crease of 0.2 to 0.3 bar.
Never deflate a hot tyre.
special note
Depending on the vehicle, there may
be an adapter which needs to be posi-
tioned on the valve before air is added.
For safety reasons, this op-
eration must be carried out
by a specialist.
Fitting different tyres may
change your vehicle as follows:
– it may mean that your vehicle no
longer conforms to current regu-
lations;
– It may change the way it handles
when cornering;
– It may cause the steering to be
heavy;
– it may affect the use of snow
chains.
Please be aware that a
poorly tightened or miss -
ing valve cap can make the
tyres less airtight and lead
to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
These are factors which
may seriously affect safety and lead
to:
– poor road holding,
– risk of bursting or tread separa -
tion.
The pressure depends on the load
and the speed of use. Adjust the
pressure according to the condi -
tions of use (refer to the label affixed
to the edge of the driver’s door).

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte

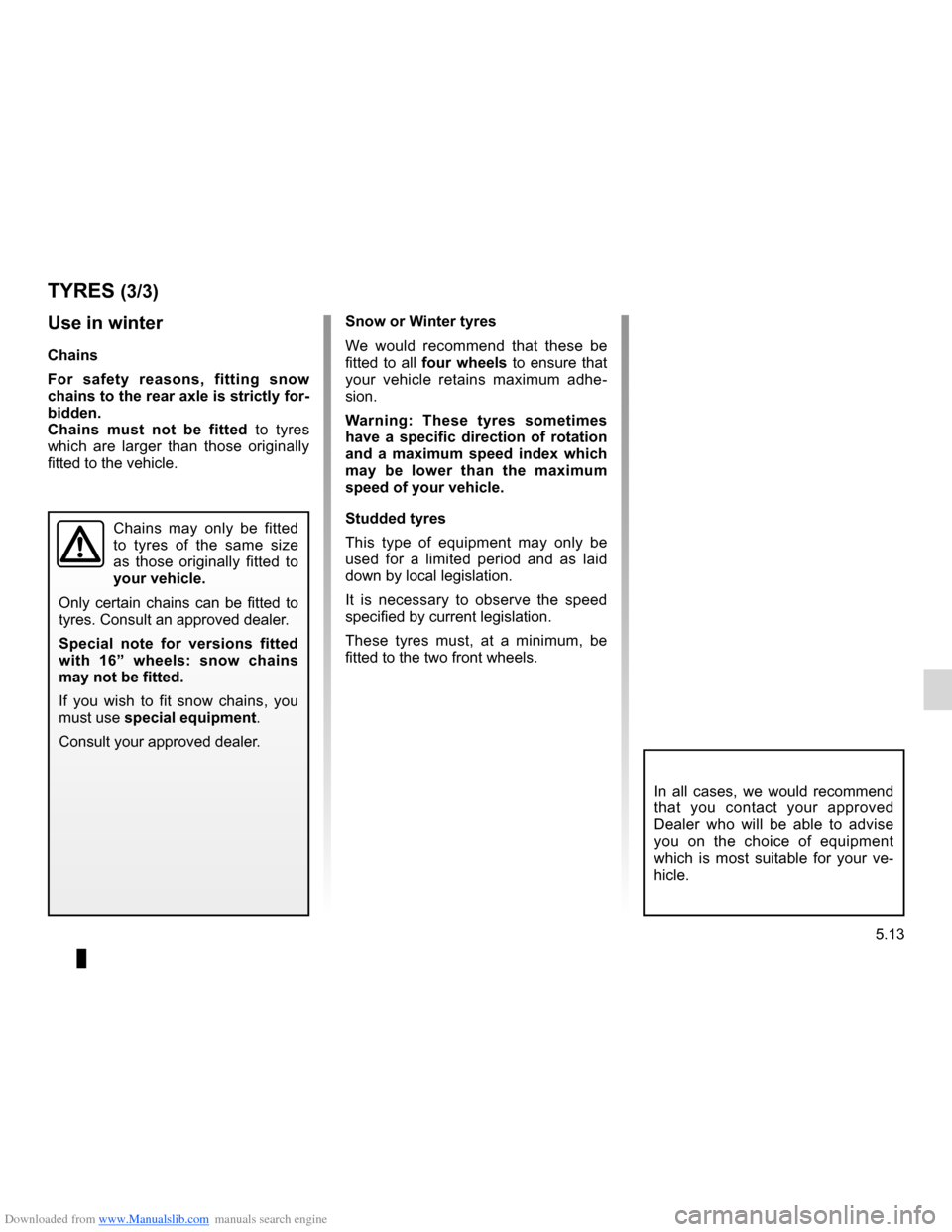

5.13
ENG_UD24472_1
Pneumatiques (X92 - Renault)ENG_NU_975-3_X92_Dacia_5
Use in winter
Chains
For safety reasons, fitting snow
chains to the rear axle is strictly for-
bidden.
Chains must not be fitted to tyres
which are larger than those originally
fitted to the vehicle.
TYREs (3/3)
snow or Winter tyres
We would recommend that these be
fitted to all four wheels to ensure that
your vehicle retains maximum adhe -
sion.
Warning: These tyres sometimes
have a specific direction of rotation
and a maximum speed index which
may be lower than the maximum
speed of your vehicle.
studded tyres
This type of equipment may only be
used for a limited period and as laid
down by local legislation.
It is necessary to observe the speed
specified by current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.
In all cases, we would recommend
that you contact your approved
Dealer who will be able to advise
you on the choice of equipment
which is most suitable for your ve -
hicle.
Chains may only be fitted
to tyres of the same size
as those originally fitted to
your vehicle.
Only certain chains can be fitted to
tyres. Consult an approved dealer.
s pecial note for versions fitted
with 16” wheels: snow chains
may not be fitted.
If you wish to fit snow chains, you
must use special equipment.
Consult your approved dealer.

Downloaded from www.Manualslib.com manuals search engine bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
indicators ............................................................... (current page)
practical advice ..................................... (up to the end of the DU)
lighting: exterior ............................................ (up to the end of the DU)
lights: dipped beam headlights .................. (up to the end of the DU)
lights: direction indicators .......................... (up to the end of the DU)
lights: side lights ........................................ (up to the end of the DU)
lights: main beam headlights ..................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.14
ENG_UD26649_2
Feux avant : remplacement des lampes (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Front lights: changing bulbs
The following bulbs can be replaced.
However, we would advise you to have
them replaced by an approved dealer if
it proves difficult.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
Main beam headlights, dipped
beam headlights
Remove the connector from the bulb 5.
Remove cover A.
Unclip the spring 4 and take out the
bulb.
Bulb type: H4 anti UV (see box).
Do not touch the bulb glass. Hold it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
FRoNT lIGHTs: changing bulbs
5
4
23
A
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.
1Daytime running light
Turn the bulb holder 1 a quarter of a
turn and take out the bulb.
Bulb type: P21W.
Front side light
Turn the bulb holder 2 a quarter of a
turn and take out the bulb.
Bulb type: W5W.
Direction indicator lights
Turn the bulb holder 3 a quarter of a
turn and take out the bulb.
Bulb type: PY21W.
1
32

Downloaded from www.Manualslib.com manuals search engine bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
lighting: exterior ............................................ (up to the end of the DU)
lights: fog lights ......................................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights additional ........................................ (up to the end of the DU)
5.15
ENG_UD24474_1
Feux de brouillard : remplacement des lampes (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Additional lights
If you wish to fit fog lights to your ve -
hicle, please see an authorised dealer.
Fog lights: changing bulbs
FoG lIGHTs: changing bulbs
Front fog lights 1
Consult an approved dealer.
Bulb type: H16ll.
Any operation on (or modi -
fication to) the electrical
system must be performed
by an approved Dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
1
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap -
proved Dealer.

Downloaded from www.Manualslib.com manuals search engine lights:reversing lights ................................................. (current page)
lights: brake lights ...................................................... (current page)
lighting: exterior ............................................ (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
5.16
ENG_UD26662_2
Feux arrière: remplacement des lampes (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Jaune NoirNoir texte
Back and side lights: changing bulbs
REAR AND sIDE lIGHTs: changing bulbs (1/3)
Direction indicator, brake and
side lights
Undo bolt 1 to remove the light. Release the light assembly from out
-
side the vehicle by pulling towards the
rear.
Remove the bulb holder 3 by releasing
clips 2.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring,
and fasten clips 2 on the bulb holder 3.4 side light and brake light
Bulb type 4: P21/5W.
5 Indicator light
Bulb type 5: PY21W.
6
Reversing light (right-hand side
only)
Bulb type 6: P21W.
7 Fog light (left-hand side only)
Bulb type 7: P21W.
3
4
5
61
7
2
2

Downloaded from www.Manualslib.com manuals search engine lights:brake lights ...................................................... (current page)
JauneNoirNoir texte
5.17
ENG_UD26662_2
Feux arrière: remplacement des lampes (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
REAR AND sIDE lIGHTs: changing bulbs (2/3)
High-level brake light
– Remove the two plastic blanking
covers 6 from the inside.
– Unclip the light using a screwdriver,
by releasing the metal clips from
their housings.
– Remove light from the outside.
Replace the bulb without disconnect-
ing the wiring.
Bulb type 7: W16W.
Refitting
To return it, proceed in the reverse
order to removal.
Check the tabs are correctly locked in
position.
The bulbs are under pres -
sure and may break when
replaced.
Risk of injury.
7
6
