Projecteurs antibrouillard : remplacement des lampes (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Additional lights
If you wish to fit fog lights or long range
headlights to your vehicle, consult an
approved dealer.
Fog lights
FOG LIGHTS: changing bulbs
Front fog lights 1
Consult an approved dealer.
Bulb type: H11.
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved Dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
lighting: exterior ............................................ (up to the end of the DU)
lights: reversing lights ................................................. (current page)
lights: brake lights ...................................................... (current page)
bulbs changing ......................................... (up to the end of the DU)
5.18
ENG_UD20583_3
Feux arrière : remplacement des lampes (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Jaune NoirNoir texte
Rear lights
7 Reversing light
Pear-shaped, bayonet type bulb, P
21 W.

or
Rear fog light
P

ear-shaped, bayonet type P 21 W
bulb.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
REAR LIGHTS: changing bulbs (1/3)
Rear lights
Open the tailgate and undo nuts 1, then
r elease light unit 2
by pulling it rear-
wards.
Release clips
3 to remove bulb holder 4.
5

Side light and brake light
Pear-shaped,

bayonet type bulb with
two P 21/5 W filaments.
6


Direction indicator light
Pear-shaped, bayonet type P 21 W
or PY 21 W bulb (depending on ve-
hicle).
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
2
3
3
4
5
6
7

lights:reversing lights ................................................. (current page)
lights: brake lights ...................................................... (current page)
Jaune NoirNoir texte
5.19
ENG_UD20583_3
Feux arrière : remplacement des lampes (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
REAR LIGHTS: changing bulbs (2/3)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
High-level brake light
The bulb for high-level brake light 9
may be accessed through the luggage
compartment.
Carefully unclip cover
8

by pressing
tabs
10. Remove bulb

13
.
Bulb type: P 21 W.
Unclip tab
1
2
carefully (movement
A )
a
nd turn it an eighth of a turn (move-
ment B) to release the bulb holder 1 1.
10
8
9
11
A
B1213

5.20
ENG_UD20583_3
Feux arrière : remplacement des lampes (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5

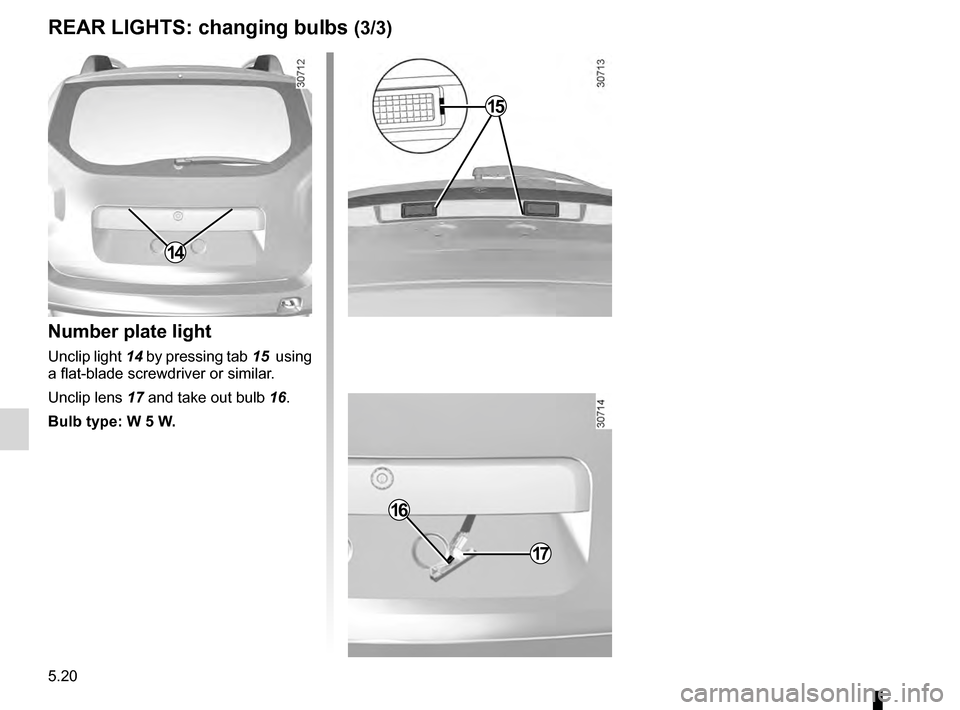

REAR LIGHTS: changing bulbs (3/3)
Number plate light
Unclip light 14 by pressing tab 15 using
a flat-blade screwdriver or similar.
Unclip lens

17
and take out bulb 16.
Bulb type: W 5 W.
14
15
17
16

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
lighting: exterior ............................................ (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
indicator lights....................................... (up to the end of the DU)
5.21
ENG_UD20584_2
Répétiteurs latéraux : remplacement des lampes (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Side indicator lights
INDICATOR LIGHTS: changing bulbs
Unclip indicator light 1 (using a flat-
blade screwdriver or similar positioned
at

A
to move the indicator light towards
the outside of the vehicle).
Turn bulb holder
2

a quarter of a turn
(movement
B )

and take out bulb
3
(movement

C).
Bulb type: WY5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
A
1
B
2
3
C
