9.5
NaviDrive
The NaviDrive is coded in such a way that it will onlyoperate in your vehicle.

For safet
y reasons, it is imperative that the driver carries
out operations which require prolonged attention while
the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the NaviDrive may switch off after a few minutes.



MULTIMEDIA AUDIO / TELEPHONE SYSTEM
JUKEBOX FUNCTION (10 GB) / GPS (EUROPE)


01 First steps

02
Voice commands and
steering mounted controls


03 Screen and main menu

04 Navigation - Guidance

05 Traffic information

06 Audio / Video

07 Telephone

08 Trip computer

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 9.6
9.7
9.9
9.13
9.23
9.25
9.34
9.38
9.40
9.41
CONTENTS

Frequently asked questions p. 9.47

9.8
02
1
2

VOICE COMMANDS
VOICE COMMANDS AND STEERING MOUNTED CONTROLS


DISPLAYING THE LIST AND USING THEM
To display the list o
f available voice commands, press the voice recognition control to start the voice recognition,
then say HELP or the voice recognition command.
For the same operation, press and
hold the MENU button and select the"Voice commands list" function.
Press the voice recognition control tostart the voice recognition.
Say the words one by one and wait for the audible confi rmation signal between each word.
Th
e list which follows is exhaustive.

LEVEL 1LEVEL 2
LEVEL 3

radio memoryautostore
previous/next
list 1 to
6/*

cd player
Jukebox (if activated)
USBprevious/next track
track number/track scan
random play

director
y (CD-MP3 inserted)list 1 to 250/*
previous
/next
repeat

help/what can I say/cancel help/whelp/w

call/guide to"Pre-recorded description"

telephone l
ast number
voice box
voice mail
directory
"Pre-recorded description"

messagedisplay
readdirectory
"Pre-recorded description"
nav
igation stop/resume
zoom in/out
view *
vehicle destination
tr
affi c info display
read
displa
yaudio
telephone
trip computer
Navigation
air conditioning

previous/next
stop

delete yes/no f
or all level 1 and 2

* help/what can I say/cancel for all level 1, 2 or *
Voice commands list

9.9
03
°
SCREEN AND MAIN MENU
The system uses the complete and detailed NAVTEQ maps installed directly on the equipment's hard disk.
Updates of the maps of the UK and of the other European countries, supplied by our partner NAVTEQ, are available from the CITROËN network.
This displa
ys the following information, via the audio control panel:


- time,

- date,

- ambient temperature
(if there is a risk of ice, you are warned by amessage),

- audio source displa
ys (radio, CD, jukebox, ...),

- telematic system displays
(telephone, services, ...),

- check o
f openings (doors, boot, ...),

- warnin
g messages (e.g.: "Fuel level low") and vehicle function statusmessages (e.g.: "Auto lighting activated") displayed temporarily,

- trip computer information,

- GPS
(Europe) satellite navigation system information. > COLOUR
SCREEN
Telephone
Orange
Time:
Date:
Screen confi guration: refer to the section - Screen menu map.

9.11
03SCREEN AND MAIN MENU

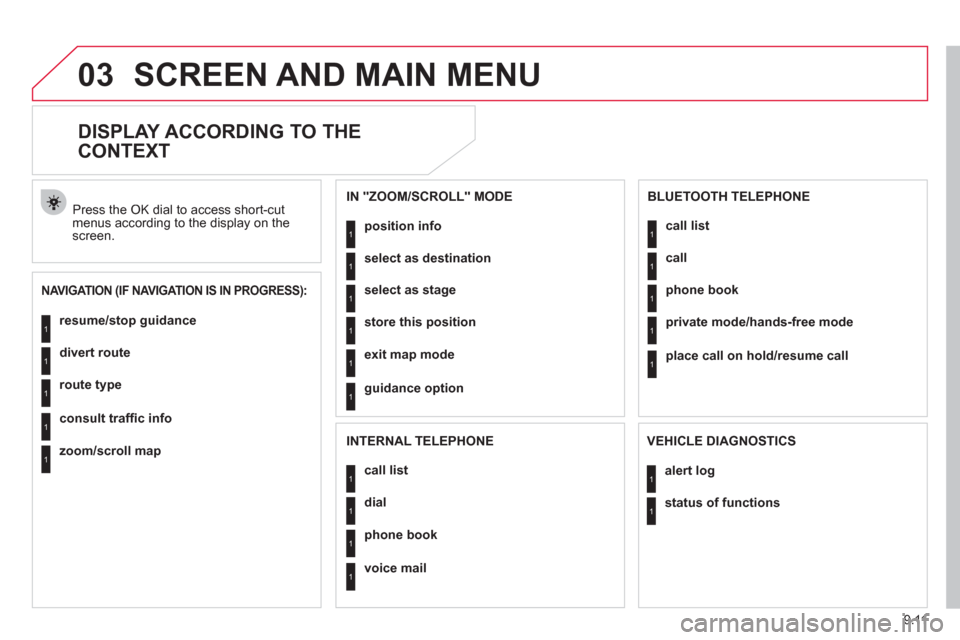

DISPLAY ACCORDING TO THE
CONTEXT

NAVIGATION (IF NAVIGATION IS IN PROGRESS):

Press the OK dial to access short-cut menus according to the display on thescreen.
resume
/stop guidance1
1
1
1
divert route
route type
consult traffi c info
1zoom/scroll map
position info1
1
1
1
select as destination
select as sta
ge
store this position
1exit map mode
1guidance option
IN "ZOOM/SCROLL" MODE
call list1
1
1
1
dial
phone book
voice mail
INTERNAL TELEPHONE
call list1
1
1
1
call
phone book
private mode/hands-free mode
1place call on hold/resume call
BLUETOOTH TELEPHONE
alert log1
1status of functions
VEHICLE DIAGNOSTICS

9.13
04
1
2
3
4
5
6
7
8
NAVIGATION - GUIDANCE

Press the MENU button.

Turn the dial and select the Navigation Guidance function.

Pr
ess the dial to confi rm the selection.

T
urn the dial and select the
"Destination choice" function.When the country has been selected,
turn the dial and select the "Town"
function. Pr
ess the dial to confi rm the selection.
Turn the dial and select the "Enter anaddress" function. Pr
ess the dial to confi rm the selection. Tip: for a detailed
global view of the menus available, refer to the "Screen menu map" part of this section.









SELECTING A DESTINATION
Destination choiceTown
Enter an address

9.14
04
9
10
11
12
13
14
15

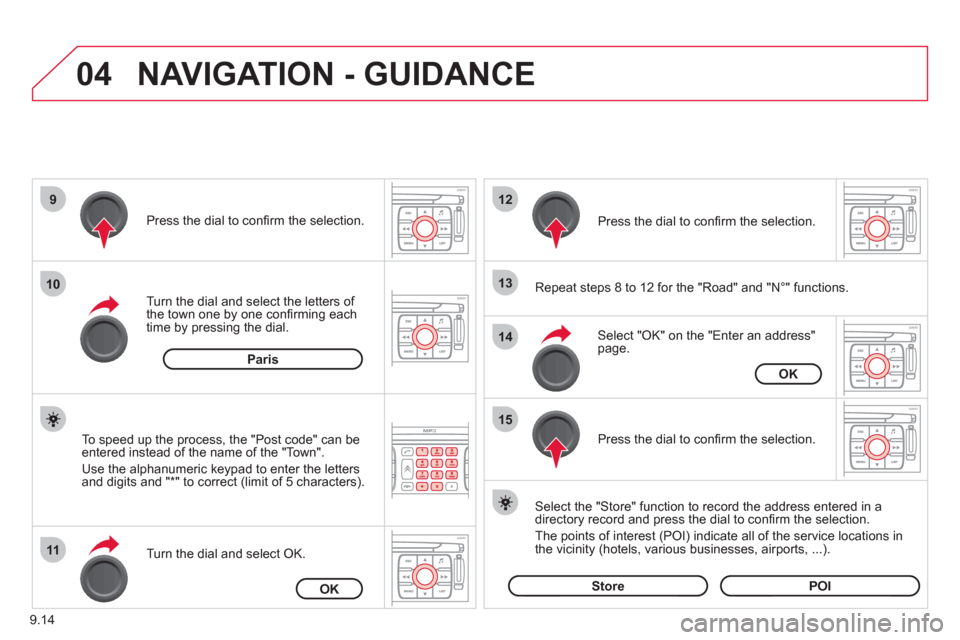

NAVIGATION - GUIDANCE

Repeat steps 8 to 12 for the "Road" and "N°" functions.
Turn the dial and select the letters of
the town one by one confi rming each
time by pressing the dial.

Select the "Store" function to record the address entered in a
directory record and press the dial to confi rm the selection.
The points o
f interest (POI) indicate all of the service locations in
the vicinity (hotels, various businesses, airports, ...).
Select "OK" on the "Enter an address" page. Pr
ess the dial to confi rm the selection.
Turn the dial and select
OK.
To speed up the process, the "Post code" can beentered instead of the name of the "Town".
Use the alphanumeric ke
ypad to enter the letters
and digits and "*" to correct (limit of 5 characters).
Pr
ess the dial to confi rm the selection.

Pr
ess the dial to confi rm the selection.
Paris
OK
OK
StorePOI
