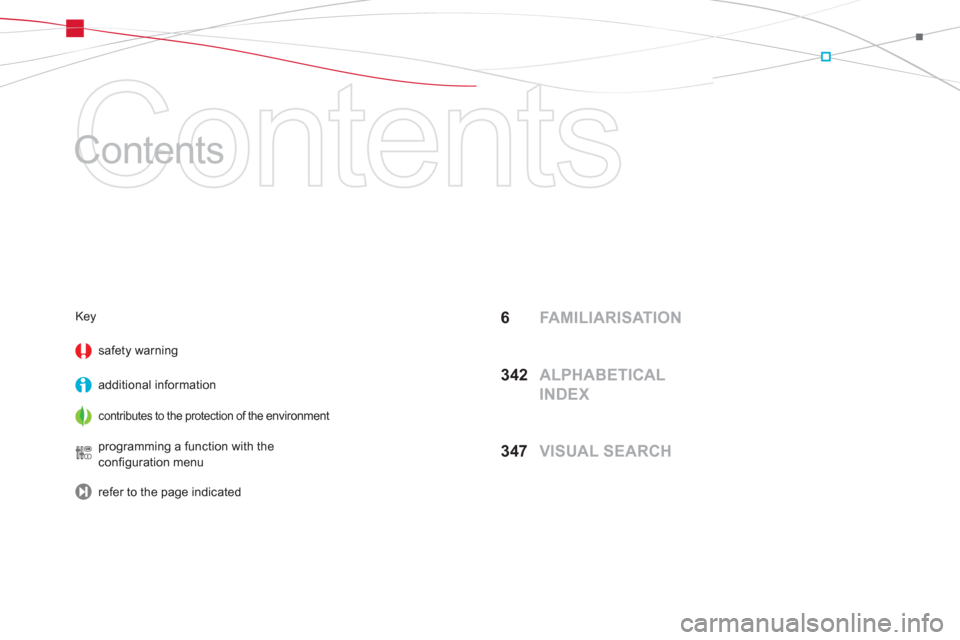

Contents

Contents
6 FA M I L I A R I SAT I O N
34
2 ALPHABETICAL
INDEX
347 VISUAL SEARCH
Key
sa
fety warning
additional information
contributes to the protection of the environment
pro
gramming a function with the configuration menu
re
fer to the page indicated

54Instrument panel
55Indicator and warning lamps
64 Gauges and indicators
68Adjustment buttons
69 Clock
70 Setting the date and time
72 Tr i p c o m p u ter
76Electronic key - remote control
84Boot
85Alarm
87Electric windows
89 Cockpit glass roof
91Fuel tank
92 Misfuel prevention (Diesel)
96Front seats
101 Rear seats
104Mirrors
105 Steering wheel adjustment
106 Interior fi ttings
110Boot fi ttings
111Tr i a ngle (stowing)
112 Heating and Ventilation
114 Dual-zone digital air conditioning
118Rear screen demist - defrost
28 Presentation
31 Starting / switching off
35 Ready lamp
35 Hybrid4 mode selector
38 Energy consumption / generation indicator
40Display of hybrid power fl ow
43 Eco off
44Eco-driving
46 Consumption
47High voltage battery
51 Vehicle recovery
001001002002003003COMFORT ACCESS MONITORING HYBRID SYSTEM

Electronic key: Keyless Entryand Starting
This system allows you to unlock, lock and star t your vehicle while keeping the key on your person and in the defined zone around the vehicle.
77
Exterior

Directional lighting
This lighting automatically provides additional forward visibility when cornering.
157
Daytime running lamps
This lighting, switched on automatically when
starting the engine, makes your vehicle more
vi
sible to other road users.
151

Access
1.
Opening the fuel filler flap.
Ta n k c a p a c i ty: approximately 60 litres.


Fuel t ank
91

Unlocking

With the electronic key on your person and in
the defined zone A around the vehicle, passAyour hand behind the door handle to unlock the
vehicle, then pull on the handle to open the door.

Locking

With the electronic key in the defined zone Aaround the vehicle, press with a finger on
the door handle (at the markings) to lock the
v
ehicle.
Electronic key
76
A.
Unlocking the vehicle.B.Normal locking of the vehicle C.Unlocking the boot and complete unlocking of the vehicle.


Keyless Entry and Starting
77


Boot
1.
Unlocking the boot from inside: maintain pressure until the boot is heard to unlock.
84

14 . Controls for electric windows / electric child lock / central locking.
15. eMyWay controls.
16.Gear selector.
17. Hybrid4 mode selector.
18
. Heating / air conditioningcontrols.
19.Audio system.
20.Hazard warning lamps. 21. Multifunction screen.
22.Central adjustable air vents.
23.Clock.
24.Starting with the START/STOP button.
25. Electronic key reader.
26. Wiper / screenwash / trip computerstalk.






Instruments and controls
1.
Bonnet release lever.2.
Headlamp height adjustment. 3.
Side adjustable air vents.4.
Front door window demisting/defrosting
vents.
5. Quarter light demisting windows.
6.Head-up display.7. Windscreen demisting/defrosting vent.8.Passenger's airbag. 9.
Glove box / Passenger's airbag deactivation inside. 10.12 V accessory socket. 11.
Rear electric window controls.12.Central armrest with storage.
USB por t / auxiliary socket. 13.Electric parking brake.
27. Audio equipment steering mountedcontrols. 28.
Driver's airbag.
Horn. 29. Cruise control / speed limiter controls.
30.
Switch panel (see previous page).31.Door mirror adjustment.32.
Lighting and direction indicator stalk33.
Instrument panel. 34.Seat belt and airbag warning lamps. 35.Cour tesy lamp. 36.Head-up display controls. 37.
Controls for cockpit glass roof blind. 38.CITROËN Localised Emergency Call - CITROËN Localised Assistance Call.

Passenger safety
1.
Open the glove box.2.
Inser t the key (integral with the electronic key).3.Select position:
"ON"
(activation), with front passenger or "forwards facing" child seat,
"OFF"
(deactivation), with "rear facing" child seat.4.
Remove the key keeping the switch in the new position.
Front passenger's airbag
190


Front seat belts and
passenger's front airbag
A.
Left hand front seat belt not fastened or unfastened warning lamp.B.
Right hand front seat belt not fastened or unfastened warning lamp.C.
Right hand rear seat belt not fastened or unfastened warning lamp.D.Centre rear seat belt not fastened or unfastened warning lamp.
187
E.
Left hand rear seat belt not fastened or
unfastened warning lamp. F.Front passenger's airbag deactivatedwarning lamp.G. Front passenger's airbag activated warninglamp.

23Familiarisation

Starting - stopping the engine

Driving safely


Before starting 31


Starting when the temperature isabove zero




- The instrument panel and the Ready
lampcome on, confirmed by an audible signal.

- The dial in the centre console is in AUTO
mode.



- Place the
gear selector in position N.

- Inser t the electronic key in the reader or
keep the electronic key inside the vehicle.


-
Press the brake pedal.

- Make single short press (about 1 second)on the START/STOPbutton.



Moving off




- While maintaining pressure on the brakepedal, move the gear selector to position Ato go forwards or Rfor reverse.

- Ta k e
your foot off the brake pedal, you can
then move off.


With temperatures below zero, you have to initiate pre-heating of the Diesel engine: - Withoutpressing the brake pedal,make an initial shor t press on theSTA R T/STOP button. - Wait until the pre-heater warninglamp goes off.
-With
you foot on the brake pedal, make a second shor t press on theSTA R T/STOP button.

Hybrid system

Before starting




- Place the selector lever in position N
.

- If your vehicle has Keyless Entry and Starting, simply having the key inside the
vehicle is sufficient.

- If not, place the electronic key in the reader.

- Press the brake
pedal.
- Make a single shor t press (about a second) on the START/STOP
button.
- The steering column locks (noticeable
noise and movement of the steeringwheel).
- Keep your foot on the brake pedal until theHybrid4 system starts up (the instrument panel and the Readylamp come on, confirmed by an audible signal).
The hybrid system determines whether it isnecessary to star t the Diesel engine.
Starting with temperatures
above zero














Starting - switching off the engine


With temperatures below zero, you must initiate
pre-heating of the Diesel engine:

-
Without putting your foot on the brakepedal
, make an initial shor t press (about asecond) on the START/STOP button.

- The steering column unlocks (noticeablenoise and movement of the steering wheel).

- Wait until the pre-heater warning lampgoes off.
-
With your foot on the brake pedal
, make
a second short press on the START/STOP
button.

- Keep your foot on the brake pedal until the Hybrid4 system starts up (the Ready
lamp comes on, confirmed by an audible signal)and the Diesel engine star ts.


Starting with temperatures
below zero
