Low fuel level

When the low fuel level in the tank isreached, this warning lamp comes on
in the instrument panel, accompanied
by an audible warning and a messagein the instrument panel screen.
When it first comes on, around 6 litres of fuelremain in the tank.
You must refuel as soon as possible to avoid running out.
Fuel supply cut-off
Your vehicle is equipped with a safety device
which cuts o
ff the fuel supply in the event of a collision.

It remains possible to use a fuel can tofill the tank.In order to ensure a good flow of fuel, do not place the nozzle of the fuel canin direct contact with the flap of themisfuel prevention device and pour slowly.

















Misfuel prevention (Diesel) *

Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
When a
petrol filler nozzle is introduced into the fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains closed and prevents filling. Do not persist but introduce a Diesel type
filler nozzle.

Operation



Tr a v e l l i ng abroad
As Diesel fuel pump nozzles may be different
in other countries, the presence of the misfuel
prevention device may make refuellingimpossible.
Before travelling abroad, we recommend that you check with the CITROËN dealer network,
whether your vehicle is suitable for the fuelpumps in the country in which you want to
tr
avel.


*
Accordin
g to country of sale.

Access
Quality of the fuel used for
Diesel engines

The Diesel engines are perfectly compatible
with biofuels which conform to current andfuture European standards (Diesel fuel which complies with standard EN 590 mixed with a
biofuel which complies with standard EN 14214)
available at the pumps (containing up to 7 %
Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer tain Diesel engines; however, this use is subject to strict
application of the special ser vicing conditions. Contact a CITROËN dealer or a qualified
workshop.
The use of any other type of (bio)fuel(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

Comfort
Switch on the ignition or star t the engine if the vehicle has gone into economy mode.
The electric functions of the driver's seat are active for about 45 seconds after opening the front door. They are deactivated about 45 seconds after switching off the ignition and in economy mode.

To reactivate them, switch on the ignition.

Electric
1.Adjustment of the seat cushion angleand height, and for wards-backwards adjustment)Raise or lower the front of the control
to adjust the seat cushion angle. )Raise or lower the rear of the control
to raise or lower the seat.)Simultaneously raise or lower the frontand rear of the control in order to raise or lower the entire seat. 2.Adjustment of the backrest angle Move the control forwards or backwards
to adjust the backrest angle.
3.Adjustment of driver's lumbar
support Press the control switches to obtain
the desired level of lumbar suppor t.
4. Manual adjustment of the cushion
Pull on the grip to adjust the length of
the cushion.

113Comfort
In order for these systems to be fully effective, follow the operation and maintenance guidelines below: )
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot.
)
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system. )
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a monthto keep it in perfect working order. )
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks" section). We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by theoccupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).)
To ensure correct operation of the air conditioning system, you are also advised to haveit checked regularly as recommended in the ser vicing booklet. )
If the system does not produce cold air, switch it off and contact a CITROËN dealer or a qualified workshop.
You can switch off the air conditioning (AC button) and stay in Automatic mode in order to limit fuel consumption. If misting appears while in this mode, you can switch the air conditioning back on temporarily to improve the situation.
When towing the maximum load on a steep gradient in high temperatures, switching off theair conditioning increases the available engine power and so improves the towing ability.












Recommendations for ventilation and air conditioning


If after an extended stop in sunshine,
the interior temperature is very high, firstventilate the passenger compar tment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment. The air conditioning system does notcontain chlorine and does not present any danger to the ozone layer.


The condensation created by the air conditioning results in a dischargeof water under the vehicle which is
perfectly normal.

Dual-zone digital air conditioning
1. Automatic comfort programme

We recommend the use of one of
the three AUTO modes available:
they provide optimised regulation of
the temperature in the passenger compartment according to the comfort value
that you have chosen.
These three modes automatically control the system, according to the desired setting, while also maintaining the desired comfort value.
) Press the "AUTO"
button repeatedly:


- a first indicator lamp comes on; the "low"
setting mode is selected,

- a second indicator lamp comes on; the"medium" setting mode is selected,

- a third indicator lamp comes on; the
"high" mode setting is selected.

Use the "medium" and "high" settings in
preference to maintain the comfort level at
th
e rear.

When the engine is cold, the air flow will reach its optimum level
progressively, taking account of the weather and the desired comfort levelso as to avoid too great a distributionof cold air. On entering the vehicle, if the interior temperature is much colder or warmer than the comfor t value, there is noneed to change the value displayed in order to obtain the comfor t required. Inall seasons, with the windows closed the system corrects the differencein temperature automatically and asquickly as possible.
This s
ystem is designed to operate effectively
in all seasons, with the windows closed.
Automatic operation
The air conditioning can only operate when the hybrid system is active (Ready lamp on).
Its effectiveness will be reduced when in electric mode (see the ECO OFF section).

115
Comfort
4. Automatic visibilityprogramme


For maximum cooling or heating of thepassenger compar tment, it is possibleto exceed the minimum value 14 or themaximum value 28.)
Turn control 2or 3
to the left until "LO"is displayed or to the right until "HI"
is displayed. See "Front demistin
g - defrosting".


2-3. Driver's-passenger's side
settings
The driver and front passenger can each adjust the temperature to their requirements.
The value indicated on the display corresponds to a level of comfor t and not to a
temperature in degrees Celsius or Fahrenheit.
)Turn control 2or 3to the left or to the right respectively to decrease or increase this
value.
A setting around the value 21 provides optimumcomfort. However, depending on your requirements,
a setting between 18 and 24 is normal. You are advised to avoid a left / right settingdifference of more than 3.

Manual operation

If you wish, you can make a different choice from that offered by the system by changing asetting. The "AUTO"
indicator lamps go off; theother functions, except the air conditioning, willstill be controlled automatically.)
Pressing the "AUTO"
button returns the system to completely automatic operation.
With Stop & Start, when demisting hasbeen switched on, the Diesel engine does not stop.

It is recommended that you do notapply the parking brake in very coldconditions (ice) and during towing (recovery...). To do this, release the parking brake manually, select position A
or R
, then press the STA R T/STOP switch to stopthe engine.
The electric parking brake combines
2 operating modes:- Automatic Application/ReleaseApplication is automatic when the engine
stops, release is automatic on use of the
accelerator (this mode is activated by
default), -Manual Application/ReleaseManual application of the parking brake is done by pulling control lever A.Manual release is done by pullingthenreleasing the control lever, while pressing
the brake pedal.
When the driver's door is opened, there is an
audible signal and a message is displayed if the
brake is not applied.

Programming the automatic
mode

Depending on the country of sale of the vehicle,
the automatic application when the engine isswitched off and the automatic release when
you press the accelerator can be deactivated.
You can contact a CITROËN dealer or a qualified workshop to have it activated.

In this case, programming is done via
the configuration menu.








Electric parking brake
If deactivated, the parking brake must
be applied and released manually.
If this warning lamp comes on in
the instrument panel, the automaticmode is deactivated.

Never leave the vehicle without checking that the parking brake is on.
This warning lamp comes onfixed (not flashing).


Label on door panel

Before leaving the vehicle, check thatparking brake warning lamps in the instrument panel and in the control lever Aare on fixed (not flashing). Never leave a child alone inside thevehicle with the ignition on, as theycould release the parking brake.

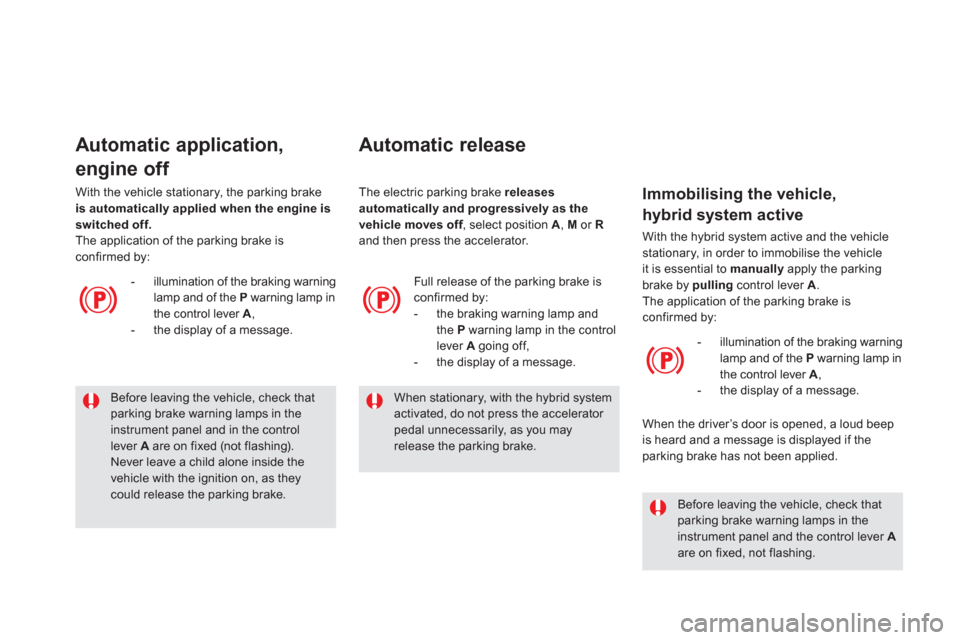

Automatic application,
engine off
- illumination of the braking warning lamp and of the Pwarning lamp in
the control lever A,- the display of a message. With the vehicle stationar
y, the parking brake is automatically applied when the engine is
switched off.The application of the parking brake is confirmed by:

Automatic release
Full release of the parking brake is confirmed by:
- the braking warning lamp and
the P warning lamp in the controllever A
going off,
- the display of a message.
When stationary, with the hybrid system activated, do not press the accelerator pedal unnecessarily, as you may release the parking brake.




Before leaving the vehicle, check that parking brake warning lamps in the instrument panel and the control lever Aare on fixed, not flashing.

Immobilising the vehicle,
hybrid system active
With the hybrid system active and the vehiclestationary, in order to immobilise the vehicle
it is essential to manuallyapply the parking
brake by pulling control lever A
.
The application of the parking brake is confirmed by:


- illumination of the brakin
g warninglamp and of the P
warning lamp in
the control lever A,
- the display of a message.
When the driver’s door is opened, a loud beep
is heard and a messa
ge is displayed if the parking brake has not been applied. The electric parkin
g brake releases
automatically and progressively as thevehicle moves off, select position fA , M or Rand then press the accelerator.
