CONTENTS
Monochrome screen C 43
Colour screen (eMyWay) 45
II - MULTIFUNCTION SCREENS 43 Î 46
Ventilation 47
Mono-zone digital
air conditioning 49
Dual-zone digital
air conditioning 52
Programmable heating 56
Front seats 60
Rear seats 64
Mirrors 65
Steering wheel adjustment 66
47 Î 66
Remote control key 67
Alarm 73
Electric windows 75
Doors 77
Boot 79
Sunroof (Saloon) 82
Panoramic sunroof (Tourer) 83
Fuel tank 84
Misfuel prevention (Diesel) 85
67 Î 85
Lighting controls 86
Automatic illumination
of headlamps 88
Headlamp adjustment 89
Directional lighting 90
Wiper controls 92
Automatic rain sensitive
windscreen wipers 93
Courtesy lamps 94
Interior mood lighting 96
86 Î97
Interior fi ttings 98
Mats 99
Front armrest 99
Boot fi ttings 101
VI -FITTINGS 98 Î104
Instrument panels 26
Trip computer 29
Warning and indicator lamps 32
Adjustment buttons 42
FAMILIARISATION 4 Î 23
I - MONITORING 26 Î42
Child seats 105
ISOFIX child seats 109
Child lock 113
VII - CHILD SAFETY 105 Î113
ECO-DRIVING 24 Î 25
Page 7 of 316
5

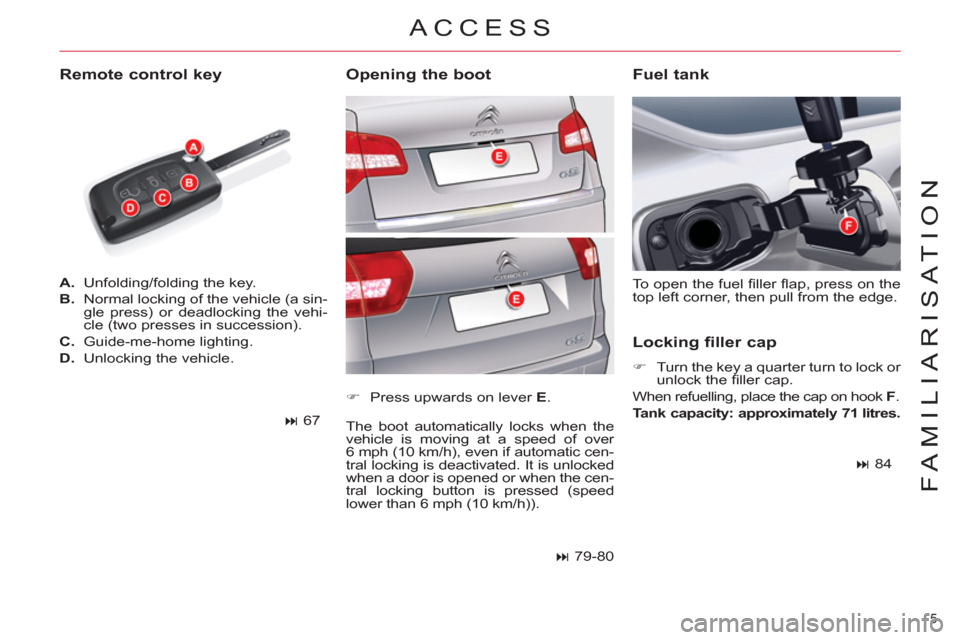

FAMILIARISATION
A.
Unfolding/folding the key.
B.
Normal locking of the vehicle (a sin-
gle press) or deadlocking the vehi-
cle (two presses in succession).
C.
Guide-me-home lighting.
D.
Unlocking the vehicle. To open the fuel fi ller fl ap, press on the
top left corner, then pull from the edge.
)
Press upwards on lever E
.
Opening the boot
79-80
84
ACCESS
Remote control key
Fuel tank
67
Locking filler cap
)
Turn the key a quarter turn to lock or
unlock the fi ller cap.
When refuelling, place the cap on hook F
.
Tank capacity: approximately 71 litres.
The boot automatically locks when the
vehicle is moving at a speed of over
6 mph (10 km/h), even if automatic cen-
tral locking is deactivated. It is unlocked
when a door is opened or when the cen-
tral locking button is pressed (speed
lower than 6 mph (10 km/h)).
Page 8 of 316
6
FAMILIARISATION
The bonnet release should only be op-
erated when the vehicle is stationary.
)
Open the left hand front door.
)
Pull release lever A
to unlock the
bonnet.
Opening the bonnet
ACCESS
)
Lift safety catch B
, then raise the
bonnet.
Saloon
Tourer
Spare wheel
The tools are located in a protective
holder inside the spare wheel.
177
Access to the spare wheel
To access the spare wheel:
)
Saloon: raise the boot fl oor and fold
it in two.
)
Tourer: raise the boot fl oor and at-
tach it using the retractable grip.
Secure the hook to the upper part of
the boot.
)
To remove the spare wheel, detach
the strap then push the wheel for-
wards, before lifting it out.
Temporary puncture repair kit
The kit is a complete system comprised
of a compressor and a sealant car-
tridge.
174
162
Page 10 of 316
8
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1.
Electric windows/door mirrors/child safety
controls.
2.
Storing driver’s seat and door mirror settings.
3.
Audio/telematic steering mounted controls.
4.
Horn.
5.
Steering mounted controls:
- Speed limiter
- Cruise control
6.
Driver's airbag.
7.
Navigation controls for the audio/telematic and
trip computer systems.
8.
Driver's air vent.
9.
Instrument panel.
10.
Driver's air vent.
11 .
Stop & Start switch.
12.
Lighting/Direction indicators/Foglamp/Voice
recognition control stalk.
13.
Manual headlamp height adjustment.
14.
Steering wheel adjustment.
15.
Knee airbag.
16.
Locking/unlocking of doors and boot.
17.
Checks/Anti-intrusion alarm/Parking space
sensor controls.
18.
Ignition switch.
19.
Windscreen wiper/screenwash control stalk.
20.
Oddments tray or programmable heater
controls.
21.
USB port.
Page 27 of 316
25
Limit the causes of excess
consumption
Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.
At the end of winter, remove snow
tyres and refi t your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.
Have your vehicle serviced regularly (en-
gine oil, oil fi lter, air fi lter...) and observe
the schedule of operations recommend-
ed by the manufacturer.
When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.
At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.
Page 34 of 316
I
32
MONITORING
Warning and indicator lamps
Visual indicators which inform the driver of the occurrence of a malfunction or
fault (warning lamp) or of the operation of a system (operation or deactivation
indicator lamp).
Warning lamp
is on
Cause
Action / Observations
STOP
fi xed, associated
with another
warning lamp. It is associated with a
punctured tyre or the engine
coolant temperature. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a
CITROËN dealer or a qualifi ed workshop.
Service
temporarily. A minor fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown in the screen, such as, for example:
- the closing of the doors, boot, rear
screen or bonnet,
- the remote control battery,
- the tyre pressures,
- saturation of the particle emission fi lter
(Diesel).
For any other faults, contact a CITROËN
dealer or a qualifi ed workshop.
fi xed. A major fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown in the screen and contact a
CITROËN dealer or a qualifi ed workshop.
When the ignition is switched on
Certain warning lamps come on for a few seconds when the ignition is switched on.
When the engine is started, these warning lamps should go off.
If they remain on, before moving off, refer to the information for the warning lamp
concerned.
Associated warnings
The illumination, fi xed or fl
ashing, of certain warning lamps may be accompa-
nied by an audible signal and a message in the screen.
Warning lamps
When the engine is running or the
vehicle is being driven, the illumina-
tion of one of the following warning
lamps indicates a malfunction or
fault which requires action on the
part of the driver.
The illumination of a warning lamp is
always accompanied by the display
of an additional message, to assist
you in identifying the fault.
If you encounter any problems, con-
tact a CITROËN dealer or a qualifi ed
workshop.
Page 50 of 316
III
48
COMFORT
Air conditioning
We recommend use of the automatic
regulation of the air conditioning.
It permits automatic and optimised
control of all of the following func-
tions: air fl ow, temperature in the
passenger compartment and air
distribution, by means of various
sensors (ambient temperature, sun-
shine). This eliminates any need for
you to change your settings other
than the temperature value dis-
played.
)
Take care not to cover the sun-
shine sensor A
.
If you select the automatic mode
(by pressing the "AUTO" control)
and leave all of the vents open, opti-
mum comfort will be maintained and
humidity and condensation will be
removed regardless of the exterior
climatic conditions.
The temperature in the passenger
compartment can only be lower than
the ambient temperature if the air
conditioning is on.
HEATING, VENTILATION
AND AIR CONDITIONING
RECOMMENDATIONS In order to be effective, the air con-
ditioning must be used with the win-
dows closed. If the vehicle has been
parked in the sun for a long period
and the interior temperature is very
high, fi rst ventilate the passenger
compartment with the windows
open for a few minutes, then close
the windows.
To keep the air conditioning system
in good working order it is essential
that it is operated at least once a
month.
The air conditioning uses engine pow-
er during its operation. As a result,
the fuel consumption of the vehicle
increases.
In certain cases of particularly ardu-
ous use (e.g. towing the maximum
load on a steep gradient in high tem-
peratures), switching off the air con-
ditioning saves engine power and
improves the towing capacity.
Air inlet
Check that the exterior grille for the
air inlet, at the bottom of the wind-
screen, is clean and free of dead
leaves, snow, etc.
When washing the vehicle using a
high pressure nozzle, avoid spray-
ing at the air inlet.
Air circulation
Maximum comfort is obtained by
means of a good distribution of air in
the passenger compartment, both in
the front and in the rear.
To obtain a uniform distribution of
air, take care not to block the ex-
terior air intake grille located at the
base of the windscreen, the vents,
the air outlets under the front seats
and the air extractor located behind
the fl aps in the boot.
The front and rear vents are fi tted
with thumbwheels to adjust the air
fl ow and direction. We recommend
that you leave all of the vents open.
Dust filter / Odour filter
(active carbon)
There is a fi lter for excluding odours
and dust.
This fi lter must be changed in line
with the vehicle's servicing schedule
(see the vehicle's servicing booklet).
Page 66 of 316
III
64
COMFORT
REAR SEATS
Bench seat, the left-hand (2/3) or
right-hand (1/3) section of which
can be folded to adapt the boot load
space.
Removing the seat cushion
)
Move the corresponding front
seat forwards if necessary.
)
Raise the front of the seat cush-
ion 1
.
)
Tilt the seat cushion 1
fully
against the front seat.
)
Remove the seat cushion 1
from
its fi xings by pulling upwards.
Refitting the seat cushion
)
Position the seat cushion 1
verti-
cally in its fi xings.
)
Fold down the seat cushion 1
.
)
Press on the seat cushion to se-
cure it.
Folding the seat
In order to fold a rear seat without
any risk of damage, always start
with the seat cushion,
never with
the seat back:
)
move the corresponding front
seat forwards if necessary,
)
raise the front of the seat cush-
ion 1
,
)
tilt the seat cushion 1
fully against
the front seat,
)
check that the seat belt is posi-
tioned correctly on the side of
the seat back,
)
lower or remove the head re-
straints if necessary,
)
pull the control 3
forwards to re-
lease the seat back 2
,
)
tilt the seat back 2
.
The seat cushion 1
can be removed
to increase the loading volume.
Returning the seat back to its
original position
When returning the rear seat to its
original position:
)
put the seat back 2
in the upright
position and secure it,
)
fold the seat cushion 1
,
)
refi t the head restraints or put
them back in place.
When returning the rear seat to its
original position, take care not to trap
the seat belts and ensure that their
buckles are positioned correctly.
The red indicator on the control 3
should no longer be visible; if it is,
push the seat fully back.
