2012 Citroen C4 RHD fuse

11
PRACTICAL INFORMATION
198

Dashboard fuses

The fuseboxes are located in the lower
dashboard (left-hand side).

Access to the fuses


)
Refer to the paragraph "Access to
the tools".

Fuse tables

Fusebox 1



Fuse N°



Rating


Functions



F8



3 A

Alarm siren, alarm ECU.


F13



10 A

Cigarette lighter.


F14



10 A

12 V socket in boot.


F16



3 A

Lighting for the large multifunctional storage unit,
rear map reading lamps, glove box illumination.


F17



3 A

Sun visor illumination, front map reading lamps.


F28



15 A

Audio system, radio (after-market).


F30



20 A

Rear wiper.


F32



10 A

Hi-Fi amplifi er.

11
PRACTICAL INFORMATION
199


Fuse N°



Rating


Functions



F36



15 A

Rear 12 V socket.


F37



-

Not used.


F38



-

Not used.


F39



-

Not used.


F40



-

Not used.
Fusebox 2

11
PRACTICAL INFORMATION
200


Fuse N°



Rating


Functions



F19



30 A

Windscreen wipers slow/fast speed.


F20



15 A

Front and rear screenwash pump.


F21



20 A

Headlamp wash pump.


F22



15 A

Horn.


F23



15 A

Right-hand main beam headlamp.


F24



15 A

Left-hand main beam headlamp.


F27



5 A

Left-hand dipped headlamp.


F28



5 A

Right-hand dipped headlamp.

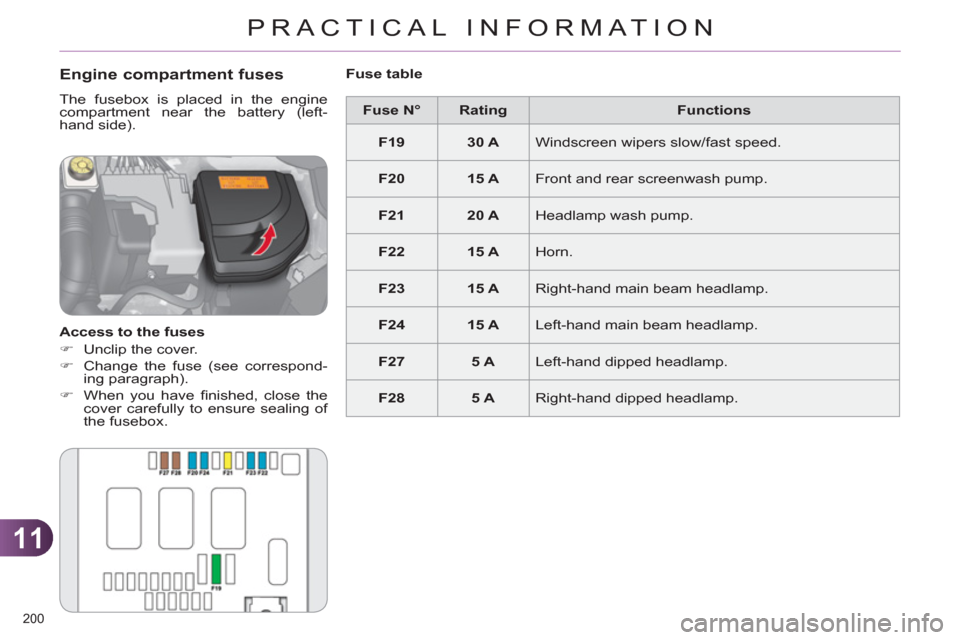

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-
hand side).

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see correspond-
ing paragraph).

)
When you have fi nished, close the
cover carefully to ensure sealing of
the fusebox.

Fuse table

11
PRACTICAL INFORMATION
201











BATTERY

The battery is located under the bonnet.
To gain access to it:


)
open the bonnet using the interior
release lever, then the exterior safety
catch,

)
secure the bonnet stay,

)
remove the plastic cover to gain
access to the two terminals,

)
unclip the fuse box to remove the
battery, if necessary.



Access to the battery


Disconnecting the cables

Do not force the tab as locking
will not be possible if the clip is
not positioned correctly; start the
procedure again.





The presence of this label, in
particular with the Stop & Start
system, indicates the use of a
12 V lead-acid battery with spe-
cial technology and specifi cation;
the involvement of a CITROËN
dealer or a qualifi ed workshop is
essential when replacing or dis-
connecting the battery.
Failure to observe this recom-
mendation may cause premature
wear of the battery. Procedure for charging your battery
when it is fl at or for starting the engine
using another battery.

After refi tting the battery, the
Stop & Start system will only be
active after a continuous period
of immobilisation of the vehicle,
a period which depends on the
climatic conditions and the state
of charge of the battery (up to
about 8 hours).

)
Position the open clip 1
of the cable
on the positive terminal (+) of the
battery.

)
Press vertically on the clip 1
to position
it correctly against the battery.

)
Lock the clip by lowering the tab 2
.

)
Raise the locking tab fully.



Reconnecting the cables

11
PRACTICAL INFORMATION
210

Installation of radio
communication transmitters
Before installing any after-
market radio communication
transmitter, you can contact a
CITROËN dealer for the speci-
fi cation of transmitters which
can be fi tted (frequency, maxi-
mum power, aerial position,
specifi c installation require-
ments), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).


Depending on the legislation in
force in the country, it may be
compulsory to have a high vis-
ibility safety vest, warning triangle
and spare bulbs and fuses available
in the vehicle.
The fi tting of electrical equip-
ment or accessories which are
not recommended by CITROËN
may result in a failure of your ve-
hicle's electronic system and ex-
cessive electrical consumption.
Please note this precaution.
You are advised to contact a
CITROËN representative to be
shown the range of recommend-
ed equipment and accessories.

"Multimedia":
audio systems, steering mounted au-
dio controls, speakers, Hi-Fi module,
Bluetooth hands-free system, portable
satellite navigation system, semi-inte-
gral support bracket for portable navi-
gation system, speed camera detector,
USB Box, reversing camera, portable
video screen, portable video support
bracket, 230 V/50 Hz socket, 230 V/50 Hz
adaptor, Wi-Fi on board...
By going to a CITROËN dealer, you
can also obtain cleaning and mainte-
nance products (interior and exterior) -
including ecological products in the
"TECHNATURE" range -, products for
topping up (screenwash...), touch-up
pens and paint aerosols for the exact
colour of your vehicle, recharges (car-
tridge for the temporary puncture repair
kit...), ...

313
VISUAL SEARCH
INSTRUMENTS AND CONTROLS

Instrument panels ....................... 28-32
Warning lamps ............................ 33-43
Indicators .................................... 44-46
Manual test ...................................... 47
Setting buttons............................ 48-50


- trip distance recorder

- dashboard lighting dimmer/black
panel

- customisation of dials and screens

Lighting controls ....................... 96-100
Adjusting headlamps ..................... 102

Stop & Start ............................ 158-160

Door mirrors ................................ 76-77
Electric windows ......................... 90-91
Dashboard fuses .................... 197-199

Opening the bonnet ....................... 174

Adjusting the steering wheel............ 78
Horn ............................................... 130
Audio system .......................... 277-310
Setting the date/time...................... 302
eMyWay satellite navigation
system .................................... 225-276
Setting the date/time...................... 267

Manual gearbox ...................... 149-150
6-speed electronic gearbox
system .................................... 151-153
Automatic gearbox.................. 154-156
Parking brake ................. 142-148, 149
Wiper controls......................... 105-107
Trip computer ............................. 59-62
Rear view mirror .............................. 78
Emergency or
assistance call ....................... 134, 223
Seat belt and front passenger airbag
warning display screen ........... 135-136
Courtesy lamps.............................. 108

Interior mood lighting ..................... 109


Hazard warning lamps ................... 130
Central locking/unlocking
from inside .................................. 84-85
Black panel ...................................... 49
Multifunction screens .................. 51-58

Ventilation ................................... 63-64
Manual air conditioning......... 65-66, 70
Digital air conditioning .......... 67-69, 70

Demisting/Defrosting
the rear screen ................................ 70
Memorising speeds ....................... 164
Speed limiter........................... 165-166
Cruise control ......................... 167-168

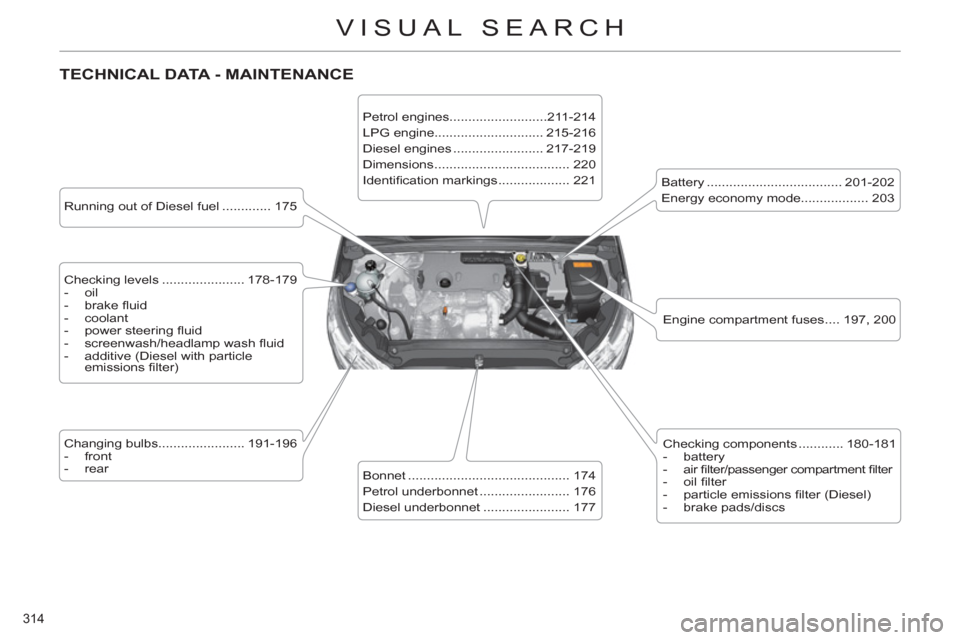

314
VISUAL SEARCH
TECHNICAL DATA - MAINTENANCE


Running out of Diesel fuel ............. 175

Checking levels ...................... 178-179


- oil

- brake fl uid

- coolant

- power steering fl uid

- screenwash/headlamp wash fl uid

- additive (Diesel with particle
emissions fi lter)


Changing bulbs....................... 191-196


- front

- rear

Petrol engines..........................211-214
LPG engine............................. 215-216
Diesel engines ........................ 217-219
Dimensions .................................... 220
Identifi cation markings ................... 221

Bonnet ........................................... 174
Petrol underbonnet ........................ 176
Diesel underbonnet ....................... 177
Checking components ............ 180-181


- battery

- air fi lter/passenger compartment fi lter

- oil fi lter

- particle emissions fi lter (Diesel)

- brake pads/discs


Battery .................................... 201-202
Energy economy mode.................. 203

Engine compartment fuses .... 197, 200

315
ALPHABETICAL INDEX
A ABS and EBFD systems ............132
Accessories ................................209
Accessory socket,
12 V ................... 112, 113, 115, 119
Adjusting headlamps ..................102
Adjusting head restraints ..............73
Adjusting seat belt height ...135, 136
Adjusting the steering wheel ........78
Airbags, curtain ..................140, 141
Airbags, front ......................138, 141
Airbags, lateral ...................140, 141
Air conditioning .............................26
Air conditioning, digital ...........64, 67
Air conditioning, manual .........64, 65
Air fi lter .......................................180
Air fl ow .........................................26
Air vents .......................................63
Alarm ............................................86
Anti-lock braking system
(ABS) ........................................132
Anti-pinch .....................................90
Anti-theft .......................................81
Armrest, front ..................... 114, 115
Armrest, rear .............................. 117
Ashtray, portable ........................ 111
Assistance call ...................134, 224
Audible warning ..........................130
Audio streaming
(Bluetooth) ........................264, 290
Audio system ..................51, 53, 277
Automatic illumination
of headlamps ......................97, 100
Automatic operation of hazard
warning lamps ..........................130
Automatic rain sensitive
windscreen wipers ............105, 106
Auxiliary socket .......... 112, 265, 289B Battery ................................180, 201
Battery, charging ........................201
Battery, remote control ...........82, 83
Black panel ...................................49
Blind spot sensors ......................161
Bluetooth (hands-free) .......248, 291
Bluetooth (telephone) .................248
Bonnet ........................................174
Bonnet stay ................................174
Boot ..............................................89
Boot lamp ...........................109, 120
Brake discs .................................181
Brake lamps ...............................195
Brake pads .................................181
Brakes ........................................181
Braking assistance system .........132
C Capacity, fuel tank ........................93
CD ..............................................284
CD MP3 ..............................285, 286
Central locking .......................80, 84
Centre console ........................... 113
Changing a bulb .................191, 195
Changing a fuse .........................197
Changing a wheel ......................187
Changing a wiper blade .....107, 203
Changing the date ..............267, 302
Changing the remote
control battery ............................82
Changing the time ........48, 267, 302
CHECK ...................................31, 47
Checking levels ..................178, 179
Checking the engine oil level .......44
Checking tyre pressures
(using the kit) ............................182
Checks ...............176, 177, 180, 181
Child lock ....................................129C Children ......................124, 127, 128
Child seats ................ 121, 123-125
Cigar lighter ................................ 112
Clock ............................................48
Closing the boot .....................80, 89
Closing the doors ...................80, 88
Cold climate screen ....................204
Commandes au volant .......228, 279
Connectors, audio ...... 112, 287, 289
Coolant level ..............................178
Courtesy lamps ..................101, 108
Courtesy mirror .......................... 111
Cruise control .....................164, 167
Cup holder .................................. 113
D Date (setting) ..............................267
Daytime
running lamps .............97, 191, 193
Deactivating the passenger
airbag .......................................138
Deadlocking .................................80
Defrosting .....................................70
Diesel additive level ...................179
Dimensions ................................220
Dipped beam ................96, 191, 193
Dipstick .................................44, 178
Directional lighting ..............103, 104
Direction
indicators ....99, 130, 191, 192, 195
Doors ............................................88
Doors, rear .................................129
Doors emergency control .............85
Door trays ................................... 110
Dynamic
emergency braking ...........142, 145
