YOUR HANDBOOK
ON THE INTERNET!

CITROËN lets you view your vehicle's docu-
mentation on line, to see earlier versions and the
latest information, simply and free of charge.
Connect to http://service.citroen.com:

1 |
Select your language and register,
click on the link in the "Private customer access" zone to consult the
vehicle documentation; a window opens providing access to all of the
handbooks,
select your vehicle, choose the body type then the date of issue of the
handbook,
fi nally, click on the heading of your choice.
2 |
3 |
4 |

2
MULTIFUNCTION SCREENS
51



















MONOCHROME SCREEN A

Displays in the screen

This displays the following information:


- time,

- date,

- ambient temperature (this fl ashes if
there is a risk of ice),

- openings check (if a door or the
boot is open),

- current audio source,

- trip computer (refer to the end of the
section).
Alert messages (e.g.: "Emission con-
trol system faulty") or information mes-
sages (e.g.: "Boot open") may appear
temporarily. These can be cleared by
pressing the "ESC"
button. From the control panel of your audio
system, you can press:


)
the "MENU"
button for access to
the main menu
,

)
the "
" or "
" buttons to scroll
through the items on the screen,

)
the "
" or "
" buttons to change a
setting value,

)
button A
to change the permanent
application (trip computer, audio
source...),

)
the "OK"
button to confi rm,
or

)
the "ESC"
button to abandon the
operation in progress.



Controls



)
Press the "MENU"
button for ac-
cess to the main menu
, then press
the "
" or "
" buttons to scroll
through the various menus:


- "RADIO",

- "MEDIA",

- "TRIP COMPUTER",

- "DATE AND TIME",

- "LANGUAGES",

- "VEHICLE PARAM",

)
Press the "OK"
button to select the
menu required.


Main menu


Radio/Media
With the audio system switched on,
once the "RADIO" or "MEDIA" menu
has been selected you can activate
or deactivate the functions associated
with use of the radio (RDS, Radio text)
or select the media play mode (normal,
random, repeat).
For more information on the "RADIO" or
"MEDIA" application, refer to the "Audio
and Telematics" section.

2
MULTIFUNCTION SCREENS
52
Once the "TRIP COMPUTER" menu
has been selected, you can start diag-
nostics of the status of the equipment
(active, not active, faulty).
Trip computer
Date and time
Once the "DATE AND TIME" menu has
been selected, you have access to the
following settings:


- year,

- month,

- day,

- hours,

- minutes,

- 12 or 24 hour mode.


)
Once you have selected a setting,
press the "
" or "
" buttons to
change its value.

)
Press the "
" or "
" buttons to
switch respectively to the previous
or next setting.

)
Press the "OK"
button to record
the change and return to the normal
display or press the "ESC"
button
to cancel.


Languages
Once the "LANGUAGES" menu has
been selected, you can choose the lan-
guage used by the display, from a pre-
defi ned list.
For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.
Vehicle parameters
Once the "VEHICLE PARAM" menu
has been selected, you can activate or
deactivate the following equipment:


- "PARK BRAKE" (Automatic electric
parking brake; refer to the "Driving"
section).

- "BEND LIGHTING" (Directional light-
ing; refer to the "Visibility" section),

- "AUTO HEADLAMPS" (Automatic
illumination of headlamps; refer to
the "Visibility" section),

- "REAR WIPE ACT" (Rear wiper
coupled with reverse gear; refer to
the "Visibility" section),
- "GUIDE LAMPS" (Guide-me-home
lighting; refer to the "Visibility" section),

- "ELECTRIC BOOT" (Selective un-
locking of the boot; refer to the
"Access" section),

- "CABIN SELECT" (Selective unlock-
ing; refer to the "Access" section),

- "DAY LAMPS" (Daytime running
lamps; refer to the "Visibility" section).

2
MULTIFUNCTION SCREENS
54

Defi ne the vehicle parameters
This menu allows you to activate or de-
activate the following equipment, clas-
sifi ed in different categories:


- "Access to the vehicle" (see the
"Access" section):


●
"Plip action" (Selective unlocking
of the driver's door),

●
"Unlocking boot only" (Selective
unlocking of the boot).



"Telephone" menu

With the audio system switched on, this
menu allows you to make a call or view
the various telephone directories.
For more information on the "Telephone"
application, refer to the "Audio and
Telematics" section. This menu allows you to view informa-
tion on the status of the vehicle.

Warning log
This summarises the status and warn-
ing messages for systems (active, not
active or faulty), displaying them in suc-
cession in the multifunction screen.


)
Press the "MENU"
button for ac-
cess to the main menu.

)
Press the arrows, then the "OK"

button to select the " Trip computer

" menu.

)
In the " Trip computer
" menu, select
the "Warning log" line and confi rm.




"Bluetooth connection"
menu
"Trip computer" menu

Wit the audio system on, this menu al-
lows a Bluetooth device (telephone,
media player) to be connected or dis-
connected and the connection mode to
be defi ned (hands-free, playing audio
fi les).
For more information on the "Bluetooth
connection" application, refer to the
"Audio and Telematics" section.


"Personalisation-
configuration" menu
This menu gives access to the following
functions:


- "Defi ne the vehicle parameters",

- "Choice of language",

- "Display confi guration",

- "Choice of sounds".

2
MULTIFUNCTION SCREENS
55

Choice of language
Once this menu has been selected, you
can choose the language used by the
display from a pre-defi ned list.
For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.
)
Press the "
" or "
" buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK"
button
to confi rm.

)
Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"

box and confi rm or press the "ESC"

button to cancel.

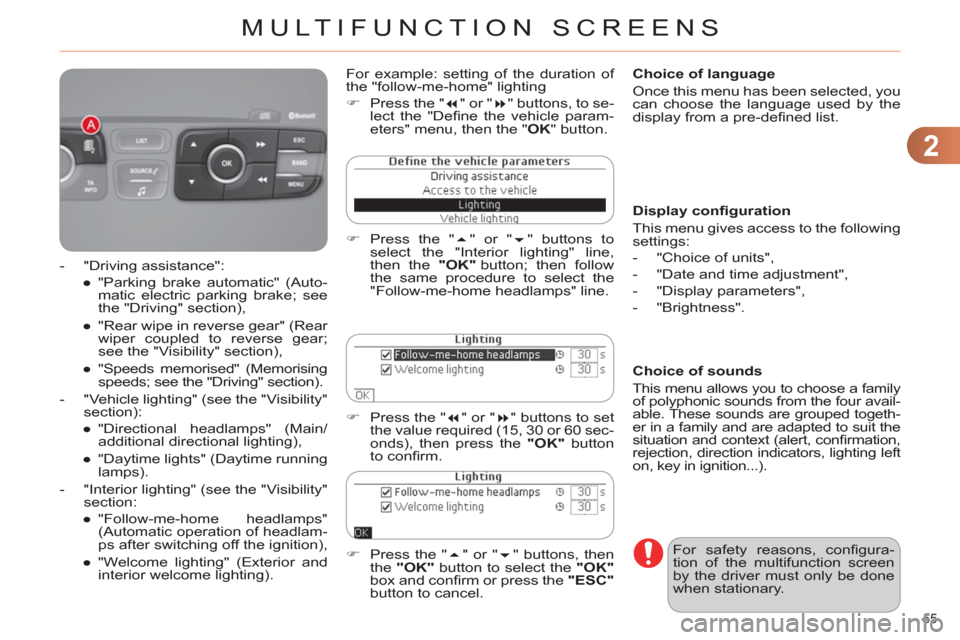

For example: setting of the duration of
the "follow-me-home" lighting


)
Press the "
" or "
" buttons, to se-
lect the "Defi ne the vehicle param-
eters" menu, then the " OK
" button.

)
Press the "
" or "
" buttons to
select the "Interior lighting" line,
then the "OK"
button; then follow
the same procedure to select the
"Follow-me-home headlamps" line.
Display confi guration
This menu gives access to the following
settings:


- "Choice of units",

- "Date and time adjustment",

- "Display parameters",

- "Brightness".


Choice of sounds
This menu allows you to choose a family
of polyphonic sounds from the four avail-
able. These sounds are grouped togeth-
er in a family and are adapted to suit the
situation and context (alert, confi rmation,
rejection, direction indicators, lighting left
on, key in ignition...).


- "Driving assistance":


●
"Parking brake automatic" (Auto-
matic electric parking brake; see
the "Driving" section),

●
"Rear wipe in reverse gear" (Rear
wiper coupled to reverse gear;
see the "Visibility" section),

●
"Speeds memorised" (Memorising
speeds; see the "Driving" section).



- "Vehicle lighting" (see the "Visibility"
section):


●
"Directional headlamps" (Main/
additional directional lighting),

●
"Daytime lights" (Daytime running
lamps).



- "Interior lighting" (see the "Visibility"
section:


●
"Follow-me-home headlamps"
(Automatic operation of headlam-
ps after switching off the ignition),

●
"Welcome lighting" (Exterior and
interior welcome lighting).

2
MULTIFUNCTION SCREENS
57
This group of controls allows:


- when stationary
, confi guration of
the vehicle, central screen and in-
strument panel parameters (driving
and comfort systems, language,
units, sounds...),

- when stationary and while driv-
ing
, scrolling the active functions
available (trip computer, navigation-
guidance...).
















Instrument panel central screen
and controls associated with
the satellite navigation system
Controls
Main menu


)
Press thumb wheel 2
for access to
the main menu and select one of
the following functions:


- "Vehicle parameters",

- "Display adjustment",

- "Choice of sounds".

)
Turn the thumb wheel 2
to move
around in the instrument panel cen-
tral screen.

)
Press the thumb wheel 2
again to
confi rm the selection.
There is a button and a thumb wheel to
control the central screen in the instru-
ment panel:


1.
button on the end of the wiper stalk:
run through the various active func-
tions available.

2.
thumb wheel on the left of the steer-
ing column,


- rotation (other than menu): scroll
through the list of active functions
available,

- press: main menu, confi rm the
selection,

- rotation (in a menu): move up or
down in the menu.

The main menu and its associ-
ated functions can only be ac-
cessed when stationary.
A message appears in the in-
strument panel central screen,
above a certain speed threshold,
indicating that the main menu
cannot be displayed.

2
MULTIFUNCTION SCREENS
58

Vehicle parameters
This menu is used to activate or deac-
tivate certain driving and comfort sys-
tems, classifi ed in different categories:


- "Access to the vehicle" (see
"Access" section):


●
"Plip action" (Selective unlocking
of the driver's door),

●
"Unlocking only boot" (Selective
unlocking of the boot).



- "Driving assistance":


●
"Parking brake automatic" (Auto-
matic electric parking brake; see
"Driving" section),

●
"Rear wipe in reverse gear" (Rear
wiper coupled to reverse gear;
see "Visibility" section),

●
"Speeds memorised" (Memoris-
ing speeds; see "Driving" sec-
tion).



- "Vehicle lighting" (see "Visibility"
section):


●
"Directional headlamps" (Main/
additional directional lighting),

●
"Daytime lights" (Daytime running
lamps).



- "Interior lighting" (see "Visibility"
section):


●
"Follow-me-home " (Automatic
timed operation of headlamps),

●
"Welcome lighting" (Interior/exte-
rior welcome lighting).


Display confi guration
This menu is used to confi gure:


- the display language of the central
screen, from a pre-defi ned list,

- the units: temperature (°Celsius or
°Fahrenheit) and fuel consumption
(l/100 km, mpg or km/l),

- the graphical presentation of the
central screen, from a pre-defi ned
list.


Choice of sounds
This menu allows you to choose a fam-
ily of polyphonic sounds from the four
available. These sounds are grouped
together in a family and are adapted
to suit the situation and context (alert,
confi rmation, rejection, direction indica-
tors, lighting left on, key in ignition...).

230








EMERGENCY OR ASSISTANCE CALL


EMERGENCY CALL


In an emergency, press this button for more than
2 seconds. Flashing of the green indicator lamp and a
voice message confi rm that the call has been made to the
CITROËN Emergency team * .

Pressing this button again immediately cancels the request. The green
indicator lamp goes off.
A press (at any time) of more than 8 seconds on this button, cancels
the request.


ASSISTANCE CALL

When the ignition is switched on, the green
indicator lamp comes on for 3 seconds
indicating that the system is operating correctly.


If the orange indicator lamp fl ashes: there
is a system fault.
If the orange indicator lamp is on continuously:
the backup battery must be replaced.
In either case, contact a CITROËN.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.

Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .


OPERATION OF THE SYSTEM

The green indicator lamp remains on (without fl ashing) when
communication is established. It goes off at the end of communication.

This call is dealt with by the CITROËN Emergency team which receives
locating information from the vehicle and can send a detailed alert to the
appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (112) without the
vehicle location.

If an impact is detected by the airbag ECU, and independently
of the deployment of any airbags, an emergency call is made
automatically.


* These services are subject to conditions and availability.
Consult a CITROËN dealer.
If you purchased your vehicle outside the CITROËN dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,
confi guration is possible in the offi cial national language of your choice.
If you benefi t from the CITROËN eTouch offer, you also have available
additional services in your MyCITROEN personal space, via the CITROËN
Internet website www.citroen.co.uk.

For technical reasons, particularly to improve the quality of telematic
services for customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.
