MONITORING
42




Passenger's
airbag system
fi xed in the
seat belt and
passenger's front
airbag warning
lamps display. The control switch, located
in the glove box, has been
placed in the "ON"
position.
The passenger's front airbag
is activated.
In this case, do not install a
"rear facing" child seat. Move the control switch to the "OFF"

position to deactivate the passenger's
front airbag.
In this case, you can install a "rear
facing" child seat.

Warning lamp



is on



Cause



Action/Observations






Stop & Start


fi xed.
When the vehicle stops (red
lights, traffi c jams, ...) the Stop &
Start system has put the engine
into STOP mode. The warning lamp goes off and the
engine restarts automatically in START
mode, as soon as you want to move off.

fl ashes for a few
seconds, then
goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. Refer to "Driving - § Stop & Start" for
special cases with STOP mode and
START mode.


Parking space
sensors


fi xed. The parking space sensors
function is selected. To start measurement, operate the direction
indicator on the side of the space to be
measured, and do not exceed 12 mph
(20 km/h). A message is displayed once the
measurement has been completed.





Automatic
wiping


fi xed. The wiper control is pushed
downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate
the control stalk downwards or put the
stalk into another position.


Lighting
dimmer


fi xed. The lighting dimmer is making
an adjustment. You can adjust the level of illumination of
the instruments between 1 and 16.

2
MULTIFUNCTION SCREENS
53



















MONOCHROME SCREEN C

Displays in the screen

This displays the following information:


- time,

- date,

- ambient temperature (this fl ashes if
there is a risk of ice),

- openings check (if a doors or the
boot is open),

- parking sensor information,

- current audio source,

- telephone or Bluetooth system in-
formation,

- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switch-
ing on of the headlamps activated")
may appear temporarily. These can be
cleared by pressing the "ESC"
button. From the control panel of your audio
system, you can press:


)
button A
to chooses between the
display of audio information in full
screen or the shared display of au-
dio and trip computer information,

)
the "MENU"
button for access to
the main menu
,

)
the "
" or "
" buttons to scroll
through the items on the screen,

)
the "
" or "
" buttons to change a
setting value,

)
the "OK"
button to confi rm,
or


)
the "ESC"
button to abandon the
operation in progress.



Controls



)
Press the "MENU"
button for ac-
cess to the main menu
:


- "Multimedia",

- "Telephone",

- "Trip computer",

- "Bluetooth connection",

- "Personalisation-confi guration",

)
Press the "
" or "
" button to se-
lect the menu required, then confi rm
by pressing the "OK"
button.



Main menu

"Multimedia" menu

With the audio system switched on,
this menu allows you to activate or de-
activate the functions associated with
use of the radio (RDS, DAB/FM auto
tracking, RadioText (TXT) display) or to
choose the media play mode (Normal,
Random, Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio and
Telematics" section.

2
MULTIFUNCTION SCREENS
56






















COLOUR SCREEN AND MAP

From the navigation system control
panel, to select one of the applications:


)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"PHONE"
or "SETUP"
button for
access to the corresponding menu,

)
turn the dial A
to select a function,
an item in a list,

)
press button B
to confi rm the
selection,
or

)
press the "ESC"
button to abandon
the current operation and return to
the previous display.
For more information on these applica-
tions, refer to the "Audio and Telematics"
section.


Controls
"SETUP" menu




)
Press the "SETUP"
button for ac-
cess to its menu. You can choose
from the following functions:


- "Display confi guration",

- "Voice synthesis".



Display confi guration
This menu is used to set the bright-
ness of the screen, the screen colour
scheme and the date and time.

Voice synthesis
This menu is used to adjust the volume
for guidance messages and to select
the type of voice (male or female).
For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.


Displays in the screen

It displays the following information au-
tomatically and directly:


- time,

- date,

- altitude,

- ambient temperature (the value dis-
played fl ashes if there is a risk of
ice),

- parking sensor information,

- audio functions,

- directory and telephone information,


- satellite navigation system information.

3
COMFORT
64










RECOMMENDATIONS FOR VENTILATION AND AIR
CONDITIONING
In order for these systems to be fully effective, follow the operation and
maintenance guidelines below:


)
To obtain an even air distribution, take care not to obstruct the exterior air
intake grilles located at the base of the windscreen, the nozzles, the vents
and the air outlets, as well as the air extractor located in the boot.

)
Do not cover the sunshine sensor, located on the dashboard; this is
used for regulation of the digital air conditioning system.

)
Operate the air conditioning system for at least 5 to 10 minutes, once or
twice a month to keep it in perfect working order.

)
Ensure that the passenger compartment fi lter is in good condition and
have the fi lter elements replaced regularly (refer to the "Checks" sec-
tion).
We recommend the use of a combined passenger compartment fi lter.
Thanks to its special active additive, it contributes to the purifi cation of
the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).

)
To ensure correct operation of the air conditioning system, you are
also advised to have it checked regularly as recommended in the
Maintenance and Warranty Guide.

)
If the system does not produce cold air, switch it off and contact a
CITROËN dealer or a qualifi ed workshop.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning increases the available engine power and
so improves the towing ability.
If after an extended stop in sun-
shine, the interior temperature is
very high, fi rst ventilate the pas-
senger compartment for a few
moments.
Put the air fl ow control at a set-
ting high enough to quickly
change the air in the passenger
compartment.
The air conditioning system
does not contain chlorine and
does not present any danger to
the ozone layer.

The condensation created by
the air conditioning results in a
discharge of water under the ve-
hicle which is perfectly normal.



Stop & Start
The heating and air conditioning systems only work when the engine is run-
ning. To maintain a comfortable temperature in the passenger compartment,
you can temporarily deactivate the Stop & Start system (see "Driving").

3
COMFORT
79







Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle,
this system automatically and progres-
sively changes between the day and
night uses.

In order to ensure optimum vis-
ibility during your manoeuvres,
the mirror lightens automatically
when reverse gear is engaged.









STEERING WHEEL ADJUSTMENT




)
When stationary
, pull the control
lever to release the adjustment
mechanism.

)
Adjust the height and reach to suit
your driving position.

)
Push the control lever to lock the
adjustment mechanism.

As a safety precaution, these opera-
tions should only be carried out while
the vehicle is stationary.






Rear view mirror

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this
reduces the nuisance to the driver
caused by the headlamps from follow-
ing vehicles, low sun...


Manual day/night model

Adjustment


)
Adjust the mirror so that the glass is
directed correctly in the "day" position.


Day/night position


)
Pull the lever to change to the "night"
anti-dazzle position.

)
Push the lever to change to the
normal "day" position.


As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".

5
VISIBILITY
103









Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.

Activation


)
Turn ring A
to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the screen.


Deactivation


)
Turn ring A
to a position other than
"AUTO"
. Deactivation is accompa-
nied by a message in the screen.

Coupling with the automatic "Guide-
me-home" lighting
Association with the automatic illumi-
nation of headlamps provides "guide-
me-home" lighting with the following
additional options:


- selection of the lighting duration to
15, 30 or 60 seconds in the settings
in the vehicle confi guration menu
(except in the case of the mono-
chrome screen A, for which the
duration is set: 60 seconds),

- automatic activation of "guide-me-
home" lighting when automatic illumi-
nation of headlamps is in operation.


In the event of a fault with the
sunshine sensor, the lighting
come on, this warning lamp is
displayed on the instrument panel and/or a
message appears in the screen, accompa-
nied by an audible signal.
Contact a CITROËN or a qualifi ed work-
shop workshop.

Operating fault
In fog or snow, the sunshine sen-
sor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.

5
VISIBILITY
104

Switching off

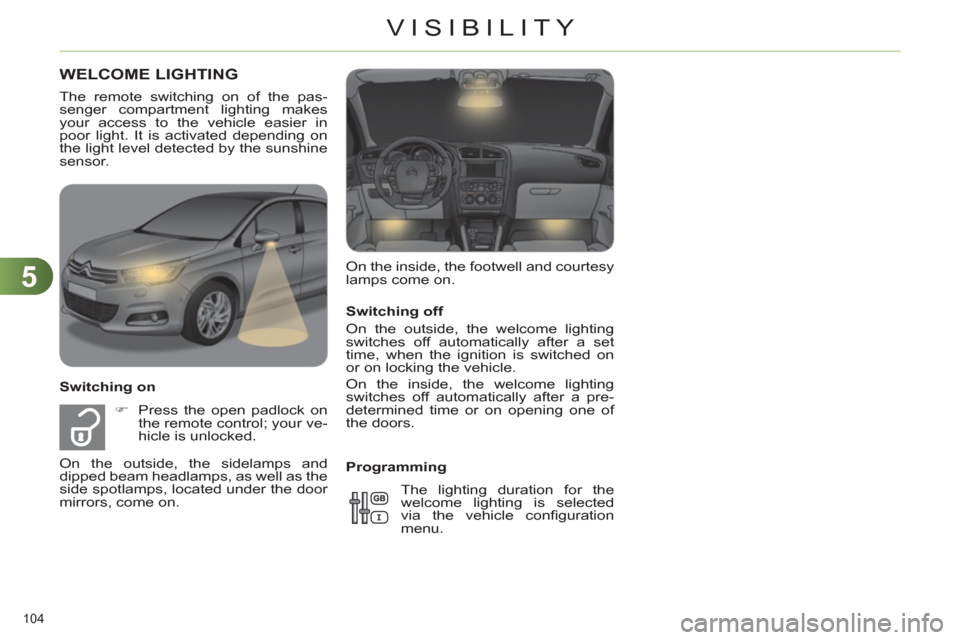

On the outside, the welcome lighting
switches off automatically after a set
time, when the ignition is switched on
or on locking the vehicle.
On the inside, the welcome lighting
switches off automatically after a pre-
determined time or on opening one of
the doors.

Programming
The lighting duration for the
welcome lighting is selected
via the vehicle confi guration
menu.
On the inside, the footwell and courtesy
lamps come on.












WELCOME LIGHTING


Switching on


)
Press the open padlock on
the remote control; your ve-
hicle is unlocked.
The remote switching on of the pas-
senger compartment lighting makes
your access to the vehicle easier in
poor light. It is activated depending on
the light level detected by the sunshine
sensor.
On the outside, the sidelamps and
dipped beam headlamps, as well as the
side spotlamps, located under the door
mirrors, come on.

5
VISIBILITY
109











Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automat-
ically, without any action on the part of
the driver, if rain is detected (sensor be-
hind the rear view mirror), adapting their
speed to the intensity of the rainfall.
Briefl y push stalk A
down-
wards.
The instruction is confi rmed by
a wiping cycle, accompanied
by illumination of this warning lamp in
the instrument panel and an activation
message.
Switching on

Switching off
Operating fault
If an automatic rain sensitive wiper mal-
function occurs, the wipers will operate
in intermittent mode.
Contact a CITROËN dealer or a quali-
fi ed workshop.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic rain
sensitive wipers when using an
automatic car wash.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.

The automatic rain sensitive
windscreen wipers must be re-
activated if the ignition has been
off for more than one minute.
Briefl y push stalk A
downwards
again.
The instruction is confi rmed by
this warning lamp going off in
the instrument panel and/or the display
of a deactivation message.










Windscreen and headlamp
wash
On vehicle fi tted with headlamp wash-
ers, the low level of this fl uid is indicated
by gauge in the reservoir fi ller neck un-
der the bonnet.
Checking and topping up this fl uid can
only be done when stationary with the
engine off.
The driver should check the level of this
fl uid regularly, particularly during winter.
Refer to "Checks - § Screenwash/head-
lamp wash level" for the procedure on
checking the level.


Low screenwash/headlamp wash
level

)
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.
