FAMILIARISATION

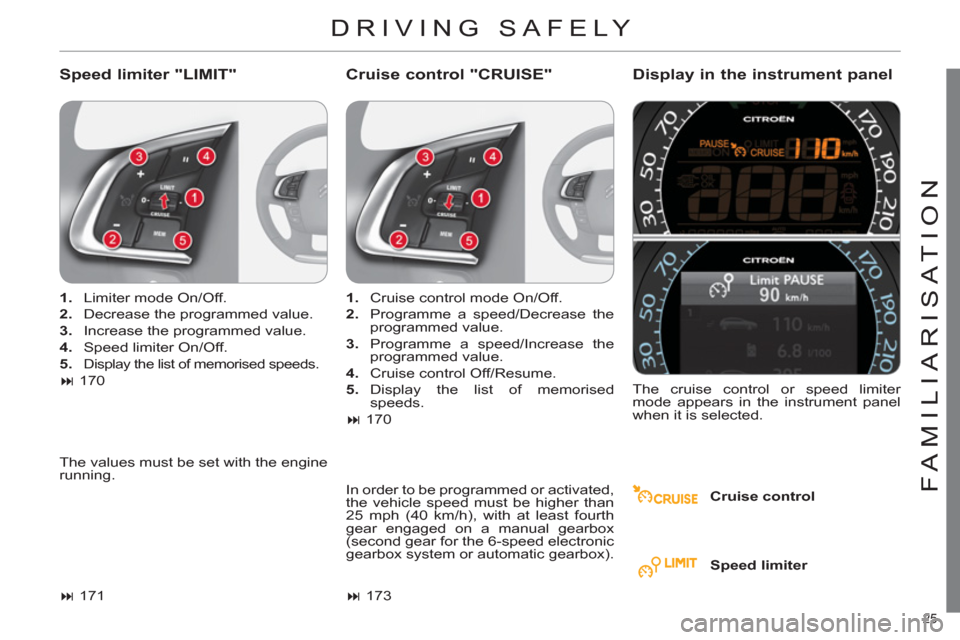

DRIVING SAFELY


Speed limiter "LIMIT"
Cruise control "CRUISE"
Display in the instrument panel


Cruise control

1.
Limiter mode On/Off.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Speed limiter On/Off.

5.

Display the list of memorised speeds.



170




171


1.
Cruise control mode On/Off.

2.
Programme a speed/Decrease the
programmed value.

3.
Programme a speed/Increase the
programmed value.

4.
Cruise control Off/Resume.

5.
Display the list of memorised
speeds.


170




173
The cruise control or speed limiter
mode appears in the instrument panel
when it is selected.
The values must be set with the engine
running.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on a manual gearbox
(second gear for the 6-speed electronic
gearbox system or automatic gearbox).

Speed limiter

26
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your
gearbox

With a manual gearbox, move off gen-
tly, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change up;
it is displayed in the instrument panel,
follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.



Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traf-
fi c noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents
open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sun roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrost-
ing controls, if not automatic.
Switch off the heated seat as soon as
possible.













































ECO-DRIVING

27

Switch off the headlamps and front
foglamps when the level of light does
not require their use.

Avoid running the engine before mov-
ing off, particularly in winter; your ve-
hicle will warm up much faster while
driving.

As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, mu-
sic, video game...), you will contribute
towards limiting the consumption of
electrical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.



Limit the causes of excess
consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and ob-
serve the schedule of operations rec-
ommended by the manufacturer.



When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.

At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

1
MONITORING
28

















TWO-TONE INSTRUMENT PANEL WITHOUT AUDIO SYSTEM

Dials and screens



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear shift indicator with manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.

3.
Cruise control or speed limiter setting.

4.
Digital speedometer (mph or km/h).

5.
Engine oil level indicator.
6.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

7.
Trip mileage recorder (miles or km).

8.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).

9.
Time.



Control buttons



A.
Lighting dimmer (available in night
mode).

B.
Reminder of servicing information
Reset service indicator or trip mile-
age recorder.

A
and B.
Setting the time and selecting
units.

1
MONITORING
29












TWO-TONE INSTRUMENT PANEL WITH AUDIO SYSTEM

Dials and screens



A.
Lighting dimmer (available in night
mode).

B.

Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.

7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

8.
Trip mileage recorder (miles or km).

9.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).

10.
Range (miles or km).



Control buttons



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear shift indicator for manual gear-
box or gear lever position and gear
for the electronic gearbox system or
automatic gearbox.

3.

Analogue speedometer (mph or km/h).


4.
Cruise control or speed limiter setting.

5.
Digital speedometer (mph or km/h).

6.
Engine oil level indicator.

1
MONITORING
30












CUSTOMISABLE COLOUR INSTRUMENT PANEL WITH AUDIO SYSTEM



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear shift indicator with manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.

3.

Analogue speedometer (mph or km/h).


4.
Cruise control or speed limiter setting.

5.
Digital speedometer (mph or km/h).

A.
Dial COLOUR: customisation of the
background colour of the dials.

B.
Screen COLOUR: customisation of
the background colour of the screens.

C.
Lighting dimmer (available in night
mode).

D.
Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.



Dials and screens


6.
Engine oil level indicator.

7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

8.
Trip mileage recorder (miles or km).

9.
Fuel gauge and associated low fuel
level warning lamp.

10.
Range (miles or km).



Control buttons

1
MONITORING
32


1.
Cruise control or speed limiter set-
tings.

2.
Engine oil level indicator.
Reminder of servicing information.
These functions are displayed suc-
cessively on switching on the igni-
tion, after the welcome sequence
and before display of the available
active functions.
Alert or information messages may ap-
pear temporarily.

Central screen associated with
the satellite navigation system




Rev counter

Approaching the maximum engine speed,
the bars are displayed in red and fl ash, to
indicate to you the need to change up a
gear. Rotation of the thumb wheel, located on
the left of the steering wheel, allows the
permanent display to be selected from
the available active functions (trip com-
puter, navigation-guidance...).

1
MONITORING
33









Warning and indicator lamps

Visual indicators which inform the driver of the occurrence of a malfunction (warn-
ing lamp) or of the operation of a system (operation or deactivation indicator
lamp).

When the ignition is switched on
Certain warning lamps come on for a few seconds when the ignition is switched on.
When the engine is started, these warning lamps should go off.
If they remain on, before moving off, refer to the information on the warning lamp in
question.

Associated warnings
The illumination, fi xed or fl ashing, of certain warning lamps may be accompanied
by an audible signal and a message in the multifunction screen or in the instru-
ment panel central screen associated with the satellite navigation system.

Warning lamps

When the engine is running or the vehicle is being driven, the illumination of one of the follow-
ing warning lamps indicates a malfunction which requires action on the part of the driver.
The warning comes on in the instrument panel or appears in the instrument panel central
screen associated with the satellite navigation system.
If your vehicle has a screen, a
warning lamp coming on is al-
ways accompanied by the dis-
play of an additional message,
to assist you in identifying the
problem.
If you encounter any problems,
do not hesitate to contact a
CITROËN dealer or a qualifi ed
workshop.



Warning lamp



is on



Cause



Action/Observations








STOP


fi xed, alone
or associated
with another
warning lamp,
accompanied by
an audible signal
and a message in
the screen. Illumination of this warning
lamp is associated with
a serious braking system,
power steering, engine
lubrication or cooling system
malfunction or a punctured
tyre. Stop as soon as it is safe to do so as
there is a risk that the engine will cut out
while driving.
Park, switch off the ignition and contact a
CITROËN dealer or a qualifi ed workshop.






Maximum
coolant
temperature


fi xed red. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a
CITROËN dealer or qualifi ed workshop.
