2012 Citroen C3 PICASSO RHD cruise control

3
CONTENTS
Direction indicators 99Hazard warning lamps 99Horn 99Emergency or assistance call 100Braking assistance systems 100Trajectory control systems 101Front seat belts 102Airbags 106
8 - SAFETY 99 Î 109
Parking brake 1106-speed manual gearbox 110Gear effi ciency indicator 1116-speed electronic gearbox system 112Hill start assist 115Stop & Start 116Speed limiter 119Cruise control 121Rear parking sensors 123
9 - DRIVING 110 Î 124
Bonnet 126Running out of fuel (Diesel) 126Petrol engines 128Diesel engines 129Checking levels 130Checks 131
10 - CHECKS125 Î132
Temporary puncture repair kit 133Changing a wheel 138Changing a bulb 142Changing a fuse 148Battery 155Energy economy mode 157Changing a wiper blade 157Towing the vehicle 158Towing a trailer 160Fitting roof bars 161Accessories 162
11 - PRACTICAL
INFORMATION 133 Î163
Petrol engines 164Petrol weights 165LPG engines 166LPG weights 167Diesel engines 168Diesel weights 169Dimensions 170Identifi cation markings 171
12 - TECHNICAL DATA164AÎ171
AUDIOandTELEMATICS172Î 228
ALPHABETICAL INDEX 229 Î 232
Emergency or assistance 173MyWay 175Audio system 207

7
FAMILIARI
S
AT I
ON

Dual-zone digital air conditioning

This system allows you to set a different
level of comfort for the driver and front pas-
senger. It then controls this level automati-
cally relative to the ambient conditions.



49



Cruise control/speed limiter
These two functions control the speed
of the vehicle in relation to the value
that you have programmed.



119/121


Scented air freshener

This air freshener diffuser diffuses the fra-
grance that you have selected throughout
the passenger compartment by means of
its location in the ventilation system.



51



Audio and communication systems

These systems benefi t from the latest tech-
nology: MP3 compatible audio system,
MyWay audio and navigation system, auxil-
iary sockets, emergency or assistance call.



173

9
FAMILIARI
S
AT I
ON


1.
Steering wheel adjustment control.

2.
Cruise control/speed limiter
switches.

3.
Lighting and direction indicator
control stalk.

4.
Central adjustable air vents.

5.
Storage tray.
Scented air freshener.

6.
Sunshine sensor.

7.
Passenger’s airbag.

8.
Side adjustable air vent.

9.
Glove box.
Fusebox.

10.
Bonnet release.

11 .
Dynamic stability control
(ESP/ASR) switch.
Parking sensors switch.
Central locking switch.
Hazard warning lamps switch.
Electric child lock switch.
Stop & Start switch.

12.
Heating/air conditioning controls.

13.
Audio system.

14.
Emergency or assistance call.

15.
12 V socket (100 W max).

16.
USB port/auxiliary socket.

17.
Cup holder.

18.
Parking brake.



INSTRUMENTS AND CONTROLS

19
FAMILIARI
S
AT I
ON

Speed limiter "LIMIT"
Display in the instrument panel


1.
Limiter mode Selection/Off.

2.
Decreasing the programmed value.

3.
Increasing the programmed value.

4.
Speed limiter On/Off. The cruise control or speed limiter mode
appears in the instrument panel when it
is selected.

1.
Cruise control mode Selection/Off.

2.
Programming a speed/Decreasing
the programmed value.

3.
Programming a speed/Increasing
the programmed value.

4.
Cruise control Off/Resume.
Cruise control "CRUISE"



121





11 9

In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox. The values must be set with the engine
running.
Cruise control


Speed limiter



DRIVING SAFELY

20

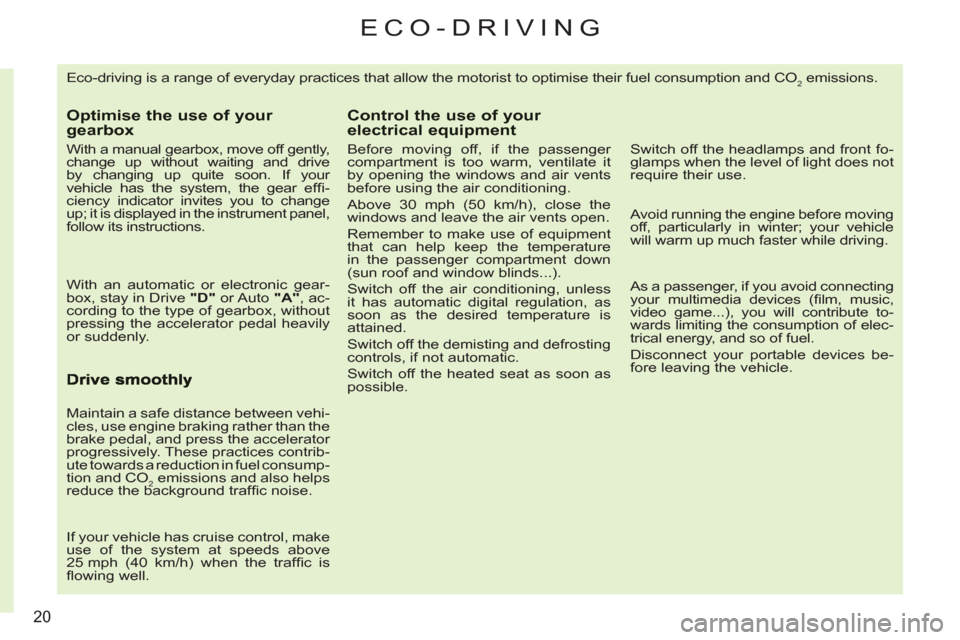

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox


With a manual gearbox, move off gently,
change up without waiting and drive
by changing up quite soon. If your
vehicle has the system, the gear effi -
ciency indicator invites you to change
up; it is displayed in the instrument panel,
follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.



Maintain a safe distance between vehi-
cles, use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contrib-
ute towards a reduction in fuel consump-
tion and CO
2 emissions and also helps
reduce the background traffi c noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.

Control the use of your electrical equipment


Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sun roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is
attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front fo-
glamps when the level of light does not
require their use.

Avoid running the engine before moving
off, particularly in winter; your vehicle
will warm up much faster while driving.

As a passenger, if you avoid connecting
your multimedia devices (fi lm, music,
video game...), you will contribute to-
wards limiting the consumption of elec-
trical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

1
22
MONITORING
PETROL - DIESEL INSTRUMENT PANEL
Panel grouping together the digital indicator, the multifunction screen and the
vehicle operation indicator lamps.


1.
Rev counter.


Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Rev counter zone indicating that you
must change up a gear.

3.
Speed limiter


or
Cruise control.


(mph or km/h)

4.
Electric child lock indicator lamp.


Indicates, for a few seconds, the
activation of the electric child lock
(deactivation of the rear windows
and doors).

Translucent digital instrument panel

This screen groups together the warning
and information messages.


Multifunction screen

Indicator lamps displa
y zone

This zone groups together the vehicle
operation indicator lamps.


Display zero reset button

This permits resetting of the function
selected to zero (trip distance recorder
or service indicator).


Instrument panel lighting button

This adjusts the brightness of the lighting
of the instruments and controls.
For more information, refer to
the paragraph relating to the
button or function and its associ-
ated display.
5.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

6.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

7.
Trip distance recorder.


(miles or km)

8.
Service indicator.


(miles or km) then,
Distance recorder.


(miles or km)

9.
Engine oil level indicator.

6
83
FITTINGS

To avoid any risk of jamming of
the pedals:


- only use mats which are
suited to the fi xings already
present in the vehicle; these
fi xings must be used,

- never fi t one mat on top of
another.
The use of mats not approved
by CITROËN may interfere with
access to the pedals and hinder
the operation of the cruise control/
speed limiter.

MATS

Removable carpet protection.


Refitting

To refi t the mat on the driver's side:


)
position the mat correctly,

)
refi t the fi xings by pressing,

)
check that the mat is secured cor-
rectly.
Fitting

When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal

To remove the mat on the driver's side:


)

move the seat as far back as possible,


)
unclip the fi xings,

)
remove the mat.

TICKET HOLDER


It is located at the top of the dashboard
central panel.
It can be used to hold toll or parking
tickets.

9
121
DRIVING
CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on

manually: it requires a minimum vehicle
speed of 25 mph (40 km/h) and the en-
gaging of at least 4th gear.
The controls of this system are grouped
together on control stalk A
. The programmed information is grouped
together in the instrument panel screen.
Steering mounted controls
Displays in the instrument panel

The cruise control cannot, in any
circumstances, replace the need
to respect speed limits, nor can
it replace the need for vigilance
and responsibility on the part of
the driver. The cruise control is switched off
manu-
ally or by pressing the brake or clutch
pedal or on triggering of the ESP system
for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.

1.
Cruise control mode selection dial

2.
Speed programming/value decrease
button

3.
Speed programming/value increase
button

4.
Cruise control off/resume button
5.
Cruise control off/resume indication

6.
Cruise control mode selection indi-
cation

7.
Programmed speed value
