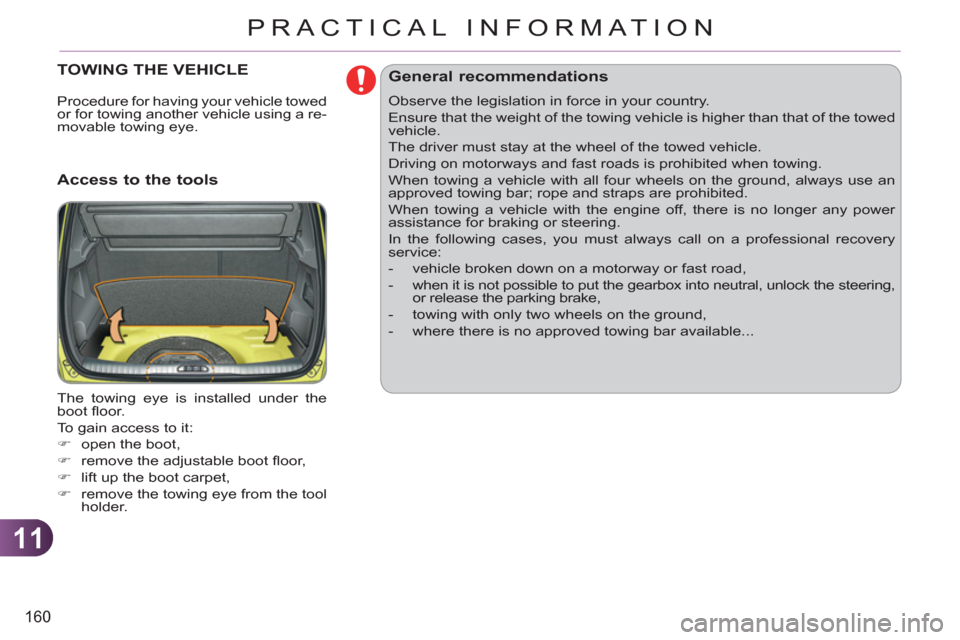

Page 162 of 244
11
160
PRACTICAL INFORMATION
TOWING THE VEHICLE
Access to the tools
The towing eye is installed under the
boot fl oor.
To gain access to it:
)
open the boot,
)
remove the adjustable boot fl oor,
)
lift up the boot carpet,
)
remove the towing eye from the tool
holder.
General recommendations
Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed
vehicle.
The driver must stay at the wheel of the towed vehicle.
Driving on motorways and fast roads is prohibited when towing.
When towing a vehicle with all four wheels on the ground, always use an
approved towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always call on a professional recovery
service:
- vehicle broken down on a motorway or fast road,
- when it is not possible to put the gearbox into neutral, unlock the steering,
or release the parking brake,
- towing with only two wheels on the ground,
- where there is no approved towing bar available...
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Page 163 of 244
11
161
PRACTICAL INFORMATION
Towing your vehicle
)
On the front bumper, unclip the cover
by pressing at the top left and pulling
at the bottom right of the cover.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps
on the towed vehicle.
)
Place the gear lever in neutral.
)
On the rear bumper, unclip the cover
by pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
Failure to observe this special
condition could result in damage
to certain braking components
and the absence of braking
assistance the next time the
engine is started.
Page 164 of 244
11
162
PRACTICAL INFORMATION
TOWING A TRAILER, ...
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Driving advice
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the coolant
temperature.
Side wind
)
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
)
To lower the engine speed, reduce
your speed.
Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.
Tyres
)
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
)
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will
be deactivated automatically if
a genuine CITROËN towbar is
used.
)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suitable for the attachment of a
trailer with additional lighting and sig-
nalling.
Distribution of loads
)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towed loads
which apply to your vehicle. Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
We recommend the use of gen-
uine CITROËN towbars and
their harnesses that have been
tested and approved from the
design stage of your vehicle,
and that the fi tting of the tow-
bar is entrusted to a CITROËN
dealer or a qualifi ed workshop.
If the towbar is not fi tted by a
CITROËN dealer, it is impera-
tive that it is fi tted in accordance
with the vehicle manufacturer's
instructions.
Page 166 of 244
11
164
PRACTICAL INFORMATION
"Comfort":
front and rear parking sensors, insu-
lated module, reading lamp, sun blinds,
head restraint-mounted coat hanger,
centre armrest, air defl ector, scented air
freshener cartridges...
"Protection":
mats * , seat covers, mudfl aps, bumper
protectors...
"Transport solutions":
boot liner, boot carpet, towbar, towbar wir-
ing harness, transverse and longitudinal
roof bars, bicycle carrier, ski carrier, roof
box, boot spacers, boot net, business/
commercial vehicle conversion kit...
"Safety and security":
anti-theft alarm, warning triangle, high
visibility vest, breathalyzer, fi rst aid kit,
snow chains, non-skid covers, security
wheel bolts, vehicle tracking system,
child seats, fi re extinguisher, caravan
mirror, foglamp kit...
"Style":
allow wheels, chromed mirror shells,
chromed grille embellisher, leather steer-
ing wheel, gear lever knob, aluminium
footrest...
ACCESSORIES
A wide range of accessories and genu-
ine parts is available from the CITROËN
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from CITROËN's recommenda-
tion and warranty.
* To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
and secured correctly,
- never fi t one mat on top of another.
