2012 Citroen C3 PICASSO bluetooth

2
43
MULTIFUNCTION SCREENS

Display confi guration
Once this menu has been selected, you
can gain access to the following settings:


- brightness-video setting,

- date and time setting,

- selection of the units. Example: setting of the duration of the
guide-me-home lighting


)
Press the "
" or "
" buttons, then
the "OK"
button to select the menu
required.

)
Press the "
" or "
" buttons,
then the "OK"
button to select the
"Guide-me-home headlamps" line.

)

Press the "
" or "
" buttons to set the
value required (15, 30 or 60 seconds),
then press the "OK"
button to confi rm.


)
Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"

box and confi rm or press the "ESC"

button to cancel.

For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.

Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Portugues, Türkçe, Portugues-Brasil). Once the fuel consumption unit
has been changed to mpg, the
information relating to speed
and distance also changes to
miles.


Telephone menu

With the Audio system on and this
menu selected, you can confi gure your
Bluetooth hands-free system (pairing),
view the various telephone directories
(calls log, services...) and manage your
calls (call, hang up, double call, secret
mode...).
For more information on the "Telephone"
application, refer to the Audio system
section in "Audio et Telematics".

11
165
PRACTICAL INFORMATION

"Multimedia":

semi-integral navigation systems, Bluetooth ®
hands free kit, audio systems, speakers,
DVD player, USB box, portable navigation
systems, mapping update CD, Hi-Fi module,
speed camera warning, Wi-Fi on board...


Depending on the legislation in
force in the country, it may be
compulsory to have a high visi-
bility safety vest, warning triangle
and spare bulbs and fuses avail-
able in the vehicle. The fi tting of electrical equipment
or accessories which are not rec-
ommended by CITROËN may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this precaution. You
are advised to contact a CITROËN
representative to be shown the
range of recommended equipment
and accessories.



Installation of radio
communication transmitters
Before installing any after-market
radio communication transmitter,
you can contact a CITROËN deal-
er for the specifi cation of transmit-
ters which can be fi tted (frequency,
maximum power, aerial posi-
tion, specifi c installation require-
ments), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).




By visiting a CITROËN dealer, you
can also obtain cleaning and main-
tenance products (interior and
exterior), including the ecological
products in the "TECHNATURE"
range, products for topping up
(screenwash fl uid...), touch-up
pens and paint aerosols the exact
colour of your vehicle, recharges
(cartridge for the temporary punc-
ture repair kit...), ....

177
The MyWay is protected in such a way that it will onlyoperate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for confi guration of py
the system.
Certain functions described in this handbook will
become available during the year.
MyWay

For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the MyWay switches off
following the activation of the Energy Economy mode.


MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE

SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD


01 First steps
CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Bluetooth telephone

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

Frequently asked questions p. 178
179
180
183
191
193
194
197
200
201
205

197
08
1
2
3
4
BLUETOOTH TELEPHONE
*
The services available depend on the network, the SIM card and thecompatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the servicesavailable to you.

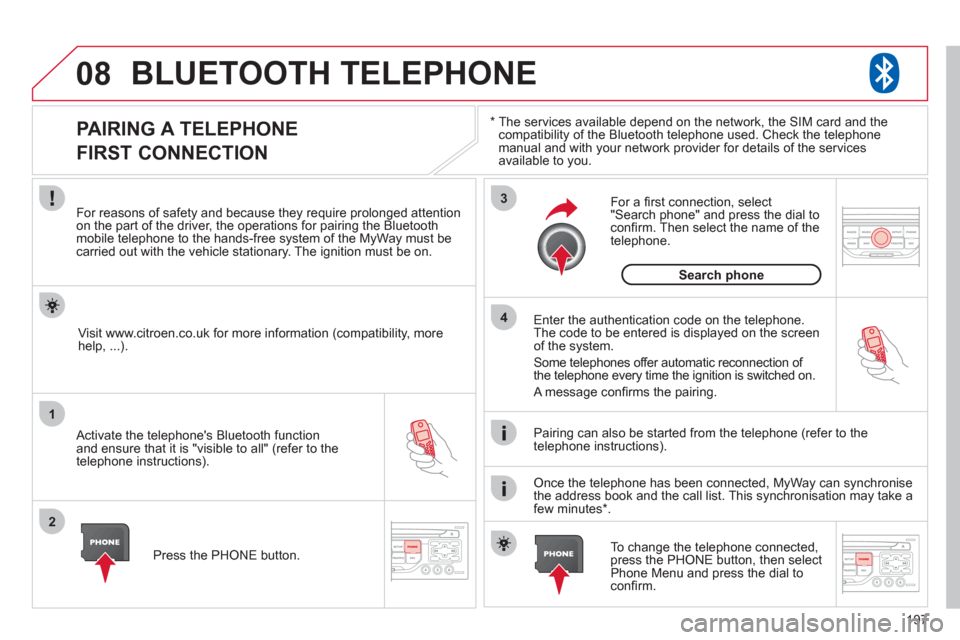

PAIRING A TELEPHONE
FIRST CONNECTION



For reasons of safety and because they require prolonged attentionon the part of the driver, the operations for pairing the Bluetooth mobile telephone to the hands-free system of the MyWay must be carried out with the vehicle stationary. The ignition must be on.

Activate the telephone's Bluetooth
function
and ensure that it is "visible to all" (refer to the
telephone instructions). Enter the authentication code on the tele
phone.
The code to be entered is displayed on the screen
of the system.
Some telephones offer automatic reconnection o
f
the telephone every time the ignition is switched on.
A messa
ge confi rms the pairing.

To change the telephone connected, press the PHONE button, then select Phone Menu and press the dial toconfi rm.
Once the telephone has been connected, MyWay can synchronise
the address book and the call list. This synchronisation may take a few minutes * . Pairin
g can also be started from the telephone (refer to the
telephone instructions). Visit www.citroen.co.uk
for more information (compatibility, more
help, ...).
Press the PH
ONE button.
For a
fi rst connection, select"Search phone" and press the dial to confi rm. Then select the name of thetelephone.
Search
phone

198
08
1
2
2
1
*

The services available depend on the network, the SIM card and the compatibility of the Bluetooth telephone used. Check the telephone manual and with your network provider for details of the services
available to you.
BLUETOOTH TELEPHONE
















CONNECTING A TELEPHONE

For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the MyWay must becarried out with the vehicle stationary. The ignition must be on.

Activate the tele
phone's Bluetooth function and ensure that it is "visible to all" (refer to the
telephone instructions).
The last telephone connected is reconnected automatically.
A messa
ge confi rms the connection. When a telephone is alread
yconnected, to change it press the
PHONE button, then select PhoneMenu and press the dial to confi rm.
Once the telephone has been connected, MyWay can synchronise
the address book and the call list. This synchronisation may take afew minutes * .

The list o
f telephones connected previously (4 maximum) appearson the multifunction screen. Select the telephone required for a
new connection. Visit www.citroen.co.uk
for more information (compatibility, more
help, ...).

Press the PH
ONE button.Select "Connect
phone". Select the
telephone and press to confi rm.
Connect
phone

199
08
1
3 2
2 1Select the "Yes" tab to accept or "No"
to refuse and confi rm by pressing
the dial.

RECEIVING A CALL
MAKING A CALL

An incoming call is announced by a ring and a superimposed
display on the multifunction screen.
Yes
To han
g up, press the PHONE button
or press the dial and select "End call"then confi rm by pressing the dial.
End callPress the PH
ONE button.
Select "Dial number"
, then dial the
telephone number using the virtualkeypad.
Select the Phone Menu function and
press the dial to confi rm.
The list of the last 2
0 calls made and received in the vehicle
appears under Phone Menu. You can select a number and press
the dial to make the call.
No


It is also possible to select a number from the address book. Youcan select "Dial from address book". The MyWay can record up to
1 000 entries (telephone numbers).
Press the end o
f the steering mounted control for more than twoseconds to gain access to the address book.
Phone Menu
Dial number

It is possible to make a call directl
y from the telephone; park the
vehicle as a safety measure.
BLUETOOTH TELEPHONE


Press the end of the steering mounted control to
accept the call or end the call in progress.To delete a number, press the PHONE button then press and hold
on a call number to display a list of actions including:Delete entryDelete list

208
QUESTIONANSWER SOLUTION
There is a long waiting
time after inserting a CD. When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.

I cannot connect myBluetooth telephone.The telephone's Bluetooth function may be deactivated or the equipment
may not be visible.
- Check that your telephone's Bluetoothfunction is activated.

-
Check that your telephone is visible.

A telephone connected by Bluetooth is inaudible.The volume level depends on both the system and the telephone. Increase the MyWay volume setting, possibly to maximum, and increase the telephone volume level if necessary.

209
Audio system
Your Audio system is coded in such a way that it willonly operate in your vehicle. If it is to be installed inanother vehicle, contact your CITROËN dealer for yp y
confi guration of the system.

For safet
y reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the audio equipment mayswitch off after a few minutes.

AUDIO SYSTEM/BLUETOOTH

01 First steps

02 Steering mounted controls

03 Main menu

04 Audio

05 USB Box

06 Bluetooth functions

07 Configuration

08 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p. 210
211
212
213
216
219
222
224
229
CONTENTS
