Page 73 of 252
4
71
ACCESS
Manual centralised control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking
)
Press button A
to lock the vehicle.
The red indicator lamp on the button
comes on.
If one of the doors is open, cen-
tral locking from the inside does
not take place.
Unlocking
)
Press button A
again to unlock the
vehicle.
The red indicator lamp on the button
switches off. If the vehicle is locked from the
outside, the red indicator lamp
fl ashes and button A
is inactive.
)
In this case, use the remote
control or the key to unlock
the vehicle.
Automatic centralised control
System which provides full automatic
locking or unlocking of the doors and
the boot while driving.
You can activate or deactivate this
function.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors and the boot lock
automatically.
If one of the doors is open, the
automatic central locking does
not take place.
If the boot is open, the automatic
central locking of the doors is
active.
Unlocking
)
Above 6 mph (10 km/h), press but-
ton A
to unlock the doors and the
boot temporarily.
Activation
)
Press button A
for more than
two seconds.
A confi rmation message appears on the
multifunction screen, accompanied by
an audible signal.
Deactivation
)
Press button A
again for more than
two seconds.
A confi rmation message appears on the
multifunction screen, accompanied by
an audible signal.
Page 74 of 252
4
72
ACCESS
Emergency control
System allowing the doors to be locked
and unlocked manually in the event of a
fault with the central locking system or
a battery failure.
Locking the driver's door
)
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
)
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
)
Remove the black cap, located on
the edge of the door, using the key.
)
Insert the key in the socket, then
turn it to the stop.
)
Remove the key and refi t the cap.
Unlocking the front and rear
passenger doors
)
Pull the interior door opening control.
In the event of failure of the cen-
tral locking system, the battery
must be disconnected to lock
the boot and so ensure that the
vehicle is locked completely. Check that the rear doors child
lock is not on.
Page 75 of 252
4
73
ACCESS
BOOT
Openin
g
)
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
Closing
)
Lower the tailgate using the interior
grab handle.
-
when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen for
a few seconds,
- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
)
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
)
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
If the tailgate is not closed correctly:
Page 82 of 252
5
80
VISIBILITY
To avoid causing a nuisance to other
road users, the height of the headlam-
ps should be adjusted in relation to the
load in the vehicle.
0
.
Driver only or driver + front passenger.
-
. Intermediate setting
1.
5 people.
-
. 5 people + load in the boot.
2.
Driver only + maximum authorised
load in the boot.
This position is suffi cient to avoid causing
dazzle.
Higher settings may limit the spread of
light from the headlamps.
The initial setting is position "0"
.
HEADLAMP ADJUSTMENT
Association with the automatic
"Guide-me-home" lighting
Association with the automatic illumination of headlamps provides "guide-me-home"
lighting with the following additional op-
tions:
- selection of the lighting duration to 15,
30 or 60 seconds in the functions that
can be set in the vehicle confi gura-
tion menu (except in the case of the
monochrome screen A, for which the
duration is set: 60 seconds),
- automatic activation of "guide-me-
home" lighting when automatic illumi-
nation of headlamps is in operation.
Operating fault In fog or snow, the sunshine sen-
sor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
In the event of a fault with the
sunshine sensor, the lighting
come on, this warning lamp
is displayed in the instrument panel and/
or a message appears in the screen,
accompanied by an audible signal.
Contact a CITROËN dealer or a qualifi ed
workshop.
Page 87 of 252
5
85
VISIBILITY
INTERIOR MOOD LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
Switching on
At night, the illumination of the central
dashboard storage compartment comes
on automatically when the sidelamps
are switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
It can be switched off manually using
the instrument panel lighting rheostat
button.
)
With the lighting on, press several
times on the left hand button of the
instrument panel to progressively
reduce the dashboard lighting level.
)
Press again to reduce the lighting
level to the minimum and switch off
the interior mood lighting.
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LAMP
The lighting time varies according
to the circumstances:
- when the ignition is off, ap-
proximately ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
- when the engine is running,
no limit. On certain versions, three lamps locat-
ed in the support between the roof and
the automatic day/night interior mirror
come on as well.
Page 92 of 252
6
FITTINGS

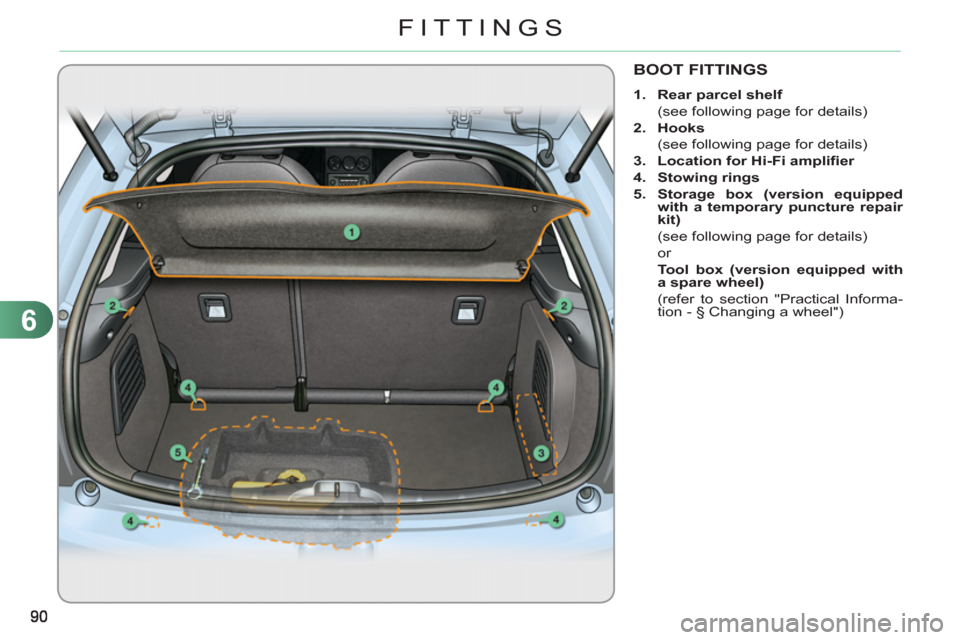

BOOT FITTINGS
1.
Rear parcel shelf
(see following page for details)
2.
Hooks
(see following page for details)
3.
Location for Hi-Fi amplifi er
4.
Stowing rings
5.
Storage box (version equipped
with a temporary puncture repair
kit)
(see following page for details)
or
Tool box (version equipped with
a spare wheel)
(refer to section "Practical Informa-
tion - § Changing a wheel")
Page 93 of 252
6
91
FITTINGS
REAR PARCEL SHELF
To remove the shelf:
)
unhook the two cords,
)
raise the shelf slightly, then unclip it
on each side.
HOOKS
The hooks can be used to hold shop-
ping bags.
STORAGE BOX
)
Raise the boot carpet by pulling the
strap upwards to gain access to the
storage box.
This has areas for storing a temporary
puncture repair kit, a box of spare bulbs,
a fi rst aid kit, two warning triangles, ...
)
refi t the boot fl oor carpet by folding it
slightly in the middle.
Page 138 of 252
11
136
PRACTICAL INFORMATION
The speed limit sticker I
must be
affi xed to the vehicle's steering
wheel to remind you that a wheel
is in temporary use.
Do not exceed a speed of
50 mph (80 km/h) when driving
with a tyre repaired using this
type of kit.

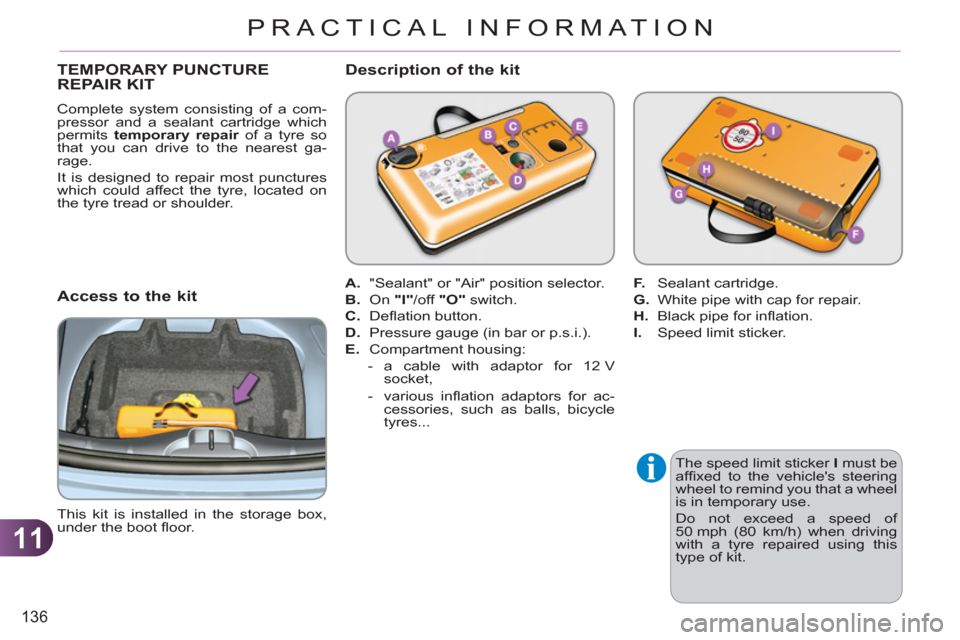

TEMPORARY PUNCTURE REPAIR KIT
Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair
of a tyre so
that you can drive to the nearest ga-
rage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.
This kit is installed in the storage box,
under the boot fl oor.
Description of the kit
A.
"Sealant" or "Air" position selector.
B.
On "I"
/off "O"
switch.
C.
Defl ation button.
D.
Pressure gauge (in bar or p.s.i.).
E.
Compartment housing:
- a cable with adaptor for 12 V
socket,
- various infl ation adaptors for ac-
cessories, such as balls, bicycle
tyres...
F.
Sealant cartridge.
G.
White pipe with cap for repair.
H.
Black pipe for infl ation.
I.
Speed limit sticker.
Access to the kit
