Page 9 of 140
.Familiarisation
7
1. Headlamp adjustment 2.Passenger's airbag deactivation3.Adjustable side air vent 4.Wiper stalk
5.Steering lock and ignition
6. Driver's front airbag
Horn
7.Dashboard fusebox (under the instrument
panel trim, on the right and on the left)8. Rev counter 9.Passenger's door mirror control
10. Steering mounted controls for the electronic gearbox11.
Passenger's electric window control12 .
Gear lever
13.Cup holder
Instruments and controls
Page 10 of 140
Familiarisation
8
1. Driver's door mirror control 2.Instrument panel3.Lighting and direction indicator stalk4.
Steering wheel height adjustment
5. Hazard warning lamps
6.Storage compar tments 7. Diffusion grille 8.Windscreen demisting and defrosting vent
9.
Passenger's front airbag10.Adjustable side air vent 11.
Storage box 12.
Bonnet release 13.Audio system 14 .Ventilation, heating or air conditioning controls15.Auxiliary socket for por table equipment16.
Storage compartments 17.12 V socket (120 W max)18.Parking brake19.
Driver's electric window control
Instruments and controls

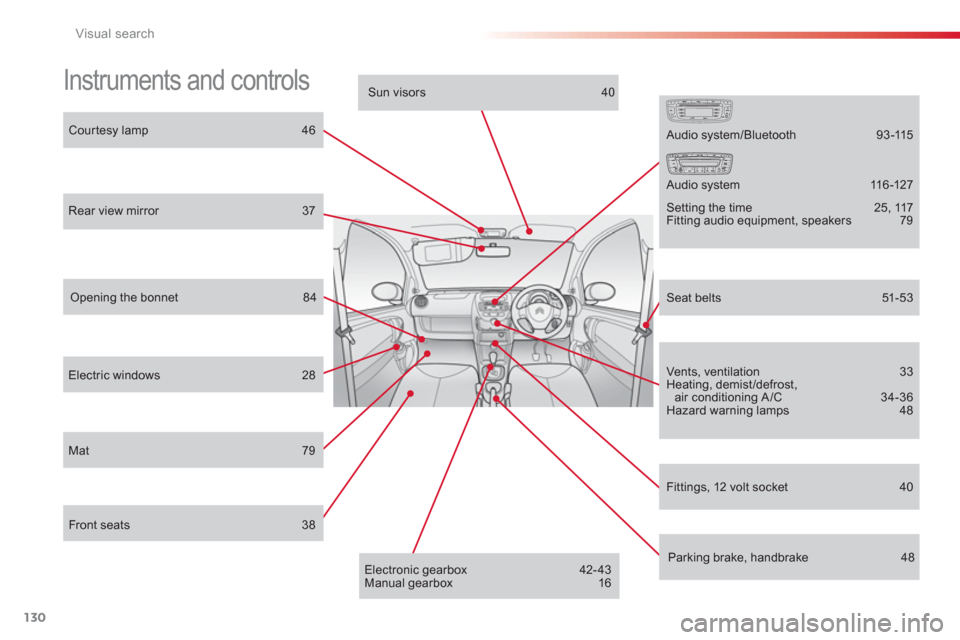

Page 132 of 140
130Visual search
Instruments and controls
Courtesy lamp 46
Rear view mirror 37
Electric windows 28
Front seats 38
Sun visors 40
Parking brake, handbrake 48
Audio system/Bluetooth 93-115
Vents, ventilation 33Heating, demist /defrost,air conditioning A/C 34-36Hazard warning lamps 48
Fittings, 12 volt socket 40
Mat 79
Electronic gearbox 42-43
Manual gearbox 16
Seat belts 51-53
Audio system 11 6-127
Setting the time 25, 117Fitting audio equipment, speakers 79
Opening the bonnet 84
Page 133 of 140
.
131 Visual search
Steering mounted controls
Rev counter 19
Door mirrors 37
Lighting, sidelamps, dipped/main beam headlamps, front foglamps, direction indicators 44-45 LED daytime running lamps 45
Headlamp adjustment 46
Instrument panel 19Warning lamps, indicator lamps 20-22Screen, indicators, total/trip distance recorder 19, 23-24Fuel gauge 23Instrument panel fuses 71-73
Deactivating the passenger's airbag 55
Wipers, screenwash 47
Ignition, star ting,engine immobiliser 4, 16, 42
Steering wheel, height adjustment 37
Horn 48
