2012 Citroen C1 RHD window

34Comfort






















Heating
1. Temperature adjustment
Turn the control from blue (cold) to red(hot) to adjust the temperature to suit your requirements.
2. Air fl ow adjustment
When the ignition is switched on, turn the control to obtain a flow of air which is sufficient
to ensure your comfort.
To maintain a certain level of comfort in thepassenger compar tment, avoid position 0whenever possible.
In position 0, a slight flow of air, due to themovement of the vehicle, can still be felt. Win
dscreen and side windows.


4. Rear screen demisting
With the engine running, press button 4
, the indicator lamp comes on.
The system demists the rear screen.
It is switched off b
y pressing control 4
.


3. Air distribution adjustment
Footwells, diffusion grille and side
vents.
Di
ffusion grille and side vents.

Demisting and defrosting

To quickly demist or defrost the windscreen and side windows:


- set the air distribution to "Windscreen and side windows",

- place the temperature control 1
and the air
fl
ow control 2at maximum,

- close the side vents.
The air distribution can be adjusted byplacing the control in an intermediate
position.
Switch the system off as soon as you consider this necessary as a lower consumption of current reduces fuel consumption.
Windscreen, side windows and
f
ootwells.

Footwells.

36Comfort
Footwells.
4. Air recirculation / Air intake
The recirculation of interior air (control 4to the left) enables you to
isolate the passenger compartment
from exterior odours and smoke.

5. Air distribution adjustment

Windscreen and side windows.

Windscreen, side windows andfootwells.
Footwells, diffusion
grille and side
vents.
Di
ffusion grille and side vents.


6. Rear screen demisting
As soon as possible, move control 4
to the right
to the "Intake of exterior air" position to avoid
the risks of deterioration of the air qualit
y and misting of the windscreen and side windows. The intake of exterior air
(control 4
tothe right) enables you to prevent and eliminate misting of the windscreenand side windows. With the en
gine running, pressbutton 6
, the indicator lamp comes on.
The system demists the rear screen.
It is switched off by pressingbutton 6again.


Demisting and defrosting

To quickly demist or defrost the windscreen and side windows:


- set the air distribution to "Windscreen and side windows",

- place the temperature control 2
and the air
flow control 3at maximum,

- close the side vents,

- place the air intake control 4
in th
e "A ir
intake" position,

- sw
itch on the air conditioning by pressing button 1.
Switch the system off as soon as you consider this necessary as a lower consumption of current reduces fuel consumption.

The air distribution can be adjusted by placing the control in an intermediate position.
In a humid climate, use of the air recirculation may cause misting of thewindows.

7

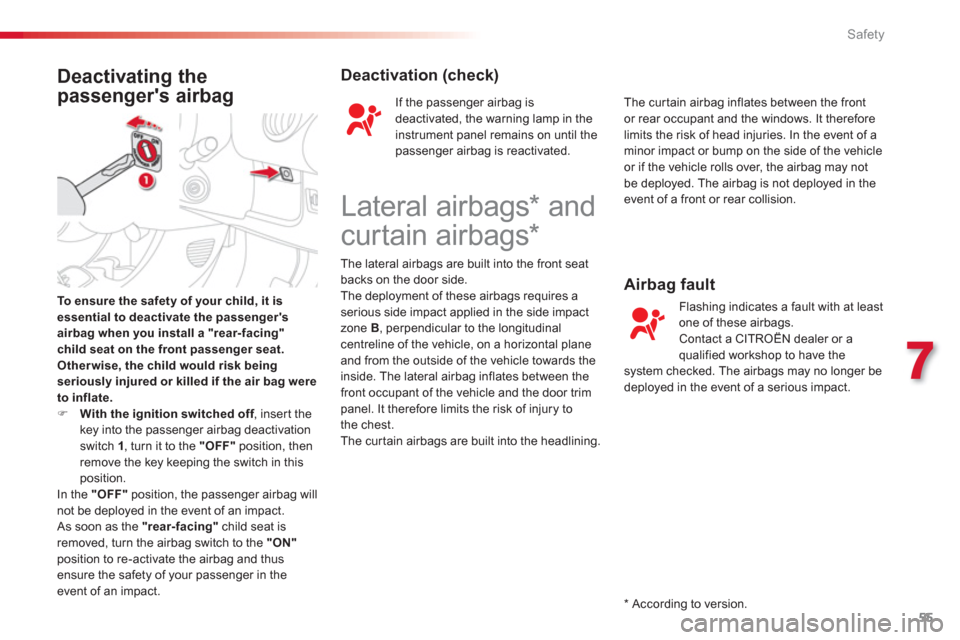

55 Safety
To ensure the safety of your child, it is essential to deactivate the passenger'sairbag when you install a "rear-facing"child seat on the front passenger seat.
Other wise, the child would risk being
seriously injured or killed if the air bag wereto inflate.)With the ignition switched off, inser t thefkey into the passenger airbag deactivation switch 1, turn it to the "OFF"position, then remove the key keeping the switch in this position.
In the "OFF"position, the passenger airbag willnot be deployed in the event of an impact.
As soon as the "rear-facing"
child seat is
removed, turn the airbag switch to the "ON"position to re-activate the airbag and thus ensure the safety of your passenger in the
event of an impact. If the passen
ger airbag is
deactivated, the warning lamp in the
instrument panel remains on until the
passen
ger airbag is reactivated.
Flashin
g indicates a fault with at least
one of these airbags.Contact a CITROËN dealer or aqualified workshop to have thesystem checked. The airbags may no longer be
deployed in the event of a serious impact.
Deactivation (check)

Airba
g fault


*
According to version.












Lateral airbags * and
curtain airbags *

The lateral airbags are built into the front seatbacks on the door side.
The deployment of these airbags requires a
serious side impact applied in the side impact
zone B , perpendicular to the longitudinalcentreline of the vehicle, on a horizontal plane and from the outside of the vehicle towards the inside. The lateral airbag inflates between the front occupant of the vehicle and the door trimpanel. It therefore limits the risk of injury to
the chest.
The cur tain airba
gs are built into the headlining.
The cur tain airba
g inflates between the front or rear occupant and the windows. It therefore
limits the risk of head injuries. In the event of a
minor impact or bump on the side of the vehicle
or if the vehicle rolls over, the airbag may notbe deployed. The airbag is not deployed in the event of a front or rear collision.
Deactivating the
passenger's airbag

8
61 Child safety
Children under the age of 10 must not travelin the "forward facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.Deactivate the passenger airbag * when a "rear facing" child seat is installed on the front seat. Other wise, the child would risk beingseriously injured or killed if the airbag were to inflate.
As a safety precaution, do not leave:


- one or more children alone and unsupervised in a vehicle,

- a child or an animal in a vehicle which is exposed to the sun, with the windowsclosed,

- the keys within reach of children insidethe vehicle.
To protect young children from the rays of the sun, fit side blinds on the rear windows.
Installing a booster seat
The chest par t of the seat belt must bepositioned on the child's shoulder without touching the neck.Ensure that the lap part of the seat belt
passes correctly over the child's thighs.CITROËN recommends the use of a booster seat which has a back, fitted with a seat beltguide at shoulder level.

*
According to country.
Advice on child seats
The incorrect installation of a child seat in a vehicle compromises the child's protection in the event of an accident.Remember to fasten the seat belts or the child seat harness keeping theslackin relation to the child's body to aminimum, even for short journeys.To install a child seat using the vehicle's seat belt, ensure that the belt is welltightened on the child seat and that itholds the child seat firmly against the vehicle's seat. For optimum installation of the "forward facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that thehead restraint does not cause any discomfort. If the head restraint has to be removed,ensure that it is stored or attached
securely to prevent it from being thrownaround the vehicle in the event of sharpbraking.

9
73 Practical information
*
Fuses located behind the instrument panel. To change them, contact a CITROËN dealer or a qualified workshop.
FuseN°Rating(A)Functions
110Brake lamps - ABS - Electronic gearbox
225Central locking/unlocking - Remote control
320Rear screen demisting
47.5Rear lamps - Number plate lamps - Instrument panel - Screen - headlamp adjustment - LED daytime runninglamps - Sidelamps
57.5Diagnostic socket
67.5Electronic gearbox - Rear foglamp - ESP - LED daytime running lamps - Instrument panel - Rev counter
7-Not used
87.5
ABS/ESP - Power steering - Fan assembly
910Reversing lamps - Central locking/unlocking - Electric windows - Rear screen demisting - Speedometer -Air conditioning - Heating - Rev counter - Remote control
1020Front and rear wipers and screenwash
1115
Audio equipment - 12 V socket (120 W max)
127.5
Heated rear screen - ABS - Fan assembly - Front and rear wipers and screenwash - Power steering - Central
locking/unlocking - Air conditioning - Heating - Electric windows - Speedometer - Rev counter - Remote control -Reversing lamp
1315
Airbag - Fuel injection system - Electronic gearbox - Instrument panel - Rev counter - LED daytime running lamps
147.5 Air conditioning - Heating
15 *40
Audio system - 12 V socket - Front and rear wipers - Power steering - ABS/ESP - Cooling fan assembly
16 * 30Electric windows
17 *40
Air conditioning - Heating

9
75 Practical information
FuseN°Rating(A)Functions
15 LED daytime running lamps
220 Front foglamps
310
Left hand front lamp
410
Right hand front lamp
57.5
Electronic gearbox - Fuel injection system
67.5 Electronic gearbox - Fuel injection system


730
LED daytime running lamps - Front foglamps
825
ABS
30
ABS/ESP (with VSC)
930
Star ter motor - Heated rear screen - ABS -Cooling fan assembly - Front and rear wipersand screenwash - Power steering - Central locking/unlocking - Air conditioning - Heating -Electric windows - Speedometer - Revcounter - Remote control - Reversing lamp -
Airbag - Fuel injection system - Electronic gearbox - Instrument panel - LED daytime running lamps
FuseN°Rating(A)Functions
1010
Hazard warning lamps - Instrument panel -Rev counter - Direction indicators
1120
Left hand front lamp - Right hand front lamp
1215 Courtesy lamp - Speedometer - Audiosystem- Instrument panel - Rev counter
1315
Fuel injection system -Cooling fan assembly
1410
Horn
157.5
Replacement fuse
1610
Replacement fuse
1715
Replacement fuse
1850
Electronic gearbox
1930/40 Cooling fan assembly
20
40 ABS
50 ABS/ESP (with VSC)
2150
Power steering

78Practical information
Before disconnecting the battery
Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before disconnecting the battery.


Following reconnection of thebattery

Following reconnection of the battery, switch on
the i
gnition and wait 1 minute before star ting to
permit initialisation of the electronic systems.However, if problems remain following this
operation, contact a CITROËN dealer or aqualified workshop.
Referring to the corresponding section, you
must yourself reinitialise:


- the remote control key,

- the audio system.

04
104
USING THE TELEPHONE









PAIRING A TELEPHONE / FIRST CONNECTION


The services offered depend on the network, the SIM card and the compatibility of the Bluetooth telephone used.

Consult your telephone's manual and your operator to fi nd out which services are available to you.

Activate the telephone's Bluetooth function andensure that it is set as visible to all (refer to the
telephone instructions).
Press MENU
then select "Bluetooth".

A window is displayed with " Searching device".
Select the telephone to be paired from
the list and confi rm with "OK". Onlyone telephone can be paired at a time.
Select " Search".


For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile
telephone with the Bluetooth hands-free system of your audio system must be carried out with the vehicle stationary and the ignition on.

It is not possible to pair more that 5 telephones. Press MENUand select "Bluetooth"
. Select "BT management"
. If 5 telephones are
already paired, select the telephone to be deleted by pressing "OK"and select "Delete"
(refer to "Managing connections").
Visit www.citroen.co.uk
for more information (compatibility, more help, ...).
