Contents
Child seats 57
ISOFIX mountings 62
Child safety
Changing a wheel 65
Changing a bulb 67
Changing a fuse 71
Battery 76
Mat 79
Fitting audio equipment/speakers 79
To w i ng the vehicle 80
Fitting roof bars 81
Accessories 82
Practical information
Audio system / Bluetooth 93
Audio system 116
Audio
Alphabetical indexVisual search
Opening the bonnet 84
Engine 85
Checking levels 86
Checks 88
Checks
Engine 89
Weights 90
Dimensions 91
Identifi cation markings 92
Technical data

18
Limit the causes of excess
consumption
Spread loads throughout the vehicle; placethe heaviest items in the bottom of the boot,as close as possible to the rear seats.Limit the loads carried in the vehicle andreduce wind resistance (roof bars, roof rack, bicycle carrier, ...). Use a roof box inpreference.Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refit your summer tyres.


Observe the recommendations
on maintenance

Check the tyre pressures regularly, when cold, referring to the label in the door aper ture, driver's side.
Carry out this check in par ticular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel.


Have your vehicle ser viced regularly (engine oil, oil filter, air filter...) and obser ve the schedule of operations recommended by themanufacturer.


When refuelling, do not continue after the 3rd
cut-off of the nozzle to avoid any overflow.

At the wheel of your new vehicle, it is onlyafter the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settle down to a consistent average.

Monitoring
20





Warning lamps
Warning lampis onCauseAction/Observations



Parking brake

fixed. The parking brake is applied or not properly released. With
your foot on the brake pedal, release the parking brake
to switch off the warning lamp.
Observe the safety recommendations.
For more information, refer to the "Parkin
g brake" section.



STOP

fixed, associated
with another
warning lamp.
It is associated with
the engine oil pressure
or the engine coolant
temperature. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a CITROËN dealer or qualified workshop.



Engine oilpressure

fixed, associated
with the STOP
warning lamp. The engine oil pressure is too
low.
Stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN dealer or
a qualified workshop.



Braking


fixed. The braking system
fluid level has dropped
significantly. Top up with brake fluid recommended b
y CITROËN.
If the problem persists, have the system checked by a CITROËN dealer or a qualified workshop.

+



fixed, associated
with the ABS
warning lamp. The braking system has a fault. Stop as soon as it is safe to do so. Park, switch off the ignition
and contact a CITROËN dealer or a qualified workshop.

1
VSC
Monitoring
21


Anti-lock Braking System (ABS)

fixed. The anti-lock braking system has a fault. The vehicle retains conventional brakin
g.
Drive carefully at reduced speed and contact a CITROËN
dealer or a qualified workshop without delay.



Electronicstability programme(ASR/ESP)

fixed. The ASR /ESP system
is in action. The system optimises traction and improves
the directional stability of the vehicle.




fix
ed. The ASR/ESP system has a fault. Have it checked by a CITROËN dealer or aqualified workshop.



Coolanttemperature
fixed. The temperature of the engine coolant is too high.
Stop as soon as it is safe to do so.
Wait until the engine has cooled down before checking up thelevel; top up if necessary.
If the problem persists, contact a CITROËN dealer or qualified
workshop.



Airbagstemporar
ily.This lamp comes on for a fewseconds when you turn on the
ignition, then goes off. This lamp should
go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified workshop.

flashing. At least one of the
airbags has a fault. The airba
gs may not be deployed in the event of a serious
impact. Have it checked by a CITROËN dealer or a qualified
workshop.
Warning lampis onCauseAction/Observations

P/S
Monitoring
22



Deactivating
the passenger's airbag
fixed. The passen
ger's airbag control
is set to the OFF
position.
The passen
ger's front airbag is deactivated.
In this case you can install a
"rear facing" child seat.
Set the control to the ON
position to activate the passenger's
front airbag. In this case, do not fit a child seat in the rear-facing position.



Battery charge

fixed. The battery charging circuit has
a fault (dirty or loose terminals, slack or cut alternator belt, ...). The warnin
g lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified workshop.

Electric power steering
fixed. The electric power steering has a fault. Drive carefull
y at reduced speed.
Have it checked by a CITROËN dealer or qualified workshop.



Front seat beltnot fastened /
unfastened(depending on version)

flashing, then above
12 mph (20 km/h),
accompanied b
y an
audible signal.
The driver and/or front
passenger has not fastened or has unfastened their seat belt. Pull the strap then inser t the tongue in the buckle.



Emissioncontrolsystem fixed. The emission control system has a fault. This lamp should
go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified workshop without delay.

Electronicgearbox
fixed. The electronic gearbox has a
fault. Contact a CITROËN dealer or a qualified workshop without
delay.
Warning lampis onCauseAction/Observations

3
33 Comfort

















Vent ilat ion
3.
Side vents.
4. Diffusion grille.
5. Air outlets to the footwells.
1.
Windscreen demisting/defrosting vent. 2.Side window demisting/defrosting vents.
The air conditioning system does not contain chlorine and does not presentany danger to the ozone layer.


Recommendations for use
If the interior temperature remains very high after a prolonged period parked in the sun, first ventilate the passenger compartment for a few minutes. For an even air distribution, make sure thatyou do not block the outside air inlet grille, the vents, the air passages and the air outlets to the footwells.Ensure that the passenger compartmentfilter, located below the windscreen, in the engine compartment, is in good condition. Have the filter elements replaced regularly.If you drive in dusty conditions, changethem twice as often.Operate the air conditioning system for 5 to10 minutes, once or twice a month, to keepit in perfect working order. In order to ensure that your air conditioning system continues to operate correctly, youare advised to have it checked regularly.The condensation created by the air conditioning results in a flow of water under the vehicle when stationary which isperfectly normal.If the system does not produce cold air, do not use it and contact a CITROËN dealer or a qualified workshop.

VSC
50Safety














Anti-slip regulation (ASR) and electronic
stability programme (ESP)


Operating check
Operation of the ASR and ESP
s
ystems
When one of these two systems is
operating, this warning lamp comes on.
If a fault occurs with the s
ystems, this
warning lamp comes on.
Contact a CITROËN dealer or aqualified workshop to have thesystems checked.
These systems are linked and supplement the
ABS.
The ASR system optimises drive to prevent the
wheels skidding, by acting on the brakes of the
driving wheels and on the engine. It also allows
the directional stability of the vehicle to be
improved on acceleration.
If there is a variation between the trajectory followed by the vehicle and that required by
the driver, the ESP system automatically acts on the brake of one or more wheels and on theengine to put the vehicle back on course, within
the limits of the laws of physics.
The ASR/ESP systems offer exceptional safety during normal driving, but this should not encourage the driver to take extra risks or drive athigh speed. Correct operation of these systemsdepends on obser vation of the manufacturer's recommendationsregarding the wheels (tyres and rims), thebraking components and the electronic components as well as the repair procedures use by a CITROËN dealer or qualified workshop.
After an impact, have these systemschecked by a CITROËN dealer or aqualified workshop.

9
77 Practical information

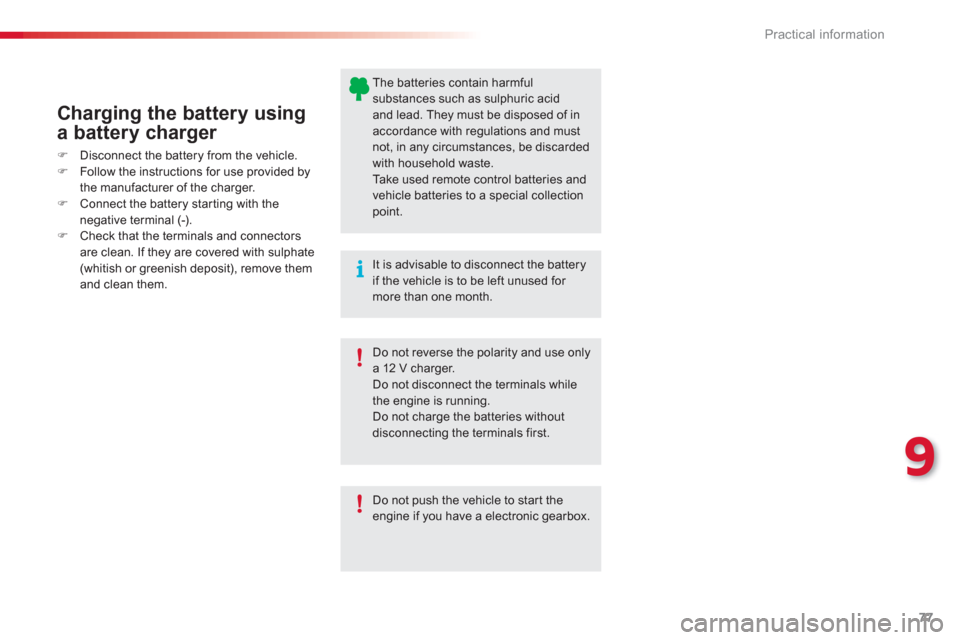

Charging the battery using
a battery charger
)Disconnect the battery from the vehicle.
)Follow the instructions for use provided by
the manufacturer of the charger.)Connect the battery star ting with thenegative terminal (-).)Check that the terminals and connectorsare clean. If they are covered with sulphate (whitish or greenish deposit), remove themand clean them.

The batteries contain harmful substances such as sulphuric acidand lead. They must be disposed of inaccordance with regulations and mustnot, in any circumstances, be discarded with household waste.
Take used remote control batteries andvehicle batteries to a special collection point.
Do not push the vehicle to star t the engine if you have a electronic gearbox.

It is advisable to disconnect the batteryif the vehicle is to be left unused for more than one month.


Do not reverse the polarity and use onlya 12 V charger.
Do not disconnect the terminals whilethe engine is running.
Do not charge the batteries withoutdisconnecting the terminals first.
