Page 5 of 244
3
Parking brake 112Manual gearbox 112CVT gearbox 113DCS gearbox 115Four wheel drive system 119Cruise control 121Audible rear parkingsensors 123Reversing camera 124
„ „ „ „ „ „ „
„
VII - DRIVING 112 Î124
Bonnet 126Running out of fuel 126Petrol engine 127Diesel engine 128Checking levels 129Checks 130
„ „ „ „ „ „
VIII - CHECKS 125 Î131
Changing a wheel 132Changing a bulb 137Changing a fuse 146Battery 151Changing a wiper blade 153Towing 154Towing a trailer 156Fitting roof bars 157Accessories 158
„ „ „ „ „ „ „ „ „
IX - PRACTICALINFORMATION 132 Î158
Engines 159Weights 160Dimensions 161Identifi cation markings 162
„ „ „ „
X - TECHNICALDATA 159 Î163
Audio CD system 164
CD changer 175Error messages 177Audio-Telematic System 178Navigation 180DVD mode 208Hands-free telephone 216
„ „ „ „ „ „ „
XI - AUDIO andTELEMATICS 164 Î 223
VISUALSEARCH 224 Î 229
ALPHABETICALINDEX 230 Î233
CONTENTS
Page 6 of 244
4
FAMILIARI
S
AT I
ON
Sunroof
This roof improves the ventilation andlight in the passenger compartment.
82
81
123
EXTERIOR
Audible rear parking sensors
This system warns you if an obstacleis detected behind the vehicle whenreversing.
Reversing camera
This equipment is activated automati-cally when reverse gear is engagedproviding a visual image on the colour screen.
Lower tailgate
This lower tailgate provides remarkableaccessibility and makes the loading of bulky objects easier.
124
Page 11 of 244
9
FAMILIARI
S
AT I
ON
INSTRUMENTS AND CONTROLS
1.
Audio system controls.
2.
Telephone controls.
3.
Steering wheel adjustment control.
4.
Lighting and direction indicator control stalk.
Headlamp wash control.
5
. Instrument panel.
6
. Driver's airbag.
H
orn.
7. Cruise control switches.
8.
Gear lever.
9.
Parking brake.
10.
Bonnet release lever.
11.Enclosed storage compartment.
F
usebox.
12. Headlamp height adjustment.
Deactivation o
f the ASC system.
Deactivation o
f the audible parkingsensors.
13. Cup holder.
14.
Side adjustable air vent.
15.
Information button.
16.
Window demisting/defrosting vent.
17.
Windscreen demisting/defrostingvent.
Page 20 of 244
18
FAMILIARI
S
AT I
ON
Cruise control
This maintains a constant vehicle speed
programmed by the driver.
1."ON/OFF"button: activation/deactivation of cruise control mode.
2."COAST SET"
button: storing of a driving speed then decreasing the cruising speed.
3."ACC RES"
button: increasing the cruising speed and recalling the stored speed.
4."CANCEL"
button: switching off the cruise control.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h) with at least second gear engaged.This detects obstacles
(person, vehicle,
tree, gate, ...) located behind the vehicle.
Th
e vehicle is fi tted with four sensors:
D. two side sensors.
E
. two central sensors.
Audible rear parking sensors
121
123
DRIVING SAFELY
Four wheel drive system
Three transmission modes are avail-
able and can be selected manually bythe driver to suit the circumstances:
A. Two wheel drive
(2WD),
B. Four wheel drive (4WD AUTO),
C. Four wheel drive (4WD LOCK).
11 9
Also...
You can change transmission modewhen stationary or when driving at aspeed below 60 mph (100 km/h).
Page 125 of 244
VII
DRIVING
123

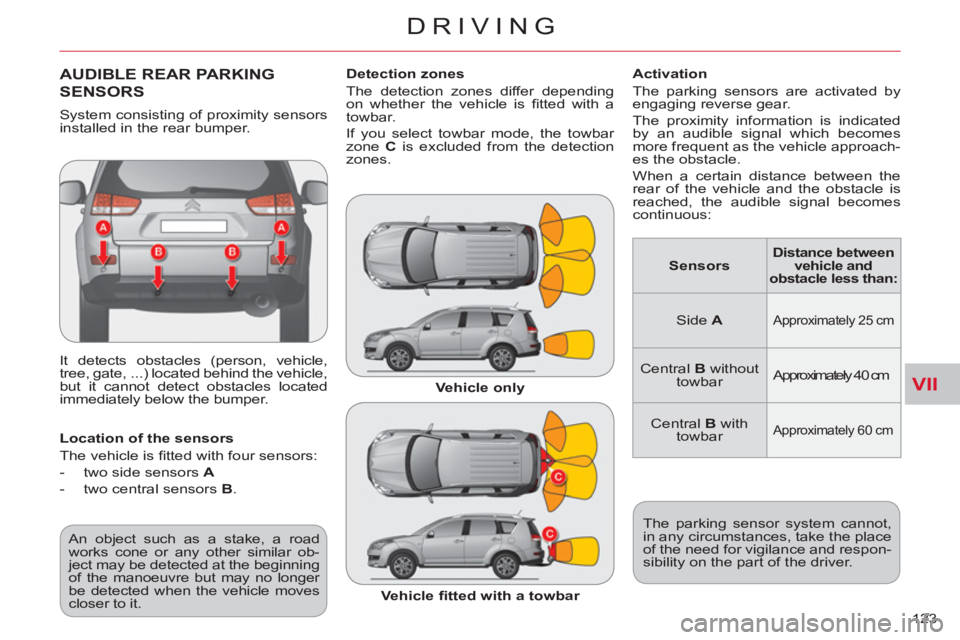

AUDIBLE REAR PARKING
SENSORS
It detects obstacles (person, vehicle,
tree, gate, ...) located behind the vehicle,
but it cannot detect obstacles located
immediately below the bumper.
Activation
The parking sensors are activated by
engaging reverse gear.
The proximity information is indicated
by an audible signal which becomes
more frequent as the vehicle approach-
es the obstacle.
When a certain distance between the
rear of the vehicle and the obstacle is
reached, the audible signal becomes
continuous:
An object such as a stake, a road
works cone or any other similar ob-
ject may be detected at the beginning
of the manoeuvre but may no longer
be detected when the vehicle moves
closer to it.
Location of the sensors
The vehicle is fi tted with four sensors:
- two side sensors A
- two central sensors B
.
Vehicle only
Vehicle fi tted with a towbar
Detection zones
The detection zones differ depending
on whether the vehicle is fi tted with a
towbar.
If you select towbar mode, the towbar
zone C
is excluded from the detection
zones.
The parking sensor system cannot,
in any circumstances, take the place
of the need for vigilance and respon-
sibility on the part of the driver.
Sensors
Distance between
vehicle and
obstacle less than:
Side A
Approximately 25 cm
Central B
without
towbar
Approximately 40 cm
Central B
with
towbar
Approximately 60 cm
System consisting of proximity sensors
installed in the rear bumper.
Page 150 of 244
IX
!
PRACTICAL INFORMATION
148
Access to the fuses
)
Open the cover A
,
)
Pull it towards you to extract it,
)
Change the fuse (refer to the cor-
responding paragraph).
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried
out by a CITROËN dealer or a qualifi ed workshop.
Fuse N°
Rating
Functions
17
10 A
4 wheel drive control unit.
18
7.5 A
Reversing lamps, parking sensors control unit,
reversing camera, airbag control unit.
19
15 A
Accessories socket.
20*
30 A
Electric window controls.
21
*
30 A
Rear screen demisting.
22
7.5 A
Heated door mirrors.
23
-
Not used.
24
25 A
Driver's electric seat, footwell lighting, rear bench
seat release.
25
30 A
Heated seats.
Page 160 of 244
IX
!
PRACTICAL INFORMATION
158
A wide range of accessories and genu-
ine parts is available from the CITROËN
dealer network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle and
benefi t from CITROËN's recommenda-
tion and warranty.
"Comfort":
rear parking sensors, side sun blinds,
insulated module...
"Transports solutions":
boot liner, dog guard, roof bars, bicycle
carrier for roof bars, ski carrier, roof
box...
Trailer towbar which must be fi tted by
a CITROËN dealer or a qualifi ed work-
shop.
"Security and safety":
anti-intrusion alarm, glass etching,
wheel security bolts, fi rst aid kit, warn-
ing triangle, high visibility vest, stolen
vehicle tracking system, child seats and
booster cushions, under-infl ation detec-
tion, anti-slip covers...
"Protection":
mat * , side protective mouldings...
"Multimedia":
MP3/USB audio systems, audio-tele-
phone, amplifi ers, satellite navigation
systems, hands-free kit, speakers, DVD
player, connection kit for MP3 player or
portable CD player...
Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.
The fi tting of electrical equip-
ment or accessories which are
not recommended by CITROËN
may result in a failure of your vehi-
cle's electronic system and exces-
sive electrical consumption.
Please note this precaution. You are
advised to contact a CITROËN rep-
resentative to be shown the range
of recommended equipment and ac-
cessories.
Installation of radio
communication transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a CITROËN dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).
*
To prevent any risk of jamming of
the pedals:
- ensure that the mat is positioned
and secured correctly,
- never fi t one mat on top of another.
"Style":
PVC door sill protectors, style rear
mudfl aps, Hortaz 18 inch alloy wheels,
chromed door handle shells, diffuser on
rear bumper, brushed aluminium look
boot sill protector...
ACCESSORIES
Page 227 of 244
225
VISUAL SEARCH
REAR EXTERIOR
3rd brake lamp.................................142
Tailgate ........................................ 80-81
Rear wiper .........................................91
Spare wheel, jack, changing,
fi tting ........................................ 132-136
Lower tailgate ....................................81
Towbar .............................................156
Rear parking sensors .............. 123-124
Towing .............................................154
Rear lamps, direction indicators,
foglamps ...................................... 86-89
Changing bulbs........................ 142-144
Door mirrors .......................................61
Side repeaters .................................140
Opening/closing the doors ........... 79-80
Brakes ..................................... 112, 131
ABS .................................................103
Tyres, pressures ..............................162
Brake pads ......................................131
Alloy wheels.....................................132
Accessories .....................................158
Roof bars .........................................157
