Page 67 of 244
II
COMFORT
65
Spectacles storage
Press the cover to open it.
To close it, push the cover until it locks.
Cooled upper glove box
Press button A
on the lid to open it.
To close it, push the lid up.
It is fi tted with a ventilation nozzle which
can be closed by means of a dial, dis-
tributing conditioned air at the same
temperature as the vents in the passen-
ger compartment.
In cold weather, it is advisable to close
this vent to conserve the ambient air in-
side the passenger compartment.
Lower glove box
This is fi tted with a lock.
To unlock it, turn the key to the left.
To open it, pull the handle A
.
To close it, push the lid up.
To lock it, turn the key to the right.
It is fi tted with a pen holder and a card
holder.
It is illuminated on opening when the
vehicle lighting is on.
Page 75 of 244
III
73
Unfolding the key
)
First press button A
to unfold the
key.
Unlocking the vehicle
)
Press the open padlock to
unlock the vehicle.
Unlocking using the remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It also folds and
unfolds the mirrors, closes the electric
windows and starts the vehicle, as well
as providing protection against theft.
Locking the vehicle
Unlocking using the key
)
Turn the key to the right in the driver's
door
lock to unlock the vehicle.
)
Press the closed padlock
to lock the vehicle.
If one of the doors or the tailgate is
still open, the central locking will not
take place. Unlocking is confi rmed by the interior
lighting which comes on for approxi-
mately 15 seconds and the direction
indicators which fl ash twice
.
If you press the open padlock twice in
succession
within 30 seconds after
unlocking the vehicle, the door mirrors
unfold.
Normal locking using the key
)
Turn the key to the left in the driver's
door
lock to lock the vehicle. Locking is confi rmed by the direction in-
dicators which come on once
.
If you press the closed padlock twice
in succession
within 30 seconds af-
ter locking the vehicle, the door mirrors
fold.
An extended press
on the closed pad-
lock within 30 seconds after locking the
vehicle closes the windows automati-
cally.
Normal locking using the remote
control
Page 76 of 244
III
ACCESS
74 The vehicle will relock automatically
after thirty seconds unless a door or
the tailgate is opened. This function
prevents inadvertent unlocking.
The duration which precedes the au-
tomatic relocking of the vehicle can
be confi gured via the colour screen
"Equipment" menu.
Folding the key
)
First press button A
to fold the key.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the ig-
nition is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start, contact a
CITROËN dealer as soon as possible.
Page 77 of 244
III
ACCESS
75
Starting the vehicle
)
Insert the key in the ignition switch.
)
Operate the starter by turning the
key to position 4 (START)
.
)
When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON)
automatically.
Switching the vehicle off
)
Park the vehicle.
)
While pressing the key, turn it to-
wards you to position 1 (LOCK)
.
)
Remove the key from the ignition
switch.
Changing the battery
Battery reference: CR1616/3 volts.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its housing.
)
Slide the new battery into its hous-
ing observing the original direction.
)
Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been left
in the ignition.
Page 78 of 244
III
!
ACCESS
76
Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point.
Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a CITROËN dealer can supply you with new keys.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility
that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk
of stopping it from working.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more diffi cult
in an emergency.
As a safety precaution (with children on board), remove the key from the ignition when you leave the vehicle, even for a
short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system, this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which
can start the vehicle.
Page 80 of 244
III
!
ACCESS
78
Deactivating the passenger and rear
electric window switches
Reinitialising the electric
windows
Following reconnection of the battery or
after the safety anti-pinch has been trig-
gered three times in succession, you
must reinitialise the safety anti-pinch
function:
)
with the door closed, lower the window
completely then raise it again, it will rise
in steps of a few centimetres each time
the switch is pressed, repeat the op-
eration until the window is fully closed,
)
continue to press the switch for at least
one second after reaching the window
closed position.
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
In the event of contact during opera-
tion of the windows, you must reverse
the movement of the window. To do
this, press the switch concerned.
When the driver operates the pas-
senger electric window switches, they
must ensure that no one is preventing
correct closing of the windows.
The driver must ensure that passen-
gers use the electric windows cor-
rectly.
Be aware of children when operating
the windows.
)
For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down, the
switches are deactivated.
When the button is raised, the switches
are activated.
When the button is pressed down, you
can open or close all of the windows
using the switches on the driver's
door.
The safety
anti
-
pinch
function is not
active during these operations.
Page 81 of 244
III
ACCESS
79
DOORS
From outside
)
After unlocking the vehicle using the
remote control or the key, pull the
door handle.
From inside
)
Pull the front or rear door control to
open the door.
The front passenger door or the rear
doors must fi rst be unlocked manually
using the locking control before being
opened.
Closing
If a door is not closed correctly,
this warning lamp comes on
in the instrument panel screen
until the door concerned is
closed.
Manual centralised control
System which provides full manual
locking or unlocking of the doors and
tailgate from the inside.
Locking
)
Press the front of button A
to lock
the vehicle.
If the driver's door is open when you
operate the central locking from in-
side, all of the doors lock with the ex-
ception of the driver's door.
Unlocking
)
Press the rear of button A
to unlock
the vehicle.
Opening
If the doors are locked, opening the
driver's door does not unlock the
other doors.

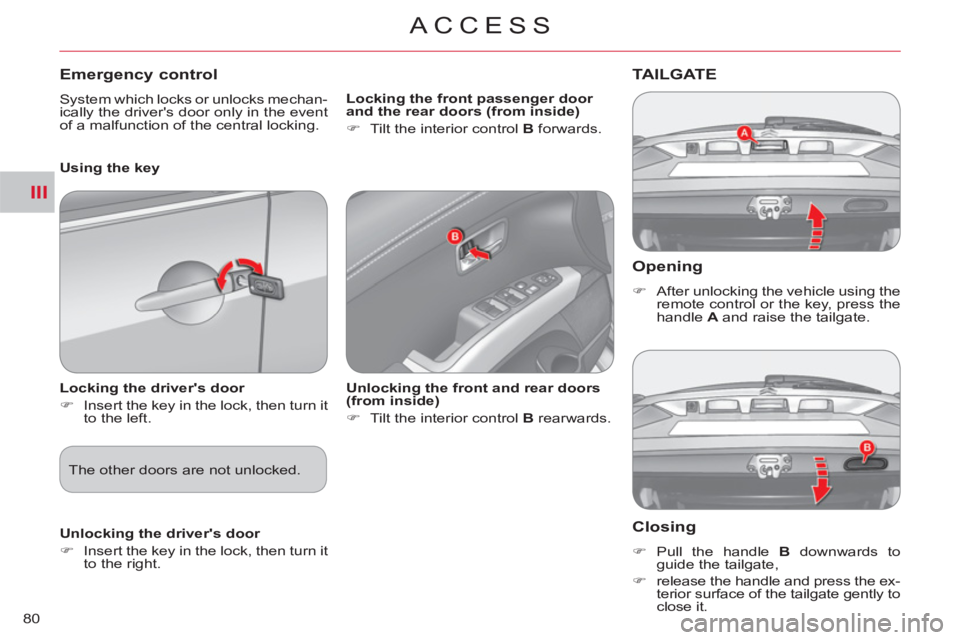

Page 82 of 244
III
ACCESS
80
Opening
)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and raise the tailgate.
TAILGATE
Closin
g
)
Pull the handle B
downwards to
guide the tailgate,
)
release the handle and press the ex-
terior surface of the tailgate gently to
close it.
Emergency control
System which locks or unlocks mechan-
ically the driver's door only in the event
of a malfunction of the central locking.
Locking the driver's door
)
Insert the key in the lock, then turn it
to the left.
Unlocking the driver's door
)
Insert the key in the lock, then turn it
to the right.
Unlocking the front and rear doors
(from inside)
)
Tilt the interior control B
rearwards.
Using the key
Locking the front passenger door
and the rear doors (from inside)
)
Tilt the interior control B
forwards.
The other doors are not unlocked.
