IV
VISIBILITY
93
Position 1 "ON"
The courtesy lamp is permanently on.
Position 2 "●"
The courtesy lamp comes on when a
door or the tailgate is opened. When
the door or the tailgate is closed again,
the lighting gradually dims for a few
seconds before switching off.
However, the courtesy lamp is switched
off immediately in the following cases:
- When the doors and the tailgate
are closed and the ignition switch is
placed in the "ON"
position.
- When the doors and the tailgate are
closed and you lock the vehicle from
inside or using the remote control.
Position 1 "ON"
The boot lamp is on, regardless of
whether the tailgate is open or closed.
Position 2 "●"
The boot lamp comes on if the tailgate
is opened and switches off when the
tailgate is closed.
Position 3 "OFF"
The courtesy lamp is permanently off.
Boot lamp
Position 3 "OFF"
The boot lamp is off, regardless of
whether the tailgate is open or closed.
Courtesy lamps automatic
switch off
To prevent discharging of the battery,
the courtesy lamps, map reading lamps
and boot lamp switch off automatically
after 30 minutes.
The courtesy lamps are switched on
again if the ignition switch is placed
in the "ON"
or "ACC"
position, if you
open then close a door or the tailgate or
if you use the remote control.
The duration of lighting of the rear
courtesy lamps can be confi gured
via the colour screen "Equipment"
menu.
Rear courtesy lamp
Page 134 of 244
IX
!
PRACTICAL INFORMATION
132
CHANGING A WHEEL
1.
Wheelbrace.
Used to remove the wheel trim and
the wheel fi xing bolts.
2.
Jack.
Used to raise the vehicle.
3.
Handle.
Used to extend the jack.
4.
Removable towing eye.
Refer to the "Towing" paragraph.
Other accessories
Wheel with trim
When removing the wheel
, remove
the trim fi rst using the handle 3
, pulling
at the notch.
When refi tting the wheel
, refi t the trim
starting by placing its notch F
(indicated
on the back of the trim) opposite the
valve G
and press on its outer edge
with the palm of your hand.
List of tools
When changing a wheel, ensure
that the four wheels are of identi-
cal specifi cation and brand. When storing, take care to secure
the tool bag D
fi rmly using the fi xing
band C
.
Access to the tools
The tools are stored in the storage
compartment in the boot right-hand trim.
To gain access to them:
)
open the boot,
)
turn button A
to the left,
)
remove the cover B
,
)
remove the fi xing band C
and take
out the tool bag D
containing the
tools,
)
take the jack E
in your hand and re-
move it from its fi xing position.
Page 135 of 244
IX
PRACTICAL INFORMATION
133
Fixing the "space-saver" spare
wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice that the
washers do not come into contact
with the "space-saver" spare wheel
when tightening the bolts on fi tting.
The wheel is retained by the conical
contact of each bolt.

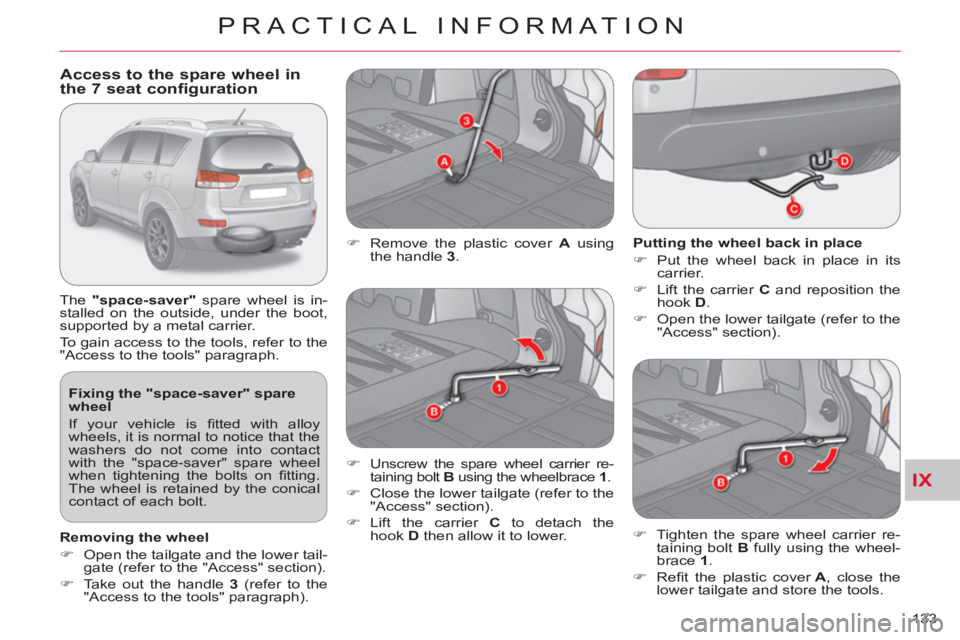

Access to the spare wheel in
the 7 seat configuration
The "space-saver"
spare wheel is in-
stalled on the outside, under the boot,
supported by a metal carrier.
To gain access to the tools, refer to the
"Access to the tools" paragraph.
Putting the wheel back in place
)
Put the wheel back in place in its
carrier.
)
Lift the carrier C
and reposition the
hook D
.
)
Open the lower tailgate (refer to the
"Access" section).
)
Remove the plastic cover A
using
the handle 3
.
)
Unscrew the spare wheel carrier re-
taining bolt B
using the wheelbrace 1
.
)
Close the lower tailgate (refer to the
"Access" section).
)
Lift the carrier C
to detach the
hook D
then allow it to lower.
)
Tighten the spare wheel carrier re-
taining bolt B
fully using the wheel-
brace 1
.
)
Refi t the plastic cover A
, close the
lower tailgate and store the tools.
Removing the wheel
)
Open the tailgate and the lower tail-
gate (refer to the "Access" section).
)
Take out the handle 3
(refer to the
"Access to the tools" paragraph).
Page 136 of 244
IX
PRACTICAL INFORMATION
134
Access to the spare wheel in
the 5 seat configuration
The pressed steel
spare wheel is installed
on the outside, under the boot, supported
by a winch and a plastic carrier.
To gain access to the tools, refer to the
"Access to the tools" paragraph.
Fixing the pressed steel spare
wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice that the
washers do not come into contact
with the pressed steel spare wheel
when tightening the bolts on fi tting.
The wheel is retained by the conical
contact of each bolt.
Removing the wheel
)
Open the tailgate and the lower tail-
gate (refer to the "Access" section).
)
Take out the handle 3
(refer to the
"Access to the tools" paragraph).
)
Remove the plastic cover A
using
the handle 3
.
Putting the wheel back in place
)
Put the wheel back in place in its
carrier.
)
Pass the hook C
into the chain.
)
Open the lower tailgate (refer to the
"Access" section).
)
Unscrew the retaining bolt B fully
using the wheelbrace 1
, to unwind
the winch cable.
)
Close the lower tailgate (refer to the
"Access" section).
)
Detach the hook C
from the chain.
Unwind the winch cable fully to make
unhooking of the chain easier.
)
Tighten the winch retaining bolt B
fully using the wheelbrace 1
.
)
Refi t the plastic cover A
, close the
lower tailgate and store the tools.
Page 156 of 244
IX
!
PRACTICAL INFORMATION
154
TOWING
Access to the tools
Having your vehicle towed on a flatbed
)
Below the front bumper, install the
towing system on the towing eye 1
.
The towing eye and the tools are stored
in the storage compartment in the right-
hand boot trim.
To gain access to them:
)
open the boot,
)
turn button A
to the left,
)
remove the cover B
,
)
remove the fi xing band C
and take out
the tool bag D
containing the tools,
)
take the towing eye and the tools re-
quired out of the tool bag.
Place the gear lever in neutral.
Always have the vehicle
towed on a fl atbed.
Never have the vehicle towed with
the four wheels on the ground, this
could damage the transmission.
The vehicle must not be towed with
the front or rear wheels on the ground
even if it is in front "2WD" (2 wheel
drive) mode.
Page 160 of 244
IX
!
PRACTICAL INFORMATION
158
A wide range of accessories and genu-
ine parts is available from the CITROËN
dealer network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle and
benefi t from CITROËN's recommenda-
tion and warranty.
"Comfort":
rear parking sensors, side sun blinds,
insulated module...
"Transports solutions":
boot liner, dog guard, roof bars, bicycle
carrier for roof bars, ski carrier, roof
box...
Trailer towbar which must be fi tted by
a CITROËN dealer or a qualifi ed work-
shop.
"Security and safety":
anti-intrusion alarm, glass etching,
wheel security bolts, fi rst aid kit, warn-
ing triangle, high visibility vest, stolen
vehicle tracking system, child seats and
booster cushions, under-infl ation detec-
tion, anti-slip covers...
"Protection":
mat * , side protective mouldings...
"Multimedia":
MP3/USB audio systems, audio-tele-
phone, amplifi ers, satellite navigation
systems, hands-free kit, speakers, DVD
player, connection kit for MP3 player or
portable CD player...
Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.
The fi tting of electrical equip-
ment or accessories which are
not recommended by CITROËN
may result in a failure of your vehi-
cle's electronic system and exces-
sive electrical consumption.
Please note this precaution. You are
advised to contact a CITROËN rep-
resentative to be shown the range
of recommended equipment and ac-
cessories.
Installation of radio
communication transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a CITROËN dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).
*
To prevent any risk of jamming of
the pedals:
- ensure that the mat is positioned
and secured correctly,
- never fi t one mat on top of another.
"Style":
PVC door sill protectors, style rear
mudfl aps, Hortaz 18 inch alloy wheels,
chromed door handle shells, diffuser on
rear bumper, brushed aluminium look
boot sill protector...
ACCESSORIES
Page 188 of 244
XI
186
AUDIO and TELEMATICS
Selecting points of interest (POI) icons displayed on the map
You can select up to 40 types of point
of interest icon which are displayed on
your map screen.
Press the MENU button then [Navigation
Settings].
Press [Screen] then [Select] on the POI
line.
Press [4] which is displayed.
Press each POI required.
At each contact with a POI, the display
of [α] changes (α = the POI will be dis-
played on the screen). General
Town centre
Locality
Shops, fi nance and businesses (Green)
Major companies
Shopping centre
Vehicles and travel (Dark blue)
CITROËN
Airport
Bus stop
Vehicle hire
Suburban station/station
Ferry terminal
Hotel
Park and ride
Car park (press +)
Service station
Rest area
Toll booth
Tourist information
Railway station
Restaurant (Orange)
Night life/night club
Restaurant Public places and emergency
services (Brown)
Town Hall
Community centre
Convention/exhibition centre
Hospital
University/college
Entertainment and attractions (Blue)
Theme park
Bowling alley
Casino
Cinema
Golf course
Historical monument
Skating rink
Marina
Museum
Flying club
Leisure area
Ski station
Sports centre
Theatre/opera
Tourist attraction
Vineyard/wine and spirit store
Page 232 of 244
230
ALPHABETICAL INDEX
AABS .......................................... 103
ABS and EBFD systems........... 103
Accessories .............................. 158
Accessory socket,
12V .................. 64, 66, 67, 70, 71
Access to bulbs ........................ 137
Access to the 3rd row ................. 54
Adjusting headlamps .................. 89
Adjusting seat belt height ......... 105
Adjusting the steering wheel....... 63
Airbags, curtain.................. 110, 111
Airbags, front .....................108, 111
Airbags, lateral................... 110, 111
Air conditioning ........................... 19
Air conditioning, digital................ 46
Air fl ow ........................................ 19
Air intake..................................... 46
Air vents...................................... 44
Anti-lock braking system (ABS)... 103
Anti-pinch.................................... 82
Armrest, front .................. 52, 64, 66
Armrest, rear ......................... 54, 69
ASC .......................................... 104
Ashtray, portable ................... 64, 67
Athermic windscreen .................. 63
Audible warning ........................ 102
Audio-CD...169, 170, 172, 175, 177
Audio-telematics ....... 178-182, 186,
190, 191, 194, 196, 197,
202-204, 208-210,
213, 216, 217, 220-222Audio-video................................ 190
Audio system functions..... 178, 179
Audio systems .......... 164, 166, 167,
169, 170, 172, 173, 175,
177-182, 186, 190, 191, 194,
196, 197, 202-204, 208-210,
213, 216, 217, 220-222
Automatic illumination
of headlamps ..................... 86, 88
Automatic operation
of hazard warning lamps ....... 102
Automatic rain sensitive
windscreen wipers ................... 91
Automatic switching off
of lighting ................................. 88
BBattery ...................................... 130
Battery, remote control ............... 76
Blind............................................ 83
Bluetooth (telephone) ........ 220-222
Boot lid........................................ 81
Bottle holder ......................... 64, 69
Brake discs ............................... 130
Brake lamps.............................. 142
Brake pads ............................... 130
Braking assistance system ....... 103
Bulbs (changing, type) ...... 137, 142Changing a bulb ............... 137, 142
Changing a wheel .............. 132-135
Changing a wiper blade ............ 153
Changing the time ................ 39, 41
Check, particle emission fi lter ... 130
Check, passenger
compartment fi lter .................. 130
Checking the air fi lter ................ 130
Checking the oil fi lter ................ 130
Checks...................................... 130
Child seats ............. 94, 95, 97, 101
Cigar lighter ................................ 66
Closing the boot.................... 80, 81
Colour screen ............. 41, 178, 179
Controls for air conditioning ........ 46
Coolant ................................. 31, 32
Coolant level ............................. 129
Coolant temperature
warning lamp ........................... 32
Cooled glove box .................. 64, 65
Courtesy lamp, front ................... 92
Courtesy lamp, rear .................... 92
Cruise control ........................... 121
Cup holder ...................... 64, 68, 69
CVT gearbox ............................ 113 C A
CCapacity, fuel tank ...................... 84
CD changer ...................... 175, 177
CD MP3 ............................ 194, 196DDeactivating ASC...................... 104
Deactivating the passenger
airbag .................................... 108
Defrosting ................................... 46
Dials............................................ 21
