2012 CHRYSLER TOWN AND COUNTRY snow chains

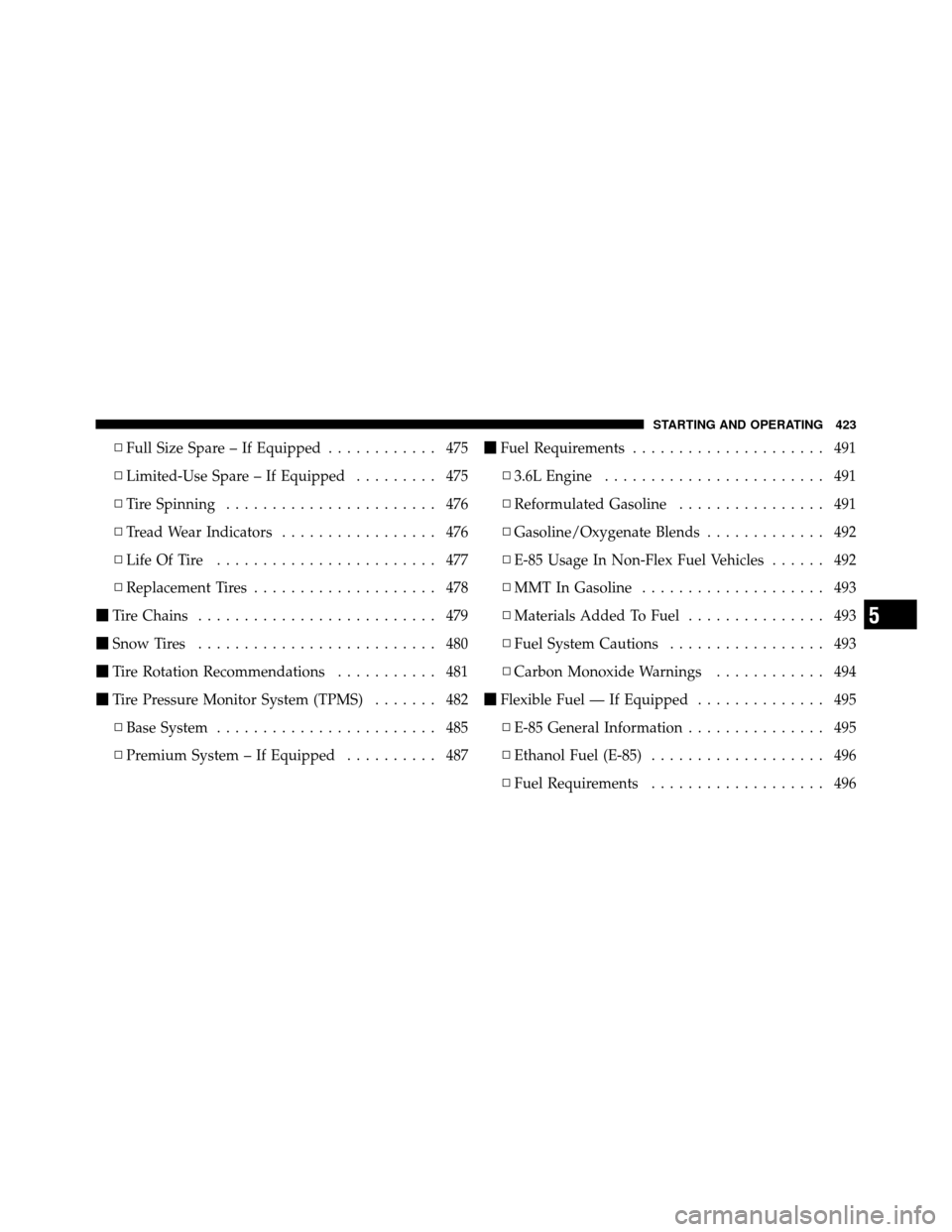

▫Full Size Spare – If Equipped ............ 475
▫ Limited-Use Spare – If Equipped ......... 475
▫ Tire Spinning ....................... 476
▫ Tread Wear Indicators ................. 476
▫ Life Of Tire ........................ 477
▫ Replacement Tires .................... 478
 Tire Chains .......................... 479
 Snow Tires .......................... 480
 Tire Rotation Recommendations ........... 481
 Tire Pressure Monitor System (TPMS) ....... 482
▫ Base System ........................ 485
▫ Premium System – If Equipped .......... 487
Fuel Requirements ..................... 491
▫ 3.6L Engine ........................ 491
▫ Reformulated Gasoline ................ 491
▫ Gasoline/Oxygenate Blends ............. 492
▫ E-85 Usage In Non-Flex Fuel Vehicles ...... 492
▫ MMT In Gasoline .................... 493
▫ Materials Added To Fuel ............... 493
▫ Fuel System Cautions ................. 493
▫ Carbon Monoxide Warnings ............ 494
 Flexible Fuel — If Equipped .............. 495
▫ E-85 General Information ............... 495
▫ Ethanol Fuel (E-85) ................... 496
▫ Fuel Requirements ................... 496
5
STARTING AND OPERATING 423

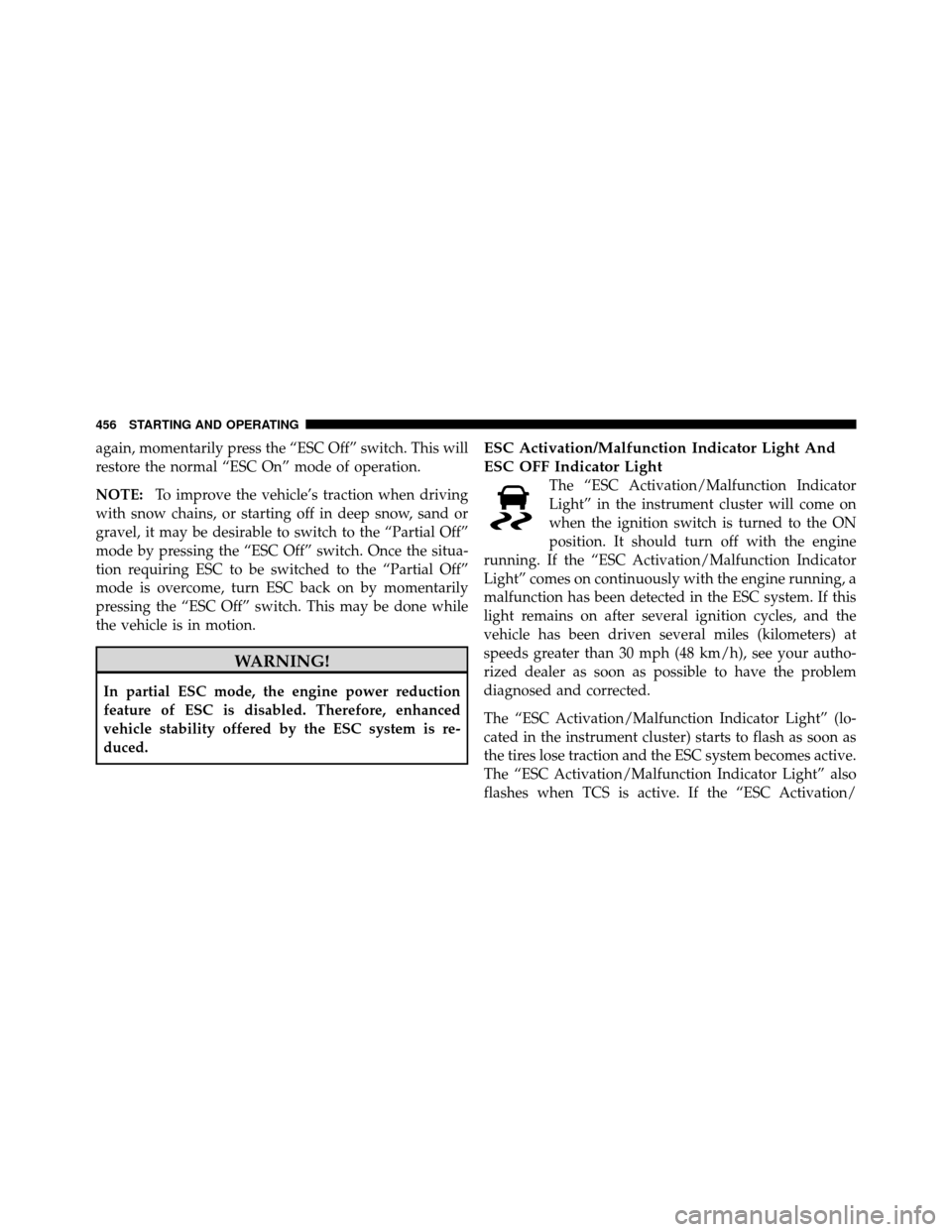

again, momentarily press the “ESC Off” switch. This will
restore the normal “ESC On” mode of operation.
NOTE:To improve the vehicle’s traction when driving
with snow chains, or starting off in deep snow, sand or
gravel, it may be desirable to switch to the “Partial Off”
mode by pressing the “ESC Off” switch. Once the situa-
tion requiring ESC to be switched to the “Partial Off”
mode is overcome, turn ESC back on by momentarily
pressing the “ESC Off” switch. This may be done while
the vehicle is in motion.
WARNING!
In partial ESC mode, the engine power reduction
feature of ESC is disabled. Therefore, enhanced
vehicle stability offered by the ESC system is re-
duced.
ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light
The “ESC Activation/Malfunction Indicator
Light” in the instrument cluster will come on
when the ignition switch is turned to the ON
position. It should turn off with the engine
running. If the “ESC Activation/Malfunction Indicator
Light” comes on continuously with the engine running, a
malfunction has been detected in the ESC system. If this
light remains on after several ignition cycles, and the
vehicle has been driven several miles (kilometers) at
speeds greater than 30 mph (48 km/h), see your autho-
rized dealer as soon as possible to have the problem
diagnosed and corrected.
The “ESC Activation/Malfunction Indicator Light” (lo-
cated in the instrument cluster) starts to flash as soon as
the tires lose traction and the ESC system becomes active.
The “ESC Activation/Malfunction Indicator Light” also
flashes when TCS is active. If the “ESC Activation/
456 STARTING AND OPERATING

CAUTION! (Continued)
•Because of restricted chain clearance between tires
and other suspension components, it is important
that only chains in good condition are used. Bro-
ken chains can cause serious damage. Stop the
vehicle immediately if noise occurs that could
indicate chain breakage. Remove the damaged
parts of the chain before further use.
•Do not exceed 45 mph (70 km/h).
•Drive cautiously and avoid severe turns and large
bumps, especially with a loaded vehicle.
•Install chains on the front wheels as tightly as
possible and then retighten after driving about
0.5 mile (0.8 km).
•Do not drive for prolonged periods of time on dry
pavement.(Continued)
CAUTION! (Continued)
•Observe the tire chain manufacturer’s instructions
on the method of installation, operating speed,
and conditions for use. Always use the lower
suggested operating speed of the chain manufac-
turer, if different from the speed recommended by
the vehicle manufacturer.
Always use the lower suggested operating speed if the
chain manufacturer and vehicle manufacturer suggest
different maximum speeds. This notice applies to all
chain traction devices, including link and cable (radial)
chains.
SNOW TIRES
Some areas of the country require the use of snow tires
during the winter. All season tires can be identified by the
M+S designation on the tire sidewall.
480 STARTING AND OPERATING

The “Tire Pressure Monitoring Telltale Light” will flash
on and off for 75 seconds, and remain on solid when a
system fault is detected. The system fault will also sound
a chime. If the ignition switch is cycled, this sequence will
repeat, providing the system fault still exists. The “Tire
Pressure Monitoring Telltale Light” will turn off when
the fault condition no longer exists. A system fault can
occur with any of the following scenarios:
1. Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the TPMS
sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Accumulation of excessive snow and/or ice around
the wheels or wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPMS sensors.Vehicles With Compact Spare
1. The compact spare tire (if equipped) does not have a
TPMS sensor. Therefore the TPMS will not monitor the
pressure in the compact spare tire.
2. If you install the compact spare tire in place of a road
tire that has a pressure below the low-pressure warning
limit, upon the next ignition switch cycle, a chime will
sound, a “LOW TIRE PRESSURE” message will be
displayed and the “Tire Pressure Monitoring Telltale
Light” will turn on.
3. After driving for up to 20 minutes above 15 mph
(24 km/h), the “Tire Pressure Monitoring Telltale Light”
will flash on and off for 75 seconds and then remain on
solid.
4. For each subsequent ignition switch cycle, a chime will
sound, the “Tire Pressure Monitoring Telltale Light” will
flash on and off for 75 seconds and then remain on solid.
486 STARTING AND OPERATING

Sliding Door............................ 46
Slippery Surfaces, Driving On ............... 443
SmartBeams ........................... 209
Snow Chains (Tire Chains) ................. 479
Snow Tires ............................ 480
Spare Tire ....................... 474,475,524
Speed Control (Cruise Control) .............. 217
Speedometer ........................... 297
Starting ............................... 425
Automatic Transmission ................ 425
Cold Weather ....................... 429
Engine Fails to Start .................. 429
Remote ............................ 30
Starting and Operating .................... 425
Starting Procedures ...................... 425
Steering Power .......................... 446,447
Tilt Column ........................ 214
Wheel, Heated ...................... 215 Wheel, Tilt
......................... 214
Steering Wheel Audio Controls .............. 395
Steering Wheel Mounted Sound
System Controls ......................... 395
Storage ............................ 258,593
Storage Bin ............................ 258
Storage, Vehicle ...................... 418,593
Storing Your Vehicle ...................... 593
Stow n Go (Fold in Floor) Seats ............. 176
Sun Roof .............................. 245
Sunglasses Storage ....................... 233
Sunroof Maintenance ..................... 248
Supplemental Restraint System - Airbag ........ 75
Synthetic Engine Oil ...................... 560
System, Remote Starting .................... 30
Tachometer ............................ 290
Telescoping Steering Column ............... 214
Temperature Control, Automatic (ATC) ........ 406
10
INDEX 645

Temperature Gauge, Engine Coolant.......300,522
Tether Anchor, Child Restraint ............... 94
Text Messaging ......................... 151
Tilt Steering Column ..................... 214
Tire and Loading Information Placard ......... 466
Tire Identification Number (TIN) ............. 464
Tire Markings .......................... 460
Tire Safety Information .................... 460
Tires ........................... 107,470,627
Aging (Life of Tires) .................. 477
Air Pressure ........................ 470
Chains ............................ 479
Changing .......................... 522
Compact Spare ...................... 474
General Information .................. 470
High Speed ......................... 472
Inflation Pressures .................... 471
Jacking ......................... 522,531
Life of Tires ........................ 477 Load Capacity
.................... 466,467
Pressure Monitor System (TPMS) ......... 482
Pressure Warning Light ................ 293
Quality Grading ..................... 627
Radial ............................ 473
Replacement ........................ 478
Rotation ........................... 481
Safety .......................... 460,470
Sizes ............................. 462
Snow Tires ......................... 480
Spare Tire .......................... 524
Spinning ........................... 476
Tread Wear Indicators ................. 476
Tongue Weight/Trailer Weight .............. 510
Towing ............................... 503
24-Hour Towing Assistance ............. 143
Disabled Vehicle ..................... 547
Guide ............................. 509
Recreational ........................ 517
646 INDEX
