2012 CHRYSLER TOWN AND COUNTRY alarm

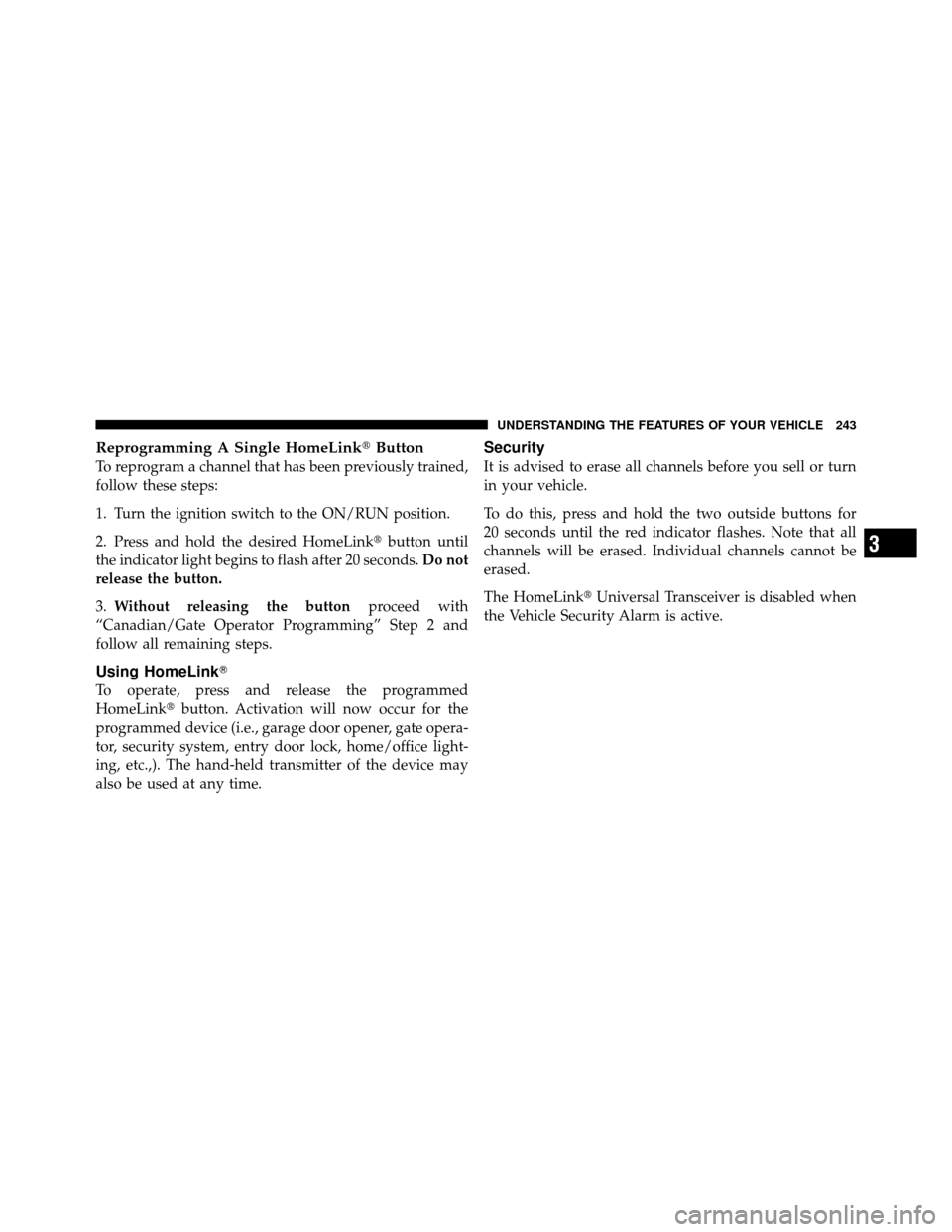

Reprogramming A Single HomeLinkButton
To reprogram a channel that has been previously trained,
follow these steps:
1. Turn the ignition switch to the ON/RUN position.
2. Press and hold the desired HomeLink button until
the indicator light begins to flash after 20 seconds. Do not
release the button.
3. Without releasing the button proceed with
“Canadian/Gate Operator Programming” Step 2 and
follow all remaining steps.
Using HomeLink
To operate, press and release the programmed
HomeLink button. Activation will now occur for the
programmed device (i.e., garage door opener, gate opera-
tor, security system, entry door lock, home/office light-
ing, etc.,). The hand-held transmitter of the device may
also be used at any time.
Security
It is advised to erase all channels before you sell or turn
in your vehicle.
To do this, press and hold the two outside buttons for
20 seconds until the red indicator flashes. Note that all
channels will be erased. Individual channels cannot be
erased.
The HomeLink Universal Transceiver is disabled when
the Vehicle Security Alarm is active.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 243

Select (ERS) feature is active. Use the +/- selector on
the shift lever to activate ERS. Refer to “Automatic
Transmission” in “Starting And Operating” for further
information.
17. Vehicle Security Light — If Equipped This light will flash at a fast rate for approxi-
mately 15 seconds, when the vehicle security
alarm is arming, and then will flash slowly
until the vehicle is disarmed.
18. Brake Warning Light This light monitors various brake functions,
including brake fluid level and parking brake
application. If the brake light turns on it may
indicate that the parking brake is applied, that
the brake fluid level is low, or that there is a problem with
the anti-lock brake system reservoir. If the light remains on when the parking brake has been
disengaged, and the fluid level is at the full mark on the
master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction or that a problem with the
Brake Booster has been detected by the Anti-Lock Brake
System (ABS) / Electronic Stability Control (ESC) system.
In this case, the light will remain on until the condition
has been corrected. If the problem is related to the brake
booster, the ABS pump will run when applying the brake
and a brake pedal pulsation may be felt during each stop.
The dual brake system provides a reserve braking capac-
ity in the event of a failure to a portion of the hydraulic
system. A leak in either half of the dual brake system is
indicated by the Brake Warning Light, which will turn on
when the brake fluid level in the master cylinder has
dropped below a specified level.
The light will remain on until the cause is corrected.
298 UNDERSTANDING YOUR INSTRUMENT PANEL

Adding Engine Coolant (Antifreeze).......... 572
Adding Fuel ........................... 499
Adding Washer Fluid ..................... 569
Additives, Fuel ......................... 493
Adjustable Pedals ....................... 216
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 561
Air Conditioner Maintenance ............... 565
Air Conditioning ........................ 398
Air Conditioning Controls ................. 398
Air Conditioning Filter .................419,566
Air Conditioning Refrigerant ............... 565
Air Conditioning System .............398,406,565
Air Conditioning System, Zone Control ........ 398
Air Conditioning, Operating Tips ............ 419
Air Conditioning, Rear Zone .............403,414
Air Pressure, Tires ....................... 471
Airbag .............................. 75,84
Airbag Deployment ....................... 85
Airbag Light .................... 82,88,105,297Airbag Maintenance
....................... 87
Airbag, Side ........................ 78,81,84
Airbag, Window (Side Curtain) ...........79,81,84
Alarm (Security Alarm) .................... 17
Alarm Light ........................... 298
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 349
Anti-Lock Warning Light .................. 293
Anti-Theft System ........................ 17
Antifreeze (Engine Coolant) ..............571,599
Disposal ........................... 573
Appearance Care ........................ 579
Ashtray ............................... 258
Assist, Hill Start ........................ 457
Assistance Towing ....................... 143
Auto Down Power Windows ................ 44
Auto Up Power Windows .................. 44
Automatic Dimming Mirror ................ 116
Automatic Door Locks ..................... 37
630 INDEX

Lane Change Assist...................... 208
Lap/Shoulder Belts ....................... 61
LATCH
(Lower Anchors and Tether for CHildren) ....... 94
Latches ............................... 107
Hood ............................. 201
Lead Free Gasoline ...................... 491
Leaks, Fluid ........................... 107
Life of Tires ............................ 477
Liftgate ................................ 53
Light Bulbs ............................ 107
Lights ............................. 107,202
Airbag ..................... 82,88,105,297
Alarm ............................ 298
Anti-Lock .......................... 293
Automatic Headlights ................. 205
Back-Up ........................... 597
Battery Saver ....................... 207
Brake Assist Warning .................. 456 Brake Warning
...................... 298
Bulb Replacement ................. 593,594
Center Mounted Stop .................. 598
Daytime Running .................... 206
Dimmer Switch, Headlight .............. 204
Electronic Stability Program (ESP) Indicator . . 456
Engine Temperature Warning ............ 302
Exterior ........................... 107
Fog ......................... 207,290,596
Hazard Warning Flasher ............... 521
Headlight Switch ..................... 205
Headlights On Reminder ............... 206
High Beam Indicator .................. 290
High Beam/Low Beam Select ............ 208
Illuminated Entry ..................... 20
Interior ......................... 203,204
License ............................ 598
Lights On Reminder .................. 206
Low Fuel ....................... 301,310
10
INDEX 639

Malfunction Indicator (Check Engine)...... 295
Oil Pressure ........................ 301
Park ........................... 205,595
Passing ............................ 209
Reading ........................... 233
Rear Servicing ....................... 597
Rear Tail ........................... 597
Seat Belt Reminder ................... 300
Security Alarm (Theft Alarm) ............ 298
Service ......................... 593,594
Service Engine Soon
(Malfunction Indicator) ................ 295
Side Marker ..................... 596,597
SmartBeams ........................ 209
Theft Alarm (Security Alarm) ............ 298
Tire Pressure Monitoring (TPMS) ......... 293
Traction Control ..................... 456
Turn Signal ................... 107,595,597
Voltage ............................ 301 Warning (Instrument Cluster Description) . . . 290
Load Leveling System .................... 274
Loading Vehicle ................... 264,501,503
Capacities .......................... 503
Tires .............................. 466
Locks Automatic Door ...................... 37
Door .............................. 34
Lower Anchors and Tether for
CHildren (LATCH) ....................... 94
Lubrication, Body ....................... 568
Luggage Rack (Roof Rack) ................. 274
Maintenance Free Battery .................. 564
Maintenance Procedures ................... 557
Maintenance Schedule .................... 604
Maintenance, Sunroof ..................... 248
Malfunction Indicator Light (Check Engine) . . 295,555
Manual, Service ......................... 625
640 INDEX

Materials Added to................... 560
Recommendation .................. 559,599
Synthetic .......................... 560
Viscosity ........................ 560,599
Onboard Diagnostic System ..............554,555
Opener, Garage Door (HomeLink®) ........... 236
Operator Manual (Owner’s Manual) ............ 4
Outside Rearview Mirrors ............... 116,117
Overhead Console ....................... 232
Overhead Travel Information Center .......... 232
Overheating, Engine ................... 300,521
Owner’s Manual (Operator Manual) .........4,625
Panic Alarm ............................ 24
Park Sense System, Rear ................... 220
Parking Brake .......................... 447
Pedals, Adjustable ....................... 216
Personal Settings ........................ 320
Pets, Transporting ....................... 100 Phone, Cellular
......................... 129
Phone, Hands-Free (Uconnect™) ............. 129
Placard, Tire and Loading Information ......... 466
Power Door Locks ......................... 36
Lift Gate ........................... 54
Mirrors ............................ 118
Outlet (Auxiliary Electrical Outlet) ........ 248
Seats ............................. 165
Sliding Door ......................... 47
Steering ........................ 446,447
Sunroof ........................... 245
Windows ........................... 42
Power Steering Fluid ..................... 601
Pregnant Women and Seat Belts .............. 75
Preparation for Jacking .................... 530
Pretensioners Seat Belts ........................... 69
Programmable Electronic Features ............ 320
642 INDEX

Schedule, Maintenance.................... 604
Seat Belt Maintenance .................... 584
Seat Belt Reminder ....................... 74
Seat Belts ........................... 57,105
Adjustable Shoulder Belt ................ 66
Adjustable Upper Shoulder Anchorage ...... 66
And Pregnant Women .................. 75
Child Restraint ................... 89,90,91
Extender ........................... 75
Front Seat .......................... 61
Inspection .......................... 105
Pretensioners ........................ 69
Rear Seat ........................... 61
Seats ................................. 164
Adjustment ......................... 170
Fold in Floor (Stow nGo) .............. 176
Heated ............................ 167
Memory ........................... 196
Power ............................ 165 Reclining
.......................... 171
Stow n Go (Fold in Floor) .............. 176
Security Alarm (Theft Alarm) ................ 17
Selection of Coolant (Antifreeze) ..........571,600
Sentry Key (Immobilizer) ................... 15
Sentry Key Programming ................... 16
Sentry Key Replacement ................... 16
Service Assistance ....................... 621
Service Contract ......................... 623
Service Engine Soon Light
(Malfunction Indicator) .................... 295
Service Manuals ........................ 625
Setting the Clock ..................... 329,338
Settings, Personal ........................ 320
Shift Lever Override ...................... 545
Short Message Service (SMS) ................ 151
Shoulder Belts ........................... 61
Side Airbag ............................. 84
Signals, Turn ............. 107,207,208,290,595,597
644 INDEX
