Page 2 of 576

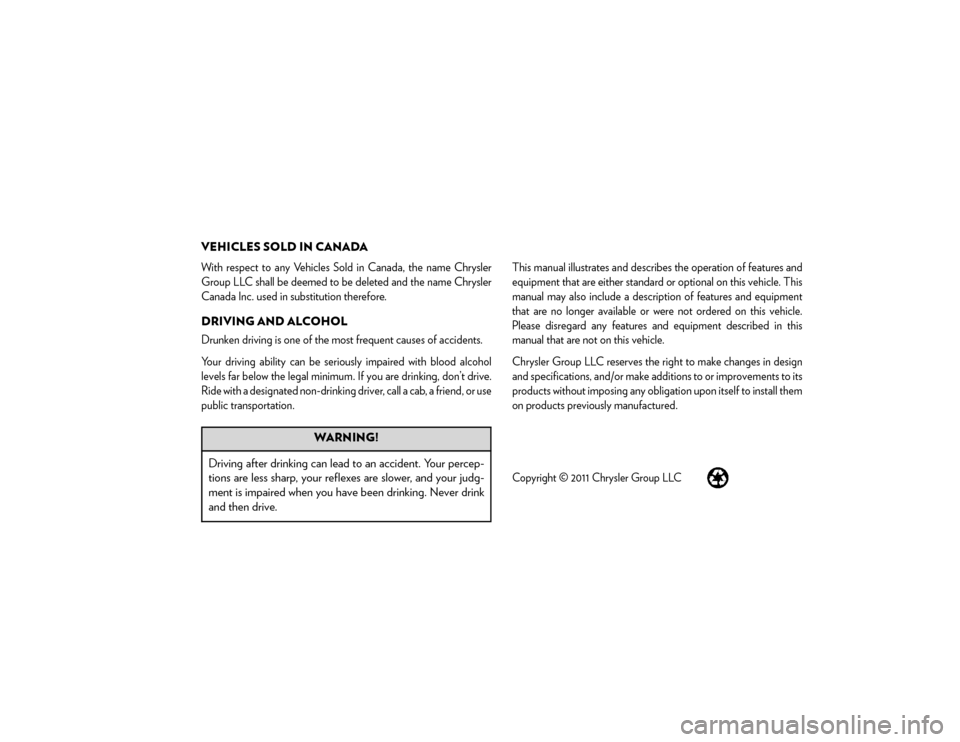

VEHICLES SOLD IN CANADAWith respect to any Vehicles Sold in Canada, the name Chrysler
Group LLC shall be deemed to be deleted and the name Chrysler
Canada Inc. used in substitution therefore.DRIVING AND ALCOHOLDrunken driving is one of the most frequent causes of accidents.
Your driving ability can be seriously impaired with blood alcohol
levels far below the legal minimum. If you are drinking, don’t drive.
Ride with a designated non-drinking driver, call a cab, a friend, or use
public transportation.
WARNING!
Driving after drinking can lead to an accident. Your percep-
tions are less sharp, your reflexes are slower, and your judg-
ment is impaired when you have been drinking. Never drink
and then drive.
This manual illustrates and describes the operation of features and
equipment that are either standard or optional on this vehicle. This
manual may also include a description of features and equipment
that are no longer available or were not ordered on this vehicle.
Please disregard any features and equipment described in this
manual that are not on this vehicle.
Chrysler Group LLC reserves the right to make changes in design
and specifications, and/or make additions to or improvements to its
products without imposing any obligation upon itself to install them
on products previously manufactured.Copyright © 2011 Chrysler Group LLC
Page 5 of 576

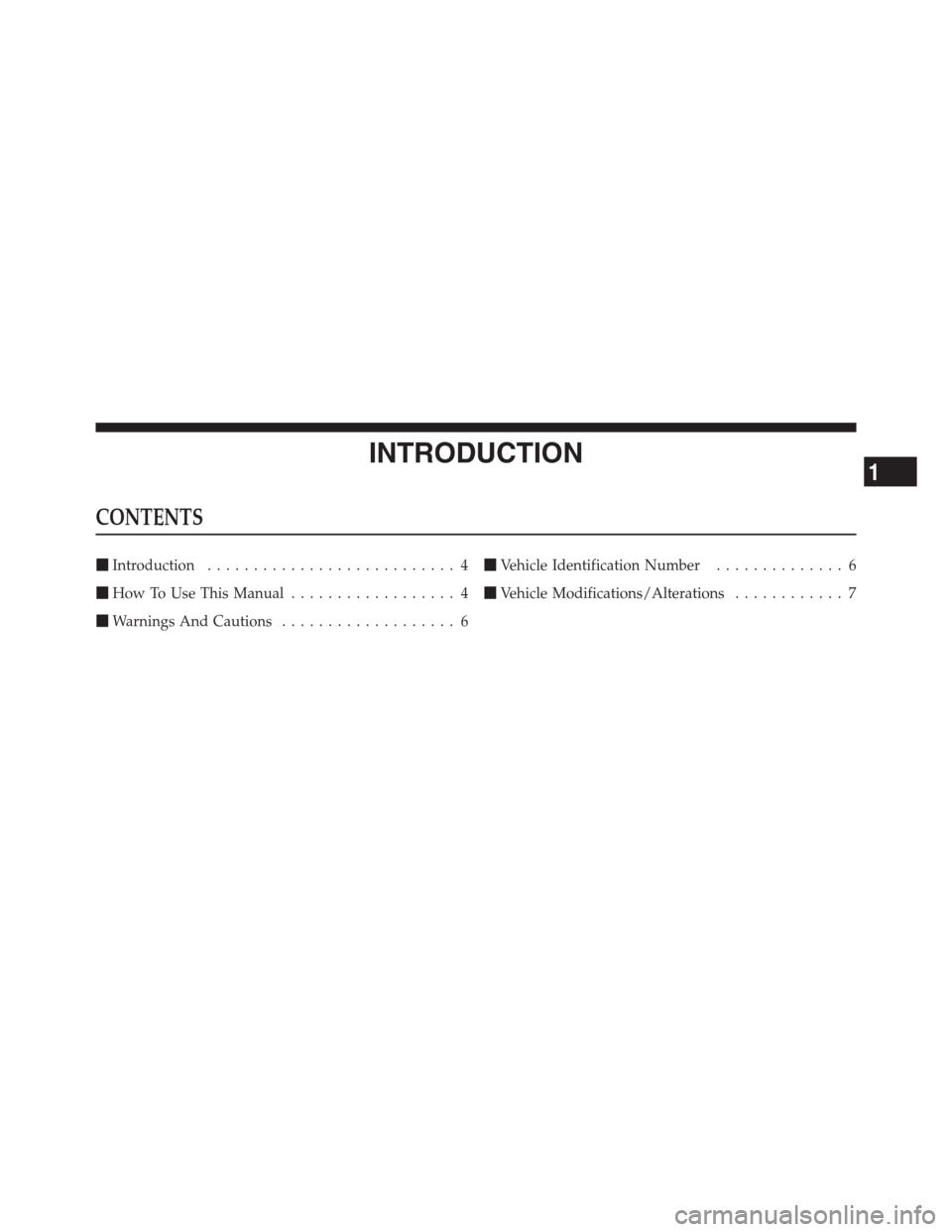

INTRODUCTION
CONTENTS
Introduction........................... 4
How To Use This Manual.................. 4
Warnings And Cautions................... 6Vehicle Identification Number.............. 6
Vehicle Modifications/Alterations............ 7
1
Page 8 of 576
WARNINGS AND CAUTIONS
This Owner’s Manual containsWARNINGSagainst op-
erating procedures that could result in a collision or
bodily injury. It also containsCAUTIONSagainst proce-
dures that could result in damage to your vehicle. If you
do not read this entire manual, you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is on the left
front corner of the instrument panel. The VIN is visible
from outside of the vehicle through the windshield. This
number also appears on the Automobile Information
Disclosure Label affixed to a window on your vehicle, the
vehicle registration, and the title.
VIN Location
6 INTRODUCTION
Page 9 of 576
The vehicle identification number (VIN) is also located
on the right front strut tower inside the engine compart-
ment.
NOTE:It is illegal to remove or alter the VIN.VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to a collision resulting in serious injury or
death.
1
INTRODUCTION 7
Page 12 of 576

▫Programming Additional Transmitters...... 24
▫Transmitter Battery Replacement.......... 25
▫General Information................... 26
Remote Starting System — If Equipped....... 26
▫How To Use Remote Start............... 27
Door Locks........................... 29
▫Manual Door Locks................... 29
▫Power Door Locks.................... 31
▫Child-Protection Door Lock System —
Rear Doors.......................... 32
Keyless Enter-N-Go™................... 34
Windows............................ 38
▫Power Windows...................... 38▫Wind Buffeting....................... 41
Trunk Lock And Release................. 41
Trunk Safety Warning................... 42
▫Trunk Emergency Release............... 43
Occupant Restraints..................... 43
▫Lap/Shoulder Belts.................... 47
▫Lap/Shoulder Belt Untwisting Procedure.... 52
▫Seat Belts In Passenger Seating Positions..... 52
▫Automatic Locking Retractor Mode (ALR) —
If Equipped......................... 53
▫Energy Management Feature............. 54
▫Seat Belt Pretensioner.................. 54
▫Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 55
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 17 of 576

Ignition Or Accessory On Message
Opening the driver’s door when the ignition is in ACC or
ON (engine not running), a chime will sound to remind
you to cycle the ignition to OFF. In addition to the chime,
the ignition or accessory on message will display in the
cluster.
NOTE:With the Uconnect Touch™ system, the power
window switches, radio, power sunroof (if equipped),
and power outlets will remain active for up to 10 minutes
after the ignition is cycled to the OFF position. Opening
either front door will cancel this feature. The time for this
feature is programmable. Refer to “Uconnect Touch™
Settings” in “Understanding Your Instrument Panel” for
further information.WARNING!
•When leaving the vehicle, always remove the key
fob from the ignition and lock your vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
•Do not leave the key fob in or near the vehicle, and
do not leave Keyless Enter-N-Go in the ACC or
ON/RUN mode. A child could operate power win-
dows, other controls, or move the vehicle.
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
Page 29 of 576
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Shift lever in PARK
•Doors closed
•Hood closed
•Trunk closed
•HAZARD switch off
•BRAKE switch inactive (brake pedal not pressed)
•Battery at an acceptable charge level
•RKE PANIC button not pressed.
•System not disabled from previous remote start event
•Vehicle theft alarm not active
•Ignition in OFF position
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon Monoxide is poisonous and can cause serious
injury or death when inhaled.
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
Page 32 of 576
If the door lock knob is down when you shut the door,
the door will lock. Therefore, make sure the Key Fob is
not inside the vehicle before closing the door.
WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors before you drive as
well as when you park and leave the vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
(Continued)
WARNING! (Continued)
•Do not leave the key fob in or near the vehicle, and
do not leave Keyless Enter-N-Go in the ACC or
ON/RUN mode. A child could operate power win-
dows, other controls, or move the vehicle.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
