Black plate (34,1)Chevrolet Volt Owner Manual - 2012
10-34 Vehicle Care
Engine Compartment
Fuse Block
To open the fuse block cover, press
the clips at the front and back and
rotate the cover up to the side.
Notice:Spilling liquid on any
electrical component on the
vehicle may damage it. Always
keep the covers on any electrical
component.
Engine Compartment Fuse Block
A fuse puller is located in the engine
compartment fuse block.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown. Mini Fuses Usage
1 Engine Control
Module
–Switched
Power
2 Emissions
3 Not Used

Black plate (37,1)Chevrolet Volt Owner Manual - 2012
Vehicle Care 10-37
J‐CaseFuses Usage
28 Empty
29 Empty
30 Antilock Brake
System Motor
42 Cooling Fan –Right
43 Front Wipers
44 Charger
45 Empty
48 Cooling Fan –Left Mini Relays Usage
3 Powertrain
4 Heated Mirrors
7 Empty
9 AIR Pump
(PZEV Only)
11 Empty
12 Empty
13 Empty
14 Run/Crank Micro
Relays Usage
1 Empty
2 AIR Solenoid
(PZEV Only)
6 Empty
8 Empty
10 Empty
Ultra Micro Relays Usage
5 Charge Port Door

Black plate (38,1)Chevrolet Volt Owner Manual - 2012
10-38 Vehicle Care
Instrument Panel Fuse
Block (Left Side)
The left instrument panel fuse block
is on the left side end of the
instrument panel. To access the
fuses, open the fuse panel door by
pulling out.
To reinstall the door, insert the
bottom tab first, then push the door
back into its original location.
Instrument Panel Fuse Block
A fuse puller is located in the engine
compartment fuse block.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown. Fuses Usage
F1 Power Outlet
–Top
of IP Storage Bin
F2 Radio Fuses Usage
F3 Instrument Cluster
F4 Infotainment Display
F5 Heating, Ventilation
& Air Conditioning/
Integrated Center
Stack Switches
F6 Airbag (Sensing
Diagnostic Module/
Passenger Sensing
Module)

Black plate (39,1)Chevrolet Volt Owner Manual - 2012
Vehicle Care 10-39
FusesUsage
F7 Data Link
Connector, Left
(Primary)
F8 Empty
F9 OnStar
F10 Body Control
Module 1/Body
Control Module
Electronics/Keyless
Entry/Power Moding/
Center High
Mounted Stoplamp/
License Plate
Lamps/Left Daytime
Running Lamp/Left
Parking Lamps/
Hatch Release
Relay Control/
Washer Pump Relay
Control/Switch
Indicator Lights Fuses
Usage
F11 Body Control
Module 4/Left
Headlamp
F12 Empty
F13 Empty
F14 Empty
F15 Power Outlet (Inside
Floor Console/Rear
of Floor Console)
F16 Empty
F17 Empty
F18 Empty Relays
Usage
R1 Retained Accessory
Power Relay for
Power Outlets
R2 Empty
R3 Empty
R4 Empty
Diodes Usage DIODE Empty

Black plate (40,1)Chevrolet Volt Owner Manual - 2012
10-40 Vehicle Care
Instrument Panel Fuse
Block (Right Side)
The right instrument panel fuse
block is on the right side end of the
instrument panel. To access the
fuses, open the fuse panel door by
pulling out.
To reinstall the door, insert the
bottom tab first, then push the door
back into its original location.
Instrument Panel Fuse Block
A fuse puller is located in the engine
compartment fuse block.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown. Fuses Usage
F1 Steering Wheel
Switch Backlighting
F2 Empty
F3 Empty Fuses Usage
F4 Body Control
Module 3/Right
Headlamp
F5 Body Control
Module 2/Body
Control Module
Electronics/Hatch
Lamp/Right Daytime
Running Lamp/
Shifter Lock/Switch
Backlighting

Black plate (41,1)Chevrolet Volt Owner Manual - 2012
Vehicle Care 10-41
FusesUsage

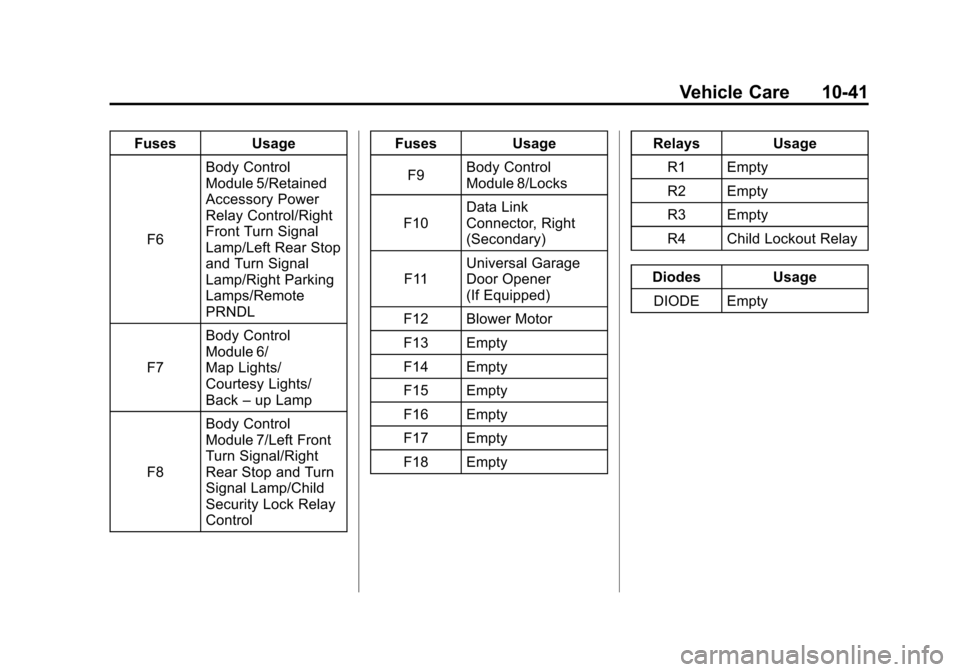

F6 Body Control
Module 5/Retained
Accessory Power
Relay Control/Right
Front Turn Signal
Lamp/Left Rear Stop
and Turn Signal
Lamp/Right Parking
Lamps/Remote
PRNDL
F7 Body Control
Module 6/
Map Lights/
Courtesy Lights/
Back
–up Lamp
F8 Body Control
Module 7/Left Front
Turn Signal/Right
Rear Stop and Turn
Signal Lamp/Child
Security Lock Relay
Control Fuses
Usage
F9 Body Control
Module 8/Locks
F10 Data Link
Connector, Right
(Secondary)
F11 Universal Garage
Door Opener
(If Equipped)
F12 Blower Motor
F13 Empty
F14 Empty
F15 Empty
F16 Empty
F17 Empty
F18 Empty Relays
Usage
R1 Empty
R2 Empty
R3 Empty
R4 Child Lockout Relay
Diodes Usage DIODE Empty

Black plate (42,1)Chevrolet Volt Owner Manual - 2012
10-42 Vehicle Care
Rear Compartment Fuse
Block
The rear compartment fuse block is
on the left side of the rear
compartment behind a removable
cover. Open the latch to remove the
cover and access the fuse block.
A fuse puller is located in the engine
compartment fuse block.
The vehicle may not have all of the
fuses, relays, and features shown.Fuses Usage
F1 Empty
F2 Fuel System Control
Module Fuses
Usage
F3 Passive Start/
Passive Entry
Module
F4 Heated Seats
(If Equipped)
