Black plate (47,1)Chevrolet Tahoe/Suburban Owner Manual - 2012
Driving and Operating 9-47

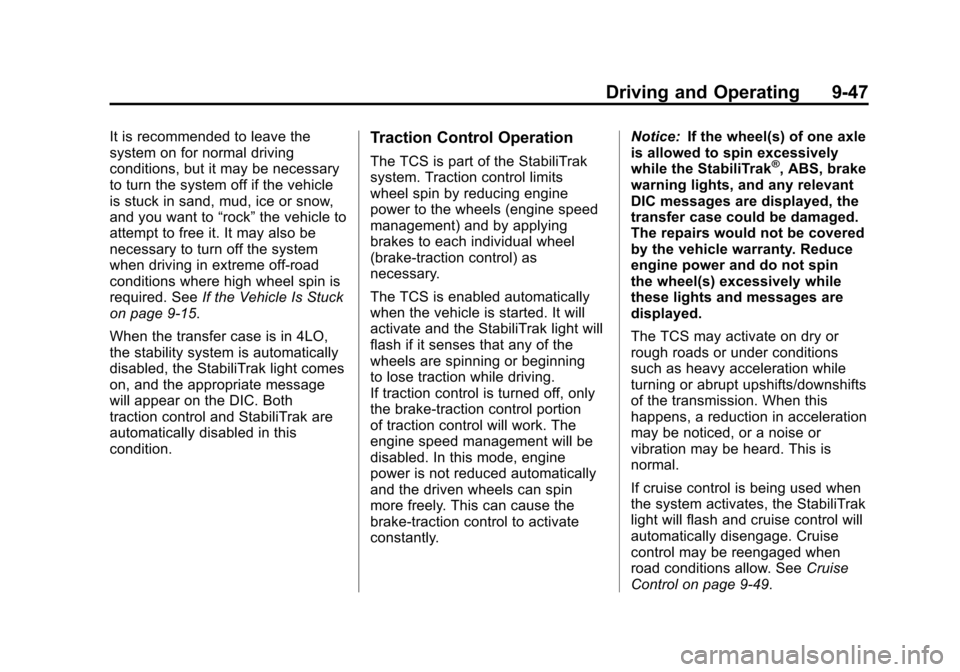

It is recommended to leave the
system on for normal driving
conditions, but it may be necessary
to turn the system off if the vehicle
is stuck in sand, mud, ice or snow,
and you want to“rock”the vehicle to
attempt to free it. It may also be
necessary to turn off the system
when driving in extreme off-road
conditions where high wheel spin is
required. See If the Vehicle Is Stuck
on page 9‑15.
When the transfer case is in 4LO,
the stability system is automatically
disabled, the StabiliTrak light comes
on, and the appropriate message
will appear on the DIC. Both
traction control and StabiliTrak are
automatically disabled in this
condition.Traction Control Operation
The TCS is part of the StabiliTrak
system. Traction control limits
wheel spin by reducing engine
power to the wheels (engine speed
management) and by applying
brakes to each individual wheel
(brake-traction control) as
necessary.
The TCS is enabled automatically
when the vehicle is started. It will
activate and the StabiliTrak light will
flash if it senses that any of the
wheels are spinning or beginning
to lose traction while driving.
If traction control is turned off, only
the brake-traction control portion
of traction control will work. The
engine speed management will be
disabled. In this mode, engine
power is not reduced automatically
and the driven wheels can spin
more freely. This can cause the
brake-traction control to activate
constantly. Notice:
If the wheel(s) of one axle
is allowed to spin excessively
while the StabiliTrak®, ABS, brake
warning lights, and any relevant
DIC messages are displayed, the
transfer case could be damaged.
The repairs would not be covered
by the vehicle warranty. Reduce
engine power and do not spin
the wheel(s) excessively while
these lights and messages are
displayed.
The TCS may activate on dry or
rough roads or under conditions
such as heavy acceleration while
turning or abrupt upshifts/downshifts
of the transmission. When this
happens, a reduction in acceleration
may be noticed, or a noise or
vibration may be heard. This is
normal.
If cruise control is being used when
the system activates, the StabiliTrak
light will flash and cruise control will
automatically disengage. Cruise
control may be reengaged when
road conditions allow. See Cruise
Control on page 9‑49.

Black plate (53,1)Chevrolet Tahoe/Suburban Owner Manual - 2012
Driving and Operating 9-53
Other conditions may affect
system performance, such as
vibrations from a jackhammer or
the compression of air brakes on a
very large truck.
Side Blind Zone
Alert (SBZA)
If available, the Side Blind Zone
Alert system is a lane changing aid
that assists drivers with avoiding
crashes that occur with vehicles in
the side blind zones.
{WARNING
SBZA does not detect vehicles
rapidly approaching outside of the
side blind zones, pedestrians,
bicyclists, or animals. Failure to
use proper care when changing
lanes may result in injury, death,
or vehicle damage. Always check
for other vehicles and use the
turn signals when changing lanes.
SBZA Detection Zones
The SBZA sensor covers a zone of
approximately one lane over from
both sides of the vehicle, 3.5 m
(11 ft). This zone starts at each side
mirror and goes back approximately
5.0 m (16 ft). The height of the
zone is approximately between
0.5 m (1.5 ft) and 2.0 m (6 ft) off the
ground.
Use caution while changing lanes
when towing a trailer, as the SBZA
detection zones do not change
when a trailer is towed.How the System Works
The SBZA symbol lights up in the
side mirrors when the system
detects a vehicle in the side blind
zone, indicating it may be unsafe to
change lanes. Before making a lane
change, check the SBZA display,
check all mirrors, glance over your
shoulder, and use the turn signals.
Left Side Mirror
DisplayRight Side Mirror Display
When the vehicle is started,
both outside mirror SBZA
displays will briefly come on to
indicate the system is operating.
When the vehicle is moving
forward, the left or right side mirror
display will light up if a vehicle
is detected in that blind zone.

Black plate (5,1)Chevrolet Tahoe/Suburban Owner Manual - 2012
INDEX i-5
FluidAutomatic Transmission . . . . .10-11
Brakes . . . . . . . . . . . . . . . . . . . . . . 10-25
Four-Wheel Drive
Transfer Case . . . . . . . . . 9-36, 9-41
Power Steering . . . . . . . . . . . . . 10-22
Washer . . . . . . . . . . . . . . . . . . . . . 10-23
Fog Lamps Bulb Replacement . . . . . . . . . . . . . 6-6
Folding Mirrors . . . . . . . . . . . . . . . . 2-17
Four-Wheel Drive . . . . . . . . . . . . 9-36, 9-41, 10-27
Front Axle . . . . . . . . . . . . . . . . . . . . 10-27
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . 3-3
Heated and Ventilated . . . . . . . . . 3-9
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-60 Additives . . . . . . . . . . . . . . . . . . . . . 9-61
E85 (85% Ethanol) . . . . . . . . . . . 9-62
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 9-65 Fuel (cont'd)
Filling the Tank . . . . . . . . . . . . . . . 9-63
Fuels in Foreign Countries . . . . 9-61
Gasoline Specifications . . . . . . . 9-60
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 5-12
Low Fuel Warning Light . . . . . . . 5-24
Management, Active . . . . . . . . . . 9-28
Recommended . . . . . . . . . . . . . . . 9-60
Requirements, California . . . . . 9-61
System Messages . . . . . . . . . . . . 5-39
Fuel Economy Driving . . . . . . . . . . . . . . . . . . . . . . . . 1-27
Full-Size Spare Tire . . . . . . . . . . 10-81
Fuses Engine CompartmentFuse Block . . . . . . . . . . . . . . . . 10-37
Fuses and Circuit Breakers . . . . . . . . . . . . . . . . . . 10-37
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . 10-41G
Garage Door Opener . . . . . . . . . . 5-53Programming . . . . . . . . . . . . . . . . . 5-53
Gasoline Specifications . . . . . . . . . . . . . . . . . 9-60
Gauges Engine Coolant
Temperature . . . . . . . . . . . . . . . . 5-14
Engine Oil Pressure . . . . . . . . . . 5-13
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
Odometer . . . . . . . . . . . . . . . . . . . . . 5-12
Speedometer . . . . . . . . . . . . . . . . . 5-12
Tachometer . . . . . . . . . . . . . . . . . . . 5-12
Trip Odometer . . . . . . . . . . . . . . . . 5-12
Voltmeter . . . . . . . . . . . . . . . . . . . . . 5-15
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 5-10
General Information Service and Maintenance . . . . . 11-1
Towing . . . . . . . . . . . . . . . . . . . . . . . . 9-65
Vehicle Care . . . . . . . . . . . . . . . . . . 10-2

Black plate (7,1)Chevrolet Tahoe/Suburban Owner Manual - 2012
INDEX i-7
Lap Belt . . . . . . . . . . . . . . . . . . . . . . . 3-27
Lap-Shoulder Belt . . . . . . . . . . . . . 3-21
LATCH SystemReplacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . 3-60
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . 3-53
Level Control Automatic . . . . . . . . . . . . . . . . . . . . . 9-48
Liftgate Carbon Monoxide . . . . . . . . 2-9, 2-10
Light StabiliTrak
®OFF . . . . . . . . . . . . . 5-22
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Illumination Control . . . . . . . . . . . . 6-7
Lights Airbag Readiness . . . . . . . . . . . . . 5-16
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 5-22
Brake System Warning . . . . . . . 5-21
Charging System . . . . . . . . . . . . . 5-18 Lights (cont'd)
Cruise Control . . . . . . . . . . . . . . . . 5-25
Engine Oil Pressure . . . . . . . . . . 5-24
Flash-to-Pass . . . . . . . . . . . . . . . . . . 6-3
Front Fog Lamp . . . . . . . . . . . . . . 5-25
High-Beam On . . . . . . . . . . . . . . . . 5-25
High/Low Beam Changer . . . . . . 6-2
Low Fuel Warning . . . . . . . . . . . . 5-24
Safety Belt Reminders . . . . . . . . 5-15
Security . . . . . . . . . . . . . . . . . . . . . . 5-24
Tire Pressure . . . . . . . . . . . . . . . . . 5-23
Tow/Haul Mode . . . . . . . . . . . . . . . 5-22
Traction Control System
(TCS)/StabiliTrak®. . . . . . . . . . 5-23
Locking Rear Axle . . . . . . . . . . . . . 9-48
Locks Automatic Door . . . . . . . . . . . . . . . . 2-8
Delayed Locking . . . . . . . . . . . . . . . 2-8
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Lockout Protection . . . . . . . . . . . . . 2-8
Power Door . . . . . . . . . . . . . . . . . . . . 2-8
Safety . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Loss of Control . . . . . . . . . . . . . . . . . 9-5 Low Fuel Warning Light . . . . . . . . 5-24
Lower Anchors and Tethers
for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . 3-53
Lumbar Adjustment . . . . . . . . . . . . . 3-4 Front Seats . . . . . . . . . . . . . . . . . . . . 3-4
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . .11-15
Maintenance Schedule Recommended Fluidsand Lubricants . . . . . . . . . . . . .11-12
Transfer Case . . . . . . . . . . 9-36, 9-41
Malfunction Indicator Lamp . . . . 5-18
Manual Mirrors . . . . . . . . . . . . . . . . 2-16
Manual Mode . . . . . . . . . . . . . . . . . . 9-34
Memory Features . . . . . . . . . . . . . . 1-10
Memory Seats . . . . . . . . . . . . . . . . . . 3-7
Messages Airbag System . . . . . . . . . . . . . . . . 5-42
Anti-theft Alarm System . . . . . . . 5-42
Battery Voltage andCharging . . . . . . . . . . . . . . . . . . . . 5-35
Brake System . . . . . . . . . . . . . . . . 5-35
Door Ajar . . . . . . . . . . . . . . . . . . . . . 5-36

Black plate (13,1)Chevrolet Tahoe/Suburban Owner Manual - 2012
INDEX i-13
Towing (cont'd)Recreational Vehicle . . . . . . . . 10-87
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 9-70
Trailer Sway Control (TSC) . . . 9-84
Vehicle . . . . . . . . . . . . . . . . . . . . . 10-87
Traction Control System (TCS)/StabiliTrak
®Light . . . . . . . . . . . . 5-23
Trailer
Sway Control (TSC) . . . . . . . . . . 9-84
Tow Mirrors . . . . . . . . . . . . . . . . . . . 2-17
Trailer Towing . . . . . . . . . . . . . . . . . 9-70
Transfer Case . . . . . . . . . . . 9-36, 9-41
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 9-31
Fluid, Automatic . . . . . . . . . . . . .10-11
Messages . . . . . . . . . . . . . . . . . . . . 5-43
Transportation Program,
Courtesy . . . . . . . . . . . . . . . . . . . . 13-13
Trip Odometer . . . . . . . . . . . . . . . . . 5-12
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Turn Signal
Bulb Replacement . . . . . . . . . . 10-34
U
Ultrasonic Parking Assist . . . . . . 9-51
Uniform Tire QualityGrading . . . . . . . . . . . . . . . . . . . . . 10-61
Universal Remote System . . . . . 5-53 Operation . . . . . . . . . . . . . . . . . . . . . 5-58
Programming . . . . . . . . . . . . . . . . . 5-53
Using This Manual . . . . . . . . . . . . . . . . iv
V
Vehicle Canadian Owners . . . . . . . . . . . . . . . iii
Control . . . . . . . . . . . . . . . . . . . . . . . . 9-4
IdentificationNumber (VIN) . . . . . . . . . . . . . . . 12-1
Load Limits . . . . . . . . . . . . . . . . . . . 9-16
Messages . . . . . . . . . . . . . . . . . . . . 5-35
Personalization . . . . . . . . . . . . . . . 5-45
Reminder Messages . . . . . . . . . . 5-44
Remote Start . . . . . . . . . . . . . . . . . . 2-5
Security . . . . . . . . . . . . . . . . . . . . . . 2-13
Towing . . . . . . . . . . . . . . . . . . . . . . 10-87
Vehicle Care
Tire Pressure . . . . . . . . . . . . . . . 10-52 Vehicle Identification
Service Parts Identification
Label . . . . . . . . . . . . . . . . . . . . . . . . 12-1
Ventilation, Air . . . . . . . . . . . . . . . . . 8-13
Visors . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
Voltmeter Gauge . . . . . . . . . . . . . . 5-15
W
Warning Brake System Light . . . . . . . . . . . 5-21
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . 5-10
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . iv
Cautions and Danger . . . . . . . . . . . .iv
Hazard Flashers . . . . . . . . . . . . . . . 6-5
Washer Fluid . . . . . . . . . . . . . . . . . 10-23
Washer Fluid Messages . . . . . . . 5-45
Wheels Alignment and TireBalance . . . . . . . . . . . . . . . . . . . 10-63
Different Size . . . . . . . . . . . . . . . 10-61
Replacement . . . . . . . . . . . . . . . 10-63
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 10-58
