Black plate (59,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Driving and Operating 9-59
transmission. Turn the wheels
into the curb if facing downhill or
into traffic if facing uphill.
2. Have someone place chocks under the trailer wheels.
3. When the wheel chocks are in place, release the brake pedal
until the chocks absorb the load.
4. Reapply the brake pedal. Then apply the parking brake and shift
into P (Park) for vehicles with an
automatic transmission or into
gear for vehicles with a manual
transmission.
5. Release the brake pedal.
Leaving After Parking on a Hill
1. Apply and hold the brake pedal while you:
1.1. Start the engine.
1.2. Shift into a gear.
1.3. Release the parking brake.
2. Let up on the brake pedal. 3. Drive slowly until the trailer is
clear of the chocks.
4. Stop and have someone pick up and store the chocks.
Maintenance When Trailer
Towing
The vehicle needs service more
often when pulling a trailer. See this
manual's Maintenance Schedule or
Index for more information. Things
that are especially important in
trailer operation are automatic
transmission fluid, engine oil, axle
lubricant, belts, cooling system, and
brake system. It is a good idea to
inspect these before and during
the trip.
Check periodically to see that all
hitch nuts and bolts are tight.
Engine Cooling When Trailer
Towing
The cooling system may temporarily
overheat during severe operating
conditions. See Engine Overheating
on page 10‑23.
Trailer Towing (CTS-V and
Coupe)
The vehicle is neither designed nor
intended to tow a trailer.
Trailer Towing (Except
CTS-V and Coupe)
Before pulling a trailer, there are
three important considerations that
have to do with weight:
.The weight of the trailer.
.The weight of the trailer tongue.
.The total weight on the vehicle's
tires.
Weight of the Trailer
How heavy can a trailer safely be?
It should never weigh more than
450 kg (1,000 lbs). But even that
can be too heavy.
Speed, altitude, road grades,
outside temperature, special
equipment, and the amount of
tongue weight the vehicle can carry

Black plate (61,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Driving and Operating 9-61
Towing Equipment
Hitches
Use the correct hitch equipment.
See your dealer or a hitch dealer for
assistance.
.The rear bumper on the vehicle
is not intended for hitches. Do
not attach rental hitches or other
bumper-type hitches to it. Use
only a frame-mounted hitch that
does not attach to the bumper.
.Will any holes be made in the
body of the vehicle when the
trailer hitch is installed? If there
are, seal the holes when the
hitch is removed. If the holes are
not sealed, dirt, water, and
deadly carbon monoxide (CO)
from the exhaust can get into the
vehicle. SeeEngine Exhaust on
page 9‑26.
Safety Chains
Always attach chains between the
vehicle and the trailer. Cross the
safety chains under the tongue of
the trailer to help prevent the tongue
from contacting the road if it
becomes separated from the hitch.
Leave enough slack so the rig can
turn. Never allow safety chains to
drag on the ground.
Trailer Brakes
Does the trailer have its own
brakes? Be sure to read and follow
the instructions for the trailer brakes
so they are installed, adjusted, and
maintained properly.
Because the vehicle has antilock
brakes, do not tap into the vehicle's
brake system. If this is done, both
brake systems will not work well,
or at all.
Conversions and
Add-Ons
Add-On Electrical
Equipment
Notice: Do not add anything
electrical to the vehicle unless
you check with your dealer first.
Some electrical equipment can
damage the vehicle and the
damage would not be covered by
the vehicle's warranty. Some
add-on electrical equipment can
keep other components from
working as they should.
Add-on equipment can drain the
vehicle's 12‐volt battery, even if the
vehicle is not operating.
The vehicle has an airbag system.
Before attempting to add anything
electrical to the vehicle, see
Servicing the Airbag-Equipped
Vehicle on page 3‑32 andAdding
Equipment to the Airbag-Equipped
Vehicle on page 3‑32.

Black plate (1,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Vehicle Care 10-1
Vehicle Care
General Information
General Information . . . . . . . . . . 10-3
California Proposition 65Warning . . . . . . . . . . . . . . . . . . . . 10-3
California Perchlorate Materials Requirements . . . . 10-3
Accessories and Modifications . . . . . . . . . . . . . . . 10-3
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 10-4
Hood . . . . . . . . . . . . . . . . . . . . . . . . 10-5
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . 10-6
Engine Cover . . . . . . . . . . . . . . . . 10-9
Engine Oil . . . . . . . . . . . . . . . . . . 10-10
Engine Oil Life System . . . . . 10-12
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . 10-14
Manual Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . 10-14 Hydraulic Clutch . . . . . . . . . . . . 10-14
Engine Air Cleaner/Filter . . . . 10-15
Cooling System . . . . . . . . . . . . 10-18
Engine Coolant . . . . . . . . . . . . . 10-18
Engine Overheating . . . . . . . . 10-23
Overheated Engine
Protection
Operating Mode . . . . . . . . . . . 10-24
Power Steering Fluid . . . . . . . 10-24
Washer Fluid . . . . . . . . . . . . . . . 10-25
Brakes . . . . . . . . . . . . . . . . . . . . . 10-26
Brake Fluid . . . . . . . . . . . . . . . . . 10-27
Battery . . . . . . . . . . . . . . . . . . . . . 10-29
All-Wheel Drive . . . . . . . . . . . . . 10-30
Starter Switch Check . . . . . . . 10-30
Automatic Transmission Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . 10-31
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . 10-31
Park Brake and P (Park) Mechanism Check . . . . . . . . 10-32
Wiper Blade Replacement . . . . . . . . . . . . . . 10-32
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . 10-34
Bulb Replacement
Bulb Replacement . . . . . . . . . . 10-37
Halogen Bulbs . . . . . . . . . . . . . . 10-37
High Intensity Discharge(HID) Lighting . . . . . . . . . . . . . 10-37
Fog Lamps . . . . . . . . . . . . . . . . . 10-37
License Plate Lamp (Coupe and Sedan) . . . . . . . . . . . . . . . 10-38
License Plate Lamp (Wagon) . . . . . . . . . . . . . . . . . . 10-38
Replacement Bulbs . . . . . . . . . 10-39
Electrical System
Electrical System Overload . . . . . . . . . . . . . . . . . . 10-39
Fuses and Circuit Breakers . . . . . . . . . . . . . . . . . . 10-40
Engine Compartment Fuse Block (CTS Coupe and
Sedan) . . . . . . . . . . . . . . . . . . . . 10-40
Engine Compartment Fuse Block (CTS V Coupe and
Sedan) . . . . . . . . . . . . . . . . . . . . 10-44

Black plate (2,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
10-2 Vehicle Care
Engine Compartment FuseBlock (CTS Wagon) . . . . . . . 10-47
Engine Compartment Fuse Block (CTS V Wagon) . . . . . 10-51
Rear Compartment Fuse
Block (CTS Coupe and
Sedan) . . . . . . . . . . . . . . . . . . . . 10-54
Rear Compartment Fuse Block (CTS-V Coupe and
Sedan) . . . . . . . . . . . . . . . . . . . . 10-56
Rear Compartment Fuse Block (CTS Wagon) . . . . . . . 10-58
Rear Compartment Fuse Block (CTS-V Wagon) . . . . . 10-60
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . 10-63
Winter Tires . . . . . . . . . . . . . . . . 10-64
Low-Profile Tires . . . . . . . . . . . 10-64
Tire Sidewall Labeling . . . . . . 10-65
Tire Designations . . . . . . . . . . . 10-67
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . 10-68 Tire Pressure . . . . . . . . . . . . . . . 10-70
Tire Pressure for High-Speed
Operation . . . . . . . . . . . . . . . . . 10-72
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . 10-72
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . 10-73
Tire Inspection . . . . . . . . . . . . . . 10-76
Tire Rotation . . . . . . . . . . . . . . . 10-77
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . 10-78
Buying New Tires . . . . . . . . . . . 10-79
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . 10-80
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . 10-81
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . 10-82
Wheel Replacement . . . . . . . . 10-82
Tire Chains . . . . . . . . . . . . . . . . . 10-83
If a Tire Goes Flat . . . . . . . . . . 10-84
Tire Sealant and Compressor Kit . . . . . . . . . . . 10-86 Storing the Tire Sealant and
Compressor Kit
(Wagon) . . . . . . . . . . . . . . . . . . 10-93
Storing the Tire Sealant and Compressor Kit
(Coupe) . . . . . . . . . . . . . . . . . . . 10-94
Storing the Tire Sealant and Compressor Kit
(Sedan) . . . . . . . . . . . . . . . . . . . 10-94
Tire Changing . . . . . . . . . . . . . . 10-95
Compact Spare Tire . . . . . . . 10-103
Jump Starting
Jump Starting . . . . . . . . . . . . . 10-104
Towing
Towing the Vehicle . . . . . . . . 10-108
Recreational Vehicle Towing . . . . . . . . . . . . . . . . . . . 10-108
Appearance Care
Exterior Care . . . . . . . . . . . . . . 10-110
Interior Care . . . . . . . . . . . . . . . 10-113
Floor Mats . . . . . . . . . . . . . . . . . 10-116

Black plate (3,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Vehicle Care 10-3
General Information
For service and parts needs, visit
your dealer. You will receive
genuine GM parts and GM-trained
and supported service people.
Genuine GM parts have one of
these marks:
California Proposition 65
Warning
Most motor vehicles, including this
one, contain and/or emit chemicals
known to the State of California to
cause cancer and birth defects or
other reproductive harm. Engine
exhaust, many parts and systems,
many fluids, and some component
wear by-products contain and/or
emit these chemicals.
California Perchlorate
Materials Requirements
Certain types of automotive
applications, such as airbag
initiators, seat belt pretensioners,
and lithium batteries contained in
Remote Keyless Entry transmitters,
may contain perchlorate materials.
Special handling may be necessary.
For additional information, see
www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Accessories and
Modifications
Adding non‐dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
airbags, braking, stability, ride and
handling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered
by the vehicle warranty.
Damage to vehicle components
resulting from modifications or the
installation or use of non‐GM
certified parts, including control
module or software modifications, is
not covered under the terms of the
vehicle warranty and may affect
remaining warranty coverage for
affected parts.

Black plate (6,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
10-6 Vehicle Care

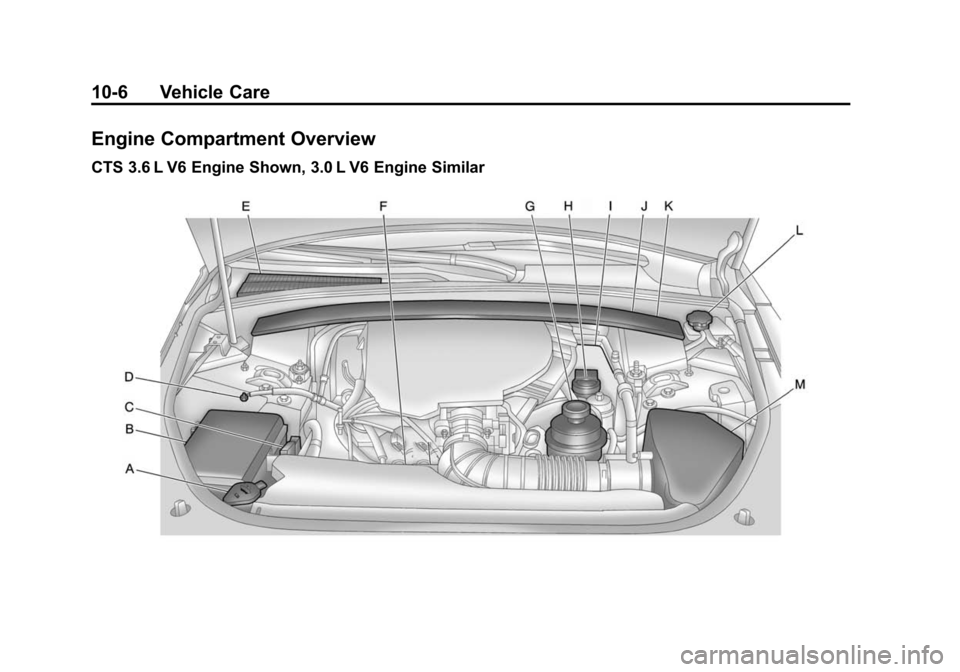

Engine Compartment Overview
CTS 3.6 L V6 Engine Shown, 3.0 L V6 Engine Similar

Black plate (7,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
Vehicle Care 10-7
A. Windshield Washer FluidReservoir. See Washer Fluid on
page 10‑25.
B. Engine Compartment Fuse
Block (CTS Coupe and Sedan)
on page 10‑40 orEngine
Compartment Fuse Block
(CTS V Coupe and Sedan) on
page 10‑44 orEngine
Compartment Fuse Block
(CTS Wagon) on page 10‑47 or
Engine Compartment Fuse
Block (CTS V Wagon) on
page 10‑51.
C. Remote Positive (+) Terminal. See Jump Starting on
page 10‑104. D. Remote Negative (−) Terminal.
See Jump Starting on
page 10‑104.
E. Passenger Compartment Air Filter. See Passenger
Compartment Air Filter on
page 8‑6.
F. Engine Cooling Fan (Out of View). See Cooling System on
page 10‑18.
G. Power Steering Fluid Reservoir. See Power Steering Fluid on
page 10‑24.
H. Engine Oil Fill Cap. See Engine
Oil on page 10‑10. I. Engine Oil Dipstick (Out of
View). See Engine Oil on
page 10‑10.
J. Hydraulic Clutch Reservoir (If Equipped) (Not Shown). See
Hydraulic Clutch on page 10‑14.
K. Brake Master Cylinder Reservoir (Out of View).
See Brakes on page 10‑26.
L. Engine Coolant Surge Tank and Pressure Cap. See Engine
Coolant on page 10‑18.
M. Engine Air Cleaner/Filter on
page 10‑15.

Black plate (8,1)Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012
10-8 Vehicle Care
CTS-V 6.2 L V8 Engine
