267
Care
Mobility
Automatic transmission
Before driving into an
automatic car wash, per-
form the following steps to ensure that the vehi-
cle can roll:
1. Insert the remote cont rol into the ignition
lock, even with Comfort Access.
2. Move the selector lever to position N.
3. Release the parking brake.
4. Switch off the engine.
5. Leave the remote control in the ignition lock
so that the vehicle can roll.
Sport automatic transmission with
double clutch
Before driving into an automatic car wash, per-
form the following steps to ensure that the vehi-
cle can roll:
1. Insert the remote cont rol into the ignition
lock, even with Comfort Access.
2. Engage transmission position N.
3. Release the parking brake.
4. Switch off the engine.
5. Leave the remote control in the ignition lock
so that the vehicle can roll.
The transmission is switched into position P:
> Automatically after approx. 30 minutes
> If you remove the infrared remote control
from the ignition lock
Steam jets/high-pressure washers
When using steam jets or high-pressure
washers, make sure to maintain sufficient
distance from the vehicle and do not exceed a
temperature of 140 7/60 6.
Insufficient clearance or excessive pressure or
temperature can lead to component damage or
water penetration. Follow the operating instruc-
tions of the high-pressure washer. <
When using high-pressure washers, do
not spray the sensors, e.g. of the Park
Distance Control, for an extended period and maintain a distance of at least 1 ft/30 cm from
them.
<
Manual car wash
When washing the vehicle by hand, use large
quantities of water an d car shampoo if neces-
sary. Clean the vehicle with a sponge or wash-
ing brush, applying light pressure only.
Before cleaning the windshield, deacti-
vate the rain sensor or switch off the igni-
tion to prevent unintentional activation of the
wipers. <
Observe local regulations pertaining to
washing vehicles by hand. <
Headlamps
Do not rub them dry and do not use abrasive or
corrosive cleaning agents.
Loosen dirt, e.g. insects, with shampoo or
insect remover and wash away with copious
quantities of water.
Thaw ice with a windshield deicer and do not
use an ice scraper.
Windows
Clean the inside and outside surfaces of the
windows and the mirrors with window cleaner.
Do not clean the mirrors with cleaners
containing quartz. <
Convertible: retractable hardtop
Proceed as you would in a normal car wash.
When you open a wet hardtop, water
drops may run into the cargo area. If nec-
essary, remove items from the cargo area
beforehand to avoid water stains or soiling. <
Paintwork care
Regular care contributes to value retention and
protects the paintwork against the long-term
effects of damaging substances.
Region-specific environmental influences can
damage the vehicle paintwork. Therefore, it is
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG

268
MobilityCare
important to adapt the frequency and scope of
car care accordingly.
Immediately remove aggressive materials such
as spilled fuel, oil, grease , brake fluid, tree sap or
bird droppings to prevent damage to the paint-
work.
Repairing paintwork damage
Immediately repair sc ratches or similar
damage, such as that caused by stones
hitting the vehicle, where necessary to prevent
rusting. <
BMW recommends having paintwork damage
repaired by a professional paint repair work-
shop according to BMW specifications using
original BMW paint materials.
Preservation
A preservation treatment is necessary when
water no longer beads off the clean paintwork
surface. Only use produc ts for paintwork pres-
ervation that contain carnauba or synthetic
waxes.
Rubber seals
Treat only with water or rubber care products.
Do not use silicon-con taining care prod-
ucts on rubber seals; otherwise, noise
and damage could occur. <
Chrome parts
Carefully clean vehicle parts such as the radia-
tor grill, door handles or window frames with
copious quantities of water and a shampoo
additive, especially when roads are treated with
deicing salt. For additional treatment, use a
chrome polish.
Light-alloy wheels
For technical reasons, dust is generated during
braking that is deposited on the light-alloy
wheels. Remove the dust regularly using acid-
free rim cleaner. Do not use aggressive, acidic, strongly
alkaline, or abrasive cleaning agents and
do not use steam jets hotter than of 140 7/
60 6; otherwise, damage may occur. <
Outside sensors/cameras
Keep the sensors and cameras on the
outside of the vehicle, e.g. those for Park
Distance Control, clean and free of ice to ensure
that they remain fully functional. <
Interior care
Upholstery fabrics/cloth trims/
Alcantara fabrics
Vacuum regularly with a vacuum cleaner to
remove superficial dirt.
To remove severe spots such as stains from
beverages, use a soft sponge or lint-free
microfiber cloth and suitable interior cleaners.
Follow the instructions on the packaging.
Clean the upholstery down to the seams
using a sweeping motion. Avoid strong
rubbing. <
Opened Velcro fasteners on pants or
other articles of clothing can damage the
seat covers. Ensure that Velcro fasteners are
closed. <
Leather/leather trim
The leather used by BM W is a high quality
natural product. Slight irregularities in the
leather are a typical char acteristic of natural
leather.<
Dust and road grit in the pores and folds of the
leather have an abrasive effect, leading to
increased wear and caus ing the leather surface
to become brittle prematurely. Therefore, fre-
quently clean the leather of dust using a cloth or
vacuum cleaner.
Clean light-colored leathe r more frequently as
dust and dirt are more noticeable.
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG

269
Care
Mobility
Treat the leather at least once every two
months using a leather lotion as dirt and grease
will gradually attack th
e leather's protective
layer.
Carpet and floor mats
Keep floor mats, carpet, and other objects
out of the movement range of the pedals;
otherwise, they may inhi bit the function of the
pedals during driving.
Do not place additional fl oor mats onto an exist-
ing one or onto other objects.
Only use floor mats that have been approved for
the vehicle and can be appropriately fastened.
Make sure that the floo r mats are securely fas-
tened again after they ha ve been removed, e.g.
for cleaning. <
Interior plastic parts
>Imitation leather surfaces
> Lamp glasses
> Display pane of instrument cluster
> Matte parts
Clean with water and solvent-free plastic
cleaner if necessary.
Fine wood parts
Clean fine wood trim and fine wood parts with a
damp cloth. Wipe dry with a soft cloth.
Safety belts
Dirty belt straps impede the reeling action and
thus have a negative impact on safety. Do not clean chemically, as this may
destroy the webbing. <
Interior sensors/cameras
To clean interior sensor s and cameras, e.g. of
the High-beam Assistant, use a lint-free cloth
moistened with glass cleaner.
Displays
To clean displays, e.g. of the radio or instrument
cluster, use a cleaning cloth for displays or a
soft, non-abrasive, lint-free cloth.
Avoid applying excessive pressure when
cleaning the displays; otherwise, damage
may occur. <
Do not use chemical or abrasive house-
hold cleaning agents. Keep all types of
fluid away from the device. Otherwise, surfaces
or electrical components may be corroded or
damaged. <
CD/DVD drives
Do not use a cleaning CD, as it may dam-
age parts of the drive. <
Vehicle storage
If you plan to park your vehicle for longer than
three months, your BMW center will be happy
to advise you.
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG

298
ReferenceEverything from A to Z
Everything from A to Z
Index
A
ABS Antilock Brake
System 97
ACC, refer to Active Cruise Control 75
Acceleration assistant, refer to Launch Control 70
Accessories, refer to Vehicle
equipment 5
Accident, refer to Sending an Emergency Request 276
Activated-charcoal filter for automatic climate
control 120
Active Cruise Control 75
– indicator lamp 78
– malfunction 79
– selecting distance 77
– sensor 78
Active steering 105
Adaptive brake lamp
– Brake Force Display 106
Adaptive Light Control 112
Additives
– coolant 263
– engine oil 262
Address, entering 150,156
Address for navigation
– entering 150
Adjusting temperature inside the car, refer to Automatic
climate control 117
Adjusting the thigh support 49
Airbags 107
– indicator/warning lamp 108
– sitting safely 47
Air conditioning mode
– automatic climate control 117
– ventilation 119 Air distribution
– automatic
118
Airing, refer to Ventilation 119
Air pressure, refer to Tire inflation pressure 239
Air recirculation, refer to
Recirculated air mode 118
Air supply
– automatic climate
control 117
– ventilation 119
Air vents 116
Air volume 118
AKI, refer to Fuel grade 237
Alarm system 37
– avoiding unintentional alarms 38
– interior motion sensor 38
– switching off an alarm 37
– tilt alarm sensor 37
ALL program 119
All-season tires, refer to Winter tires 258
All-wheel drive, refer to xDrive 99
Ambient

air, refer to
Recirculated air mode 118
Antifreeze
– coolant 263
– washer fluid 72
Antilock Brake System ABS 97
Anti-theft alarm system, refer to Alarm system 37
Appointments, refer to
Calendar 223
Approved axle loads, refer to Weights 287
Approved engine oils 262
Approved gross vehicle weight, refer to Weights 287Apps
232
Armrest, refer to Center armrest 126
Arrival time, refer to Computer 84
Ashtray 128
Assist systems, refer to Driving stability control 97
AUC Automatic recirculated
air control 118
Audible instructions, refer to Voice instructions 161
Audio device, external 127
Automatic
– air distribution 118
– air volume 118
– cruise control 73,75
– headlamp control 110
Automatic car washes 266
Automatic climate control 116
Automatic curb monitor 55
Automatic high beams and low beams, refer to High-
beam Assistant 113
Automatic recirculated air control AUC 118
Automatic Service Request 232
Automatic transmission with
Steptronic 64
– interlock 64
– overriding selector lever
lock 66
– shiftlock, refer to Changing selector lever position 64
– sport program 65
– towing 279
– tow-starting 279
AUTO program for automatic climate control 118
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG

300
ReferenceEverything from A to Z
Car care, refer to Care 266
Care 266
– automatic car washes 266
– care products 266
– carpets 269
– CD/DVD drives 269
– chrome parts 268
– displays 269
– exterior 266
– fine wood parts 269
– headlamps 267
– high-pressure washer 267
– interior 268
– leather 268
– light-alloy wheels 268
– paintwork 267
– plastic parts 269
– retractable hardtop 267
– rubber seals 268
– safety belts 269
– sensors and cameras 269
– upholstery and cloth
trim 268
– washing the car manually 267
– windows 267
Cargo, securing 143
Cargo area
– capacity 287
– Comfort Access 39
– folding up the floor
panel 132
– lamp, refer to Interior lamps 114
– opening from inside 35
– opening from outside 36
Cargo loading 141
– securing cargo 143
– stowing cargo 142
– vehicle 141
Car jack
– jacking points 274
Car key, refer to Integrated
key/remote control 30Car phone
– installation location, refer to
Center armrest 126
– refer to separate Owner's Manual
Car phone, refer to Telephone 204
Car shampoo 269
Catalytic converter, refer to Hot exhaust system 140
Center armrest 126
Center brake lamp
– replacing bulb 273
Center console, refer to
Around the center
co
nsole 14
Central locking
– from inside 35
– from outside 31
Central locking system 31
– Comfort Access 38
– hotel function 36
– setting unlocking characteristics 32
Changes, technical, refer to
For your own safety 5
Changing bulbs, refer to Lamps and bulbs 270
Changing gears 68
Changing the language on the Control Display 94
Changing the measurement units on the Control
Display 87
Changing wheels 273
Chassis number, refer to Engine compartment 259
Check Control 92
Child restraint fixing system LATCH 58
Child restraint systems 57
Child seats, refer to Transporting children
safely 57
Chrome parts 269
Chrome polish 269 Cigarette lighter, refer to
Lighter 129
Cleaning headlamps 72
– washer fluid 72
Cleaning your BMW, refer to
Care 266
Climate control
– automatic air
distribution 118
Clock 82
– 12h/24h mode 91
– setting the time and date 90
– setting time 90
Closing
– from inside 35
– from outside 32
Clothes hooks 127
Cockpit 10
Cold start, refer to Starting the
engine 62
Comfort Access 38
– replacing the battery 40
Comfort access, refer to Comfort Access 38
Comfort area, refer to Around
the center console 14
Compartment for remote control, refer to Ignition
lock 61
Compass 124
Computer 84
– displays on Control Displa
y84
Computer, refer to iDrive 18
Concierge service 229
Condensation, refer to When the vehicle is parked 141
Condition Based Service CBS 264
Configuring settings, refer to
Personal Profile 30
Confirmation signal for vehicle locking/unlocking 33
ConnectedDrive 228
Connecting vacuum cleaner, refer to Connecting
electrical appliances 129
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG

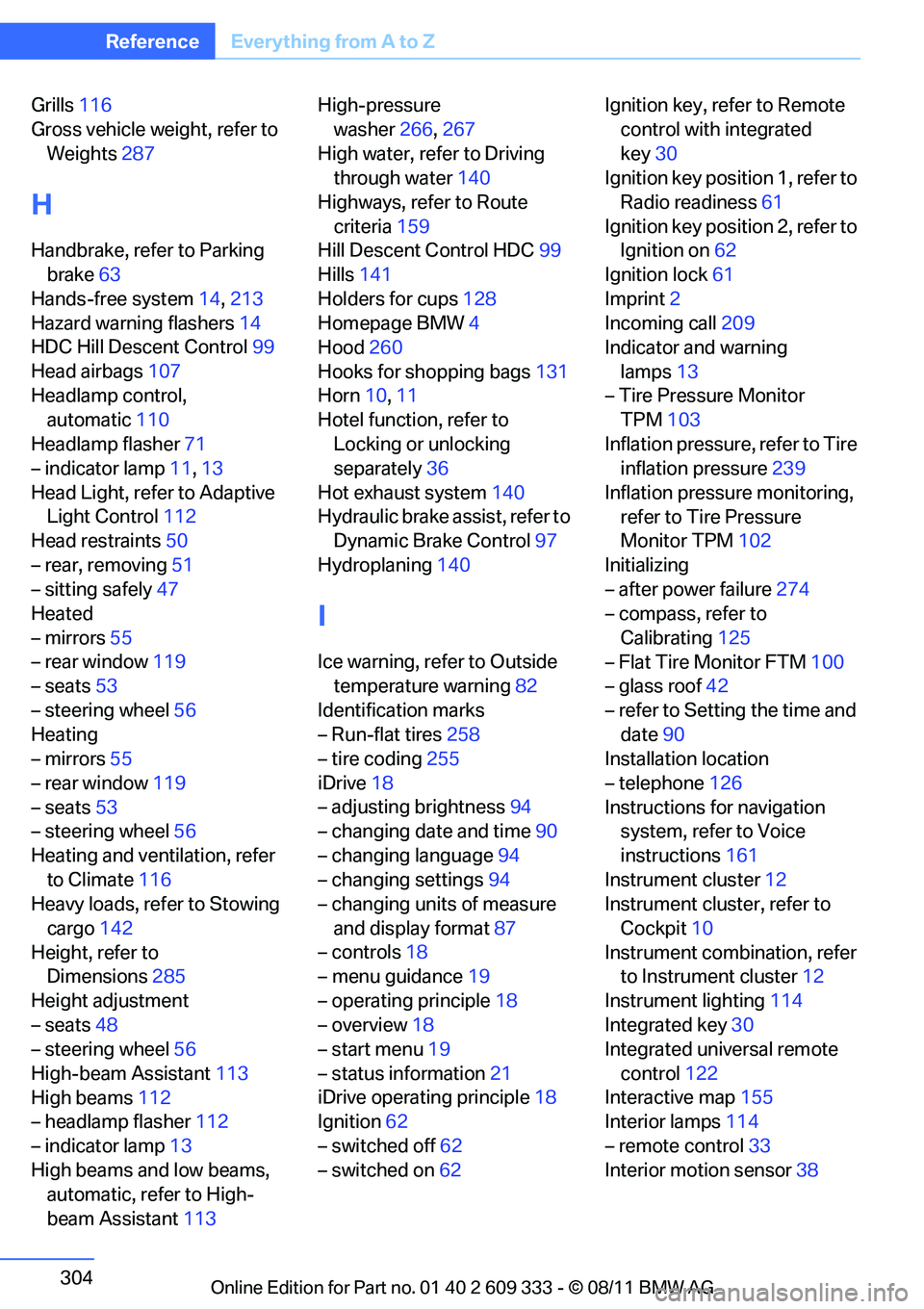

304
ReferenceEverything from A to Z
Grills116
Gross vehicle weight, refer to
Weights 287
H
Handbrake, refer to Parking
brake 63
Hands-free system 14,213
Hazard warning flashers 14
HDC Hill Descent Control 99
Head airbags 107
Headlamp control, automatic 110
Headlamp flasher 71
– indicator lamp 11,13
Head Light, refer to Adaptive Light Control 112
Head restraints 50
– rear, removing 51
– sitting safely 47
Heated
– mirrors 55
– rear window 119
– seats 53
– steering wheel 56
Heating
– mirrors 55
– rear window 119
– seats 53
– steering wheel 56
Heating and ventilation, refer to Climate 116
Heavy loads, refer to Stowing
cargo 142
Height, refer to Dimensions 285
Height adjustment
– seats 48
– steering wheel 56
High-beam Assistant 113
High beams 112
– headlamp flasher 112
– indicator lamp 13
High beams and low beams, automatic, refer to High-
beam Assistant 113High-pressure
washer 266,267
High water, refer to Driving through water 140
Highways, refer to Route
criteria 159
Hill Descent Control HDC 99
Hills 141
Holders for cups 128
Homepage BMW 4
Hood 260
Hooks for shopping bags 131
Horn 10,11
Hotel function, refer to
Lo
cking or unlocking
separately 36
Hot exhaust system 140
Hydraulic brake assist, refer to Dynamic Brake Control 97
Hydroplaning 140
I
Ice warning, refer to Outside
temperature warning 82
Identification marks
– Run-flat tires 258
– tire coding 255
iDrive 18
– adjusting brightness 94
– changing date and time 90
– changing language 94
– changing settings 94
– changing units of measure
and display format 87
– controls 18
– menu guidance 19
– operating principle 18
– overview 18
– start menu 19
– status information 21
iDrive operating principle 18
Ignition 62
– switched off 62
– switched on 62 Ignition key, refer to Remote
control with integrated
key 30
Ignition key position 1, refer to Radio readiness 61
Ignition key position 2, refer to Ignition on 62
Ignition lock 61
Imprint 2
Incoming call 209
Indicator and warning
lamps 13
– Tire Pressure Monitor TPM 103
Inflation pressure, refer to Tire inflation pressure 239
Inflation pressure monitoring, refer to Tire Pressure
Monitor TPM 102
Initializing
– after power failure 274
– compass, refer to
Calibrating 125
– Flat Tire Monitor FTM 100
– glass roof 42
– refer to Setting the time and
date 90
Installation location
– telephone 126
Instructions for navigation system, refer to Voice
instructions 161
Instrument cluster 12
Instrument cluster, refer to
Cockpit 10
Instrument combination, refer to Instrument cluster 12
Instrument lighting 114
Integrated key 30
Integr

ated universal remote
control 122
Interactive map 155
Interior lamps 114
– remote control 33
Interior motion sensor 38
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG

307
Everything from A to Z
Reference
Number of cylinders, refer to
Engine data 284
Nylon rope, refer to Tow rope 280
O
OBD socket, refer to Socket
for Onboard Diagnosis 265
Octane ratings, refer to Fuel specifications 237
Odometer 82
Office 217
– current office 217
– what to do if…. 225
Oil, refer to Engine oil 260
Oil consumption 260
Oil level 260
Old batteries, refer to
Disposal 275
Onboard vehicle tool kit 270
Opening and closing
– Comfort Access 38
– from inside 35
– from outside 32
– using the door lock 34
– using the remote control 32
Opening and closing
retractable hardtop 44
Options, selecting for navigation 159
Orientation menu, refer to Start menu 19
Outlets
– refer to Ventilation 119
Output, refer to Engine data 284
Outside-air mode
– automatic climate control 118
Outside temperature display 82
– changing unit of measure 87
– in computer 87
Outside temperature warning 82 Overheated engine, refer to
Coolant temperature 263
Overriding selector lever lock 66
P
Paintwork care 267
Park assistant, refer to Park Distance Control 96
Park Distance Control PDC 96
Parked car ventilation 120
– preselecting switch-on times 120
– switching on and off directly 120
Parking
– vehicle 63
Parking aid, refer to Park
Distance Control PDC 96
Parking brake 63
– indicator lamp 63
Parking lamps 110
– replacing bulbs 271
Parking lamps/low beams 110
Parts and accessories, refer to Vehicle equipment 5
Passenger side mirror tilt
function 55
Pathway lighting 111
Personal information, refer to
Office 217
Personal Profile 30
Phone numbers
– dialing 210
Pinch protection system
– glass roof, electric 42
– windows 41
Polish 269
Pollen
– refer to Microfilter/activated- charcoal filter for automatic
climate control 120
Power failure 274
Power windows 40 Power windows, refer to
Windows 40
Pressure, tires 239
Pressure monitoring, tires 100
– Flat Tire Monitor 100
Pressure monitoring of tires, refer to Tire Pressure
Monitor TPM 102
Programmable buttons on the steering wheel 11
Programmable memory
keys 23
Protection function, refer to Pinch protection system
– glass roof, electric 42
– windows 41
Providing medical assistance, refer to First aid pouch 277
Puncture
– Flat Tire Monitor 100
R
Radio position, refer to Radio
readiness 61
Radio readiness 61
– switched off 62
– switched on 61
Radio-remote key, refer to Remote control with
integrated key 30
Rain sensor 72
Reading aloud 225
Reading lamps 115
Rear lamps, refer to Tail lamps 272
Rear seats
– adjusting head restraints 51
– folding down backrests 130
Rear ventilation 120
Rearview mirror, refer to Mirrors 55
Rear window defroster 119
Rear window roller blind, refer to Roller sunblinds 126
Recirculated air mode 118
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG

310
ReferenceEverything from A to Z
Stability control, refer to
Driving stability control
systems 97
Start/Stop button 61
– starting the engine 62
– switching off the engine 63
Starting, refer to Starting the engine 62
Starting assistance, refer to Jump-starting 278
Starting difficulties
– jump-starting 278
Starting the engine
– Start/Stop button 61
Start menu 19
State/province, for
navigation 150
Status information on the Control Display 21
Status of this Owner's Manual at time of printing 5
Steam jet 266,267
Steering wheel 56
– adjustment 56
– buttons on steering
wheel 11
– heating 56
– lock 61
– locking with Comfort Access 39
– shift paddles 68
Steering wheel buttons, refer to Shift paddles 68
Steering with variable ratio,
refer to Active steering 105
Steptronic, refer to Automatic transmission with
Steptronic 64
Storage 269
Storage compartments 127
Storage nets 131
Stored trip, calling up 158
Storing a destination in the
address book 152
Storing seat positions, refer to Seat and mirror memory 53Storing tires
258
Stowage, refer to Storage
compartments 127
Street, entering, navigation 151
Suitable mobile phones 204
Summer tires, refer to Wheels and tires 239
Switches, refer to Cockpit 10
Switching off
– engine 63
Switching off the engine
– Start/Stop button 61
Switching the cooling function
on and off 119
Switch-on times of parked car
ventilation, preselecting 120
Symbols 4
T
Tachometer 83
Tailgate, refer to Trunk lid 35
Tail lamp, refer to Tail lamps 272
Tail lamps 272
– replacing bulb 272,273
Tank contents, refer to
Capacities 289
Tasks 223
Technical data 284
– dimensions 285
Technical modifications, refer to For your own safety 5
Telephone 204
– hands-free system 213
– installation location, refer to
Center armrest 126
– phone book 212
– received calls 213
– redialing 212
– refer to separate Owner's Manual
– voice commands 214
TeleService 229
Teleservice Diagnosis 230Temperature
– automatic climate
control 117
– changing unit of measure 87
– coolant, refer to Coolant
temperature 263
Temperature display
– outside temperature 82
– outside temperature warning 82
– setting the units 87
Tempomat, refer to Cruise control 73
Tensioning straps, refer to
Securing cargo 143
Text message 221
Third brake lamp, refer to Center brake lamp 273
Through-loading opening with
integrated transport
bag 133
Through-loading system 130
Tilt alarm sensor 37
Tilt function, passenger side mirror 55
Timer, refer to Preselecting switch-on times 120
Tire inflation pressure 239
– loss 101,102
Tire pressure monitoring, refer to Flat Tire
Monitor 100
Tire Pressure Monitor TPM 102
– resetting the system 103
– system limitatio
ns102
– warning lamp 103
Tire puncture, refe r to Flat Tire
Monitor 101
Tire Quality Grading 255
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG
