2012 BMW M3 CONVERTIBLE sensor

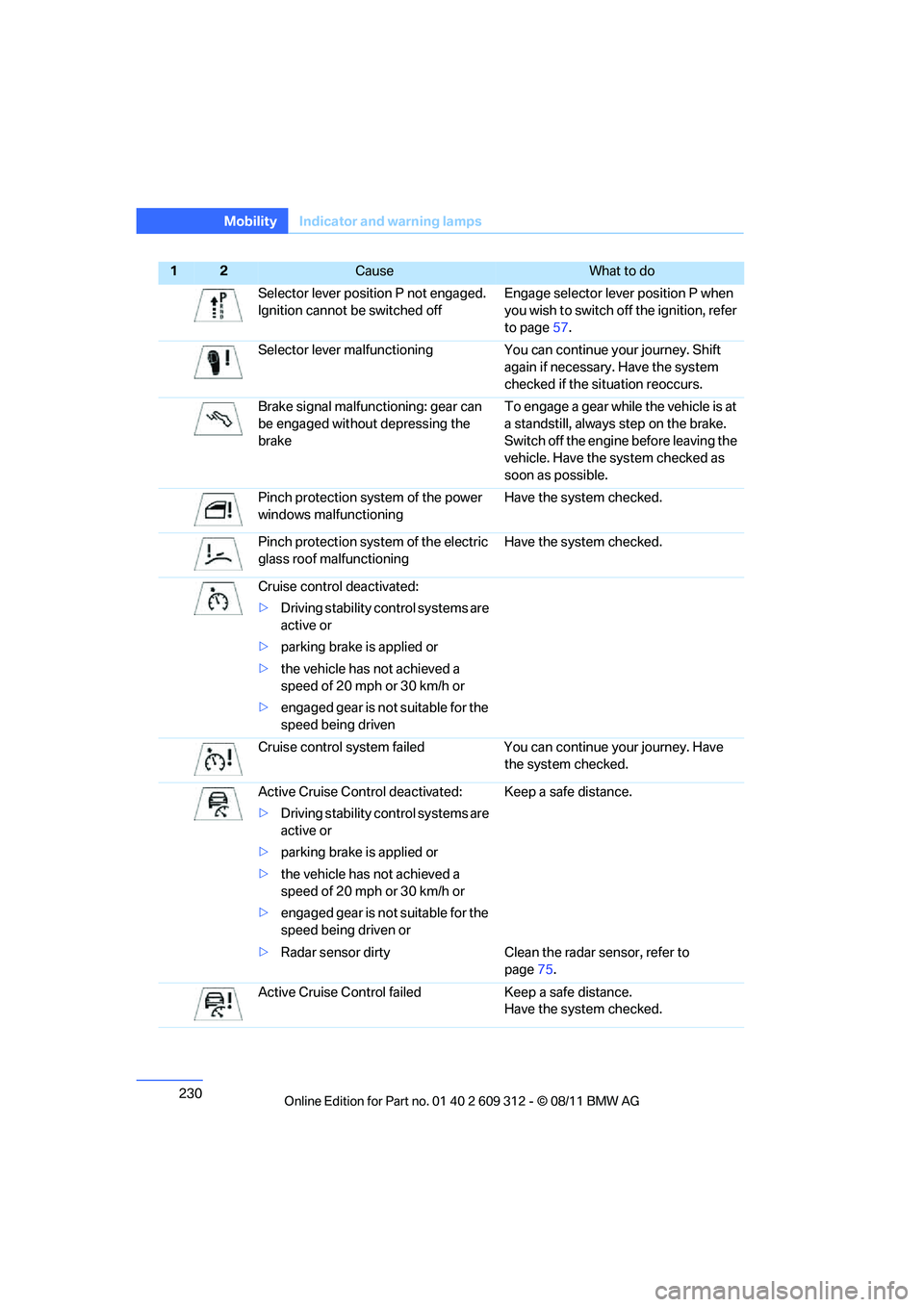

230
MobilityIndicator and warning lamps
Selector lever positi on P not engaged.
Ignition cannot be switched off Engage selector lever position P when
you wish to switch o
ff the ignition, refer
to page 57.
Selector lever malfunctioning You ca n continue your journey. Shift
again if necessary. Have the system
checked if the situation reoccurs.
Brake signal malfunctioning: gear can
be engaged without depressing the
brake To engage a gear while the vehicle is at
a standstill, always step on the brake.
Switch off the engine before leaving the
vehicle. Have the system checked as
soon as possible.
Pinch protection system of the power
windows malfunctioning Have the system checked.
Pinch protection system of the electric
glass roof malfunctioning Have the system checked.
Cruise control deactivated:
> Driving stability control systems are
active or
> parking brake is applied or
> the vehicle has not achieved a
speed of 20 mph or 30 km/h or
> engaged gear is not suitable for the
speed being driven
Cruise control system failed You ca n continue your journey. Have
the system checked.
Active Cruise Co ntrol deactivated:
> Driving stability control systems are
active or
> parking brake is applied or
> the vehicle has not achieved a
speed of 20 mph or 30 km/h or
> engaged gear is not suitable for the
speed being driven or Keep a safe distance.
> Radar sensor dirty Clean the radar sensor, refer to
page75.
Active Cruise Control fa iled Keep a safe distance.
Have the system checked.
12Cause What to do
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

231
Indicator and warning lamps
Mobility
Park Distance Control faile
d Have the system checked.
> High-beam Assistant inactive Clean the sensor field on the front of the
interior rearview mirror, refer to
page 106.
> High-beam Assistant malfunction-
ing Have the system checked by the near-
est BMW center.
> Sensitivity of the High-beam Assis-
tant has been changed There is a risk that oncoming traffic may
be blinded. Have the system checked
by the nearest BMW center.
Bulb of exterior lighting system failed Have the exterior lighting checked as soon as possible.
Low-beam headlamp or fo g lamp failed Have the low beams checked as soon
as possible.
High-beam headlamp failed Hav e the high-beam headlamps
checked.
Adaptive Light Control failed
Coolant level too low Add coolant immediately, refer to page200.
Engine oil pressure too low Stop immediately and switch off the
engine. You cannot co ntinue your jour-
ney. Contact your BMW center.
Engine oil level too low Add engi ne oil immediately; refer to
page 198 for more information.
Lights up in red:
Service appointment overdue Arr ange a service appointment.
Check service requirements, refer to
page 84.
Lights up in yellow:
Service due Arrange a service appointment.
Check service requirements, refer to
page 84.
No service due Check servic e requirements, refer to
page 84.
Time and date no longer correct Set the time and date, refer to page86.
12Cause What to do
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

240
ReferenceEverything from A to Z
Everything from A to Z
Index
A
ABS Antilock Brake
System 90
ACC, refer to Active Cruise Control 71
Acceleration assistant, refer to Launch Control 66
Accessories, refer to Vehicle
equipment 5
Accident, refer to Sending an Emergency Request 214
Activated-charcoal filter for automatic climate
control 115
Active Cruise Control 71
– indicator lamp 74
– malfunction 75
– selecting distance 73
– sensor 75
Active steering 97
Adaptive brake lamp
– Brake Force Display 98
Adaptive Light Control 105
Additives
– coolant 200
– engine oil 200
Adjusting temperature inside the car, refer to Air
conditioner 110
Adjusting temperature inside the car, refer to Automatic
climate control 112
Adjusting the thigh support 44
Airbags 99
– indicator/warning lamp 101
– sitting safely 42
Air conditioner 109 Air conditioning mode
– air conditioner
110
– automatic climate
control 112
– ventilation 111,114
Air distribution
– automatic 113
– individual 110
– manual 110
Airing, refer to Ventilation 111,114
Air outlets, refer to Air
vents 110
Air pressure, refer to Tire inflation pressure 177
Air recirculation, refer to Recirculated air
mode 110,113
Air supply
– air conditioner 110
– automatic climate control 112
– ventilation 111,114
Air vents 110
Air volume 110,11
3
AKI, refer to Fuel grade 175
Alarm system 32
– avoiding unintentional alarms 33
– interior motion sensor 33
– switching off an alarm 32
– tilt alarm sensor 33
ALL program 114
All-season tires, refer to Winter tires 196
All-wheel drive, refer to xDrive 92 Ambient air, refer to
Recirculated air
mode 110,113
AM waveband 144
Antifreeze
– coolant 200
– washer fluid 69
Antilock Brake System ABS 90
Anti-theft alarm system, refer to Alarm system 32
Approved axle loads, refer to
Weights 237
Approved engine oils 200
Approved gross vehicle
weight, refer to Weights 237
Armrest, refer to Center armrest 120
Ashtray 122
Assist systems, refer to
Driving stability control 90
AUC Automatic recirculated air control 113
Audio device, external 121
Automatic
– air distribution 113
– air volume 113
– cruise control 69,71
– headlamp control 103
Automatic car washes 204
Automatic climate control 109
Automatic curb monitor 51
Automatic high beams and low beams, refer to High-
beam Assistant 106
Automatic recirculated air control AUC 113
Automatic station search 144
Automatic station storage 144
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

242
ReferenceEverything from A to Z
C
California Proposition 65
warning 6
Call
– accepting 160
– ending 161
– rejecting 161
Calling, refer to Phone numbers, dialing 161
Calling, refer to Telephone
owner's manual
Can holders, refer to Cupholders 121
Capacities 239
Capacity of the cargo area 237
Car battery, refer to Vehicle battery 212
Car care, refer to Care 204
Care 204
– automatic car washes 204
– care products 204
– carpets 207
– CD/DVD drives 207
– chrome parts 206
– displays 207
– exterior 204
– fine wood parts 207
– headlamps 205
– high-pressure washer 205
– interior 206
– leather 206
– light-alloy wheels 206
– paintwork 205
– plastic parts 207
– retractable hardtop 205
– rubber seals 206
– safety belts 207
– sensors and cameras 207
– upholstery and cloth
trim 206
– washing the car manually 205
– windows 205
Cargo, securing 137 Cargo area
– capacity
237
– Comfort Access 34
– folding up the floor panel 125
– lamp, refer to Interior lamps 107
– opening from inside 31
– opening from outside 31
Cargo loading 135
– securing cargo 137
– stowing cargo 136
– vehicle 135
Car jack
– jacking points 212
Ca
r key, refer to Integrated
key/remote control 24
Car phone
– installation location, refer to
Center armrest 120
– refer to separate Owner's Manual
Car phone, refer to Telephone 156
Car radio, refer to Radio 18
Car radio, refer to Radio BMW Professional 142
Car shampoo 207
Catalytic converter, refer to Hot exhaust system 134
CD changer 147
– controls 18
– fast forward/reverse 148
– installation location 148
– random sequence 148
– selecting a CD 147
– selecting a track 148
– volume 142
CD player 147
– changing the track 148
– controls 18
– fast forward/reverse 148
– playing a track 148
– random order 148
– volume 142
Center armrest 120 Center brake lamp
– replacing bulb
211
Center console, refer to Around the center
console 14
Central locking
– from inside 29
– from outside 25
Central locking system 25
– Comfort Access 33
– hotel function 31
– setting unlocking characteristics 26
Changes, technical, refer to
For your own safety 5
Changing bulbs, refer to
Lamps and bulbs 208
Changing gears 64
Changing wheels 211
Chassis number, refer to Engine compartment 197
Check Control 87
Child restraint fixing system LATCH 54
Child restraint systems 53
Child seats, refer to Transporting children
safely 53
Chrome parts 207
Chrome polish 207
Cigarette lighter, refer
to
Lighter 122
Cleaning headlamps 68
– washer fluid 69
Cleaning your BMW, refer to Care 204
Climate control
– automatic air distribution 113
Clock 78
– 12h/24h format 83
– setting time 86
Closing
– from inside 29
– from outside 25
Clothes hooks 121
Cockpit 10
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

246
ReferenceEverything from A to Z
Head Light, refer to Adaptive
Light Control 105
Head restraints 45
– rear, removing 46
– sitting safely 42
Heated
– mirrors 51
– rear window 111,114
– seats 48
– steering wheel 52
Heating 109
– mirrors 51
– rear window 111,114
– seats 48
– steering wheel 52
Heating and ventilation, refer
to Climate 109
Heavy loads, refer to Stowing cargo 136
Height, refer to Dimensions 235
Height adjustment
– seats 43
– steering wheel 52
High-beam Assistant 106
High beams 105
– headlamp flasher 105
– indicator lamp 220
High beams and low beams, automatic, refer to High-
beam Assistant 106
High-pressure washer 204,205
High water, refer to Driving
through water 134
Hill Descent Control HDC 92
Hills 135
Holders for cups 121
Homepage BMW 4
Hood 198
Hooks for shopping bags 125
Horn 10,11
Hotel function, refer to
Locking or unlocking
separately 31 Hot exhaust system
134
Hydraulic brake assist, refer to
Dynamic Brake Control 90
Hydroplaning 134
I
Ice warning, refer to Outside
temperature warning 78
Identification marks
– Run-flat tires 196
– tire coding 193
Ignition 58
– switched off 58
– switched on 58
Ignition key, refer to Remote
control with integrated
key 24
Ignition key position 1, refer to
Radio readiness 57
Ignition key position 2, refer to Ignition on 58
Ignition lock 57
Imprint 2
Indicator and warning
lamps 13
– Tire Pressure Monitor TPM 96
Indicator and warning lamps, overview 220
Individual air distribution 110
Inflation pressure, refer to Tire inflation pressure 177
Inflation pressure monitoring,
refer to Tire Pressure
Monitor TPM 95
Initializing
– after power failure 212
– compass, refer to Calibrating 119
– Flat Tire Monitor FTM 93
– glass roof 37
Installation location
– CD changer 148
– telephone 120 Instrument cluster
12
Instrument cluster, refer to
Cockpit 10
Instrument combination, refer to Instrument cluster 12
Instrument lighting 107
Integrated key 24
Integrated universal remote
control 116
Interior lamps 107
– remote control 27
Interior motion sensor 33
Interior rearview mirror 51
– automatic dimming
feature 51
– compass 118
Interlock, refer to Disengaging the remote control 60
Intermittent mode of the
wipers 68
J
Jacking points 212
Jumpering, refer to Jump-
starting 216
Jump-starting 216
K
Key, refer to Integrated key/
remote control 24
Keyless go, refer to Comfort Access 33
Keyless opening and closing, refer to Comfort Access 33
Key Memory, refer to Personal
Profile 24
Keypad dialing 162
Kickdown 61
– automatic transmission with Steptronic 61
Knock control 175
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

249
Everything from A to Z
Reference
Providing medical assistance,
refer to First aid pouch 215
PTY 145
Puncture
– Flat Tire Monitor 93
R
Radio18
– autostore 144
– controls 18
– refer to separate Owner's Manual
– switching on/off 18
– volume 18
Radio, refer to BMW
Professional radio 144
Radio position, refer to Radio readiness 57
Radio readiness 57
– switched off 58
– switched on 57
Radio-remote key, refer to Remote control with
integrated key 24
Rain sensor 68
RDS 145
Reading lamps 108
Rear lamps, refer to Tail lamps 210
Rear seats
– adjusting head restraints 46
– folding down backrests 123
Rear ventilation 115
Rearview mirror, refer to Mirrors 50
Rear window
defroster 111,114
Rear window rolle r blind, refer
to Roller sunblinds 120
Reception
– radio station 144
Recirculated air
mode 110,113
Recirculation of air, refer to Recirculated air
mode 110,113 Reclining seat, refer to
Backrest 43
Refueling 174
Releasing
– hood 198
Remaining distance, refer to Cruising range 80
Remote control 24
– battery renewal 35
– Comfort Access 33
– garage door opener 116
– malfunction 28,35
– removing from the ignition lock 57
– service data 202
– trunk lid 27
Replacement fuses, refer to Fuses 213
Replacement remote
co
ntrol 24
Replacing bulbs, refer to Lamps and bulbs 208
Replacing tires 195
Replacing tires, refer to New wheels and tires 195
Reporting safety defects 7
Reserve warning, refer to Fuel gauge 79
Reset, resetting tone settings 144
Restraint systems
– for children 53
– refer to Safety belts 49
Retractable hardtop 38
– care, refer to Caring for your vehicle brochure
– convenient opening and
closing 26
– remote control 26
Reverse
– CD 148
Reverse gear 63
– automatic transmission with
Steptronic 61
– manual transmission 60
Roadside
Assistance 169,215 Roadside parking lamps
105
– replacing bulbs 209
Roadworthiness test, refer to Service requirements 84
Roller sunblinds 120
Rollover protection system, Convertible 101
– resetting 101
Roof load capacity 237
Roof-mounted luggage rack 137
Rope, refer to Tow-starting, towing away 218
RSC Runflat System
Component, refer to Run-
flat tires 196
Runflat System Component RSC, refer to Run-flat
tires 196
Run-flat tires 196
– continuing driving with a damaged tire 94
– flat tire 94
– Flat Tire Monitor 94
– inflation pressure 177
– new tires 195
– tire replacement 195
– winter tires 196
Runflat tyres, refer to Run-flat tires 196
S
Safety-belt height
adjustment 49
Safety belts 49
– belt hand-over 49
– damage 49
– indicator/warning lamp 49
– reminder 49
– sitting safely 42
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

251
Everything from A to Z
Reference
Sport automatic transmission
with double clutch 62
– driving dynamics control 65
– kickdown 64
– Launch Control 66
– manually unlocking parking lock 65
– neutral 63
– reverse gear 63
Sport program with 7-gear Sport automatic
transmission with double
clutch 64
Spray nozzles, refer to
Cleaning windshield and
headlamps 68
Stability control, refer to Driving stability control
systems 90
Start/Stop button 57
– starting the engine 58
– switching off the engine 59
Starting, refer to Starting the engine 58
Starting assistance, refer to
Jump-starting 216
Starting CD changer 147
Starting difficulties
– jump-starting 216
Starting the CD player 147
Starting the engine
– Start/Stop button 57
Stations, refer to BMW Professional radio 144
Station search
– BMW Professional radio 144
Status of this Owner's Manual
at time of printing 5
Steam jet 204,205 Steering wheel
52
– adjustment 52
– buttons on steering wheel 11
– heating 52
– lock 57
– locking with Comfort Access 34
– shift paddles 64
Steering wheel buttons, refer to Shift paddles 64
Steering with variable ratio, refer to Active steering 97
Steptronic, refer to Automatic
transmission with
Steptronic 60
Storage 207
Storage compartments 121
Storage nets 125
Storing seat positions, refer to Seat and mirror memory 48
Storing tires 196
Stowage, refer to Storage compartments 12
1
Summer tires, refer to Wheels
and tires 177
Switches, refer to Cockpit 10
Switching off
– engine 59
Switching off the engine
– Start/Stop button 57
Switching on
– BMW Professional radio 142
– CD changer 147
– CD player 147
– radio 18
Switching the cooling function
on and off 114
Symbols 4
T
Tachometer 79
Tailgate, refer to Trunk lid 31
Tail lamp, refer to Tail lamps 210 Tail lamps
210
– replacing bulb 210,211
Tank contents, refer to Capacities 239
Technical data 234
– dimensions 235
Technical modifications, refer to For your own safety 5
Telephone 156
– hands-free system 163
– installation location, refer to
Center armrest 120
– refer to sepa rate Owner's
Manual
– voice commands 163
Temperature
– air conditioner 111
– automatic climate control 112
– coolant, refer to Coolant temperature 200
Temperature display
– outside temperature 78
– outside temperature warning 78
– setting the units 83
Tempomat, refer to Cruise control 69
Tensioning straps, refer to Securing cargo 137
Third brake lamp, refer to
Center brake lamp 211
Through-loading opening with integrated transport
bag 127
Through-loading system 123
Tilt alarm sensor 33
Tilt function, passenger side mirror 51
Time
– displaying 144
– setting 144
Tire inflation pressure 177
– loss 94
Tire pressure monitoring, refer to Flat Tire Monitor 93
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG
