Automatic headlamp con‐
trol*  85
Daytime running lights*  85
Adaptive light control
*  85
High-beam Assistant*  86 Instrument lighting  87
8 Steering column stalk, left Turn signal  70
High beams, head‐
lamp flasher  70
High-beam Assistant*  86
Roadside parking lamps  85
Computer  77
9 Steering wheel buttons, left Store speed  112,  106
Resume speed  113,  107
Cruise control on/off, inter‐
rupt  112,  105 Increase distance*  107
Decrease distance*  107
10 Instrument cluster   14
11 Steering wheel buttons, right Entertainment source
Volume
Voice activation*  25
Telephone*  212
12 Steering column stalk, right Windshield wipers  70
Rain sensor*  
71 Clean the windshields and head‐
lamps*  70
13 Start/stop the engine and switch
the ignition on/off  65
14 Horn
15 Steering wheel heating*  60
16 Adjust steering wheel  
60
17 Open trunk lid*  
40
18 Unlocking the hood
Seite 13
13Online Edition for Part no. 01 40 2 606 497 - 03 11 490

Reference Mobility Communication Entertainment Navigation Driving tips Controls
At a glance

Instrument cluster
1
Fuel gauge  75
2 Speedometer
3 Indicator/warning lamps  14
4 Tachometer  76
5 Engine oil temperature   766
External temperature  76
7 Electronic displays  16
8 Miles, trip miles  77
9 Clock  80
10 Reset miles  77
Indicator/warning lamps
Instrument cluster The indicator and warning lamps can light up in
a variety of combinations and colors.
Several of the lamps are checked for proper
functioning
when the engine is started or the ig‐
nition is switched on, and light up briefly in the
process. Overview: indicator/warning lamps Symbol Function or system
Turn signal
Parking brake
Parking brake in Canadian models
Automatic Hold*
Front fog lamps* Seite 14
14 Online Edition for Part no. 01 40 2 606 497 - 03 11 490
Cockpit

Symbol Function or system
High beams
High-beam Assistant*
Parking lamps, headlamp control
Active Cruise Control*
Vehicle detection, Active Cruise
Control*
Cruise control*
Lane departure warning*
DSC Dynamic Stability Control
DSC Dynamic Stability Control or
DTC Dynamic Traction Control
Tire Pressure Monitor*
Safety belts
Airbag system Symbol Function or system
Steering system
Emissions
Brake system
Brake system in Canadian models
Antilock Brake System ABS
Antilock Brake System ABS in Cana‐
dian models
Text messages
Text
messages in combination with a symbol in
the instrument cluster explain a Check Control
message and the meaning of the indicator and
warning lamps.
Supplementary text messages
Additional information on the Control Display,
e.g., on the cause of a malfunction or the re‐
quired action, can be called up via Check Con‐
trol, refer to page 82.
The text of urgent messages is displayed auto‐
matically.
Seite 15
15Online Edition for Part no. 01 40 2 606 497 - 03 11 490

Reference Mobility Communication Entertainment Navigation Driving tips Controls
At a glance

All around the center console
1
Headliner  18
2 Control Display   19
3 Glove compartment, top/bottom  138
4 Air vent  128
5 Hazard warning system  266
Central locking system  39
6 Radio  172
CD/Multimedia   179
7 Automatic climate control   125
8 Controller with buttons  19
9 Parking brake  
66 Auto Hold  
68 10 PDC Park Distance Con‐
trol*  113
Top View*  119
Backup camera*  116
Side View*  118
HDC Hill Descent Control*  99
11 Dynamic Driving Control  102
DSC Dynamic Stability Con‐
trol  102
12 Transmission selector lever
Seite 17
17Online Edition for Part no. 01 40 2 606 497 - 03 11 490
Reference Mobility Communication Entertainment Navigation Driving tips Controls
At a glance

White arrows pointing to the left or right indicate
that additional panels can be opened.
View of an opened menu
When
a menu is opened, it generally opens with
the panel that was last selected in that menu. To
display the first panel of a menu:
▷ Move the controller to the left repeatedly
until the first panel is displayed.
▷ Press the menu button on the controller
twice.
Opening the Options menu Press the button.
The "Options" menu is displayed. Additional options: move the controller to the
right

repeatedly until the "Options" menu is dis‐
played.
Options menu
The "Options" menu consists of various areas:
▷ Screen settings, e.g., "Split screen".
This area remains unchanged.
▷ Control options for the selected main menu,
e.g., for "Radio".
▷ If applicable, further operating options for
the selected menu, e.g.,

"Store station".
Changing settings
1. Select a field. 2.
Turn the controller until the desired setting
is displayed. 3.
Press the controller.
Activating/deactivating the functions
Several menu items are preceded by a check‐
box. It indicates whether the function is acti‐
vated or deactivated. Selecting the menu item
activates or deactivates the function. The function is activated.
The function is deactivated.
Example: setting the clock
Setting the clock
1. Press the button. The main menu is
displayed.
2. Turn the controller until "Settings" is high‐
lighted, and then press the controller. 3.
If necessary, move the controller to the left
to display "Time/Date"

.
Seite 21
21Online Edition for Part no. 01 40 2 606 497 - 03 11 490

Reference Mobility Communication Entertainment Navigation Driving tips Controls
At a glance

4.
Turn the controller until "Time/Date" is high‐
lighted, and then press the controller. 5.
Turn the controller until "Time:" is high‐
lighted, and then press the controller. 6.
Turn the controller to set the hours and
press the controller.
7. Turn the controller to set the minutes and
press the controller.
Status information
Status field
The

following information is displayed in the sta‐
tus field at the top right:
▷ Time.
▷ Current entertainment source.
▷ Sound output, on/off.
▷ Wireless network reception strength.
▷ Telephone status.
▷ Traffic bulletin reception*.
Status field symbols
The symbols are grouped as follows. Radio symbols Symbol Meaning
Traffic bulletins* are switched on.
HD Radio™* is switched on.
Satellite radio* is switched on.
Telephone symbols
Symbol Meaning
Incoming or outgoing call*.
Missed call*.
Wireless network reception
strength*
Symbol flashes: searching
for network. Wireless network is not available*.
Bluetooth* is switched on.
Roaming* is active.
Text message* was received.
Check the SIM card*.
SIM card* is blocked.
SIM card* is missing.
Enter the PIN*.
Entertainment symbols
Symbol Meaning
CD/DVD* player.
Music collection*.
Gracenote® database*.
AUX-IN port.
Rear AUX-IN port on the left*.
Rear AUX-IN port on the right*. Seite 22
22 Online Edition for Part no. 01 40 2 606 497 - 03 11 490
iDrive

Opening and closing
Remote control/key
Buttons on the remote control
1
Unlocking
2 Locking
3 Opening the trunk lid
4 Panic mode*, headlamp courtesy delay fea‐
ture
General information
The vehicle is supplied with two remote controls
with keys.
Every remote control contains a replaceable
battery.
The settings called up and implemented when
the vehicle is unlocked depend on which remote
control is used to unlock the vehicle, Personal
Profile, refer to page 33.
In addition, information about service require‐
ments is stored in the remote control, Service
data in the remote control, refer to page 258.Integrated key Press the button on the back of the remote con‐
trol, arrow 1, and pull out the key, arrow 2.
The integrated key fits the following locks:
▷
Driver's door.
▷ Trunk lid.
▷ Storage compartment in the front center
armrest.
The storage compartment contains a switch for
separately securing the trunk lid, refer to
page 41.
Replacing the battery 1.
Take the integrated key out of the remote
control.
2. Push in the catch with the key, arrow 1.
3. Remove the cover of the battery compart‐
ment; see arrow 2.
4. Insert a battery of the same type with the
positive side facing upwards.
5. Press the cover closed.
Seite 32
32 Online Edition for Part no. 01 40 2 606 497 - 03 11 490
Opening and closing

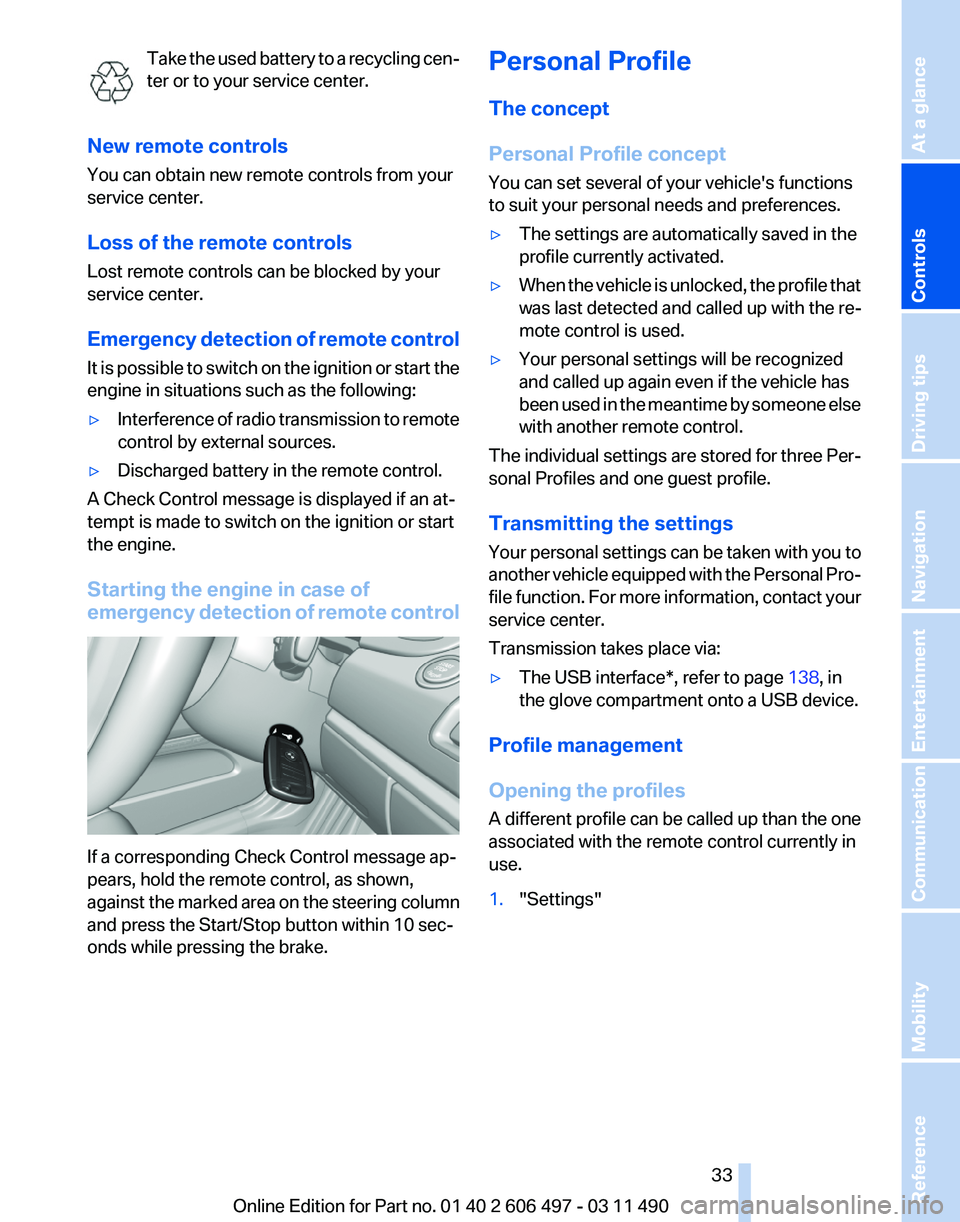

Take the used battery to a recycling cen‐
ter or to your service center.
New remote controls
You can obtain new remote controls from your
service center.
Loss of the remote controls
Lost remote controls can be blocked by your
service center.
Emergency
detection of remote control
It is possible to switch on the ignition or start the
engine in situations such as the following:
▷ Interference of radio transmission to remote
control by external sources.
▷ Discharged battery in the remote control.
A Check Control message is displayed if an at‐
tempt is made to switch on the ignition or start
the engine.
Starting the engine in case of
emergency

detection of remote controlIf a corresponding Check Control message ap‐
pears, hold the remote control, as shown,
against

the marked area on the steering column
and press the Start/Stop button within 10 sec‐
onds while pressing the brake. Personal Profile
The concept
Personal Profile concept
You can set several of your vehicle's functions
to suit your personal needs and preferences.
▷
The settings are automatically saved in the
profile currently activated.
▷ When the vehicle is unlocked, the profile that
was last detected and called up with the re‐
mote control is used.
▷ Your personal settings will be recognized
and called up again even if the vehicle has
been

used in the meantime by someone else
with another remote control.
The individual settings are stored for three Per‐
sonal Profiles and one guest profile.
Transmitting the settings
Your

personal settings can be taken with you to
another vehicle equipped with the Personal Pro‐
file function. For more information, contact your
service center.
Transmission takes place via:
▷ The USB interface*, refer to page 138, in
the glove compartment onto a USB device.
Profile management
Opening the profiles
A

different profile can be called up than the one
associated with the remote control currently in
use.
1. "Settings"
