2012 BMW 328I CONVERTIBLE engine coolant

259
Engine compartment
Mobility
Engine compartment
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehi
cle, for example due to
the special options or national-market version
selected. This also app lies to safety related
functions and systems.
Important parts of th e engine compartment
1Expansion tank for coolant, refer to
page 263
2 Washer fluid filler neck for headlamp clean-
ing system and window washer system,
refer to page 72
3 Jump-starting conne ction, refer to
page 278
4 Filler neck for engine oil, refer to Adding
engine oil
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG

263
Engine compartment
Mobility
Alternative oil types
If approved oils are not available, you can add
quantities of up to 1 US quart/1 liter of another
oil with the following specifications:
Oil change
Oil changes should only be performed by a
BMW center.
Coolant
Coolant consists of half water and half additive.
Not all commercially availa
ble additives are suit-
able for your BMW. Ask your BMW center about
suitable additives.
Only use suitable a dditives; otherwise,
engine damage may result. Because
additives are harmful to your health, it is impor-
tant to follow the instructions on the contain-
ers. <
Comply with the appropriate environ-
mental protection regulations when dis-
posing of coolant additives. <
Coolant temperature
If the coolant and therefore the engine over-
heats, a warning lamp lights up. A message
appears on the Control Display.
Checking coolant level
Do not add coolant to the cooling system
when the engine is hot. Escaping coolant
can cause burns. <
1. Do not open the engine hood before the
engine has cooled down.
2. Turn the cap of the expansion tank a little
counterclockwise to allow any accumulated
pressure to escape, th en continue turning
to open.
3. The coolant level is correct if it is between
the maximum and minimum marks in the
filler neck, refer also to the diagram next to
the filler neck.
4. If the coolant is low, slowly add coolant up to
the specified level; do not overfill.
5. Turn the cap until there is an audible click.
6. Have the reason for the coolant loss elimi-
nated as soon as possible.
Gasoline engine
API SM or higher
Diesel engine
API ILSAC GF-5
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG

298
ReferenceEverything from A to Z
Everything from A to Z
Index
A
ABS Antilock Brake
System 97
ACC, refer to Active Cruise Control 75
Acceleration assistant, refer to Launch Control 70
Accessories, refer to Vehicle
equipment 5
Accident, refer to Sending an Emergency Request 276
Activated-charcoal filter for automatic climate
control 120
Active Cruise Control 75
– indicator lamp 78
– malfunction 79
– selecting distance 77
– sensor 78
Active steering 105
Adaptive brake lamp
– Brake Force Display 106
Adaptive Light Control 112
Additives
– coolant 263
– engine oil 262
Address, entering 150,156
Address for navigation
– entering 150
Adjusting temperature inside the car, refer to Automatic
climate control 117
Adjusting the thigh support 49
Airbags 107
– indicator/warning lamp 108
– sitting safely 47
Air conditioning mode
– automatic climate control 117
– ventilation 119 Air distribution
– automatic
118
Airing, refer to Ventilation 119
Air pressure, refer to Tire inflation pressure 239
Air recirculation, refer to
Recirculated air mode 118
Air supply
– automatic climate
control 117
– ventilation 119
Air vents 116
Air volume 118
AKI, refer to Fuel grade 237
Alarm system 37
– avoiding unintentional alarms 38
– interior motion sensor 38
– switching off an alarm 37
– tilt alarm sensor 37
ALL program 119
All-season tires, refer to Winter tires 258
All-wheel drive, refer to xDrive 99
Ambient

air, refer to
Recirculated air mode 118
Antifreeze
– coolant 263
– washer fluid 72
Antilock Brake System ABS 97
Anti-theft alarm system, refer to Alarm system 37
Appointments, refer to
Calendar 223
Approved axle loads, refer to Weights 287
Approved engine oils 262
Approved gross vehicle weight, refer to Weights 287Apps
232
Armrest, refer to Center armrest 126
Arrival time, refer to Computer 84
Ashtray 128
Assist systems, refer to Driving stability control 97
AUC Automatic recirculated
air control 118
Audible instructions, refer to Voice instructions 161
Audio device, external 127
Automatic
– air distribution 118
– air volume 118
– cruise control 73,75
– headlamp control 110
Automatic car washes 266
Automatic climate control 116
Automatic curb monitor 55
Automatic high beams and low beams, refer to High-
beam Assistant 113
Automatic recirculated air control AUC 118
Automatic Service Request 232
Automatic transmission with
Steptronic 64
– interlock 64
– overriding selector lever
lock 66
– shiftlock, refer to Changing selector lever position 64
– sport program 65
– towing 279
– tow-starting 279
AUTO program for automatic climate control 118
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG

301
Everything from A to Z
Reference
Consumption, refer to
Average fuel
consumption 84
Contacts 218
– deleting 220,227
– exporting/importing 227
– new contact 219
Control Center, refer to
iDrive 18
Control Display 19
– switching off 19
Control Display, refer to iDrive 18
– adjusting brightness 94
Controller, refer to iDrive 18
Controls and displays 10
Control unit, refer to iDrive 18
Convenient loading in Convertible 33
Convenient opening and closing
– glass roof 32
– glass roof with Comfort Access 39
– retractable hardtop 32
– windows 32
– windows with Comfort Access 39
– with Comfort Access 39
Convertible
– bag holder 131
– convenient loading 33
– enlarging cargo area 130
– folding down rear
backrest 130
– retractable hardtop 43
– rollover protection
system 109
– securing cargo 143
– stowing cargo 142
Coolant 263
– checking level 263
Coolant temperature 263
Cooling, maximum 117
Cooling fluid, refer to Coolant 263 Cooling system, refer to
Coolant 263
Copyright 2
Corner-illuminating lamps
– replacing bulbs 271
Cornering light, refer to Adaptive Light Control 112
Correct tires 257
Courtesy lamps, refer to Interior lamps 114
Criteria for route 159
Cross-hairs in navigation155
Cruise control 73
– ac

tive 75
– malfunction 75
Cruise control, refer to Active
Cruise Control 75
Cruising range 84
Cupholders 128
Curb weight, refer to Weights 287
Customer Relations 231
D
Dashboard, refer to
Cockpit 10
Dashboard, refer to
Instrument cluster 12
Dashboard lighting, refer to Instrument lighting 114
Data, technical 284
– capacities 289
– dimensions 285
– engine 284
– weights 287
Data memory 265
Data transfer 232
Date
– date format 91
– setting 91
Daytime running lights 111
– replacing bulbs 271
DBC Dynamic Brake Control 97
Deactivating front passenger
airbags 107 Deadlocking, refer to
Locking 32
Defect
– door lock 34
– fuel filler flap 236
– glass roof 42
Defining a home address 219
Destination, entering by town/
city name 150
Destination address
– entering 150,156
Destination entry via BMW Assist 155
Destination for navigation
– entering by voice 156
– entering via map 155
– entry 150
– home address 153
– manual entry 150
Destination guidance 159
– bypassing a route section 160
– changing specified route 159
– continuing 159
– starting 159
– voice instructions 161
– volume of voice
instructions 161
Digital clock 82
Digital compass 124
Dimensions 285
Directional indicators, refer to Turn signals 71
Direction instructions, refer to Voice instructions 161
Directory for navigation, refer
to Address book 152
Dis

placement, refer to Engine
data 284
Display, refer to iDrive controls 18
Displaying contact
pictures 219
Display lighting, refer to Instrument lighting 114
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG

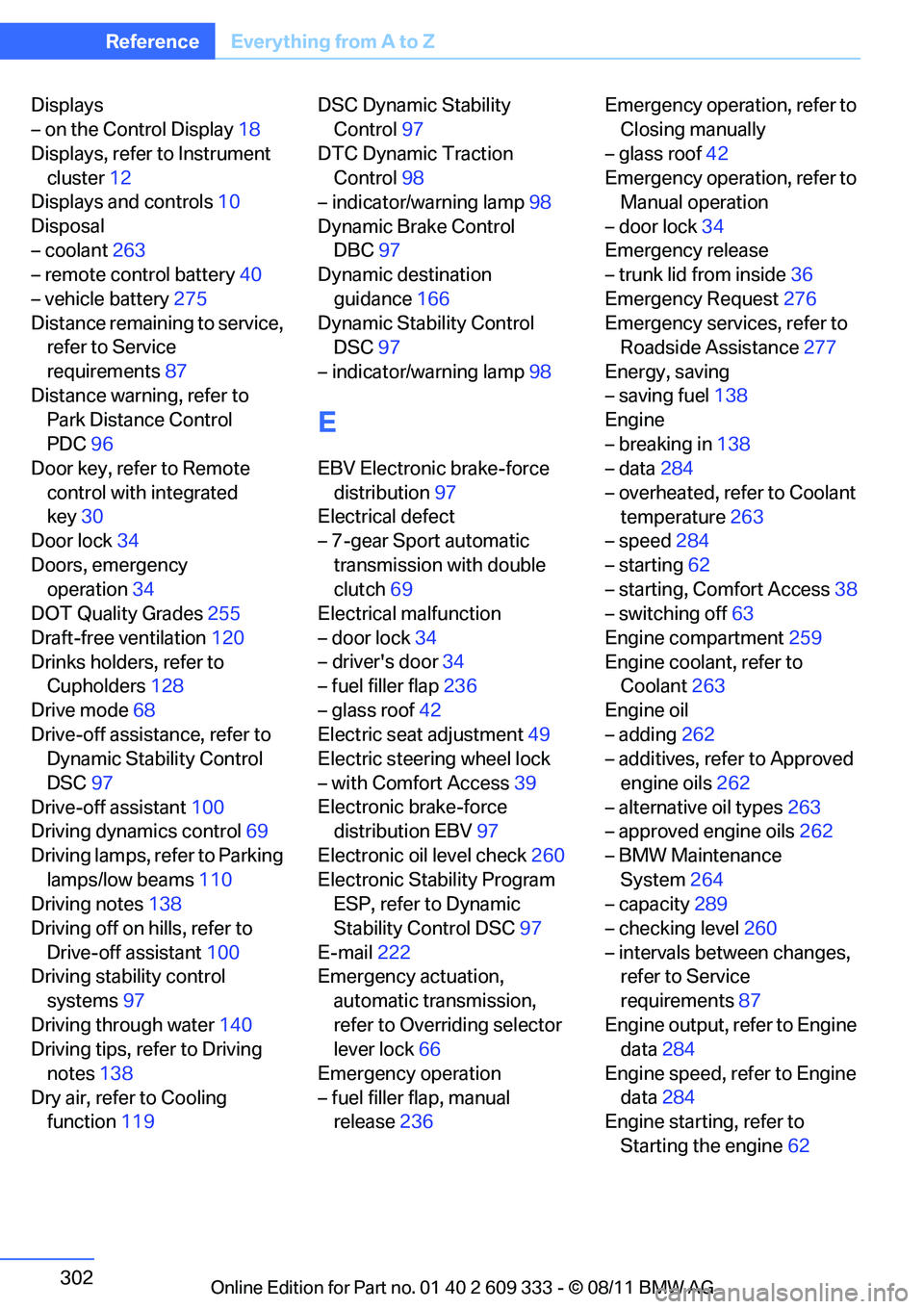

302
ReferenceEverything from A to Z
Displays
– on the Control Display 18
Displays, refer to Instrument cluster 12
Displays and controls 10
Disposal
– coolant 263
– remote control battery 40
– vehicle battery 275
Distance remaining to service, refer to Service
requirements 87
Distance warning, refer to Park Distance Control
PDC 96
Door key, refer to Remote
control with integrated
key 30
Door lock 34
Doors, emergency operation 34
DOT Quality Grades 255
Draft-free ventilation 120
Drinks holders, refer to Cupholders 128
Drive mode 68
Drive-off assistance, refer to Dynamic Stability Control
DSC 97
Drive-off assistant 100
Driving dynamics control 69
Driving lamps, refer to Parking lamps/low beams 110
Driving notes 138
Driving off on hills, refer to Drive-off assistant 100
Driving stability control
systems 97
Driving through water 140
Driving tips, refer to Driving
notes 138
Dry air, refer to Cooling function 119 DSC Dynamic Stability
Control 97
DTC Dynamic Traction Control 98
– indicator/warning lamp 98
Dynamic Brake Control DBC 97
Dynamic destination
guidance 166
Dynamic Stability Control DSC 97
– indicator/warning lamp 98
E
EBV Electronic brake-force
distribution 97
Electrical defect
– 7-gear Sport automatic
transmission with double
clutch 69
Electrical malfunction
– door lock 34
– driver's door 34
– fuel filler flap 236
– glass roof 42
Electric seat adjustment 49
Electric steering wheel lock
– with Comfort Access 39
Electronic brake-force distribution EBV 97
Electronic oil level check 260
Electronic Stability Program ESP, refer to Dynamic
Stability Control DSC 97
E-mail 222
Emergency actuation,
automatic transmission,
refer to Overriding selector
lever lock 66
Emergency operation
– fuel filler flap, manual release 236 Emergency operation, refer to
Closing manually
– glass roof 42
Emergency operation, refer to Manual operation
– door lock 34
Emergency release
– trunk lid from inside 36
Emergency Request 276
Emergency services, refer to Roadside Assistance 277
Energy, saving
– saving fuel 138
Engine
– breaking in 138
– data 284
– overheated, refer to Coolant temperature 263
– speed 284
– starting 62
– starting, Comfort Access 38
– switching off 63
Engine compartment 259
Engine coolant, refer to Coolant 263
Engine oil
– adding 262
– additives, refer to Approved
engine oils 262
– alternative oil types 263
– approved engine oils 262
– BMW Maintenance System 264
– capacity 289
– checking level 260
– intervals between changes, refer to Service
requirements 87
Engine output, refer to Engine data 284
Engine speed, ref
er to Engine
data 284
Engine starting, refer to
Starting the engine 62
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG

307
Everything from A to Z
Reference
Number of cylinders, refer to
Engine data 284
Nylon rope, refer to Tow rope 280
O
OBD socket, refer to Socket
for Onboard Diagnosis 265
Octane ratings, refer to Fuel specifications 237
Odometer 82
Office 217
– current office 217
– what to do if…. 225
Oil, refer to Engine oil 260
Oil consumption 260
Oil level 260
Old batteries, refer to
Disposal 275
Onboard vehicle tool kit 270
Opening and closing
– Comfort Access 38
– from inside 35
– from outside 32
– using the door lock 34
– using the remote control 32
Opening and closing
retractable hardtop 44
Options, selecting for navigation 159
Orientation menu, refer to Start menu 19
Outlets
– refer to Ventilation 119
Output, refer to Engine data 284
Outside-air mode
– automatic climate control 118
Outside temperature display 82
– changing unit of measure 87
– in computer 87
Outside temperature warning 82 Overheated engine, refer to
Coolant temperature 263
Overriding selector lever lock 66
P
Paintwork care 267
Park assistant, refer to Park Distance Control 96
Park Distance Control PDC 96
Parked car ventilation 120
– preselecting switch-on times 120
– switching on and off directly 120
Parking
– vehicle 63
Parking aid, refer to Park
Distance Control PDC 96
Parking brake 63
– indicator lamp 63
Parking lamps 110
– replacing bulbs 271
Parking lamps/low beams 110
Parts and accessories, refer to Vehicle equipment 5
Passenger side mirror tilt
function 55
Pathway lighting 111
Personal information, refer to
Office 217
Personal Profile 30
Phone numbers
– dialing 210
Pinch protection system
– glass roof, electric 42
– windows 41
Polish 269
Pollen
– refer to Microfilter/activated- charcoal filter for automatic
climate control 120
Power failure 274
Power windows 40 Power windows, refer to
Windows 40
Pressure, tires 239
Pressure monitoring, tires 100
– Flat Tire Monitor 100
Pressure monitoring of tires, refer to Tire Pressure
Monitor TPM 102
Programmable buttons on the steering wheel 11
Programmable memory
keys 23
Protection function, refer to Pinch protection system
– glass roof, electric 42
– windows 41
Providing medical assistance, refer to First aid pouch 277
Puncture
– Flat Tire Monitor 100
R
Radio position, refer to Radio
readiness 61
Radio readiness 61
– switched off 62
– switched on 61
Radio-remote key, refer to Remote control with
integrated key 30
Rain sensor 72
Reading aloud 225
Reading lamps 115
Rear lamps, refer to Tail lamps 272
Rear seats
– adjusting head restraints 51
– folding down backrests 130
Rear ventilation 120
Rearview mirror, refer to Mirrors 55
Rear window defroster 119
Rear window roller blind, refer to Roller sunblinds 126
Recirculated air mode 118
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG

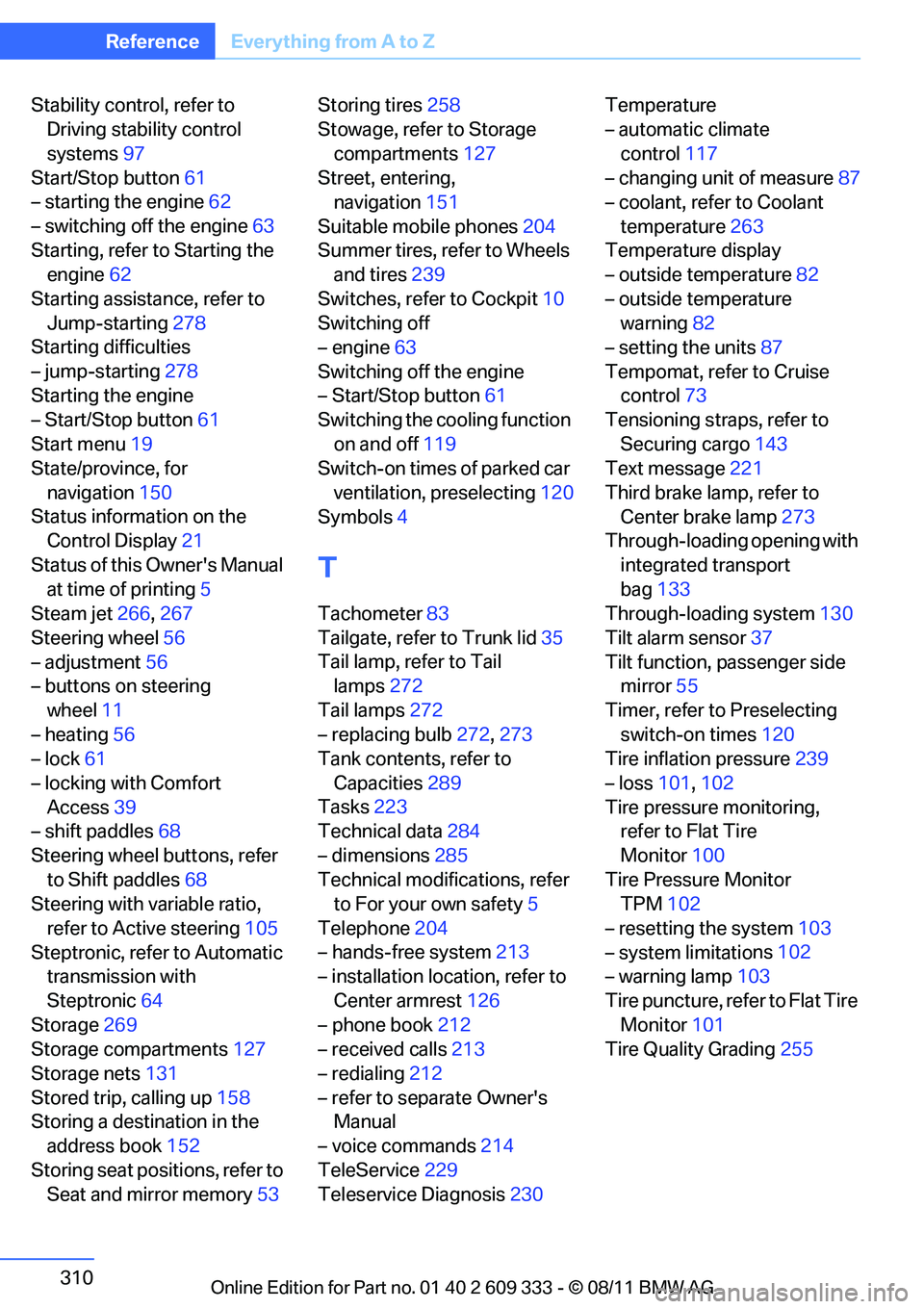

310
ReferenceEverything from A to Z
Stability control, refer to
Driving stability control
systems 97
Start/Stop button 61
– starting the engine 62
– switching off the engine 63
Starting, refer to Starting the engine 62
Starting assistance, refer to Jump-starting 278
Starting difficulties
– jump-starting 278
Starting the engine
– Start/Stop button 61
Start menu 19
State/province, for
navigation 150
Status information on the Control Display 21
Status of this Owner's Manual at time of printing 5
Steam jet 266,267
Steering wheel 56
– adjustment 56
– buttons on steering
wheel 11
– heating 56
– lock 61
– locking with Comfort Access 39
– shift paddles 68
Steering wheel buttons, refer to Shift paddles 68
Steering with variable ratio,
refer to Active steering 105
Steptronic, refer to Automatic transmission with
Steptronic 64
Storage 269
Storage compartments 127
Storage nets 131
Stored trip, calling up 158
Storing a destination in the
address book 152
Storing seat positions, refer to Seat and mirror memory 53Storing tires
258
Stowage, refer to Storage
compartments 127
Street, entering, navigation 151
Suitable mobile phones 204
Summer tires, refer to Wheels and tires 239
Switches, refer to Cockpit 10
Switching off
– engine 63
Switching off the engine
– Start/Stop button 61
Switching the cooling function
on and off 119
Switch-on times of parked car
ventilation, preselecting 120
Symbols 4
T
Tachometer 83
Tailgate, refer to Trunk lid 35
Tail lamp, refer to Tail lamps 272
Tail lamps 272
– replacing bulb 272,273
Tank contents, refer to
Capacities 289
Tasks 223
Technical data 284
– dimensions 285
Technical modifications, refer to For your own safety 5
Telephone 204
– hands-free system 213
– installation location, refer to
Center armrest 126
– phone book 212
– received calls 213
– redialing 212
– refer to separate Owner's Manual
– voice commands 214
TeleService 229
Teleservice Diagnosis 230Temperature
– automatic climate
control 117
– changing unit of measure 87
– coolant, refer to Coolant
temperature 263
Temperature display
– outside temperature 82
– outside temperature warning 82
– setting the units 87
Tempomat, refer to Cruise control 73
Tensioning straps, refer to
Securing cargo 143
Text message 221
Third brake lamp, refer to Center brake lamp 273
Through-loading opening with
integrated transport
bag 133
Through-loading system 130
Tilt alarm sensor 37
Tilt function, passenger side mirror 55
Timer, refer to Preselecting switch-on times 120
Tire inflation pressure 239
– loss 101,102
Tire pressure monitoring, refer to Flat Tire
Monitor 100
Tire Pressure Monitor TPM 102
– resetting the system 103
– system limitatio
ns102
– warning lamp 103
Tire puncture, refe r to Flat Tire
Monitor 101
Tire Quality Grading 255
Online Edition for Part no. 01 40 2 609 333 - \251 08/11 BMW AG
