190 Fuel supply and filling your fuel tank
- Blend must contain not more than 1S%
MTBE.
Sea sonally adju sted ga soline
Many gaso line g rades are blended to perform
espec ia lly we ll for winte r or summe r d riv ing .
Du ring seasonal change-ove r, we suggest that
you fill u p at busy gas s tat ions where the sea­
sona l adjus tment is more likely to be made in
time .
(CT) Note
-Methanol fuels which do no t mee t these
r equirements may cause co rrosion and
damage to plastic and rubber compo ­
nents i n the fuel system .
- Do no t use fue ls that fai l to meet the
spec ified criteria in this chapter.
- If yo u are unable to de term ine whether
or not a particular fue l blend meets the
specifications, ask your service station or
i ts fuel s upplier.
- Do not use fue l for which the contents
cannot be identified.
- Fuel sys tem damage and performance
problems resulting from t he use of fuels
different from those specified a re not
the respons ibility of Audi and are not
covered under the New Vehicle or the Emission Control System Warranties.
- If you experience a loss of fue l economy
or driveability and performance prob­ l ems due to the use of one of these fuel
blends, we recomme nd that yo u sw itch
to unblended fuel.
Gasoline additives
A majo r concern among ma ny auto manufac ­
turers is carbon deposit build -up caused by
the type of gasoline you use .
A lthough gasoline grades differ from one
manuf acturer to anothe r, they h ave certa in
things in common. All gaso line g rades contain
substances that can cause deposits to co llect
on vital engine parts, such as fuel injectors
and intake valves. Although most gasoline
brands incl ude additives to keep engine and fuel systems clean, they a
re not equally effec­
tive .
A udi re commends using TOP TI ER De tergent
Gasoline. For mo re info rmat ion on TO P TI ER
Detergent Gasoline, please go to the official
website (www.toptiergas.com).
After an extended period of using inadeq uate
f uels, bui lt-up carbon deposi ts can rob yo ur
engine of peak performance.
(D Note
Dam age or ma lf u nction due to poor fuel
quality is not covered by the Au di New Ve­
hi cle Limited Warran ty.
Diesel fuel
Applies to veh icles: w ith diesel engine
Always use ULSD (Ultra Low Sulfur Diesel) sul­
fur content 15 ppm or less.
T he ULSD ( Ultra Low Sulfur Diese l) meets the
ASTM-D-97S (grade 2).
Die sel fu el with a higher c oncentration than
ULSD -Die sel No. 2 ASTM 0 975 and Bio-die­
sel with a higher c oncentration than S
% like
B11 , B20 or B100 are strictl y prohib ited.
Se rv ice stat io n fue l pumps a re labe led with
the cor rect fuel information fo r easy recogn i­
t ion by the use r. If the d iesel fue l pump is no t
l abeled ask the station operator what fue l is
being dispensed before filling up you r vehicle .
Serv ice stat ions offering d iesel fue l are gene r­
ally located on truck routes or major high­
ways . Directories of diesel fuel stations a re
u su a lly availab le at d iese l fue l stat ions .
Some sta tes in the USA req uire permi ts to
purchase diese l fue l. Check wi th your Sta te
Motor Vehicle Department.
Diesel fue l may no t be ava ilable outside t he
USA and Canada. Be s ure to che ck befo re trav -
eling to othe r countries . .,..

192 Fuel suppl y and filli ng your fuel t ank
container meets industry standards (ANSI/
ASTM F852 -86) .
(D Note
Never drive yo ur vehicle until the fuel tank
is completely dry . The irregular s upply of
fue l can cause misfiring. Gasoline cou ld
enter into the exhaust system and damage
the catalytic converter.
Refuelling
The fuel filler flap is unlocked from a button
in the driver 's door .
Fig. 152 Driver 's door: Un lock ing fuel filler flap
Fig. 153 F u el cap hooked on the opened fuel filler flap
When adding fuel, the ignition and any cellu ­
lar phones in the vehicle must be sw itched
off.
Tak ing th e fuel cap off
.. To open the fuel filler flap, pull the button
¢fig . 152 .
.. Unscrew fuel filler cap counter-clockwise
and hang it on the fuel filler flap¢
fig. 153 .
.. Check the label on the inside of the fuel fi ll­
er flap to determine if the vehicle must be
fueled with gasoline or diesel fuel.
Refuell ing proc edur e
.. Insert the f uel nozzle from the gasoline
pump into the fuel fi ller neck as far as it wi ll
go .
.. Select a medium refuelling rate
so that the
nozzle switches off automatically when the
tank is full.
Putting th e fu el cap ba ck on
.. After fi lling your tank, twist the fuel filler
cap clockwise until you hear a definite click.
.. Close the fue l filler flap.
T o avoid fuel spilling or evaporating from the
fuel tank always close fuel filler cap properly
and completely. An improperly closed fuel fill­
er cap may also cause a message in the driver
information system or cause the MIL lamp
¢page 24 to come on.
A WARNING
-Improper refue ling or handling of fuel can
cause fire, explosion and severe burns.
- Fue l is highly flammable and can cause
severe burns and other injur ies.
- Failure to shut the engine off while refu­
eling and/or to insert the pump nozzle
ful ly into the fuel filler neck could cause
fue l to spray out of filler neck or to ove r­
f low. Fue l spray and overflowing fue l can
cause a fire .
- Never use a ce ll ular telephone while re­
fue ling. The electromagnet ic rad iation
can cause sparks that can ignite fuel va­
pors and cause a fire.
- Never get back in to yo ur vehicle whi le re­
fue ling. If in exceptional circ umstances
you must get back in your vehicle while
ref ueling, make certain that you close
the door and touch metal to discharge
static electricity before touching the fill­
er nozzle again . Static e lectr icity can
cause sparks that can ignite fuel vapors
re leased du ring ref uel ing .
- Never smoke or have an open flame any­
where in or near your veh icle when refu-
eling or fi lling a portab le fue l conta iner . ..,_

194 Checking and filling
Checking and filling
Engine hood
Releasing the engine hood
The engine hood is released from inside the
vehicle .
Fig. 155 Driver' s side footwe ll: e ngin e hood release
lever
.. Open the driver's door.
.. Pull the release lever on the left under the
instrument panel
c> fig . 155 in direction of
the a rrow .
The hood pops up slight ly under spring pres­
sure.
Opening the engine hood
Fig . 156 Engine hood releas e le ve r
Before opening the eng ine hood, make sure
that the windshie ld wipers are folded flat
against the windshield . Otherwise, they could
damage the paint on the hood.
.. Pull the release lever
r=;,fig . 156 in the direc­
tion indicated by the arrow . This release the
hook under the hood .
.. Open the hood all the way.
A WARNING
-Hot engine coolant can burn you!
- To reduce the risk of being burned, never
open the hood if you see or hear steam
or coo lant escaping from the eng ine
compartment . Wait unt il no steam or
coolant can be seen or heard before care­
fu lly opening the hood.
Closing the engine hood
.. Pull the hood down until the pressure from
the strut is reduced .
.. Let the hood
drop down and latch in p lace.
Do not try to push it shut; it may fail to en­
gage
c> .&, .
A WARNING
--
A hood that is not completely latched
could fly up and b lock your view while dr iv­
i ng.
- When you close the engine hood, check it
to make sure the safety catch has proper­ly engaged . The hood shou ld be flush
with the surrounding vehicle body parts.
- If you notice while dr iv ing that the hood
is not secured properly, stop at once and
close it .
Working in the engine compartment
Be especially careful whenever you work in
the engine compartment!
Whene ve r you must pe rform any wo rk in the
eng ine compartment, for e xample chec king
and filling differ ent fluid s, the re i s a risk of
injury , burns and accident s. T o pr event p er­
s onal injury alwa ys observe the foll owing
WARNING S. Th e engin e c ompartm ent of an y
v e hicl e is a hazardou s area!
r=;, .&.

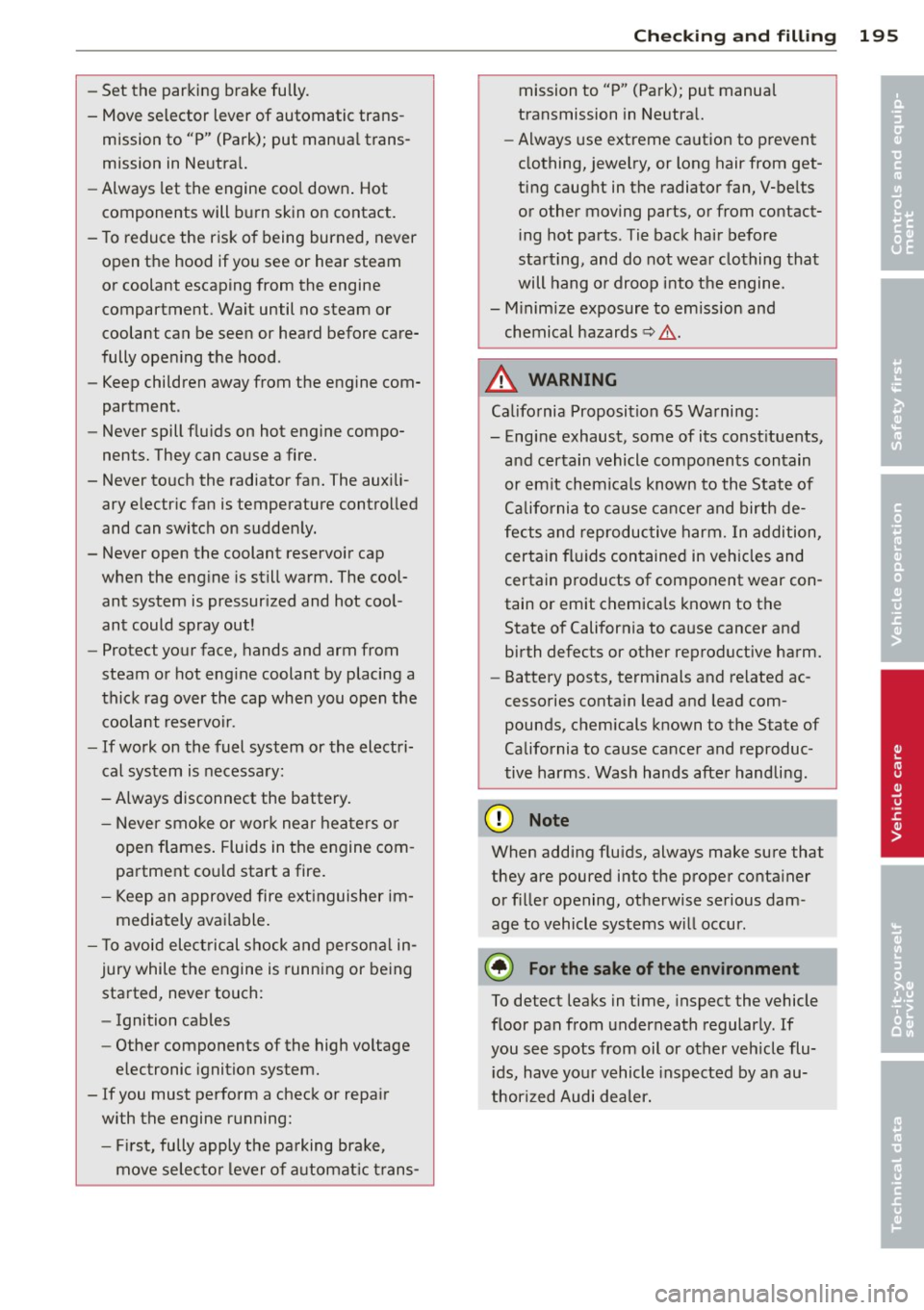

A WARNING
To help avoid injury, before yo u check any­
thing under the hood:
- Turn off the engine .
- Remove the ignition key.

-Set the parking brake fully.
- Move selector lever of automatic trans-
mission to "P" (Park); put manual trans­
mission in Neutral.
- Always let the engine cool down . Hot
components will burn skin on contact.
- To reduce the risk of being burned, never
open the hood if you see or hear steam
or coolant escaping from the engine
compartment . Wait until no steam or
coolant can be seen or heard before care­
fully opening the hood .
- Keep children away from the engine com­
partment .
- Never spill fluids on hot engine compo­
nents. They can cause a fire.
- Never touch the radiator fan. The auxili­
ary electric fan is temperature controlled
and can switch on suddenly.
- Never open the coolant reservoir cap
when the engine is still warm. The cool­
ant system is pressurized and hot cool­ ant could spray out!
- Protect your face, hands and arm from
steam or hot engine coolant by placing a
thick rag over the cap when you open the
coolant reservoir .
- If work on the fuel system or the electri­
cal system is necessary:
-Always disconnect the battery.
- Never smoke or work near heaters or
open flames. Fluids in the engine com­
partment could start a fire.
- Keep an approved fire extinguisher im­
mediately available.
- To avoid electrical shock and personal in­
jury while the engine is running or being
started, never touch:
- Ignition cables
- Other components of the high voltage
electronic ignition system.
- If you must perform a check or repair
with the engine running:
- First, fully apply the parking brake,
move selector lever of automatic trans-
Checking and filling 195
mission to "P" (Park); put manual
transmission in Neutral.
- Always use extreme caution to prevent
clothing, jewelry, or long hair from get­
ting caught in the radiator fan, V-belts
or other moving parts, or from contact­
ing hot parts . Tie back hair before
starting, and do not wear clothing that
will hang or droop into the engine .
- Minimize exposure to emission and
chemical hazards~&. .
A WARNING
California Proposition 65 Warning:
- Engine exhaust, some of its constituents,
and certain vehicle components contain
or emit chemicals known to the State of
California to cause cancer and birth de­
fects and reproductive harm. In addition,
certain fluids contained in vehicles and
certain products of component wear con­
tain or emit chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm.
- Battery posts, terminals and related ac­
cessories contain lead and lead com­
pounds, chemicals known to the State of
California to cause cancer and reproduc­
tive harms. Wash hands after handling.
Q) Note
When adding fluids, always make sure that
they are poured into the proper container
or filler opening, otherwise serious dam­
age to vehicle systems will occur .
@ For the sake of the environment
To detect leaks in time, inspect the vehicle
floor pan from underneath regularly . If
you see spots from oil or other vehicle flu­ ids, have your vehicle inspected by an au­
thorized Audi dealer. •
•

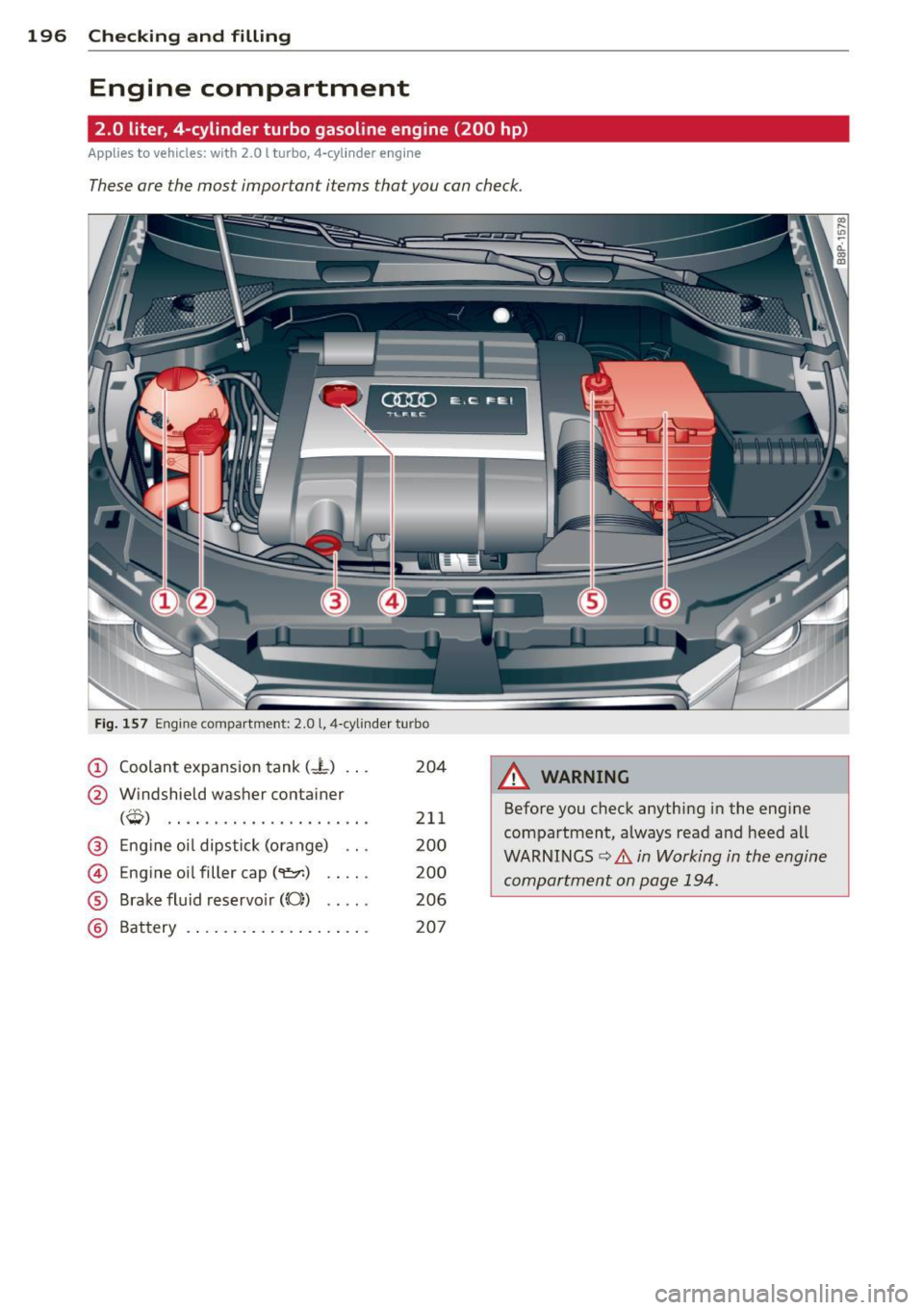

196 Checking and filling
Engine compartment
2.0 liter 4-c tinder turbo gasoline engine (200 hp)
Applies to vehicles: with 2.0 l turbo, 4-cylinder engine
These are the most important items that you can check.
(]JD[) £. C. l"E. t .,.."-.., &t".
~ ------
fig. 157 Engine compartment: 2.0 L, 4-cylinder tu rbo
(!) Coolant expansion tank (- L) .. .
@ Windshield washer conta iner
( ffi
) ,... ...... ........... .... .
® Eng ine oi l dipstick (orange) .. .
@ Engine oil filler cap ('1:::r.) .. .. .
® Brake fluid reservo ir ((0)) .... .
@ Battery .. ..... ..... .... .. . .
204
211
200
200
206
207
A WARNING
-Before you check anything in the engine
compartment, always read and heed a ll
WARNINGS c:> &. in Working in the engine
compartment on page 194.
-

Checking and fillin g 197
2.0 liter, 4-cylinder turbo diesel engine (140 hp)
Applies to vehicles: with 2.0 l TOI, 4-cylinder diese l-engin e
These are the most important items that you can check .
Fig. 158 Engine compartment: 2.0 l, 4-cylinder tu rbo
(D Coolant expansion tank ( ... t) .. .
@ Windshield washer container 204
Cw)
.............. ...... . . 211
@ E ng ine oi l dipstick (orange) . . . 200
@ Engine oil filler cap ("t!::r.) . . . . . 200
® Brake fluid reservo ir ((0)) . . . . . 206
® Battery . . . . . . . . . . . . . . . . . . . . 207
A WARNING
Before yo u check anything in the engine
compartment, always read and heed all
WARNINGS ¢&. in Working in the engine
compartment on page 194.
-
Engine oil
Engine oil specifications
The engine oil used in your Audi needs the
right kind of oil.
The engine in your Audi is a sophisticated powerplant that was built to exacting specifi­
cations . Th is eng ine needs the right kind of
engine oil that meets specifications regarding
quality and viscosity so that it can run
smoot hly and reliab ly. Choosing the right o il
and changi ng oil within the t ime and mileage
intervals printed in you r vehicle's Warranty
&
Maintenance booklet matters a lot more to ­
day than it did years ago . Audi has developed
a specia l quality standard for engine oil that
will help assure that your vehicle's engine w ill
get the lubr ication it needs for proper opera­
tion.

198 Checking and filling
Mo dern engine lubrication has taken a quan­
tum leap in the last few years. Many synthetic
oils ava ilable today provide better engine lu­
brication that can outlast traditional petrole­
um-based o ils, making them a smart choice
for use throughout the life of your Audi .
Whether you use synthetic or petroleum ­
based engine oil, the oil that yo u use must
conform to Audi 's oil quality standard
VW 502 00 (veh icles with gasoline engine)
and VW 507 00 (vehicle with diesel engine) to he lp keep your vehicle's eng ine runn ing
smoothly and help prevent the fo rmation of
harmf ul depos its , somet imes ca lled "sludge,"
that over t ime can lead to expensive repairs.
At the time of printing , engine oils availab le in
the U .S . and Canada that meet the exa cting
specifi cations o f A ud i oi l st andard VW 502 00
(vehicles wi th gaso line engine) and
VW 507 00 (vehicles with diese l engine) are
synthetic engine oils . This does not mean,
however, that every synthetic engine oil wi ll
meet Audi oil standard VW 502 00 (gasoline
engines) and VW 507 00 (d iesel engines). So
a lway s be sure that you use a n approved o il.
To help prevent the fo rmation of harmful de­
posits use only oil w ith the following specifi ­
c ations printed on the oil conta iner:
- Ga soline engines: Audi oil standard
VWS0200
- Die sel engines: Audi oil standard
vw 50 7 00
Oil container labe ls may carry t he specifica­
tion s ingly or in comb inat ion with other des ig ­
nations and oil qua lity standards.
Vi scosity
Eng ine oi ls are graded according to their v is ­
cosity . The proper v iscosity grade o il for your
engine depends on cl imactic or seasonal con­
d itions w here you dr ive. Yo u can use oi l w ith a
viscosit y grade of SAE 5W-40 a cross all tem ­
perat ure ranges for normal d riving conditions .
H owever, if eng ine o il viscos ity grade SAE
5W-40 is not ava ilable, you can a lso use vis­
cosity g rade SA E 5W-30 or SAE OW-40 as long as it meets A
udi o il quality standard
VW 502 00 (vehicles wit h gasoline engine) or
VW 50 7 00 (vehicles wit h diese l eng ine) spec ­
ifications.
Beca use engine o il that meets the Audi oil
sta ndard may not be availab le everywhere
when you need it, we strong ly recommend
that you a lways carry with you an extra qua rt
( li ter) of oil that express ly conforms to the
VW 502 00 (vehicles wit h gasoline eng ine) o r
VW 507 00 (vehicles w it h diesel eng ine) spec­
i fication, i n case you have to top off the oi l
wh ile on the road.
App lies to vehicle s with gasoline engin e on­
ly:
Only if the level of the o il is at or below the
min imum ma rk - and no o il that expressly
c onfo rms to Audi oil standa rd VW 50 2 00
specifica tions is available - may you top off
with a high quality engine o il , pre fera bly syn ­
t h etic-based, that meets ACEA A3 or API SM
specifications, but even then, only in viscosity
grades SAE 5W-40, SA E 5W-30, or SA E
OW-40. However, dur ing the entire time be­
tween oil change interva ls, never top off with
more than a total of 0.5 qt/liter engine o il
that does not confo rm to Aud i oil spec ification
vw 502 00 .
Applies to vehicles with diesel engine only:
Only if the level of the oil is at or be low the
min imum ma rk - and no o il tha t expressly
confo rms to Audi oil standa rd VW 507 00
spe cifications is available - may you top off
wi th a high quali ty engine o il, that meets
AC EA C3 o r API CF specifica tions, but even
then , on ly in viscosity grades SAE 5W-40 , SAE
5W-30, or SAE OW-40 . However, during the
entire t ime between oil change intervals, nev­
er top off with more than a tota l of 0.5 qt/li­
ter engine oil that does no t conform to Aud i
o il specification VW 507 00 .
For more information about eng ine oi l that
has been approved for your veh icle, please
contact e ither your au thorized Aud i dealer or
Audi Custome r Re lations at 1 (800) 822 -2834
o r vis it our web site at www.audiusa .com or
www.aud icanada .ca. He re you w ill also find a
c ur rent l ist of oi ls (manufac turers, brand .,.

names etc.) that conform to Audi oil standard
VW 502 00 (vehicles with gasoline engine) or
VW 507 00 (vehicles with diesel engine).
C hang ing th e engin e oil
The engine oil and oi l filter must be changed
according to the m ileage (kilomete rs) and
time inte rva ls specified in yo ur vehicle's War­
ranty
& Maintenance booklet. Do not exceed
these intervals -harmful deposits from old
engine oil can reduce engine performance and
can lead to expensive eng ine repairs.
Changing the o il at the recommended inter ­
va ls is so very important because the lubricat ­
ing properties of oi l decrease gradually during
norma l vehicle use . If you are not sure when
you have your oi l changed, ask your author­
ized Audi Service Advisor.
Under some circumstances the engine oi l
should even be changed more frequently.
Change o il more often if you drive mostly
short distances, operate the vehicle in dusty
areas or mostly under stop-and-go traffic con­
d itions, or when you use your veh icle where
temperatures stay below freezing point for
l ong periods.
Detergent addit ives in the o il w ill make fresh
oil look dark after the eng ine has been run­
n ing for a short time. This is norma l and is not
a reason to change the o il mo re often than
r ecommended.
D amage or ma lf u nction s du e to lac k of
ma int enance
It is essential that you change your oil at the
recommended interva ls using only engine oil
that complies with Audi oil standard
VW 502 00 (veh icles with gasolin e engine) or
VW 507 00 (veh icles with diese l engi ne). Yo ur
L im ited New Vehicle Warra nty does not cover
damage or ma lfunctions due to failure to fol­
l ow recommended maintenance and use re­
quirements as set forth in the A udi Owner's
Manual and Warranty
& Maintenance book let.
Your dealer will have to deny warranty cover­ age un less you present to the dea ler proof in
the form of Service or Repa ir Orders that a ll
Checking and fillin g 199
scheduled maintenance was performed in a
timely manner.
· Engine oil consumption
The engine in your vehicle depends on an ade ­
quate amount of oil to lubricate and cool all
of its moving parts.
In order to prov ide effective lubrication and
cooling o f inte rna l engine components, all in ­
ternal combustion engines consume a certain amount of oil. Oil consumpt ion varies from
engine to engine and may change sign ificantly
over the life of the engine. Typically, engines
with a spec ified break-in period (see
Q page 169) consume more oil during the
break-in pe riod than they consume after o il
consump tion has stabilized.
Under normal cond itions, the rate of oi l con­
sumption depends on the quality and viscos ity
of the oil, the RPM (revolut ions per minute) at
which the engine is operated, the ambient
temperature a nd road conditions. Further fac ­
tors are the amount of oil dilut ion from wa ter
condensation or fue l residue and the oxida ­
tion level of the oi l. As any engine is subject to
wear as mi leage builds up, the oil consump­
tion may increase over time until replacement
of worn components may become necessary.
With a ll these variab les coming into p lay, no
standard rate of oil consumption can be es­
tablished or spec ified. There is no alternative
to regular and frequent check ing of the oil lev­
el, see
Not e.
If the yellow engine oil level warning symbo l
in the instrument cluster
Ill! lights up, you
shou ld check the oil leve l as soon as possib le
with the oil dipstick q page 200 . Top off the
o il at your earliest conven ience
Q page 200.
&_ WARNING
Before you chec k anything in the engine
compartment, always read and heed al l
WARNI NGS
Q .&. in Working in the engine
compartment on page 194 .
•
•
