2012 ACURA RL light

Î
Î
Î
Î
ÎÎ
Î Î
Î Î
Î Î
To use the horn, press the center pad of the steering wheel.
If equipped. 1:
2:
3:
4:Canadian models only
Ref er to the navigation system manual.
Your Vehicle at a Glance
Your Vehicle at a Glance
5
VEHICLE STABILITY ASSIST (VSA)
SYSTEM OFF SWITCH
ADAPTIVE FRONT LIGHTING
SYSTEM (AFS) OFF SWITCH(P.140, 142)(P.35)
HEATED MIRROR
BUTTON
CRUISE CONTROL
BUTTONS
ADAPTIVE CRUISE
CONTROL (ACC)
BUTTONS
(P.71) INSTRUMENT
PANEL BRIGHTNESS PADDLE SHIFTERS
(P.137) WINDSHIELD
WIPER/WASHER
STEERING WHEEL
ADJUSTMENTSHORN (P.145)
(P.148)(P.316)/ (P.162) (P.147)/ (P.146)
(P.161)(P.319, 324) (P.407)
(P.423)
(P.436)
HEADLIGHT WASHER
BUTTON
(P.138)
REMOTE AUDIO
CONTROLS
VOICE CONTROL BUTTONS
(P.304) BLUETOOTH HANDSFREELINK
VOICE CONTROL BUTTONS MIRROR CONTROLS
(P.278)DISTANCE BUTTON
(P.328, 333)(P.182)/ PASSENGER AIRBAG
OFF INDICATOR
REAR WINDOW
DEFOGGER BUTTON
FRONT SEAT HEATER
SWITCHES
FRONT SEAT HEATER
AND SEAT
VENTILATION
BUTTONS(P.183) MULTI-INFORMATION
BUTTONS HAZARD WARNING BUTTON (P.146)
HEADLIGHTS/
TURN SIGNAL/
FOG LIGHTS
(P.354) COLLISION MITIGATION
BRAKING SYSTEM (CMBS)
OFF BUTTON
22
1 3
4 2
2 2
11/07/20 18:00:08 31SJA670_010
ProCarManuals.com

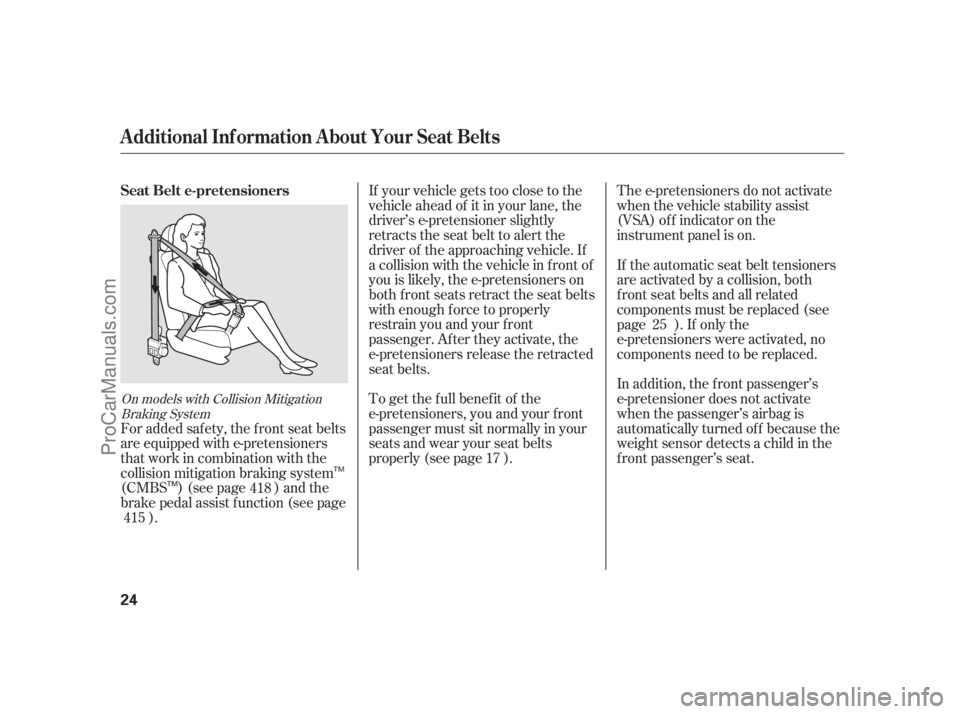

For added saf ety, the f ront seat belts
are equipped with e-pretensioners
that work in combination with the
collision mitigation braking system
(CMBS ) (see page ) and the
brake pedal assist f unction (see page
).If your vehicle gets too close to the
vehicle ahead of it in your lane, the
driver’s e-pretensioner slightly
retracts the seat belt to alert the
driver of the approaching vehicle. If
a collision with the vehicle in f ront of
you is likely, the e-pretensioners on
both front seats retract the seat belts
with enough f orce to properly
restrain you and your f ront
passenger. After they activate, the
e-pretensioners release the retracted
seat belts.
To get the f ull benef it of the
e-pretensioners, you and your f ront
passenger must sit normally in your
seats and wear your seat belts
properly (see page ).The e-pretensioners do not activate
when the vehicle stability assist
(VSA) of f indicator on the
instrument panel is on.
If the automatic seat belt tensioners
are activated by a collision, both
f ront seat belts and all related
components must be replaced (see
page ). If only the
e-pretensioners were activated, no
components need to be replaced.
In addition, the f ront passenger’s
e-pretensioner does not activate
when the passenger’s airbag is
automatically turned off because the
weight sensor detects a child in the
f ront passenger’s seat. 17
41541825
On models with Collision Mitigation
Braking System
Seat Belt e-pretensioners
Additional Inf ormation About Your Seat Belts
24
TM
TM
11/07/20 18:02:28 31SJA670_029
ProCarManuals.com

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach.
........................... Control Locations . 60
............................ Instrument Panel . 61.......... Instrument Panel Indicators . 62

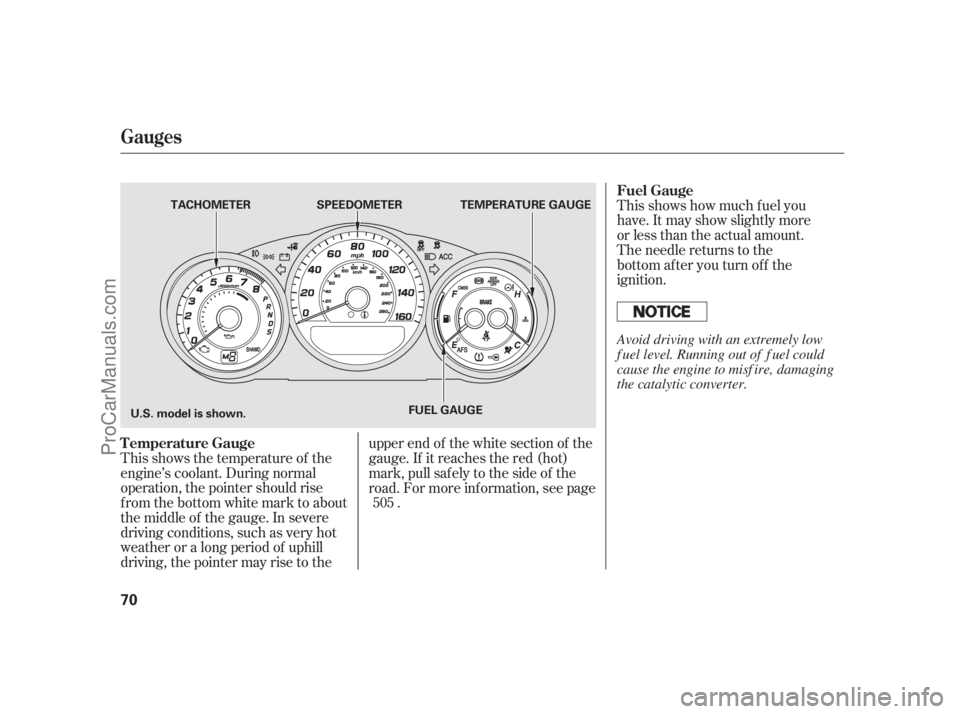

............................................. Gauges . 70
................... Temperature Gauge . 70
.................................. Fuel Gauge . 70
............. Multi-Inf ormation Display . 71
Controls Near the Steering
......................................... Wheel . 136
Windshield Wipers and
..................................... Washers . 137
....... Turn Signals and Headlights . 140
................................. Fog Lights . 142
......... Daytime Running Lights . 142
Automatic Lighting Off
................................... Feature . 143
Adaptive Front Lighting System
.......................................... (AFS) . 144
............... Hazard Warning Button . 146
...... Instrument Panel Brightness . 146
............... Rear Window Def ogger . 147
...... Steering Wheel Adjustments . 148
............................. Keys and Locks . 150
...................... Immobilizer System . 150
.............................. Ignition Switch . 152
.................................... Door Locks . 153
.............................................. Trunk . 154
...... Emergency Trunk Opener . 155................ Childproof Door Locks . 155
............................................... Seats . 156
........................................... Mirrors . 161
Driving Position Memory
........................................ System . 164
................ Keyless Access System . 167
....................... Front Seat Heaters . 182
Front Seat Heaters and Seat
................................. Ventilation . 183
Rear Seat Heaters
................... (Canadian models) . 185
............................ Power Windows . 186
....................................... Moonroof . 189
............................... Parking Brake . 191
......... Interior Convenience Items . 192
.................................. Glove Box . 193
..................... Beverage Holders . 194
............. Console Compartment . 195
.................................. Sun Visors . 196
............................ Vanity Mirror . 196
........ Accessory Power Sockets . 197
.................. Front Door Pockets . 198
.............. Power Rear Sunshade . 198
.............. Integrated Sunshades . 199
............................... Interior Lights . 200
Instruments and Controls
Inst rument s and Cont rols
59
11/07/20 18:07:19 31SJA670_064
ProCarManuals.com

ÎÎ
ÎÎ
Î
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
61
SEAT BELT REMINDER
INDICATOR
LOW FUEL INDICATOR(P.21, 62) (P.68)
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) INDICATOR (P.65)
(P.66)(P.66)ADAPTIVE CRUISE CONTROL (ACC)
INDICATOR(P.65) /
CRUISE MAIN INDICATOR
(P.66, 319)
: If equipped(P.63, 510)
IMMOBILIZER SYSTEM INDICATOR
(P.64)PARKING BRAKE AND
BRAKE SYSTEM INDICATORELECTRONICALLY
CONTROLLED POWER
STEERINGSYSTEM
(ECPS) INDICATORSIDE AIRBAG OFF
INDICATOR(P.35, 63) ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR(P.64, 416)(P.65, 435) VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR
VSA OFF INDICATORHIGH BEAM INDICATOR
ADAPTIVE FRONT LIGHTING SYSTEM
(AFS) INDICATOR (P.69, 144) COLLISION MITIGATION BRAKING
SYSTEM (CMBS) INDICATOR
LOW TIRE PRESSURE/TPMS INDICATOR (P.67, 429) (P.69) (P.68)
SH-AWD INDICATOR KEYLESS ACCESS SYSTEM INDICATOR
(P.68)
MESSAGE INDICATOR
SECURITY SYSTEM
INDICATOR
MULTI-INFORMATION
DISPLAY
MALFUNCTION INDICATOR
LAMP(P.65)(P.64) CHARGING SYSTEM INDICATOR
(P.62, 508)
LIGHTS ON INDICATOR
FOG LIGHT INDICATOR
(P.69)
(P.71)
(P.62, 509)
(P.62, 508) LOW OIL PRESSURE INDICATOR
(P.34, 63) (P.65, 435)
11/07/20 18:07:37 31SJA670_066
ProCarManuals.com

This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. This indicator
will also come on when the light
switch is in AUTO and the lights
turn on automatically. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
then go of f if you have a properly-
coded remote. If it is not a properly-
coded remote, the indicator will blink
and the engine will not start (see
page ).If you use the remote, this indicator
blinks several times when you turn
the ignition switch from
ACCESSORY (I) to the LOCK (0)
position.
If you use the built-in key, this
indicator blinks several times when
you turn the ignition switch f rom ON
(II) to the ACCESSORY (I) position.
When you press the hazard warning
button, both turn signals blink. All
turn signals on the outside of the
vehicle should f lash. This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START (III)
position. If this indicator comes on at
any other time, there is a problem in
theABS.If thishappens,takethe
vehicle to your dealer to have it
checked. With this indicator on, your
vehicle still has normal braking
ability but no anti-lock f unction. You
will also see a ‘‘CHECK ABSSYSTEM’’ message on the multi-
inf ormation display. For more
inf ormation, see page .
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
150416
470 473
Instrument Panel Indicators
Lights On Indicator
Immobilizer System
IndicatorAnti-lock Brake System
(A BS) IndicatorTurn Signal and
Hazard Warning
Indicators
64
11/07/20 18:08:07 31SJA670_069
ProCarManuals.com

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.This indicator comes on when you
turn on the fog lights. For more
inf ormation, see page .
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).
This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button on the
steering wheel (see page ). If itcomesonandstaysonatany
other time, there is a problem with
the VSA system. You will also see a
‘‘CHECK VSA SYSTEM’’ message
on the multi-information display.
Take your vehicle to a dealer to have
it checked. Without VSA, your
vehicle still has normal driving ability,
but will not have VSA traction and
stability enhancement. For more
inf ormation, see page .It flashes when VSA is active (see
page ). This indicator has two f unctions:This indicator comes on as a
reminder that you have turned of f
the vehicle stability assist (VSA)
system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. For more inf ormation, see
page .142
140
142
316 1.
435
435
435
On models without adaptive cruise
control (ACC)
Instrument Panel Indicators
Vehicle Stability Assist
(VSA ) System IndicatorFog L ight Indicator
High Beam Indicator
Cruise Main Indicator VSA OFF Indicator
Inst rument s and Cont rols
65
11/07/20 18:08:21 31SJA670_070
ProCarManuals.com

This indicator comes on when the
security system is set. For more
inf ormation, see page . This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
Itcomesonasareminderthatyou
have turned off the adaptive front
lighting system (AFS).
This indicator blinks when there is a
problem with the AFS system; you
will also see a ‘‘CHECK ADAPTIVE
FRONT LIGHTING SYSTEM’’
message on the multi-inf ormation
display (see page ). If this
happens, stop the vehicle in a saf e
place, turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position, and restart the engine. If
the indicator does not go of f or
blinks again, take your vehicle to a
dealer to have it checked. For more
inf ormation, see page .The CMBS indicator also comes on
if dirt or other debris blocks the
radar sensor in the f ront grille. You
will also see a ‘‘CHECK CMBS
RADAR SENSOR’’ message on the
multi-inf ormation display. When you
clean the radar sensor, the indicator
should go of f the next time you turn
the ignition switch to the ON (II)
position.
If the indicator comes on at any
other time, there is a problem with
the CMBS. You will also see a
‘‘CHECK CMBS SYSTEM’’ message
on the multi-information display. If
this happens, take your vehicle to a
dealer, and have it checked. For
more inf ormation, see page .
When this indicator is on, the CMBS
is not working. This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. It also comes on as areminder that you have turned of f
the collision mitigation braking
system (CMBS ).
144315
144
424
If equipped
If equipped
A daptive Front L ighting
System (A FS) IndicatorSecurity System Indicator
Collision Mitigation
Braking System
(CMBS ) Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
69
SECURITY SYSTEM INDICATOR
TM
TMTM TM
11/07/20 18:08:59 31SJA670_074
ProCarManuals.com

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to theupper end of the white section of the
gauge. If it reaches the red (hot)
mark, pull saf ely to the side of the
road. For more inf ormation, see page
.This shows how much f uel you
have. It may show slightly more
or less than the actual amount.
The needle returns to the
bottom after you turn off the
ignition.
505
Gauges
Temperature GaugeFuel Gauge
70
U.S. model is shown.TACHOMETER TEMPERATURE GAUGESPEEDOMETER
FUEL GAUGE
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
11/07/20 18:09:06 31SJA670_075
ProCarManuals.com
