2012 Acura RDX display

Customize Entry Customize Group Customize MenuDescriptionCustomize Setup PageCHG SETTING
(P. 86)METER SETUP
(P. 88) LANGUAGE SELECTION Changes the language used in the display. ENGLISH
ᤳ
89
FRENCH
SPANISH
ADJUST OUTSIDE
TEMP. DISPLAY Changes the outside temperature reading
above or below its current reading. －
5°F ～ᤣ0°F
ᤳ～ 5°F
91
－ 3°C ～ᤣ0°Cᤳ～ 3°C
TRIP A & AVG. FUEL
RESET with REFUEL Causes trip meter A and the average fuel
economy to reset when you refuel. ON
93
OFF
ᤳ
ELAP. TIME RESET
CONDITION Resets the elapsed time of your current trip. IGN RESET
ᤳ
95
TRIP A RESET
TRIP B RESET
LIGHTING SETUP
(P. 97) INTERIOR LIGHT
DIMMING TIME Changes how long (in seconds) the interior
lights stay on after you close the doors. 15 sec
98
30 sec
ᤳ
60 sec
HEADLIGHT AUTO OFF
TIMER Changes how long (in seconds) the exterior
lights stay on after you close the driver's
door. 0 sec
100
15 sec
ᤳ
30 sec
60 sec
DOOR SETUP
(P. 102) AUTO DOOR LOCK Changes when the system automatically
locks the doors. SHIFT FROM P
103
WITH VEH SPEED
ᤳ
OFF
ᤳ : Default setting
CONTINUED
Multi-Information Display
83
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Customize Entry Customize Group Customize MenuDescriptionCustomize Setup PageCHG SETTING
(P. 86)DOOR SETUP
(P. 102) DOOR LOCK MODE Changes which doors unlock with the remote
transmitter on a first push. DRIVER DOOR
ᤳ
105
ALL DOORS
KEYLESS LOCK
ACKNOWLEDGEMENT The exterior lights flash each time you press
the LOCK or UNLOCK button. A beeper will
also sound when you press the LOCK button
twice. ON
ᤳ
107
OFF
SECURITY RELOCK
TIMER Changes how long it takes (in seconds) for
the doors to relock and the security system to
set after you unlock but do not open the door. 30 sec
ᤳ
109
60 sec
90 sec
AUTO DOOR UNLOCK Changes when the system automatically unlock the driver's/all of the doors. DRIVER DOOR WITH
SHIFT TO P
ᤳ
111
ALL DOORS WITH SHIFT
TO P
DRIVER'S DOOR WITH
IGN OFF
ALL DOORS WITH IGN
OFF
OFF
DEFAULT ALL Returns all settings to the factory default. SET 85
EXIT
ᤳ : Default setting
Multi-Information Display8411/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

DEFAULT ALLTo enter the customizing mode,
press and hold the INFO (
/
)
button for more than 3 seconds.
If you want to set the default settings,
press the INFO (
/
) button to
select ‘‘DEFAULT ALL,’’ then press
the SEL/RESET button.
To set the default settings, press the
INFO (
/
) button to select ‘‘SET ’’
then press the SEL/RESET button.
When ‘‘DEFAULT ALL ’’is set, you
will see the above display for several
seconds, then the screen returns to
‘‘ CUSTOMIZE ENTRY. ’’
CONTINUED
Multi-Information Display
85
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

If‘‘DEFAULT ALL ’’is not set, you
will see the above display for several
seconds, then the screen goes back
to ‘‘CUSTOMIZE ENTRY. ’’Repeat
the procedure to select ‘‘DEFAULT
ALL.’’
If you want to cancel ‘‘DEFAULT
ALL,’’ select ‘‘EXIT, ’’then press the
SEL/RESET button. The screen
goes back to ‘‘CUSTOMIZE
ENTRY. ’’ Change Settings
You can customize some of the
vehicle control settings to your
preference. Here are the settings you
can customize:
●METER SETUP●LIGHTING SETUP●DOOR SETUP
While ‘‘CHG SETTING ’’in the
‘‘ CUSTOMIZE ENTRY ’’is shown on
the multi-information display, press
the SEL/RESET button. The screen
changes to ‘‘METER SETUP ’’in the
‘‘ CUSTOMIZE GROUP. ’’
Each time you press the INFO (
/
) button, the screen changes as
shown on the next page. Press the
INFO (
/
) button, until you see
the setup you want to customize,
then press the SEL/RESET button to
enter your selection.
Multi-Information Display8611/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

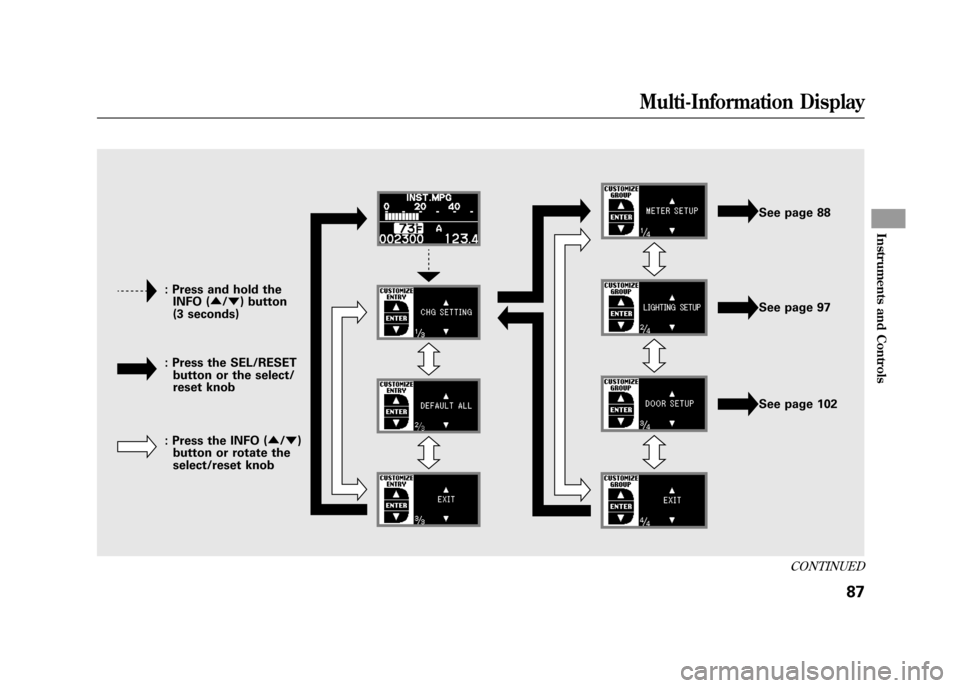

: Press and hold theINFO ( ▲/▼ ) button
(3 seconds)
: Press the SEL/RESET button or the select/
reset knob
: Press the INFO ( ▲/▼ )
button or rotate the
select/reset knob See page 88
See page 97
See page 102
CONTINUED
Multi-Information Display
87
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Meter Setup
Here are the four custom settings for
the meter setup:●LANGUAGE SELECTION●ADJUST OUTSIDE TEMP.
DISPLAY●TRIP A & AVG. FUEL RESET with
REFUEL●ELAP. TIME RESET CONDITION
While ‘‘METER SETUP ’’is shown in
the ‘‘CUSTOMIZE GROUP ’’of the
multi-information display, press the
SEL/RESET button.
Each time you press the INFO (
/
) button, the screen changes as
shown in the illustration. Press the
INFO (
/
) button until you see the
setting you want to customize, then
press the SEL/RESET button to
enter your selection.
See page 91
See page 89
See page 93
See page 95
: Press the SEL/
RESET button or
the select/reset
knob
: Press the INFO (▲ /▼ ) button or
rotate the select/
reset knob
Multi-Information Display8811/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Language SelectionThere are three language selections
you can make: English, French, and
Spanish. To choose the language you
want, follow these instructions:
While‘‘METER SETUP ’’is shown in
the ‘‘CUSTOMIZE GROUP ’’of the
multi-information display, press the
SEL/RESET button. You will see the
above display.
Select the desired language by
pressing the INFO (
/
) button,
then enter your selection by pressing
the SEL/RESET button.CONTINUED
Multi-Information Display
89
Instruments and Controls
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

When your choice is set, you will see
the above display for several
seconds, then the screen goes back
to‘‘CUSTOMIZE MENU.’’
All messages on the multi-
information display will be shown in
the language you selected.
If your choice is not set, you will see
the above display for several
seconds, then the screen goes back
to ‘‘CUSTOMIZE MENU. ’’If this
happens, you need to repeat the
same procedure.
To exit ‘‘LANGUAGE SELECTION ’’
without changing the current setting,
select ‘‘EXIT ’’by pressing the INFO
(
/
) button, then press the SEL/
RESET button. The screen goes back
to ‘‘CUSTOMIZE MENU.’’
