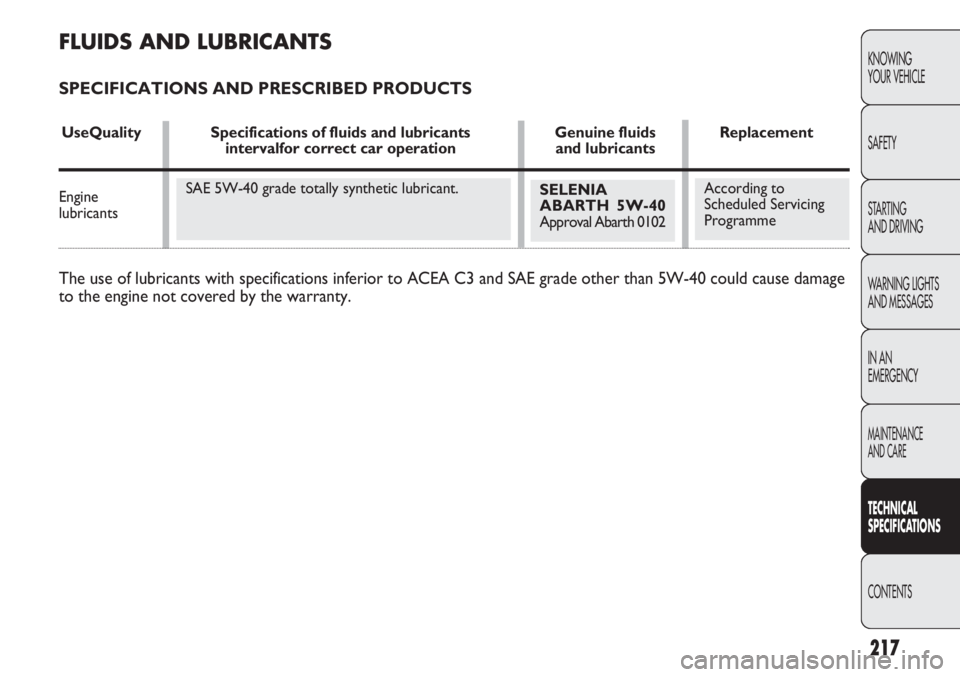

SAE 5W-40 grade totally synthetic lubricant.SELENIA
ABARTH 5W-40
Approval Abarth 0102According to
Scheduled Servicing
Programme
FLUIDS AND LUBRICANTS
SPECIFICATIONS AND PRESCRIBED PRODUCTS
UseQuality Specifications of fluids and lubricants Genuine fluids Replacement
intervalfor correct car operation and lubricants
Engine
lubricants
The use of lubricants with specifications inferior to ACEA C3 and SAE grade other than 5W-40 could cause damage
to the engine not covered by the warranty.

ARRANGEMENTS FOR DEALING WITH THE VEHICLE AT THE END OF ITS LIFE
FGA has been committed for many years to safeguarding the environment through the constant improvement of its
production processes and manufacturing products that are increasingly compatible with the ecosystem. To assure
customers of the best possible service in terms of respecting environmental laws and in response to European
Directive 2000/53/EC governing vehicles at the end of their life, FGA is offering their customers the opportunity of
handing over their vehicle* at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur
any expenses as a result of its market value. In particular, in almost all European Union countries, until 1st January
2007, vehicles registered after 1st July 2002 will be collected free of charge, whilst from 2007 collection will be free
of charge irrespective of the year of registration as long as the vehicle contains its basic components (in particular,
the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, contact an FGA Dealership or authorised
collection and scrapping centres. These centres have been carefully chosen to offer high quality service for the
collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an Abarth Dealership or by
calling the freephone number 00800 22278400 or on the Fiat website.
